RADWAG XA 6.5Y.M XA 5Y.M Microbalance, 6.1g Capacity, 1µg Readability, 21 CFR Part 11, Internal Calibration, OIML Class I

RADWAG XA 6.5Y.M Microbalance — Single-Range 1 µg Resolution for Focused Micro-Weighing

Laboratories requiring dedicated microgram precision will find the RADWAG XA 6.5Y.M Microbalance an ideal fit. Offering a 6.1 g maximum capacity with 1 µg readability, this single-range instrument provides focused resolution for trace-level analyses, reference standard verification, and regulated pharmaceutical workflows.

Key Features

• 1 µg Readability at 6.1 g Capacity: Optimised for small-sample work where every microgram matters, delivering repeatability as fine as 0.8 µg at 5% of maximum load.
• Full 21 CFR Part 11 Support: Integrated electronic signatures, tamper-proof audit trails, and secure user management satisfy FDA requirements for pharmaceutical data integrity.
• Interactive Widget Dashboard: The 10-inch touchscreen displays configurable widgets for ambient monitoring, USP compliance checks, and live measurement statistics, streamlining your workflow.
• RFID and NFC User Authentication: Verify operator identity through RFID cards, passwords, or combined methods, ensuring only authorised personnel access sensitive weighing functions.
• Touch-Free Sensor Control: Two infrared proximity sensors allow hands-free taring and data capture, minimising disturbances to the weighing environment during critical measurements.

Detailed Overview

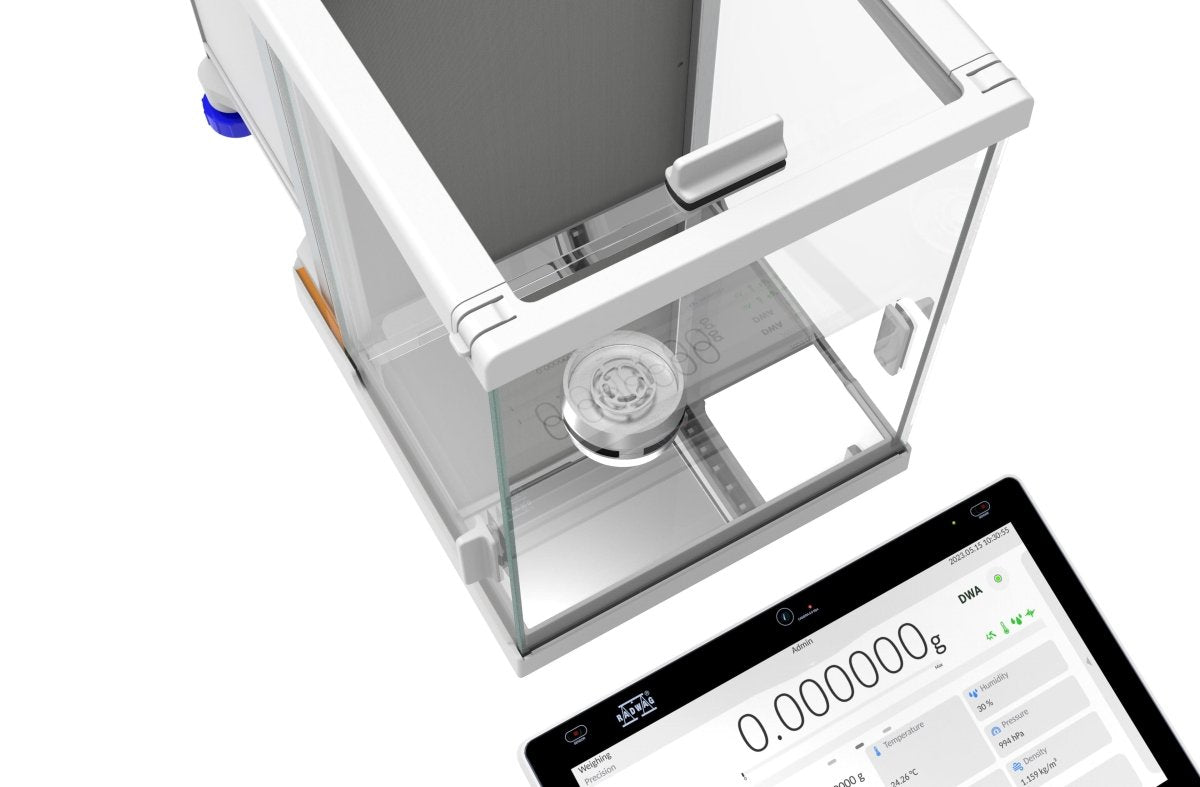

The RADWAG XA 6.5Y.M Microbalance is engineered around a high-resolution electromagnetic cell paired with automatic internal calibration to maintain accuracy over time without manual intervention. Its semi-automatic LevelSENSING system ensures the instrument remains properly aligned, while the Digital Weighing Auditor continuously evaluates environmental factors such as temperature fluctuations and humidity changes. With linearity of ±7 µg and a stabilisation time of approximately 3.5 seconds, the balance responds quickly without sacrificing measurement integrity. The manually opened weighing chamber houses a ø30 mm pan, providing a controlled micro-environment that minimises drafts during microgram-level determinations. Connectivity through USB-A, USB-C, HDMI, Ethernet, and Wi-Fi enables effortless integration with laboratory information systems and remote monitoring stations.

Applications

• Trace-level reference standard weighing in pharmaceutical labs
• Gravimetric preparation of calibration solutions
• Academic and R&D micro-sample analysis
• Quality assurance testing under GMP/GLP protocols

Why Choose the RADWAG XA 6.5Y.M?

For laboratories that focus on a single capacity range and demand uncompromising microgram accuracy, the XA 6.5Y.M delivers. Its regulatory-ready feature set, intuitive touchscreen operation, and robust environmental monitoring make it a reliable partner for critical analytical work. Order today to bring dedicated micro-weighing capability to your bench.
