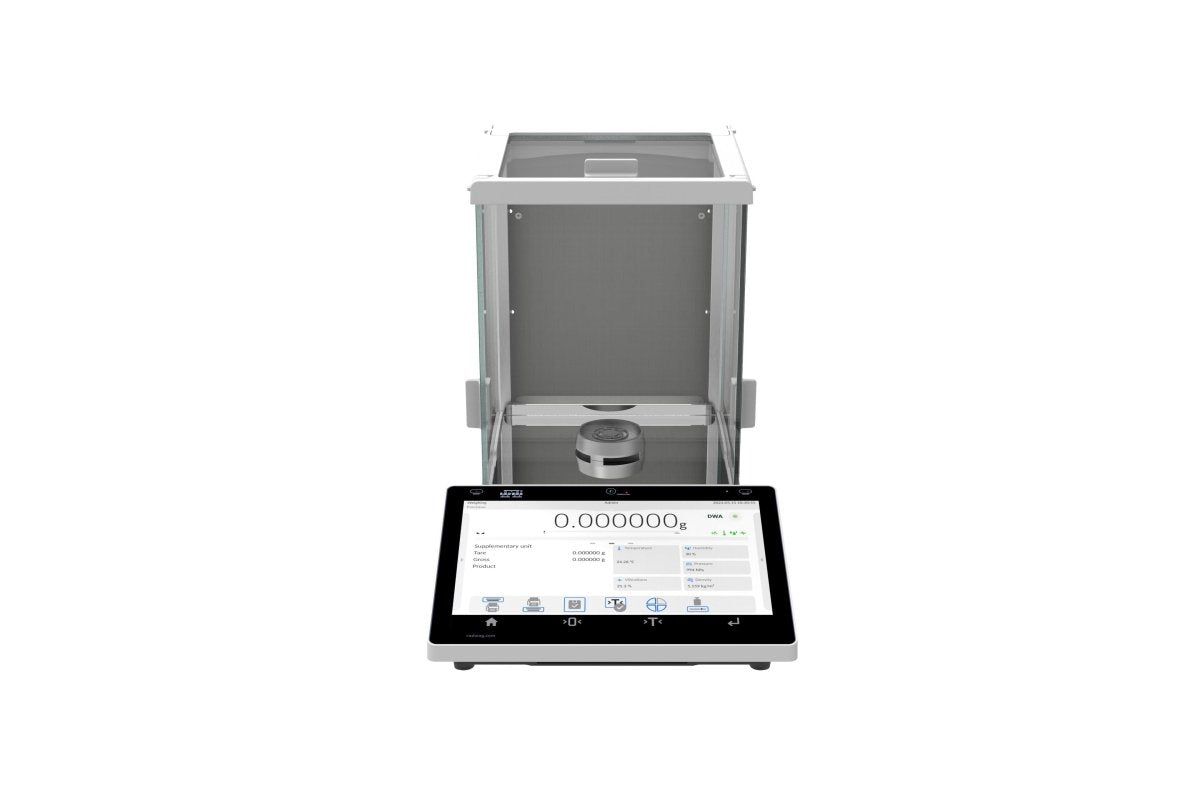

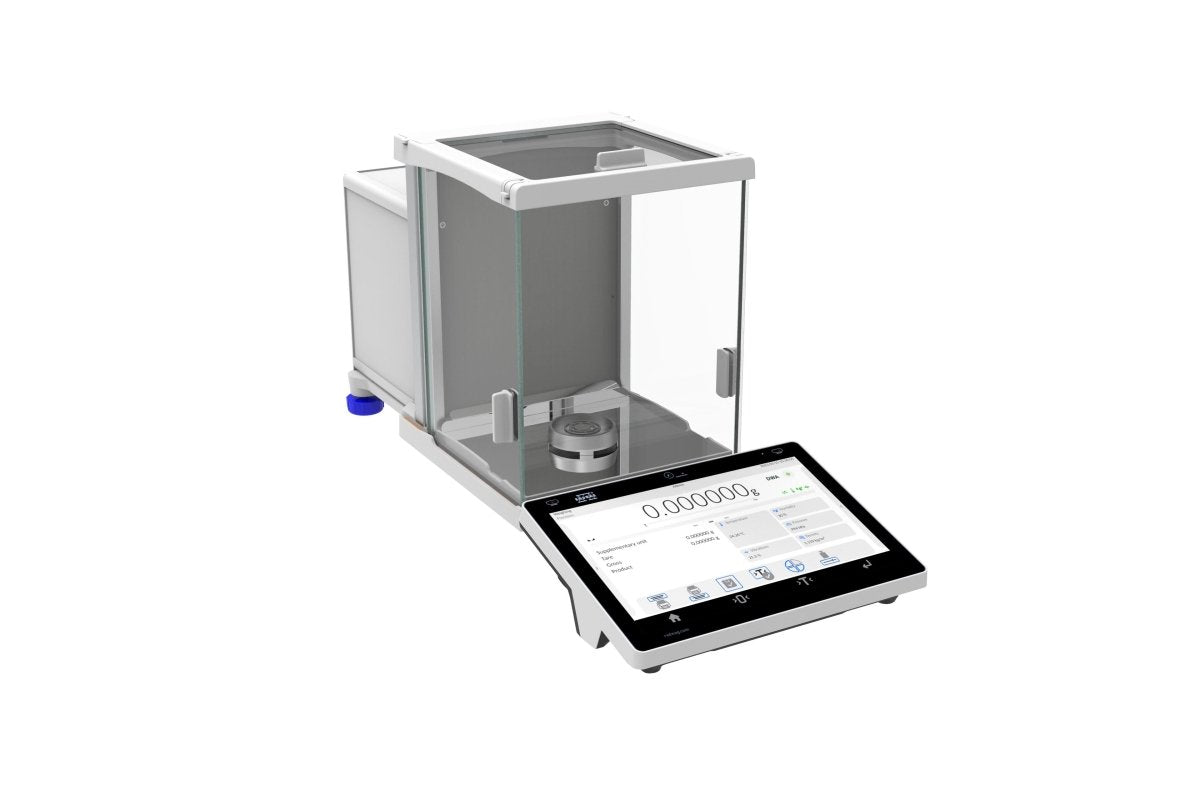

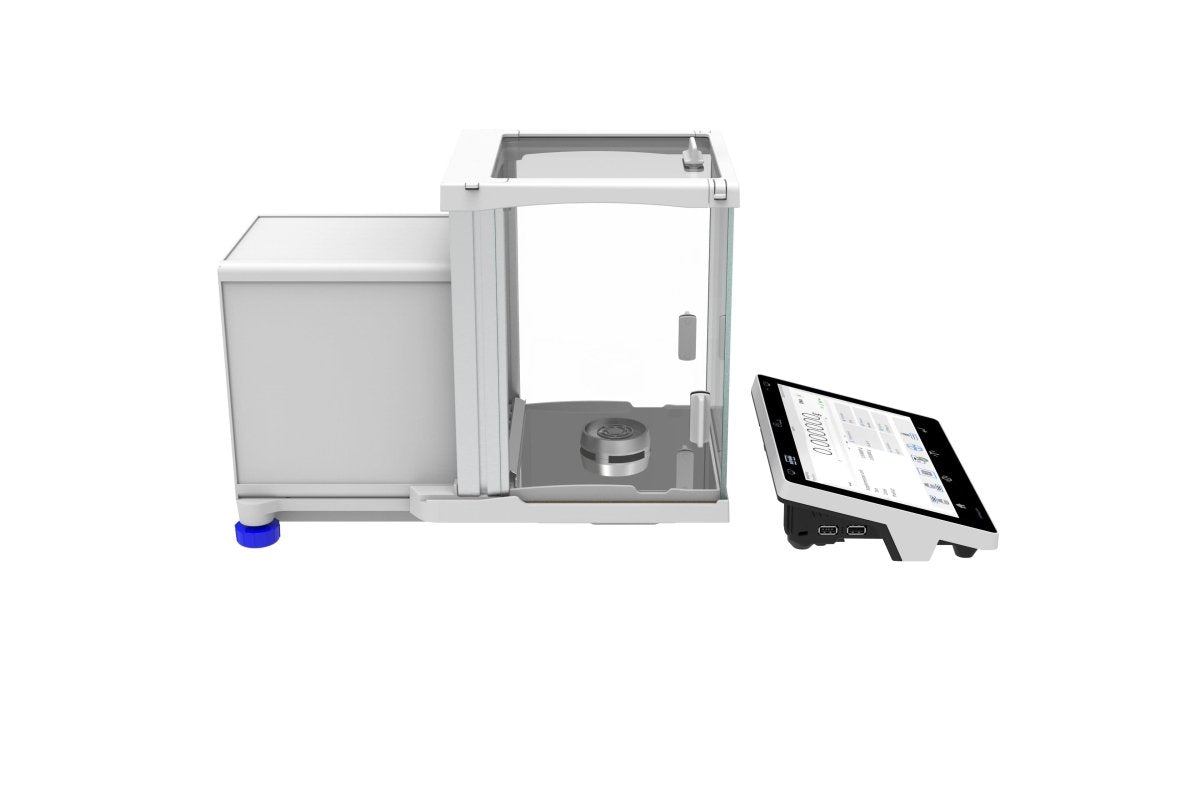

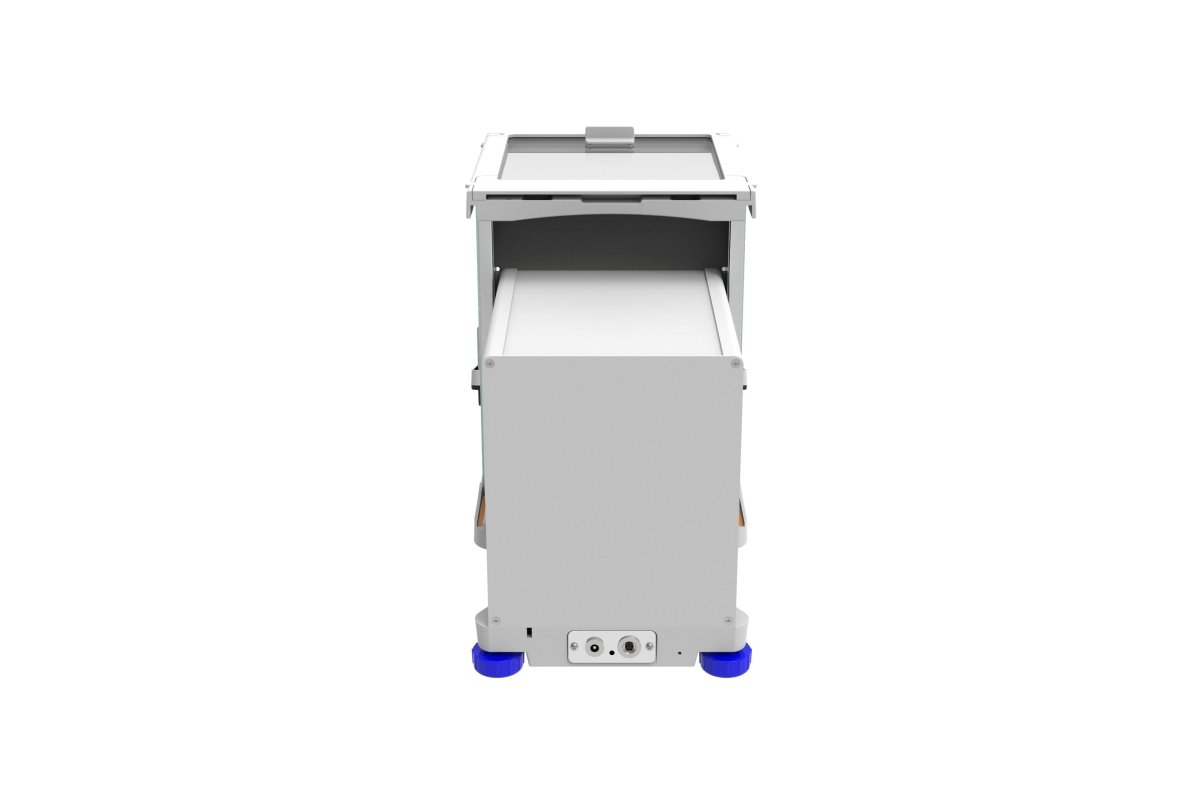

RADWAG XA 6/21.5Y.M XA 5Y.M Microbalance, 6/21g Capacity, 1/2µg Readability, 21 CFR Part 11, Internal Calibration, OIML Class I

RADWAG XA 6/21.5Y.M Microbalance — Dual-Range Precision for Demanding Microgram Measurements

When your research demands measurements at the microgram level, the RADWAG XA 6/21.5Y.M Microbalance delivers dual-range capability with 6 g and 21 g capacities at 1 µg and 2 µg readability respectively. Designed for regulated laboratories that need both ultra-fine resolution and flexible sample handling, this instrument brings pharmaceutical-grade accuracy to every weighing task.

Key Features

• Dual-Range Flexibility: Switch between a 6 g range at 1 µg readability and a 21 g range at 2 µg readability, allowing you to handle both micro-samples and slightly heavier specimens without changing instruments.
• 21 CFR Part 11 Compliance: Full electronic record keeping, audit trails, and electronic signatures ensure your data meets FDA regulatory requirements for pharmaceutical and clinical environments.
• 10-Inch Touchscreen Interface: A large, responsive display with customizable widgets provides real-time monitoring of ambient conditions, levelling status, and measurement data at a glance.
• Touch-Free Operation via IR Sensors: Programmable infrared proximity sensors let you tare, print, or trigger functions without physically contacting the balance, reducing vibration-induced errors.
• Comprehensive Connectivity: Equipped with USB-A, USB-C, HDMI, Ethernet, Wi-Fi, and hotspot capability, enabling seamless integration with LIMS platforms, remote terminals, and peripheral devices.
• Digital Weighing Auditor (DWA): Continuously monitors ambient temperature, humidity, levelling, and calibration status, alerting you when conditions may compromise measurement integrity.

Detailed Overview

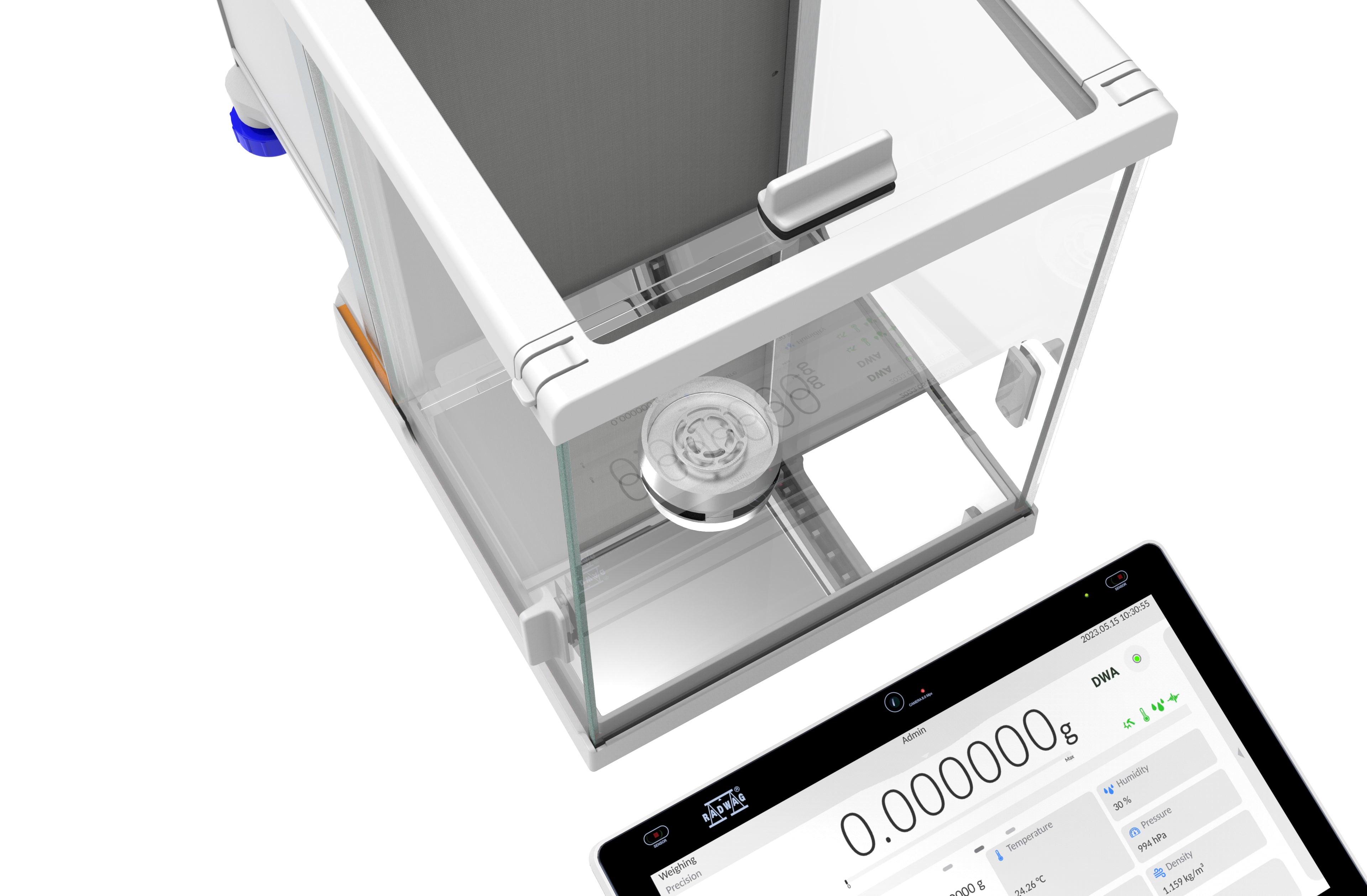

The RADWAG XA 6/21.5Y.M Microbalance combines advanced electromagnetic force compensation with a robust environmental monitoring system to maintain consistent microgram-level results. Its semi-automatic levelling with LevelSENSING technology simplifies setup and ongoing verification, while automatic internal calibration eliminates the need for external weights. RFID and NFC tag compatibility offers an additional layer of user verification and sample tracking, making the instrument well suited for GLP and GMP workflows. The manually operated weighing chamber accommodates a ø30 mm pan within a 168 × 160 × 228 mm chamber, providing adequate clearance for micro-volume containers and capsules while minimising air current interference.

Applications

• Pharmaceutical quality control and USP minimum weight verification
• Micro-sample preparation in analytical chemistry laboratories
• Environmental particulate and filter weighing
• Research and development of active pharmaceutical ingredients

Why Choose the RADWAG XA 6/21.5Y.M?

This microbalance is purpose-built for laboratories where regulatory compliance, measurement precision, and workflow efficiency must coexist. Its dual-range design reduces the need for multiple instruments, while 21 CFR Part 11 readiness and DWA monitoring ensure full traceability. Add to cart to equip your lab with a microbalance that meets the strictest analytical standards.
