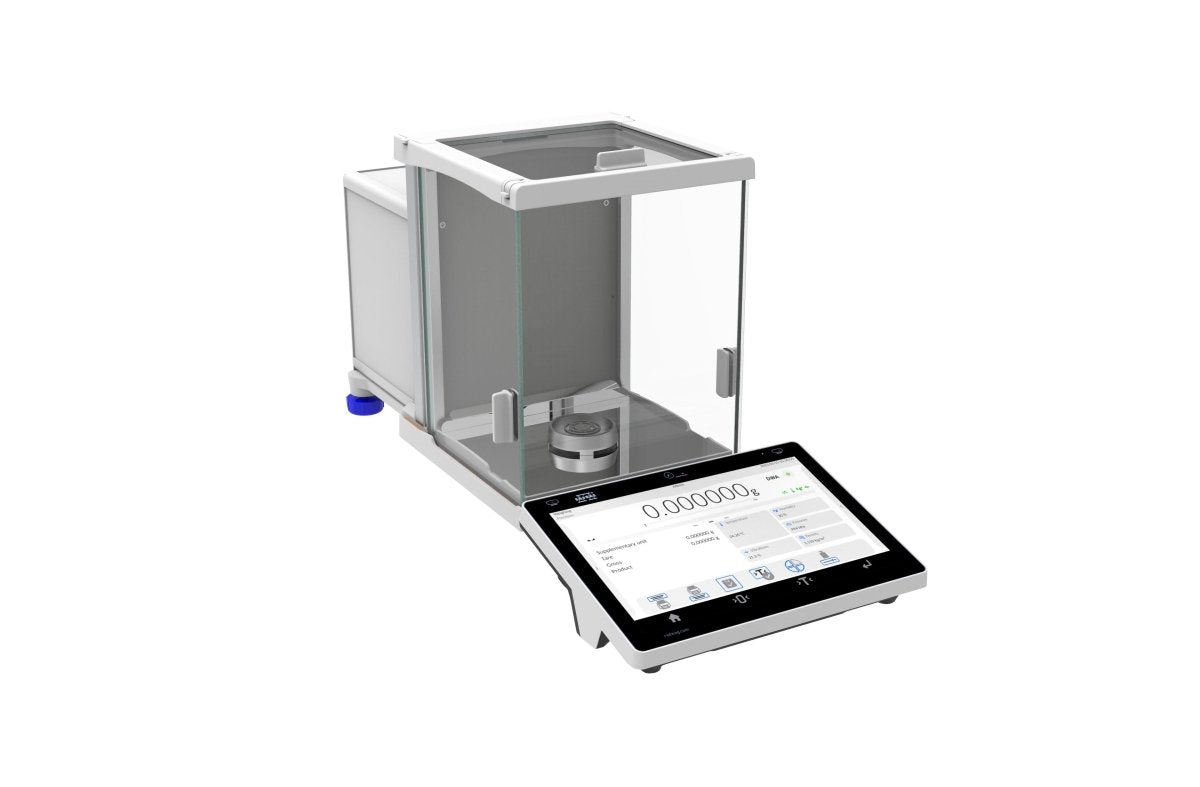

RADWAG XA 53.5Y.M Microbalance — High-Capacity Microgram Weighing for Demanding Labs

Not every microgram measurement involves tiny samples. Heavier containers, multi-component preparations, and larger reference weights can push standard microbalance capacities to their limits. The RADWAG XA 53.5Y.M Microbalance solves this with 53 g capacity at 1 µg readability, giving laboratories generous tare allowance while preserving sub-milligram precision.

Key Features

• 53 g Capacity with 1 µg Readability: Accommodates heavier tare vessels and sample holders without sacrificing the microgram resolution needed for precision mass determination.
• Digital Weighing Auditor (DWA): Tracks ambient temperature, humidity, leveling, and calibration status in real time, alerting operators to conditions that could compromise measurement integrity.
• 21 CFR Part 11 Compliance: Supports electronic records, encrypted audit trails, and multi-factor user authentication for GMP-regulated pharmaceutical and biotechnology environments.
• RFID and NFC Tag Compatibility: Identify samples, products, and operators through contactless tags for rapid, error-free documentation during high-volume weighing sessions.
• 10-Inch Touchscreen with Remote Connectivity: Access the balance from a phone, tablet, or computer via Hotspot for off-bench monitoring, and view multi-screen widget layouts for comprehensive status awareness.

Detailed Overview

The XA 53.5Y.M uses RADWAG's 5Y electromagnetic force restoration sensor, tuned for microgram performance across a 53 g range. Standard repeatability is 1.5 µg at 5 % of capacity, with linearity controlled to ±20 µg. The semi-automatic LevelSENSING system guides the operator through leveling when tilt is detected, while the ø30 mm pan is optimized for small-volume containers and capsules. Stabilization occurs in roughly 3.5 seconds, supporting efficient multi-sample sequences. Comprehensive interfaces — USB-A, USB-C, HDMI, Ethernet, Wi-Fi, and Hotspot — connect the balance to printers, LIMS platforms, and remote terminals without additional hardware.

Applications

• Active pharmaceutical ingredient micro-weighing and verification
• High-value component mass determination in specialty chemical production
• Trace-level residue analysis in forensic and environmental laboratories
• Calibration service weight verification at microgram tolerances

Why Choose the RADWAG XA 53.5Y.M?

When your microweighing workflow involves containers and accessories that approach the limits of 21 g microbalances, the 53 g capacity of the XA 53.5Y.M eliminates tare restrictions. Combined with OIML Class I certification and full regulatory compliance features, it serves both metrological and pharmaceutical applications. Order today and expand your microgram measurement capability.
