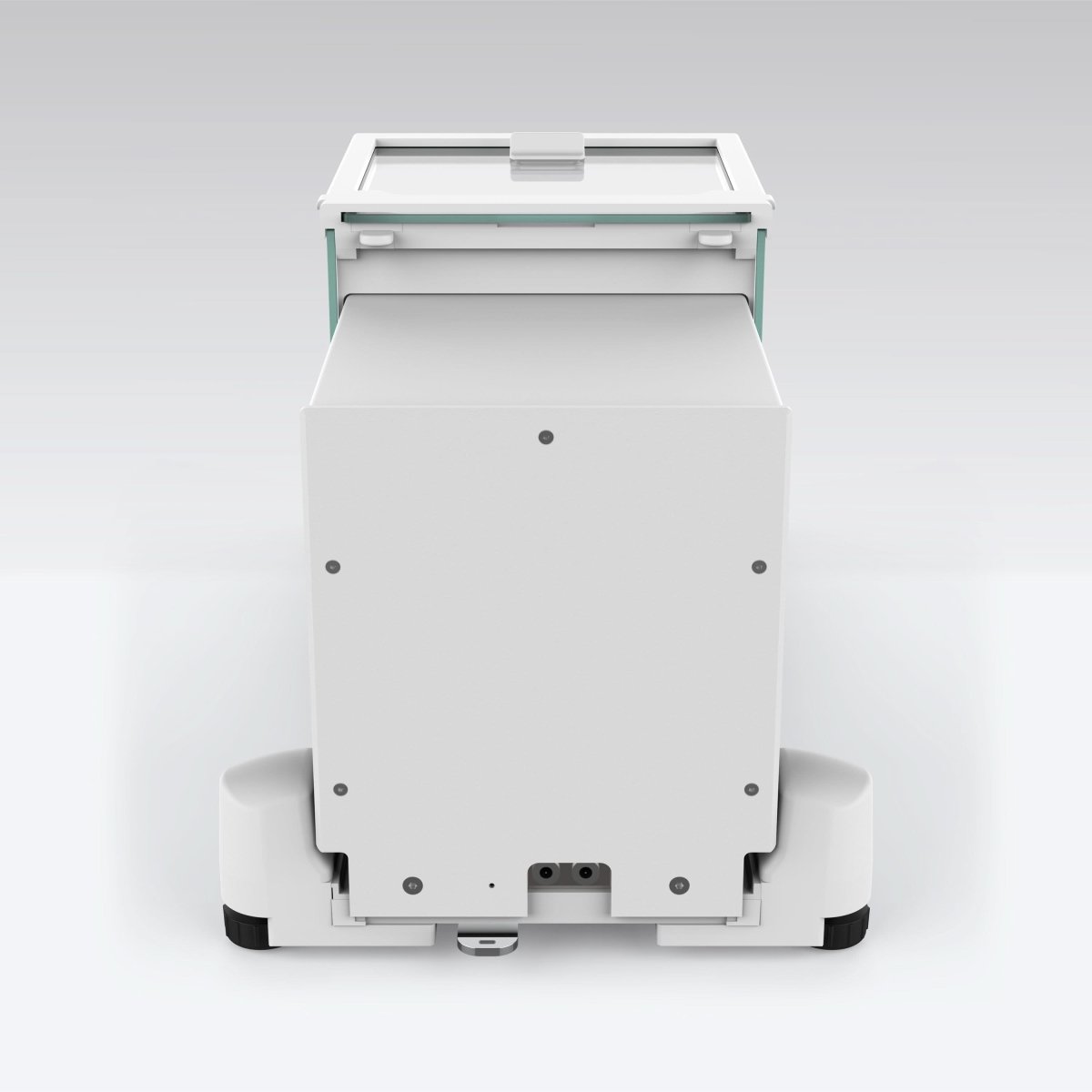

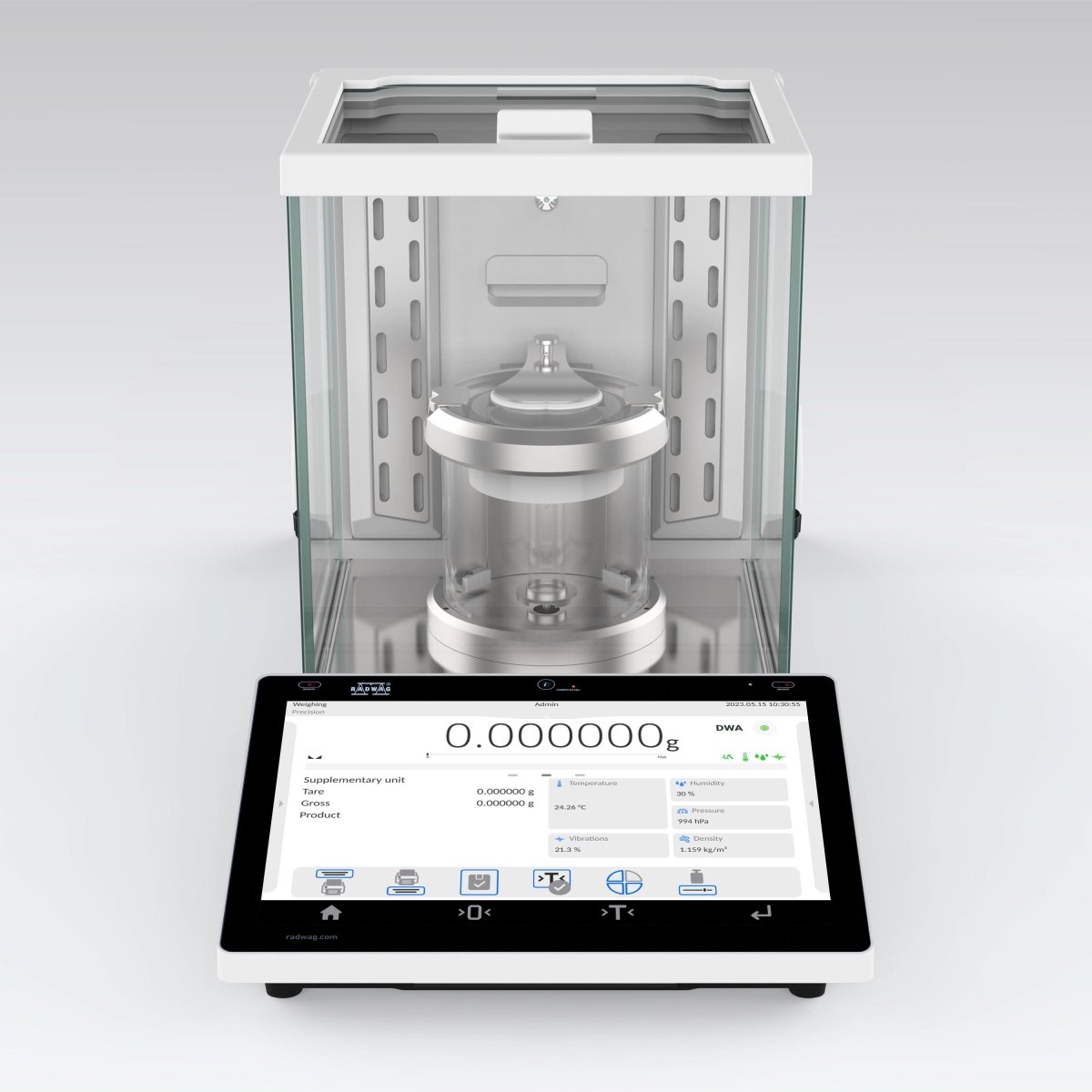

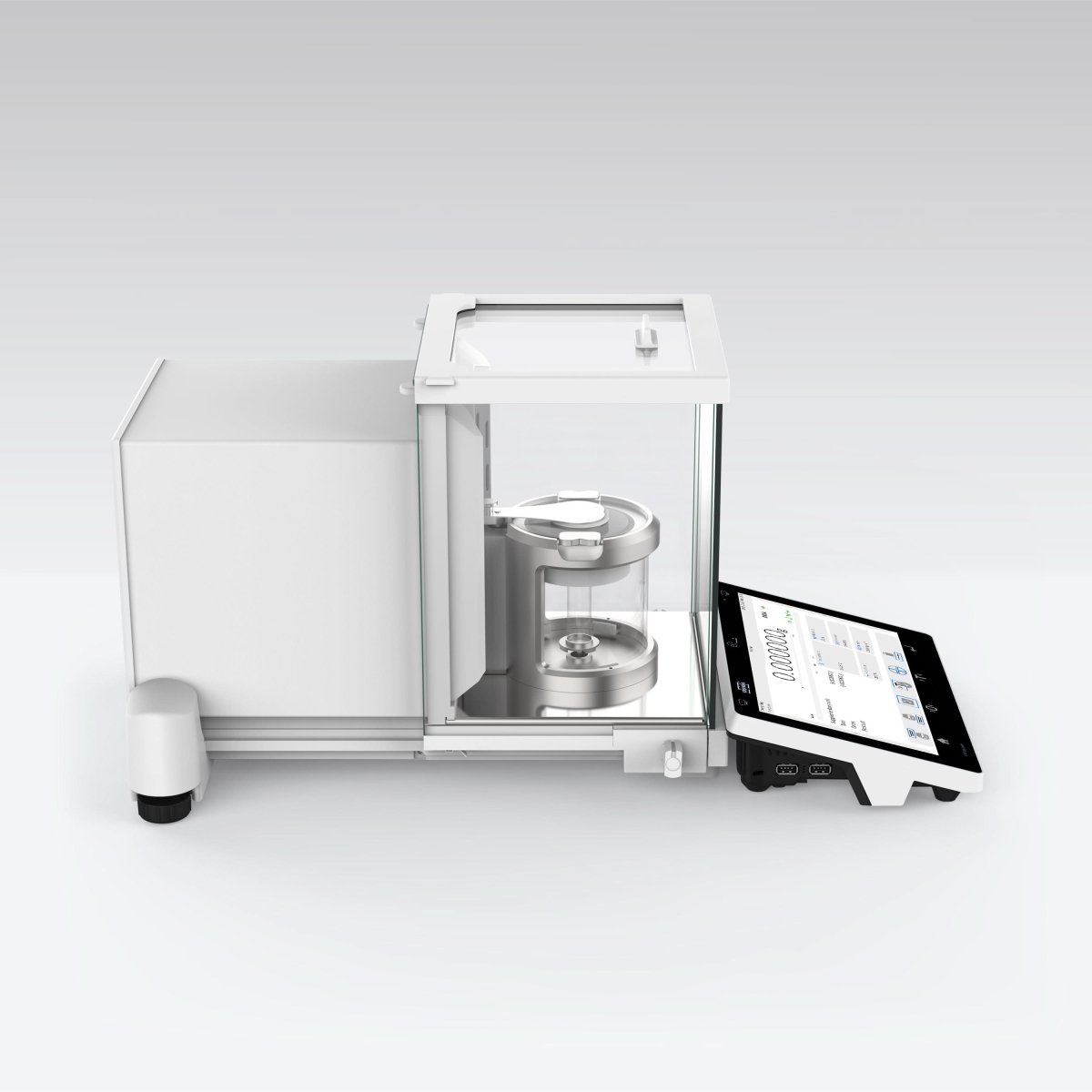

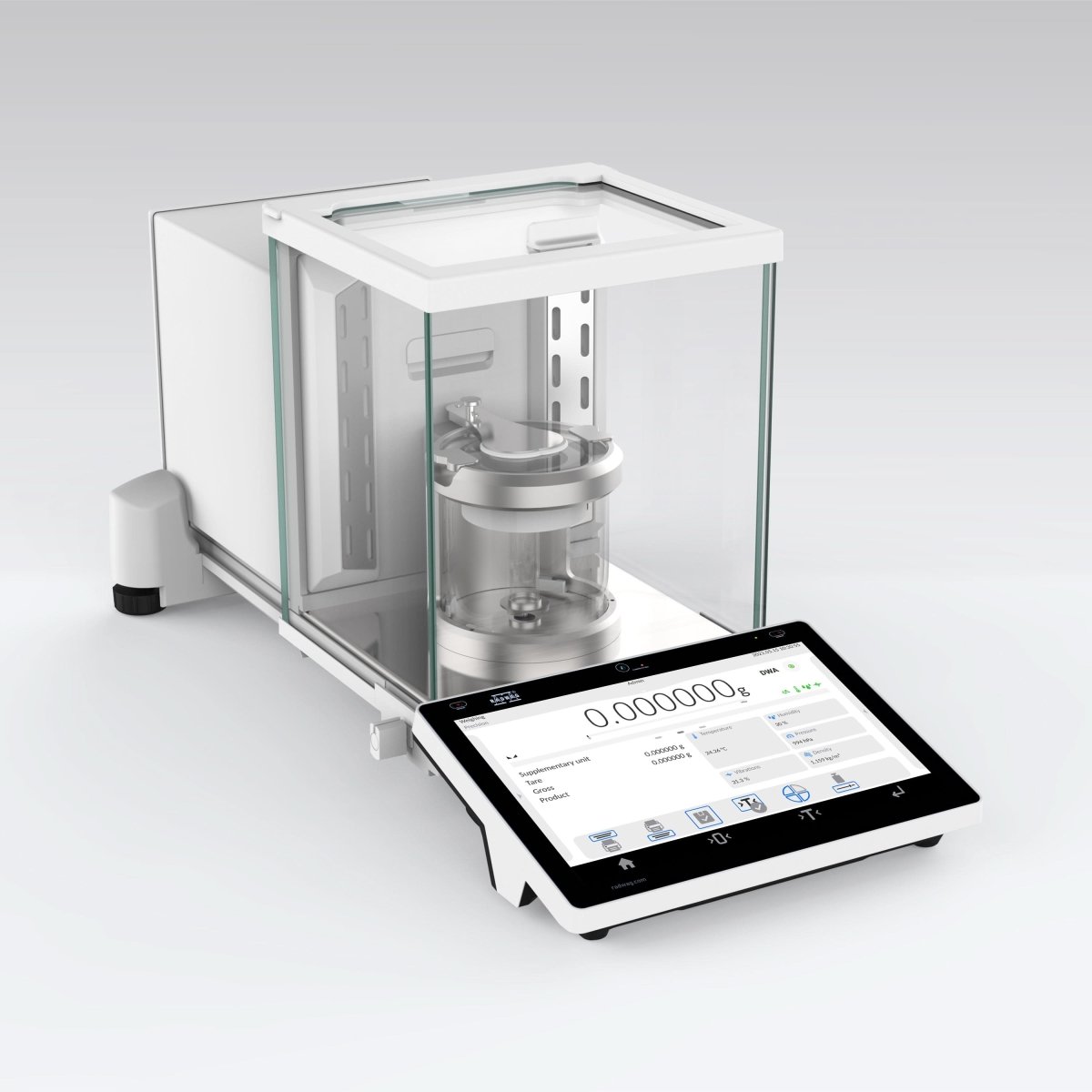

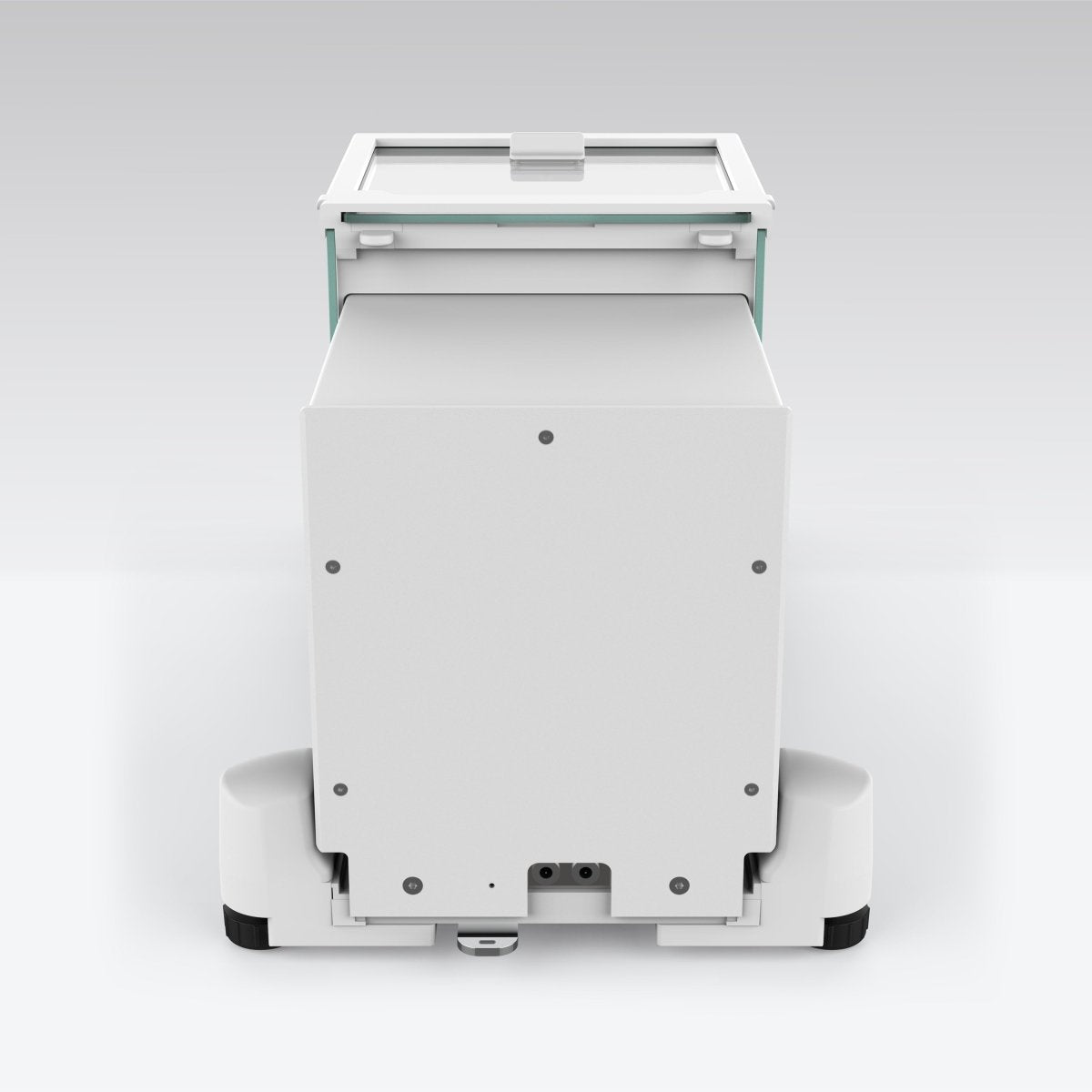

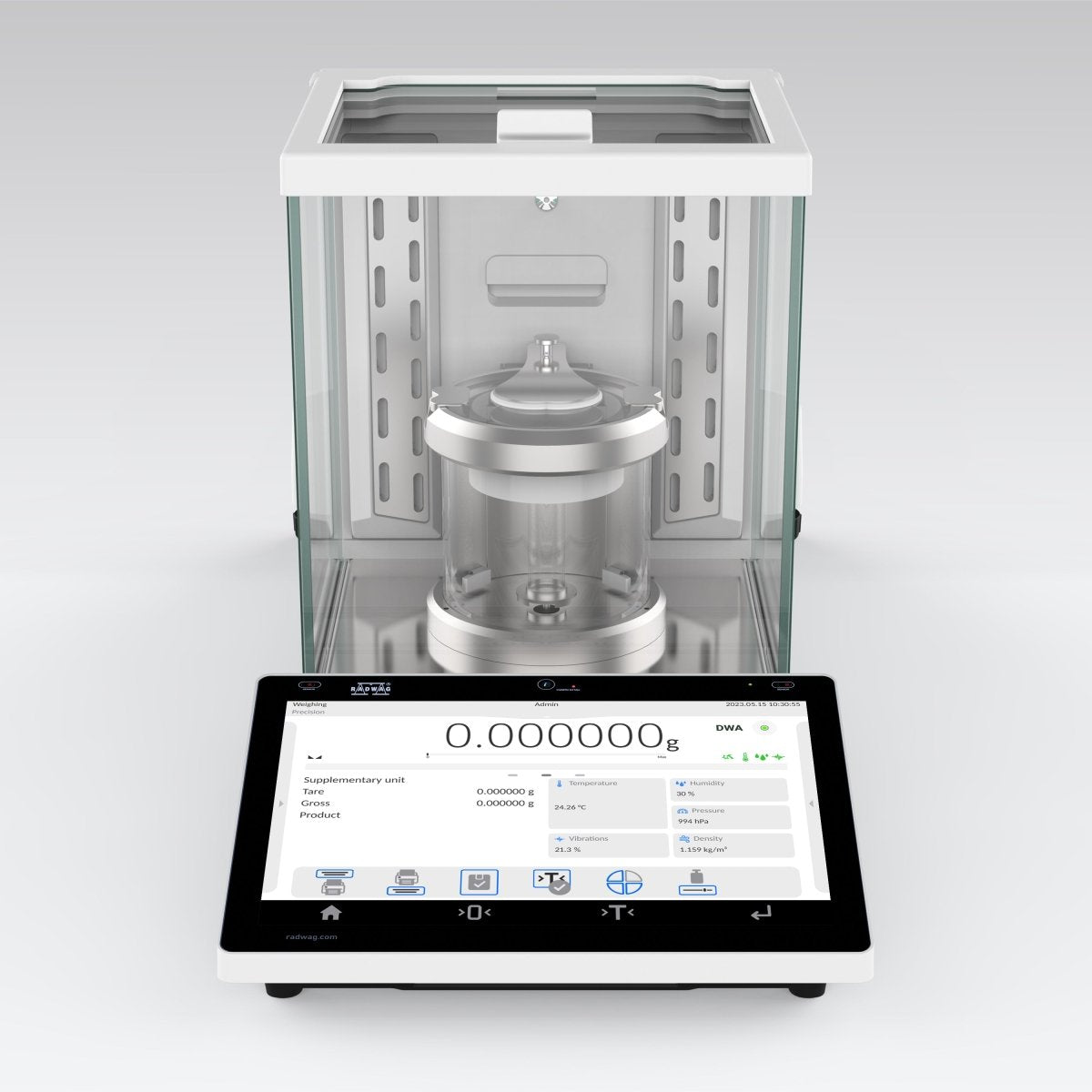

RADWAG XA 53.5Y.M.A.P XA 5Y.M.A.P Microbalance, 53g Capacity, 1µg Readability, Internal Calibration, OIML Class I

RADWAG XA 53.5Y.M.A.P Microbalance — 1 µg Readability with Ionizer and Pipette Calibration

Pipette calibration laboratories and pharmaceutical facilities that demand traceable volume verification at the microgram level will find the RADWAG XA 53.5Y.M.A.P Microbalance purpose-built for their needs. Offering 1 µg readability across a 53 g capacity, this instrument integrates an antistatic ionizer, fully automatic leveling, and a dedicated pipette calibration mode among its 19 weighing functions — all certified to OIML Class I.

Key Features

• Dedicated Pipette Calibration Mode: A built-in gravimetric pipette calibration function automates volume-verification calculations, reducing manual data handling and improving throughput in calibration laboratories.
• 1 µg Readability at 53 g Capacity: Single-microgram resolution resolves the tiny mass differences that underpin accurate pipette volume calculations, filter weighing, and micro-sample analysis.
• Built-In Antistatic Ionizer: Neutralizes static charges on sample containers and pipette tips before measurement, eliminating a major source of drift at microgram-level sensitivity.
• Fully Automatic Leveling: Motorized feet adjust continuously, maintaining perfect orientation without operator input and protecting measurement accuracy over extended calibration sessions.
• 10-Inch Touchscreen with 19 Functions: Beyond pipette calibration, the balance offers formulation, statistics, differential weighing, density, and additional modes, making it versatile enough for diverse analytical tasks.
• Internal Automatic Calibration: Built-in reference masses ensure the weighing cell stays within specification, triggered by temperature changes or user-defined schedules.

Detailed Overview

The XA 53.5Y.M.A.P builds on the proven 5Y.M.A platform, adding a purpose-built pipette calibration application that complies with ISO 8655 gravimetric method requirements. Standard repeatability of 1.5 µg at 5 % load and linearity of ±20 µg confirm the instrument's metrological capability for both pipette verification and general micro-weighing. RFID and NFC tag support enables secure user identification, while USB-A, USB-C, HDMI, Ethernet, Wi-Fi, and Hotspot connectivity integrate the balance into laboratory information networks. The Digital Weighing Auditor monitors ambient temperature, humidity, and balance status, ensuring every measurement is performed under validated conditions. The manually opened weighing chamber accommodates a ∅30 mm pan within a 168 × 160 × 228 mm chamber space.

Applications

• Gravimetric pipette calibration per ISO 8655
• Pharmaceutical micro-dosing and active ingredient quantification
• Filter weighing for particulate and environmental analysis
• Reference material preparation in metrology laboratories
• Micro-sample research in chemistry and materials science

Why Choose the RADWAG XA 53.5Y.M.A.P?

Few microbalances combine 1 µg readability, antistatic protection, automatic leveling, and a dedicated pipette calibration mode in one instrument. The XA 53.5Y.M.A.P eliminates the need for separate balances and external software, streamlining calibration workflows and analytical micro-weighing alike. Add to cart at Weighcore to bring ISO 8655-ready pipette verification and microgram precision to your laboratory.
