RADWAG XA 53.5Y.M.A Microbalance — Automated 1 µg Precision with Motorised Chamber and Levelling

When microgram-level accuracy must be achieved consistently across operators and shifts, automation becomes essential. The RADWAG XA 53.5Y.M.A Microbalance combines 53 g capacity at 1 µg readability with an automatically opening weighing chamber, motorised levelling, and 21 CFR Part 11 compliance — removing human variability from the most sensitive stage of your analytical workflow.

Key Features

• 53 g Capacity at 1 µg Readability: Generous capacity for a microbalance allows the use of standard laboratory vessels while maintaining single-microgram discrimination for trace-level work.

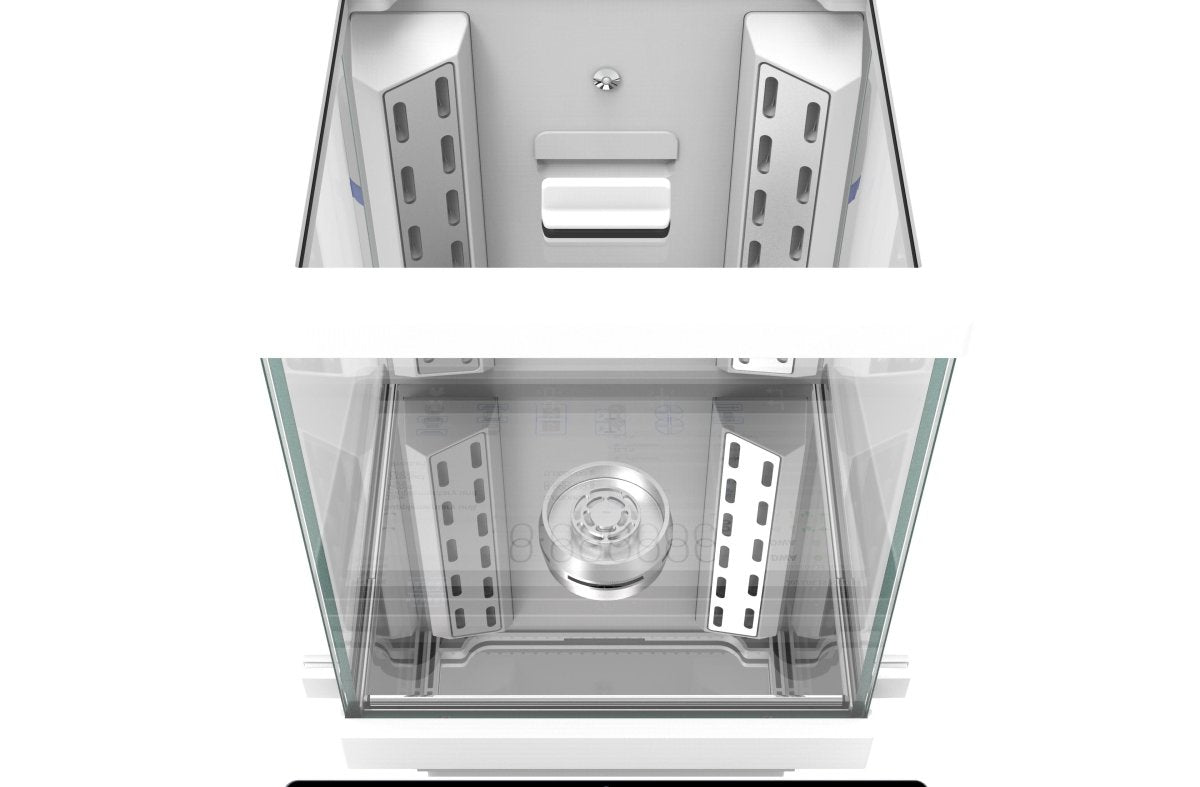

• Automatic Weighing Chamber: Motorised doors open and close with consistent force, eliminating the vibration disturbances that manual handling introduces at microgram sensitivity.
• Automatic Levelling System: The balance levels itself without operator intervention, ensuring measurement validity at all times — a critical advantage in shared or multi-shift environments.
• 21 CFR Part 11 Compliance: Secure logins, electronic signatures, and a protected audit trail satisfy FDA electronic-record requirements for pharmaceutical and medical-device manufacturing.
• Dynamic Weighing Advisor (DWA): Real-time monitoring of temperature, humidity, balance level, and USP minimum-weight compliance warns operators before environmental conditions affect results.
• RFID and NFC Compatibility: Tag-based sample identification and operator authentication speed up workflows and enhance traceability in high-throughput environments.

Detailed Overview

The XA 53.5Y.M.A represents the fully automated tier of RADWAG's 5Y.M microbalance family, adding motorised levelling and chamber control to the platform's 10-inch touchscreen, widget dashboards, and comprehensive connectivity (USB-A, USB-C, HDMI, Ethernet, Wi-Fi, hotspot). Standard repeatability of 1.5 µg at light loads and 6 µg at capacity, together with OIML Class I verification, position this instrument for the most demanding pharmaceutical and environmental applications. An integrated ioniser neutralises electrostatic charge on samples, further safeguarding measurement accuracy. Two-point calibration and remote connectivity via phone, tablet, or computer allow supervisors to verify instrument status without physically visiting the balance.

Applications

• Pharmaceutical micro-dosing and active-ingredient quantitation
• Particulate filter weighing for air-quality monitoring
• Calibration laboratory mass-standard verification
• Materials science thin-film and coating mass measurement

Why Choose the RADWAG XA 53.5Y.M.A?

The XA 53.5Y.M.A Microbalance removes operator variability through full automation of levelling and chamber operation, delivering reproducible microgram results in regulated settings. Its RFID support, ioniser, and CFR compliance make it purpose-built for pharmaceutical and environmental labs. Add it to your cart at Weighcore and automate your microgram measurements.
