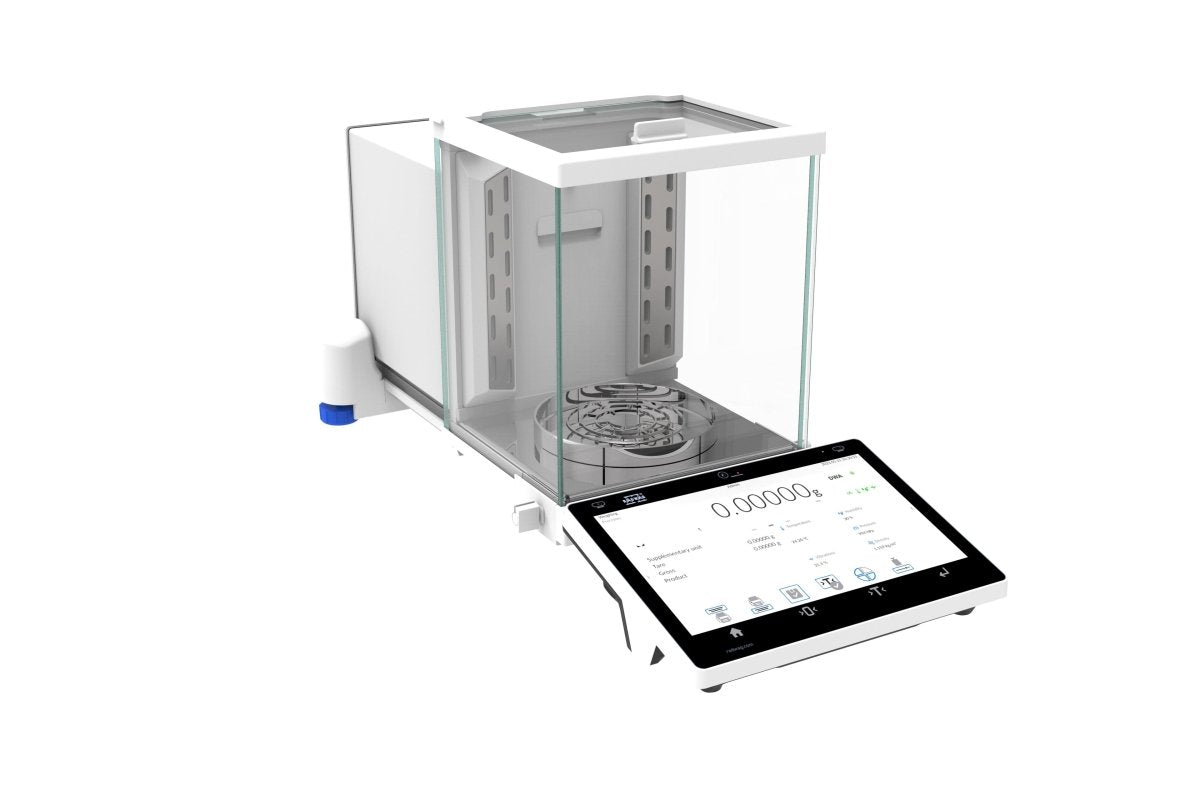

RADWAG XA 520.5Y.A XA 5Y.A Analytical Balance, 520g Capacity, 0.1mg Readability, Internal Calibration

RADWAG XA 520.5Y.A Analytical Balance — 520 g High-Capacity with Antistatic Ionizer and Automatic Doors

High-capacity analytical weighing often encounters electrostatic interference, especially with powders, polymers, and glass vessels. The RADWAG XA 520.5Y.A Analytical Balance addresses this directly with a built-in antistatic ionizer, automatic chamber doors, and fully automatic levelling, delivering 0.1 mg readability across an impressive 520 g capacity range.

Key Features

• Built-In Antistatic Ionizer: Integrated directly into the weighing chamber, the ionizer neutralises electrostatic charges on samples and containers, eliminating a major source of measurement drift in analytical work.
• 520 g Capacity at 0.1 mg Readability: One of the highest-capacity analytical balances available, enabling direct weighing of heavy vessels and larger sample quantities without sacrificing sub-milligram precision.
• Fully Automatic Levelling: The Reflex Level System continuously monitors and adjusts the balance alignment, removing manual levelling as a potential source of measurement uncertainty.
• Automatic Weighing Chamber Doors: Motorised door operation minimises air current disturbances and vibration during loading, maintaining stable conditions for precise measurements.

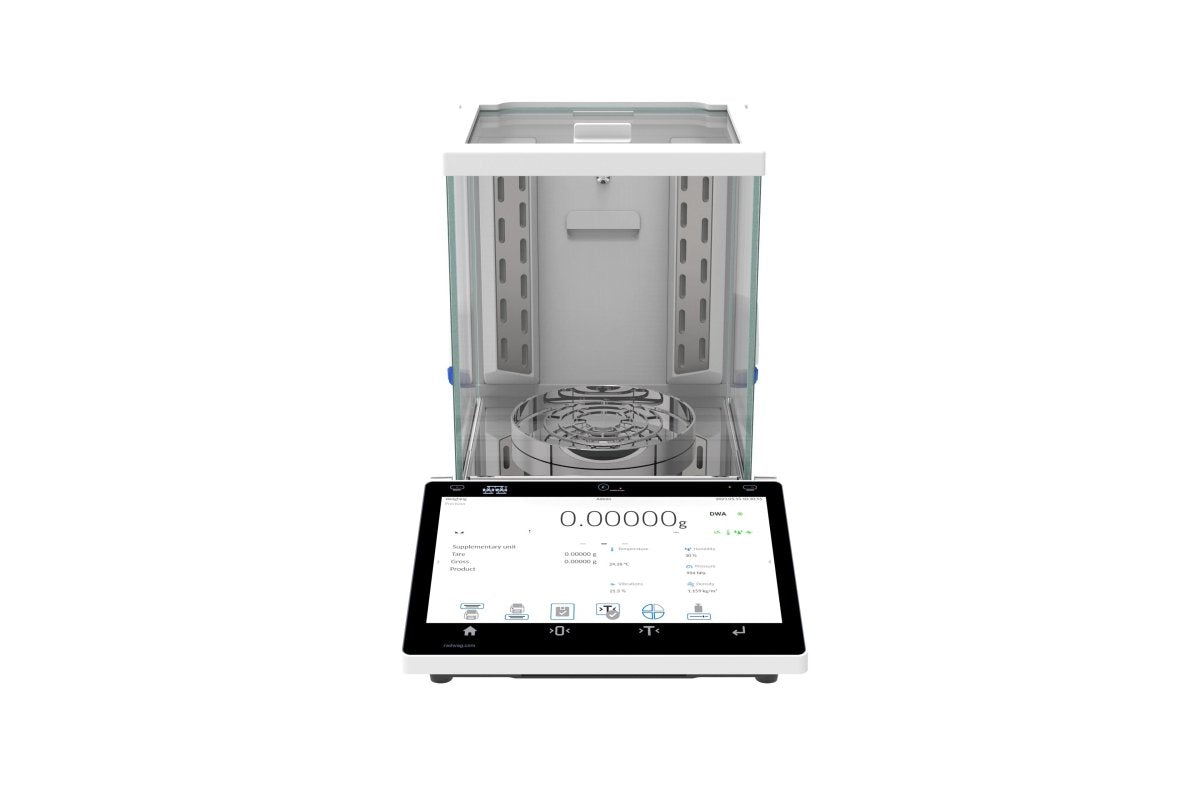

• 10-Inch Touchscreen Dashboard: Configurable widgets provide real-time insight into measurement status, environmental conditions, and calibration readiness on a large, high-resolution display.

Detailed Overview

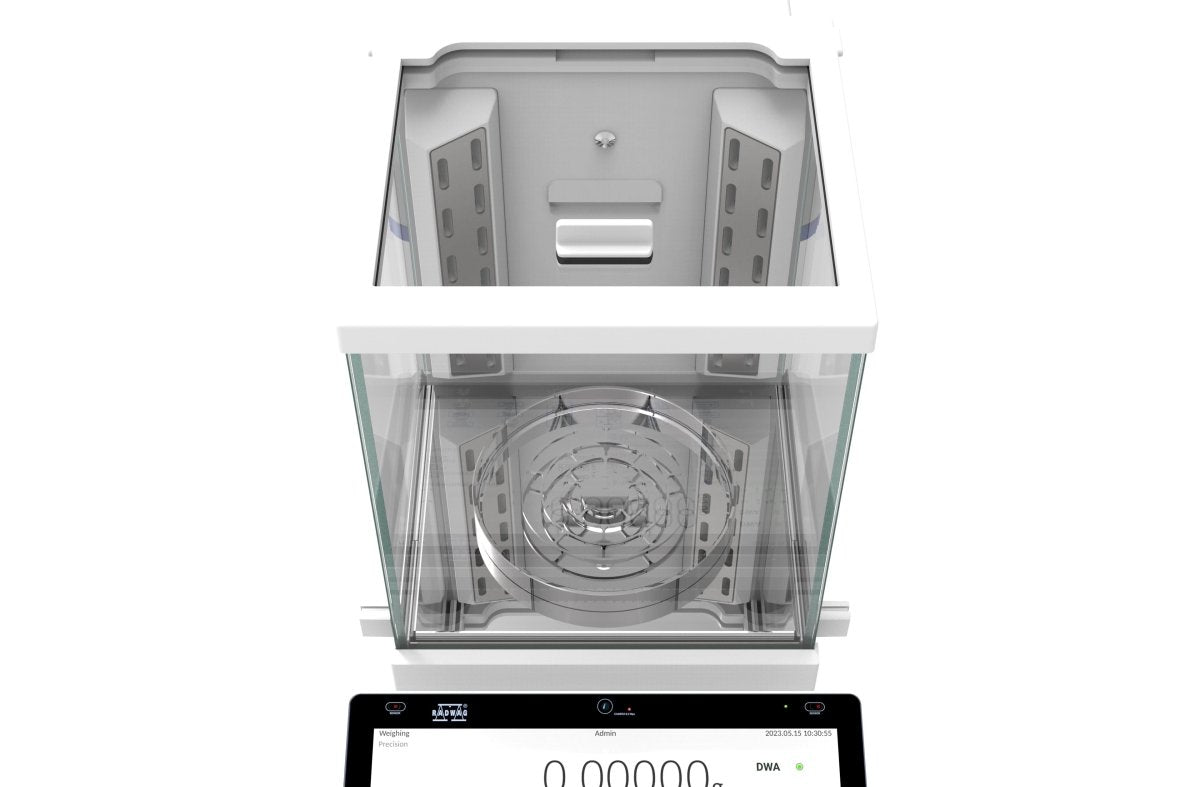

The RADWAG XA 520.5Y.A Analytical Balance combines the 5Y.A series automation with extended capacity for laboratories that regularly handle heavier samples. Repeatability of 0.07 mg at 5% load and 0.18 mg at full capacity, coupled with linearity of ±0.5 mg, provide reliable analytical-grade measurements across the entire weighing range. The ø100 mm pan sits within a 200 × 170 × 220 mm chamber, and the automatic internal calibration ensures ongoing accuracy without manual intervention. Stabilisation time of just 1.3 seconds keeps throughput high, while connectivity via USB-A, USB-C, HDMI, Ethernet, Wi-Fi, and hotspot supports integration with enterprise laboratory systems. Strict environmental specifications—temperature change rates limited to ±0.3 °C per hour—underscore the precision-grade engineering of this instrument.

Applications

• Chemical formulation weighing where electrostatic interference is common
• Pharmaceutical large-batch component weighing with analytical precision
• Polymer and plastics research requiring static-free measurements
• Advanced materials characterisation and quality control

Why Choose the RADWAG XA 520.5Y.A?

The integrated ionizer, automatic levelling, and automatic doors make this analytical balance exceptionally well suited for environments where electrostatic charges and manual handling introduce measurement errors. Its 520 g capacity expands the scope of analytical weighing beyond what most instruments can offer. Order today to bring high-capacity, static-free analytical precision to your laboratory.
