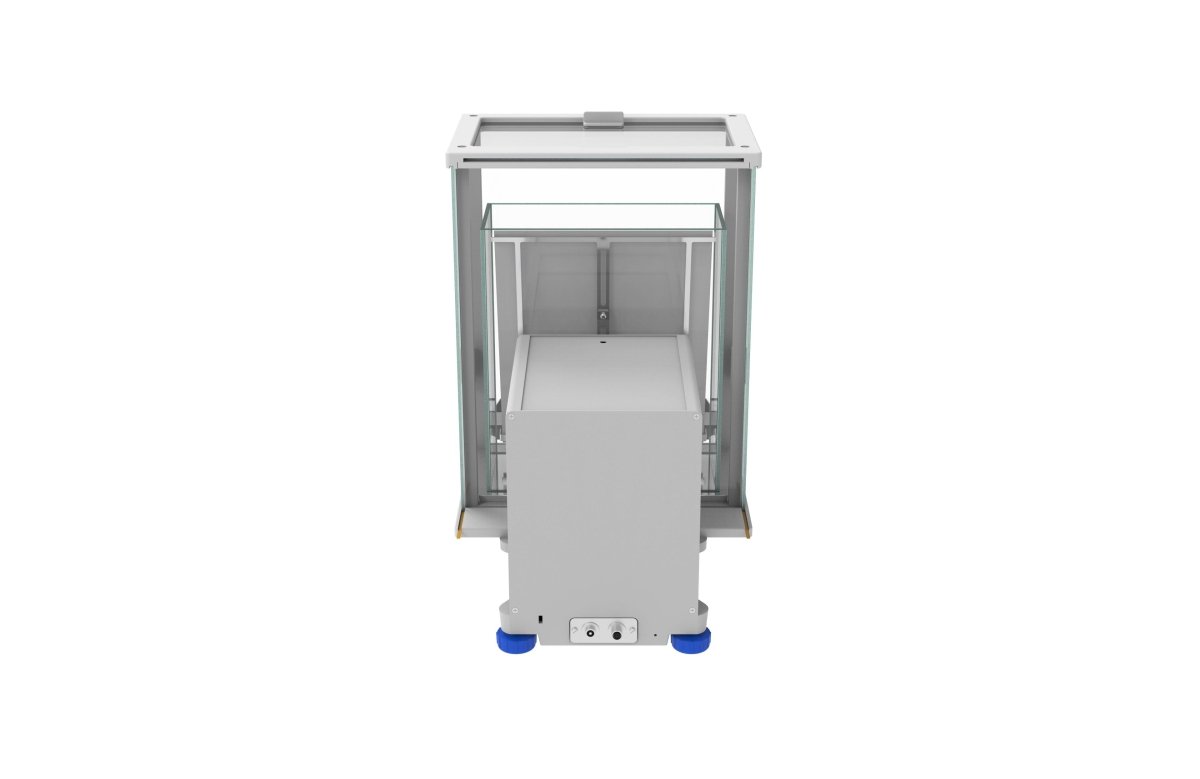

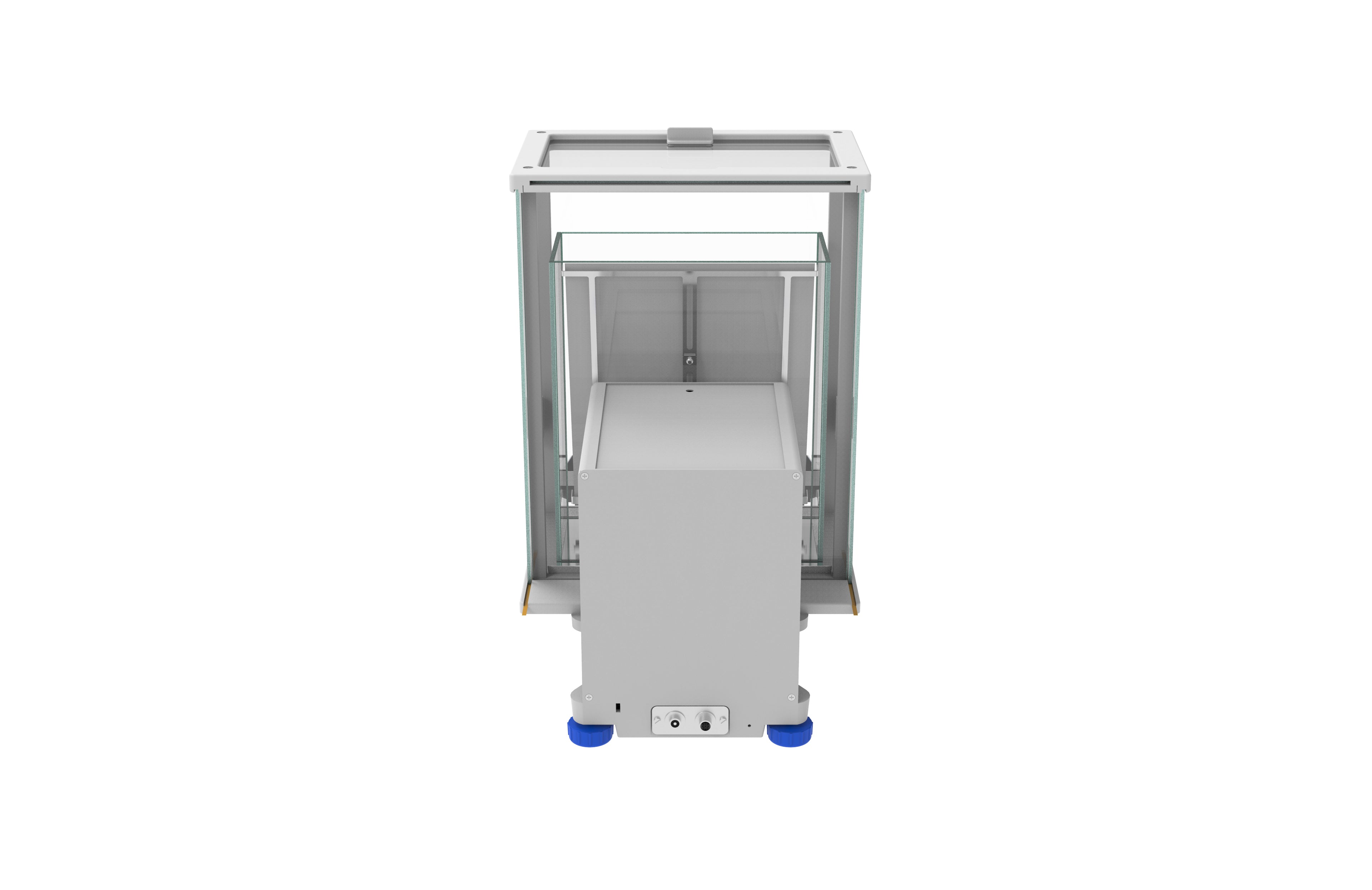

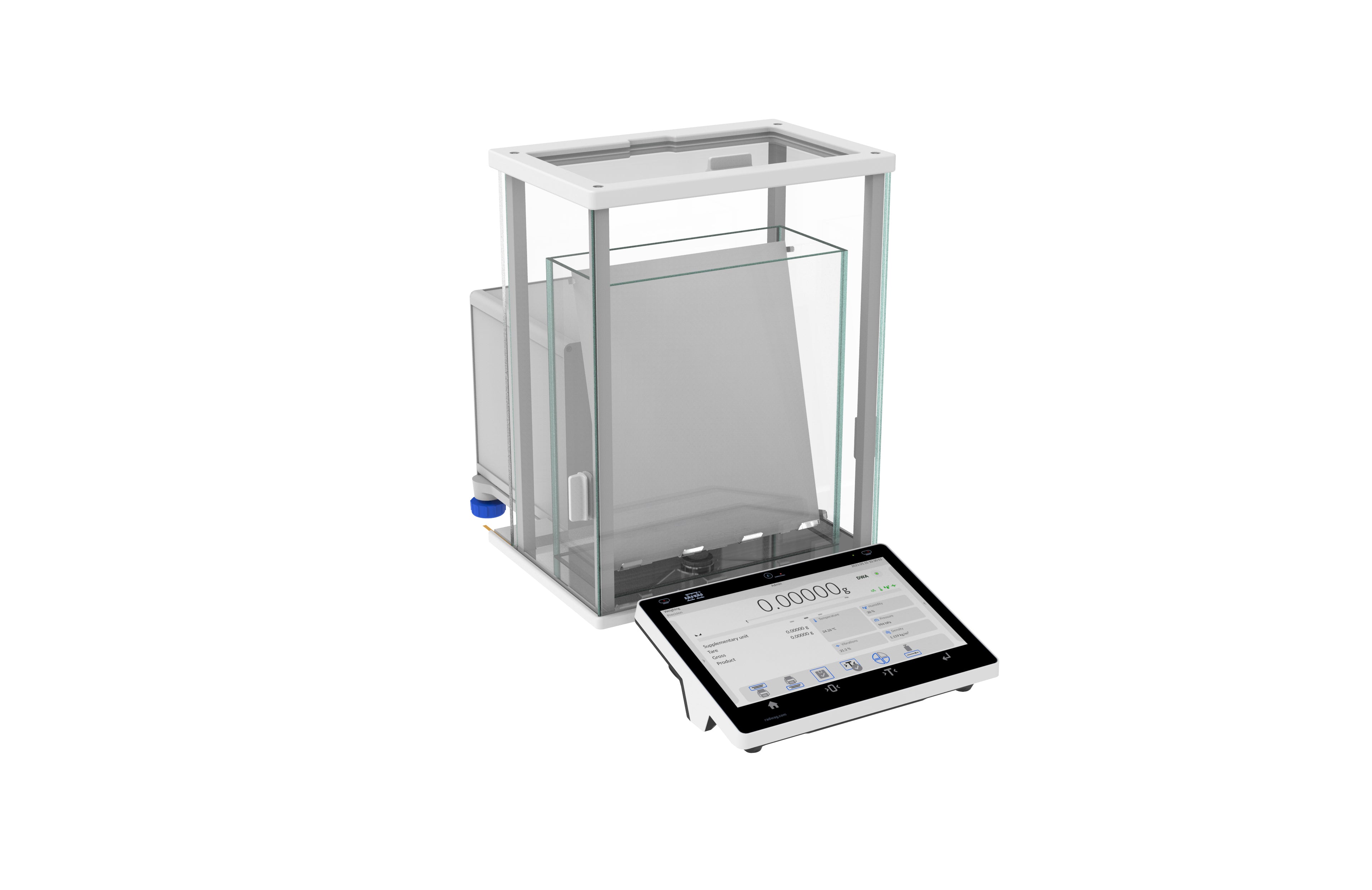

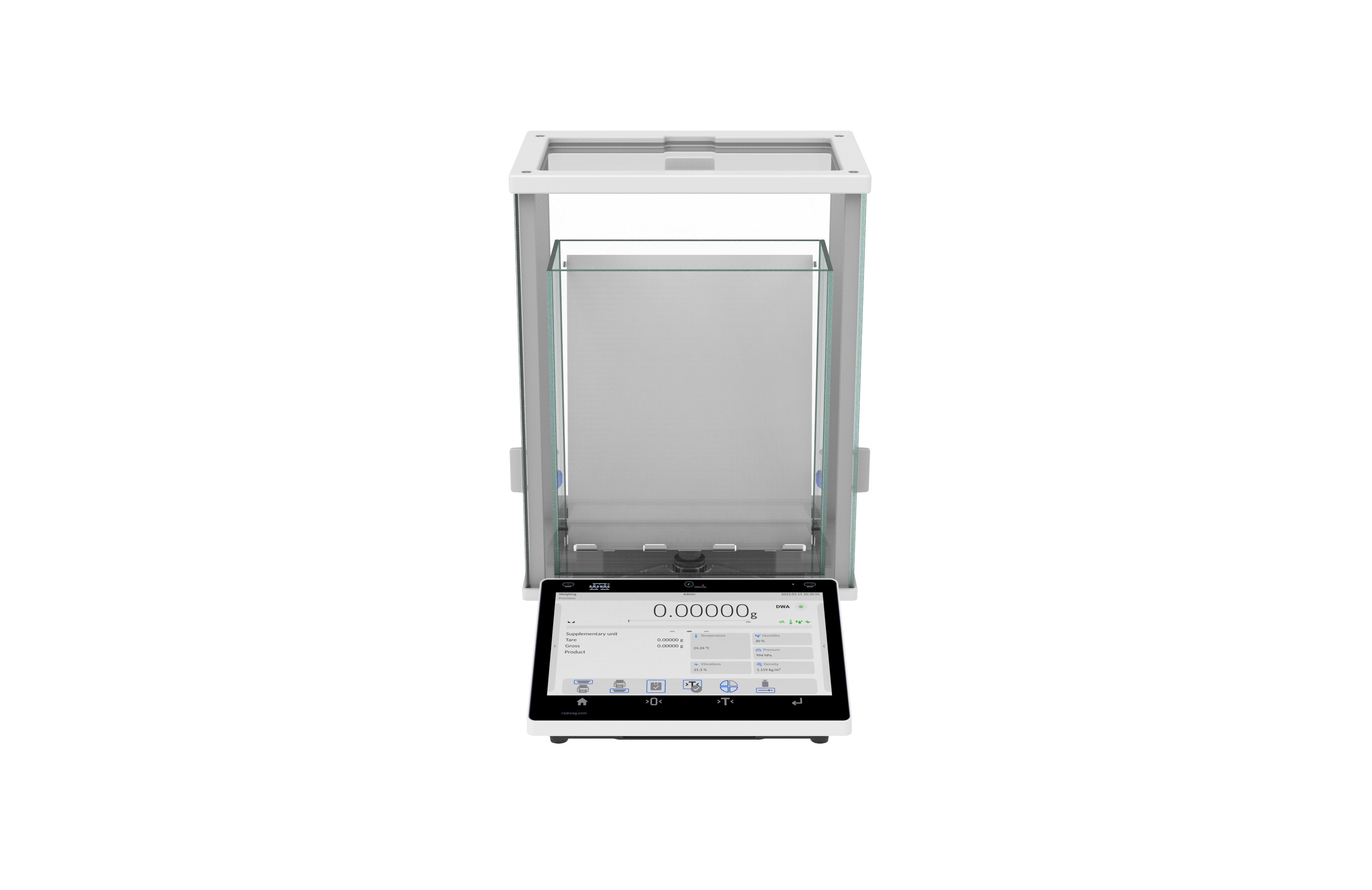

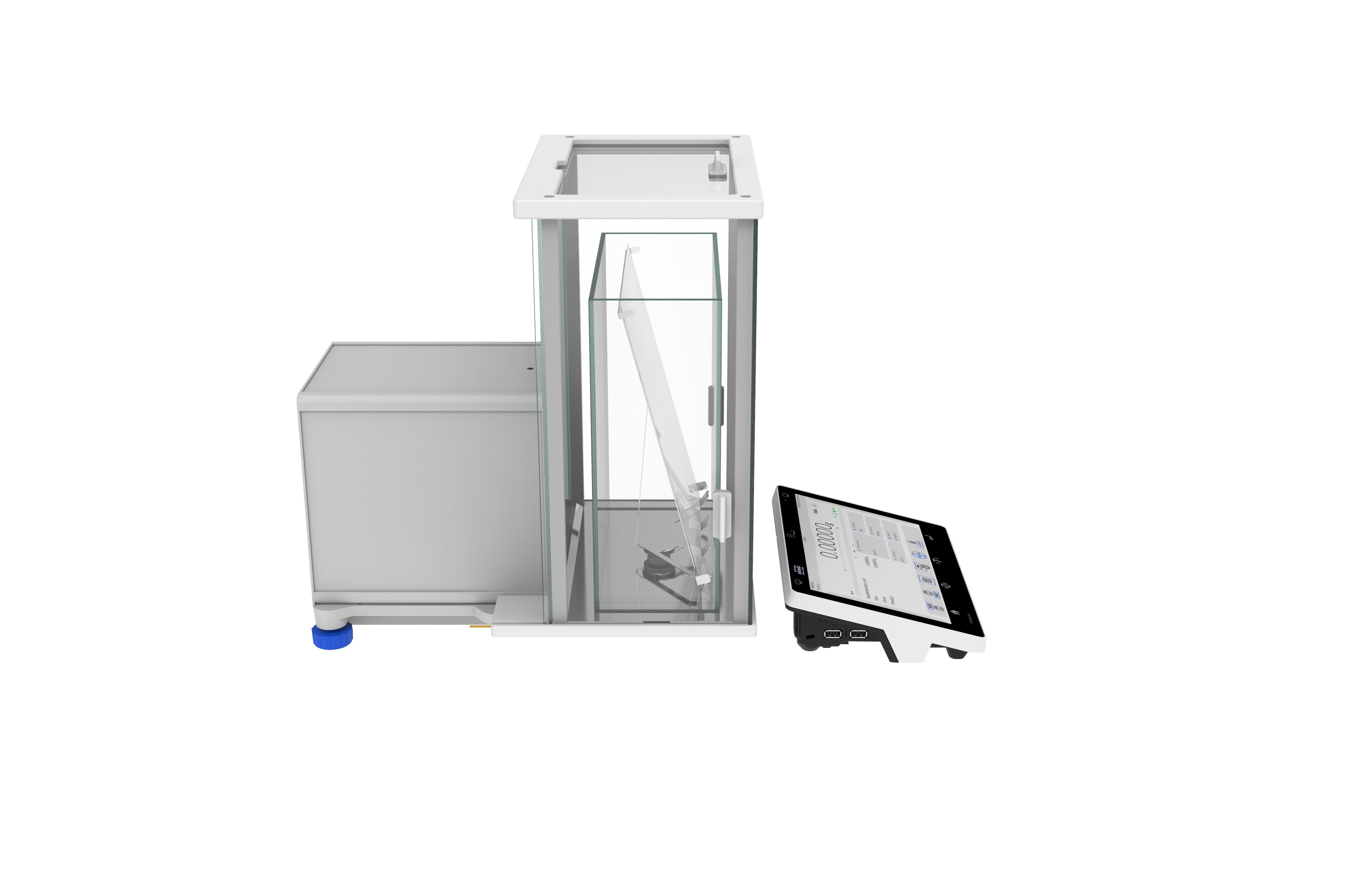

RADWAG XA 52.5Y.F XA 5Y.F Analytical Balance for Filters, 52g Capacity, 0.01mg Readability, Internal Calibration, OIML Class I

RADWAG XA 52.5Y.F Analytical Balance — Purpose-Built for Gravimetric Filter Weighing

Environmental monitoring and emissions testing programs rely on precise before-and-after filter mass measurements to quantify particulate concentrations. The RADWAG XA 52.5Y.F Analytical Balance is engineered specifically for gravimetric filter weighing, with a dedicated internal chamber that accommodates standard filter media up to 210 mm × 254 mm and resolves mass changes down to 0.01 mg.

Key Features

• Dedicated Filter Weighing Chamber: An internal chamber sized at 210 × 254 mm holds standard filter media flat and secure, reducing handling errors common with adapters or improvised setups.
• 0.01 mg Readability at 52 g Capacity: Captures the small mass increments deposited on filters during particulate sampling, supporting compliance with gravimetric air quality measurement standards.
• Automatic Internal Calibration: Ensures sensitivity stays on target between weighing sessions, a key requirement when pre- and post-sampling measurements may be separated by days or weeks.
• Touch-Free IR Sensor Operation: Hands-free commands for tare, print, or other functions minimize the risk of disturbing delicate filters once positioned on the pan.
• OIML Class I Certified: Metrological approval confirms the balance meets the highest accuracy class for non-automatic weighing instruments.

Detailed Overview

The XA 52.5Y.F is part of RADWAG's 5Y.F series, purpose-designed around the needs of particulate gravimetric analysis. Repeatability is 0.007 mg at 5 % of capacity and 0.01 mg at full load, while linearity remains within ±0.03 mg — tight tolerances that minimize uncertainty when calculating particle mass on exposed filters. The filter-specific stabilization time of approximately 30 seconds accounts for air current disturbance from the larger chamber opening, while standard pan measurements stabilize in about 5 seconds. A 10-inch touchscreen with widget-based monitoring provides real-time environmental data alongside weighing results. USB-A, USB-C, HDMI, Ethernet, Wi-Fi, and Hotspot interfaces enable data export to environmental LIMS and regulatory reporting systems.

Applications

• PM2.5 and PM10 gravimetric filter analysis per EPA and EN standards
• Workplace exposure monitoring through personal sampler filter weighing
• Stack emission particulate mass determination
• Indoor air quality assessment in controlled environments

Why Choose the RADWAG XA 52.5Y.F?

Unlike general-purpose analytical balances that require aftermarket adapters for filter work, the XA 52.5Y.F ships ready for gravimetric filter analysis. Its specialized chamber, combined with automatic calibration and OIML Class I approval, provides the traceability and resolution that regulatory filter weighing demands. Add it to your cart to equip your environmental testing program with a dedicated solution.
