RADWAG XA 220.5Y.A XA 5Y.A Analytical Balance, 220g Capacity, 0.1mg Readability, Internal Calibration, OIML Class I

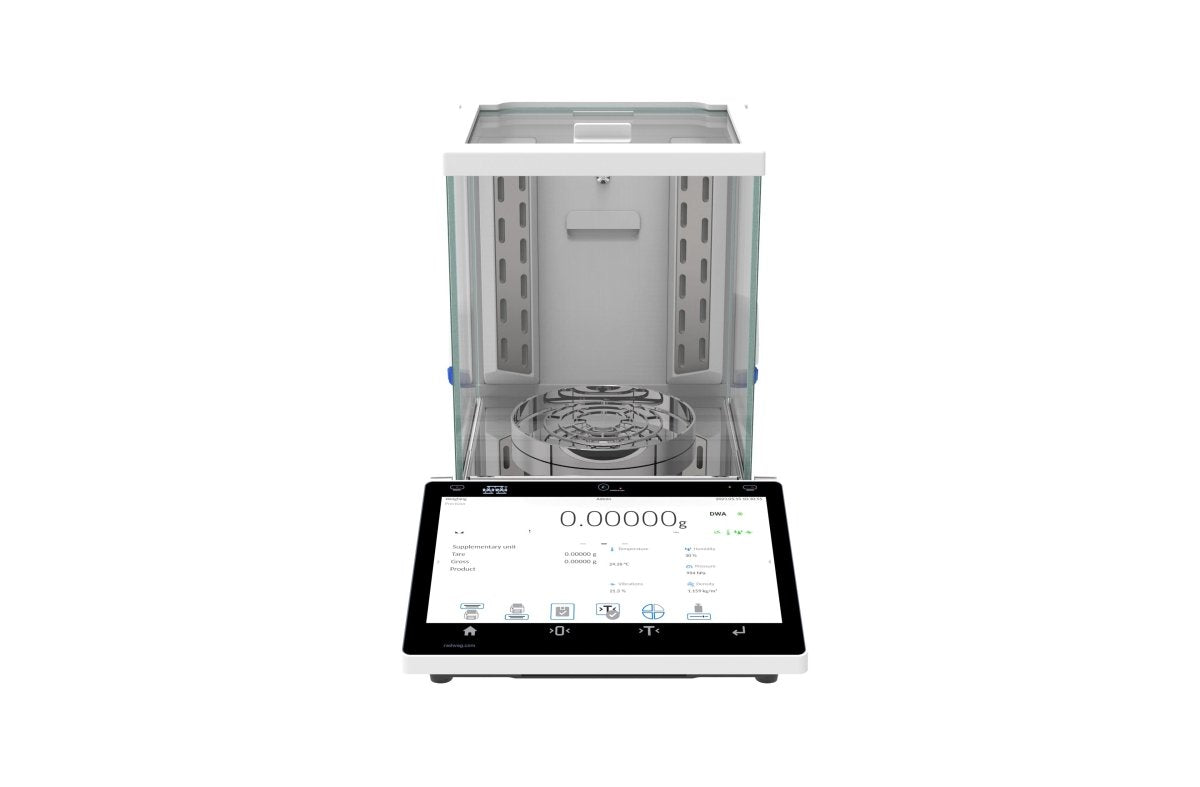

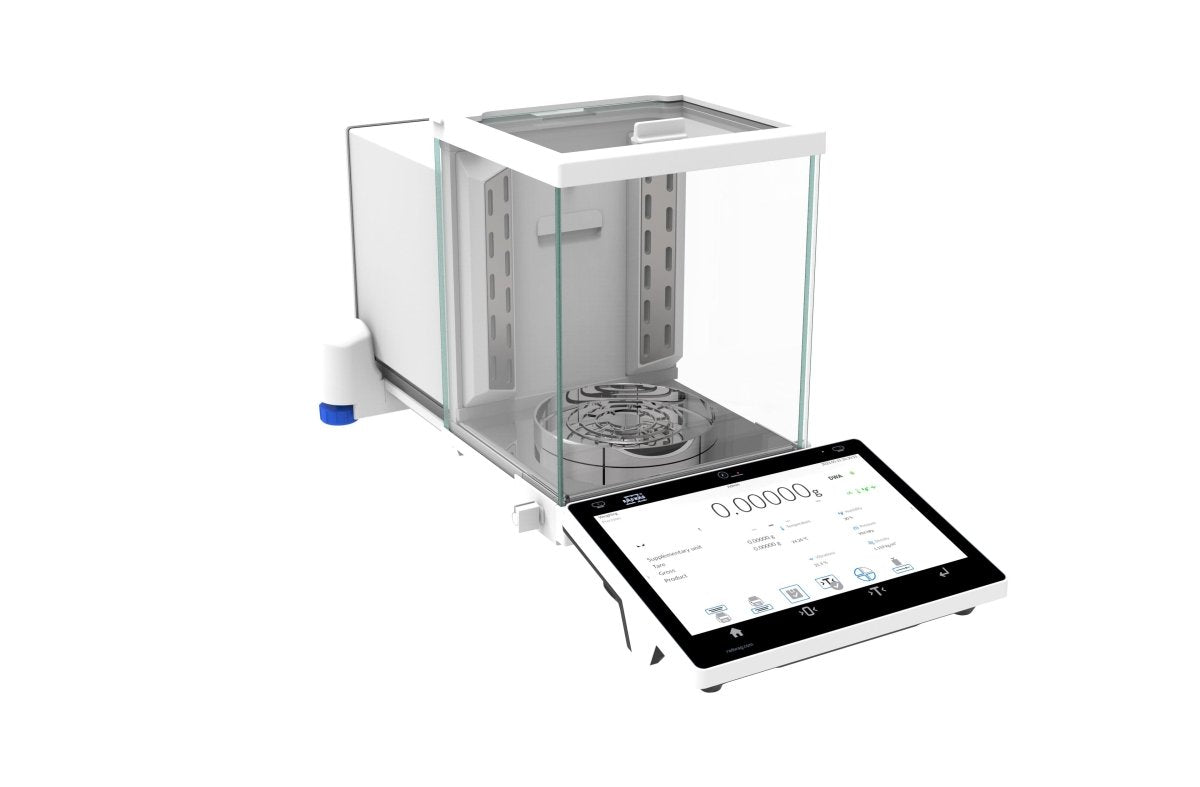

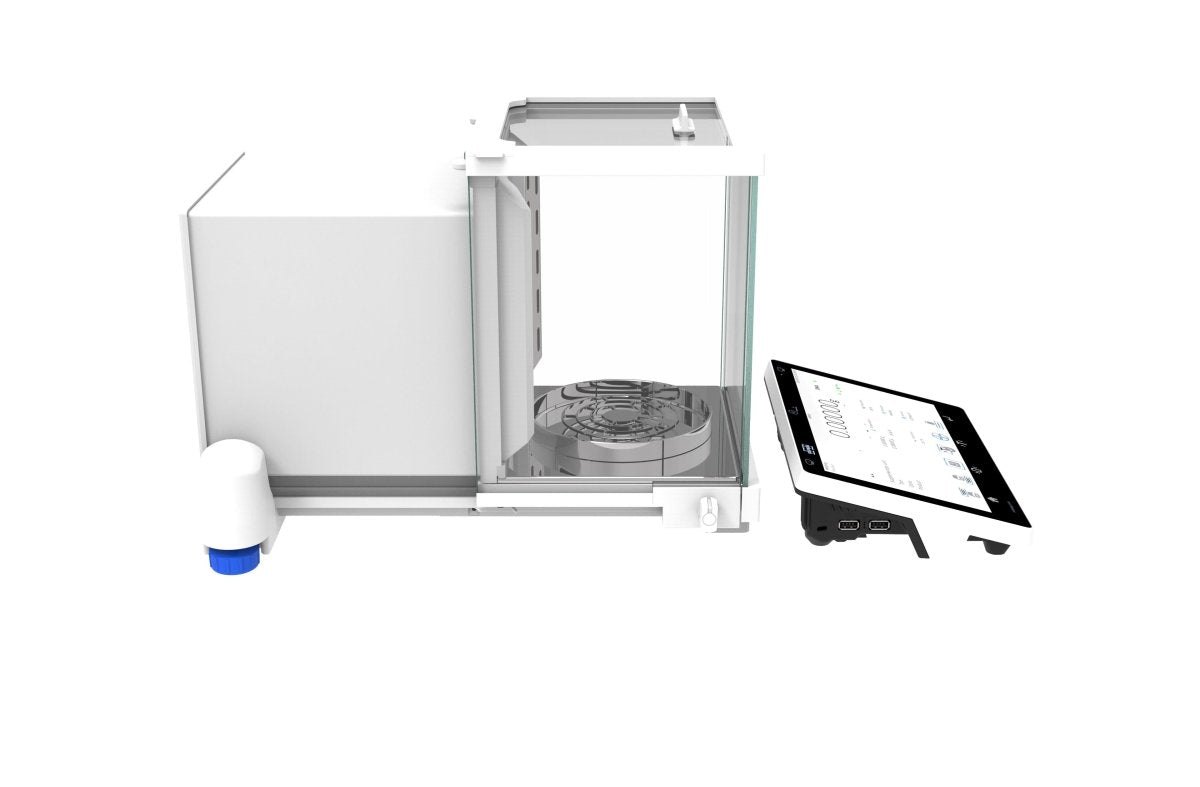

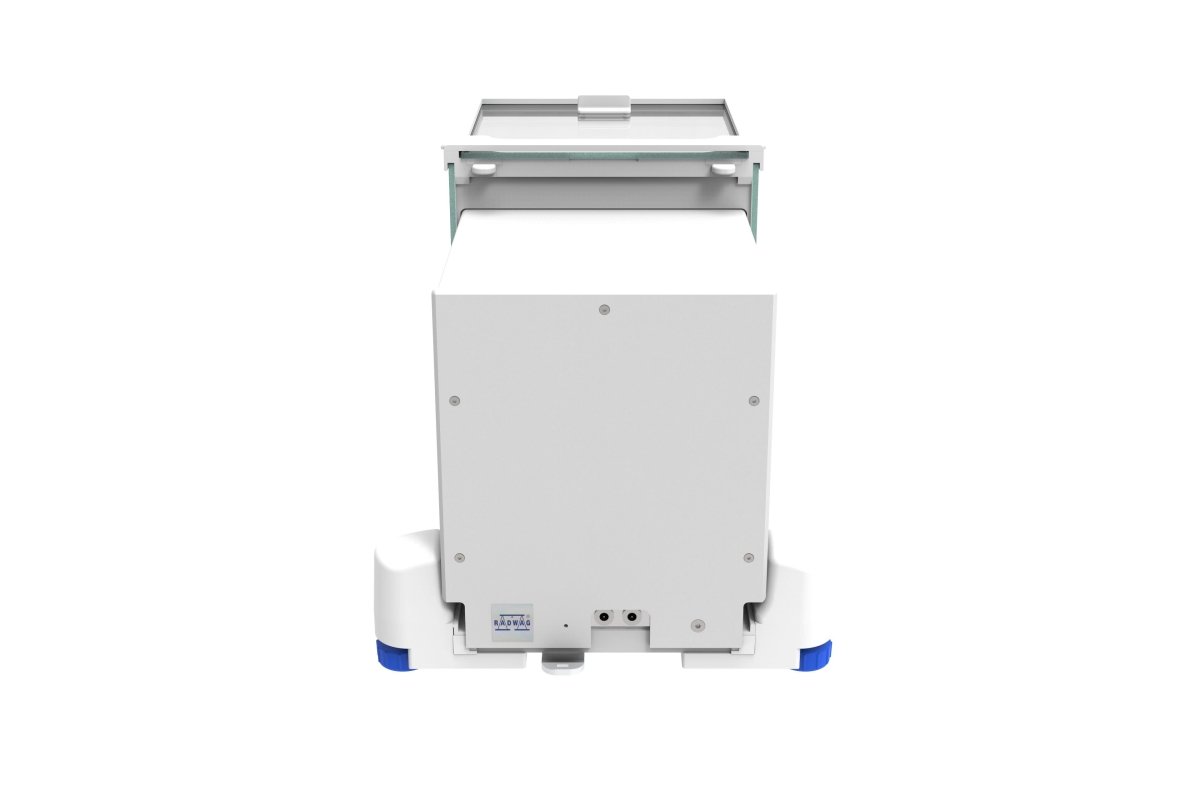

RADWAG XA 220.5Y.A Analytical Balance — 220 g Capacity with Built-In Ionizer and Automatic Leveling

Static charge on samples and containers is one of the most overlooked sources of error in analytical weighing. The RADWAG XA 220.5Y.A Analytical Balance eliminates that variable with an integrated antistatic ionizer inside the weighing chamber, paired with 0.1 mg readability and fully automatic leveling across its 220 g range.

Key Features

• Built-In Antistatic Ionizer: Neutralizes electrostatic charge on samples and vessels directly inside the draft shield, removing a persistent source of measurement drift without separate ionizing equipment.
• 220 g Capacity at 0.1 mg Readability: Covers a broad range of analytical tasks — from lightweight reference standards to heavier sample containers — without sacrificing sub-milligram resolution.
• Fully Automatic Reflex Level System: Motorized feet detect and correct any deviation from level in real time, ensuring measurement accuracy even on surfaces subject to vibration or gradual settling.
• 10-Inch Touchscreen with Widgets: Interactive widgets deliver live data — mass readings, environmental conditions, and calibration status — at a glance, reducing menu navigation during high-volume sessions.

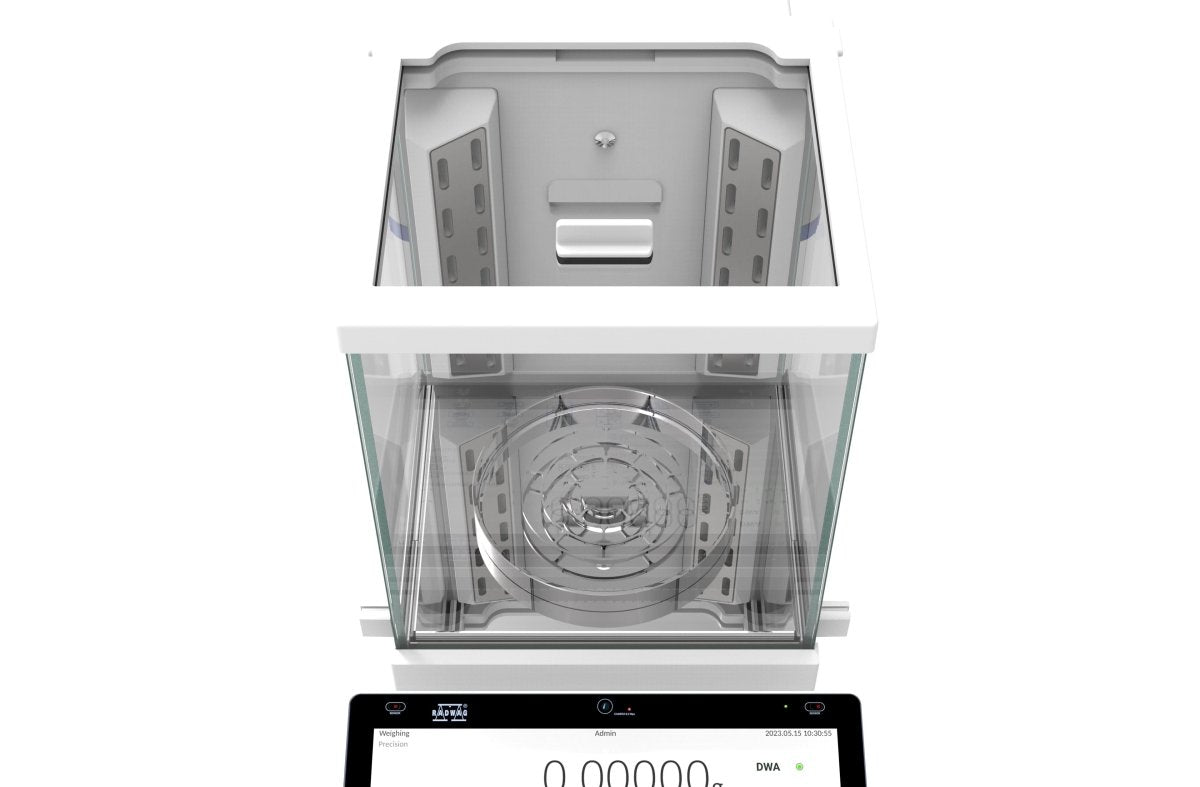

• Automatic Draft-Shield Doors: Motorized doors open smoothly to minimize air turbulence, protecting sub-milligram measurements from ambient disturbances while maintaining workflow speed.
• OIML Class I Verification: Satisfies the highest accuracy class for legal metrology, giving accredited labs and regulated manufacturers confidence in traceability.

Detailed Overview

Built on the RADWAG 5Y.A platform, this analytical balance achieves a standard repeatability of 0.05 mg at 5% load and linearity of ±0.2 mg across the entire range. The 1.3-second stabilization time supports rapid throughput during high-volume sessions without forcing operators to wait for readings to settle. Environmental monitoring tracks temperature and humidity change rates (±0.3 °C/h and ±1%/h), alerting users before ambient drift can affect results. Connectivity through USB-A, USB-C, HDMI, Ethernet, Wi-Fi, and Hotspot gives laboratories multiple pathways for data export, remote display, and LIMS integration. Internal automatic calibration maintains long-term sensitivity without manual intervention or external weights.

Applications

• Pharmaceutical content uniformity and dissolution testing
• Chemical analysis and reagent preparation
• Materials science density and composition studies
• Accredited testing laboratory routine weighing

Why Choose the RADWAG XA 220.5Y.A?

Few analytical balances address static charge, leveling, and draft protection in a single integrated design. The XA 220.5Y.A does all three automatically, freeing operators to focus on their samples rather than instrument maintenance. Order today to bring ionizer-equipped analytical precision to your laboratory workflow.
