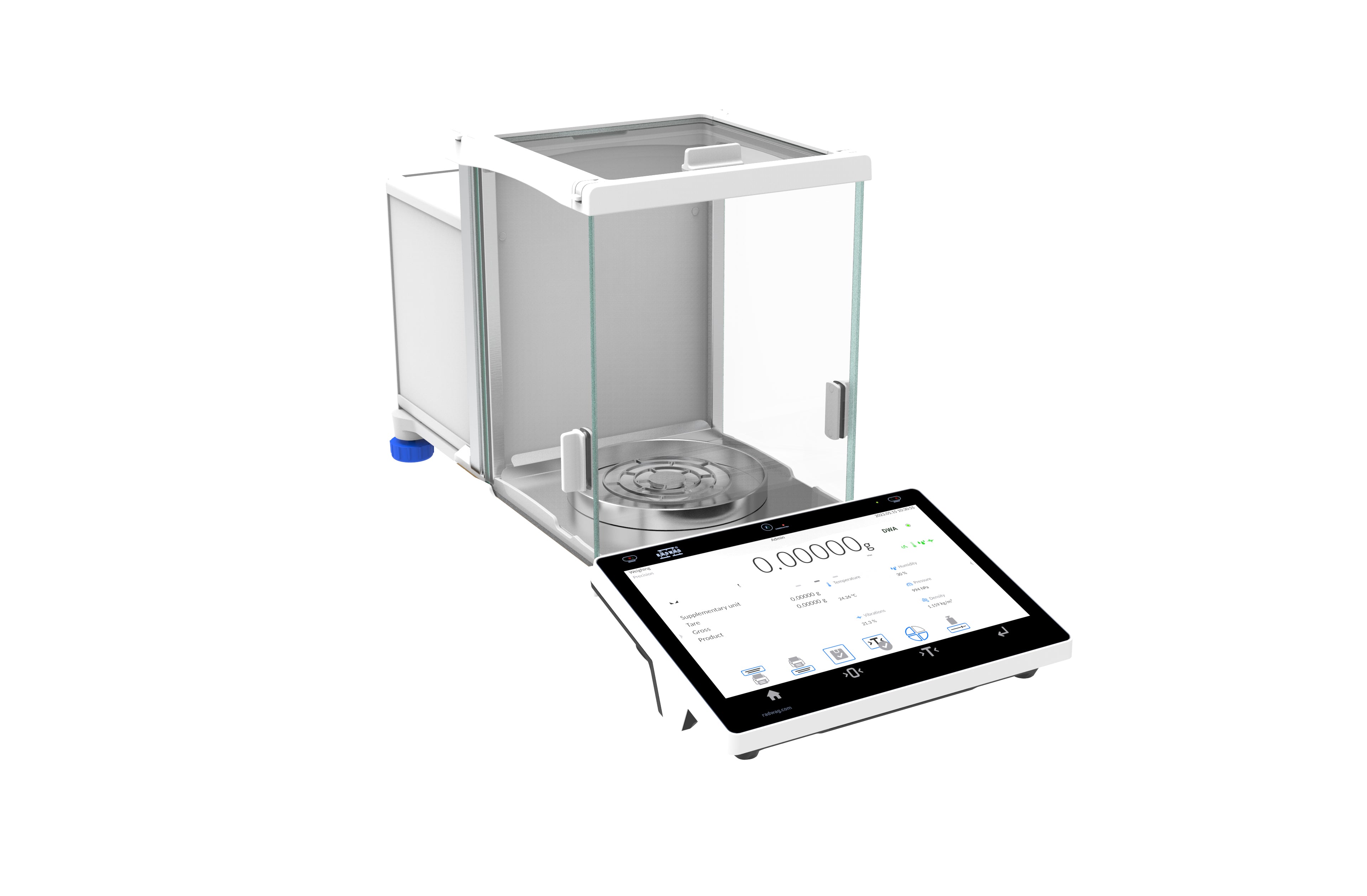

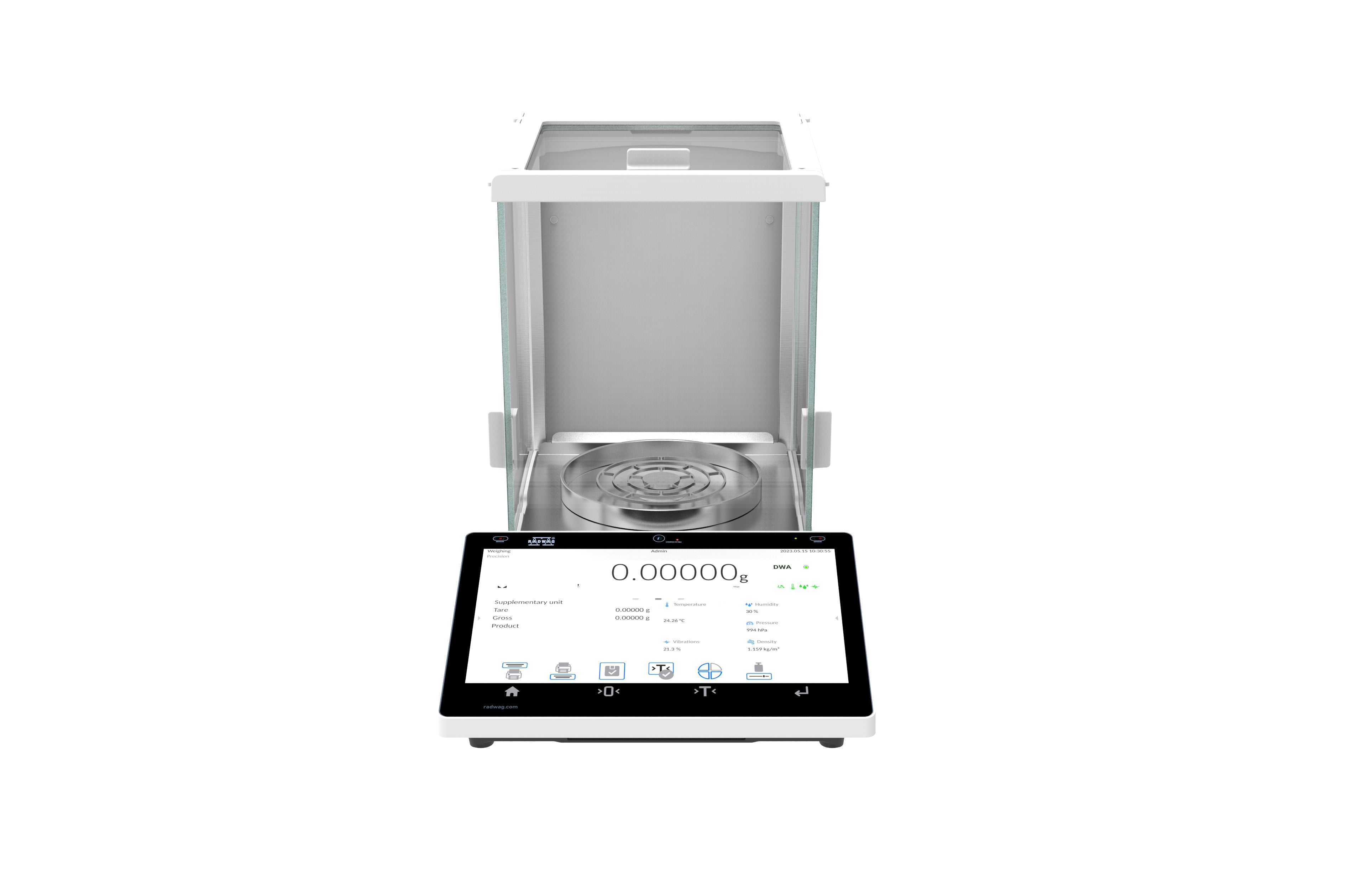

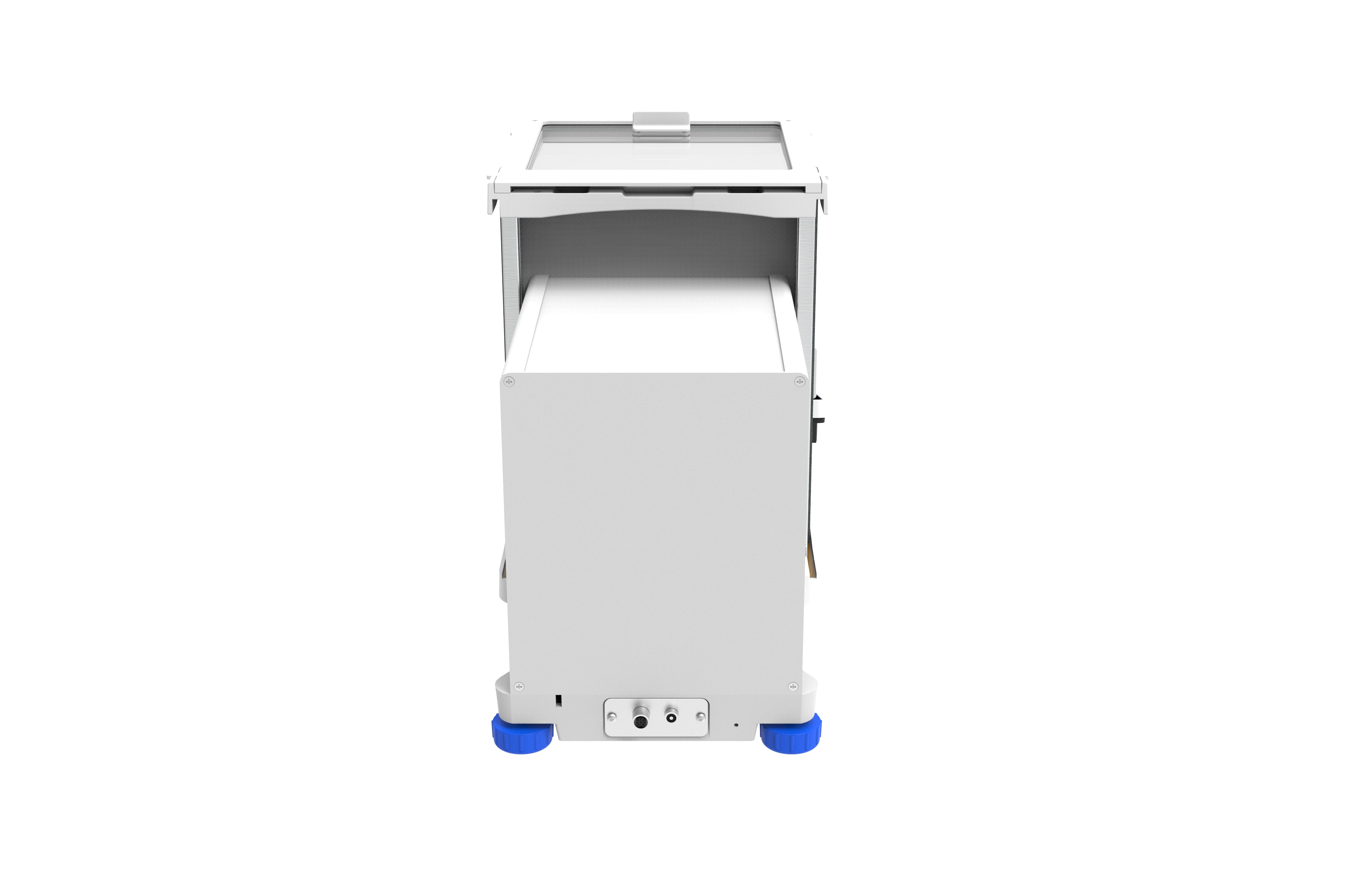

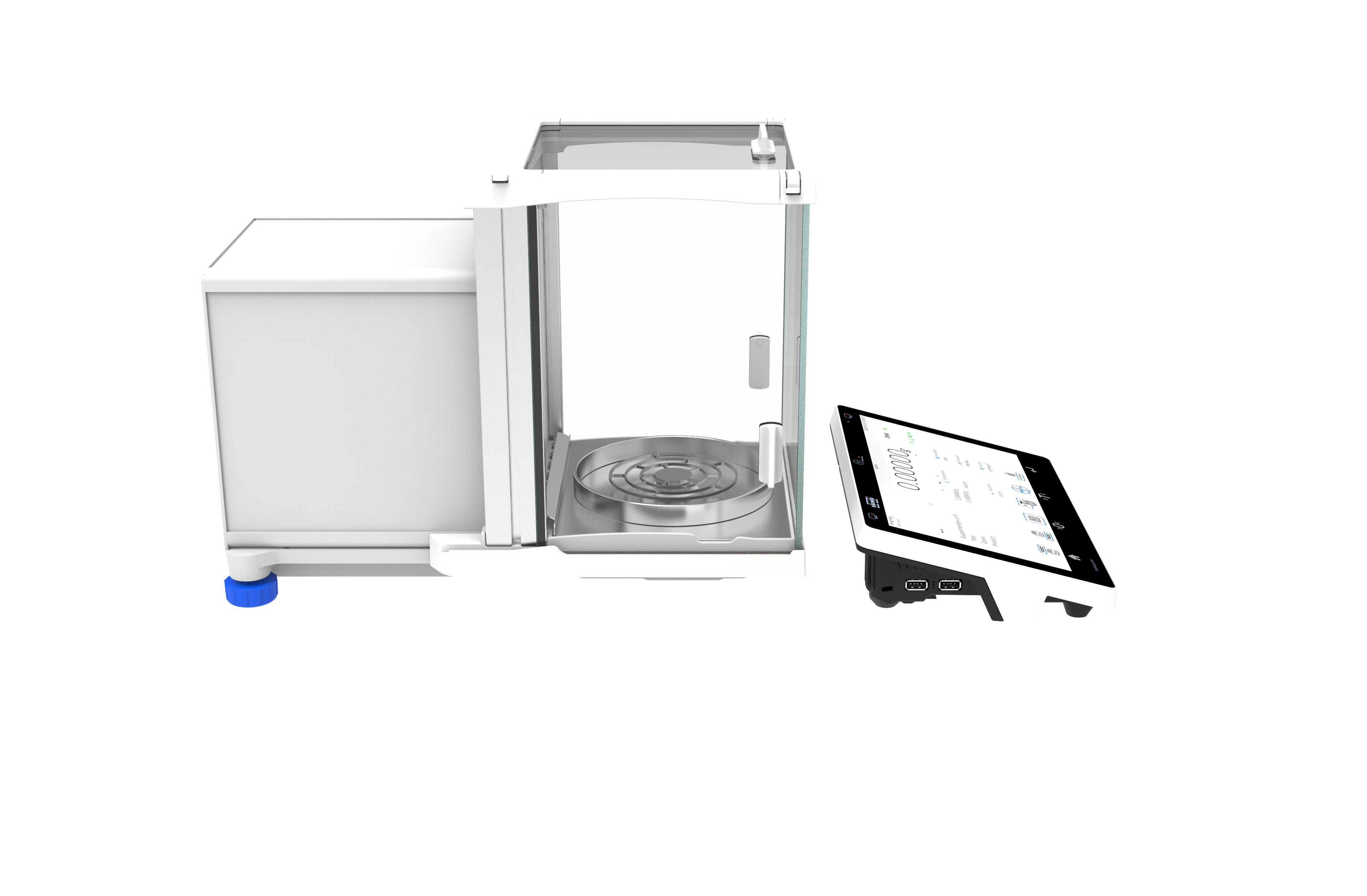

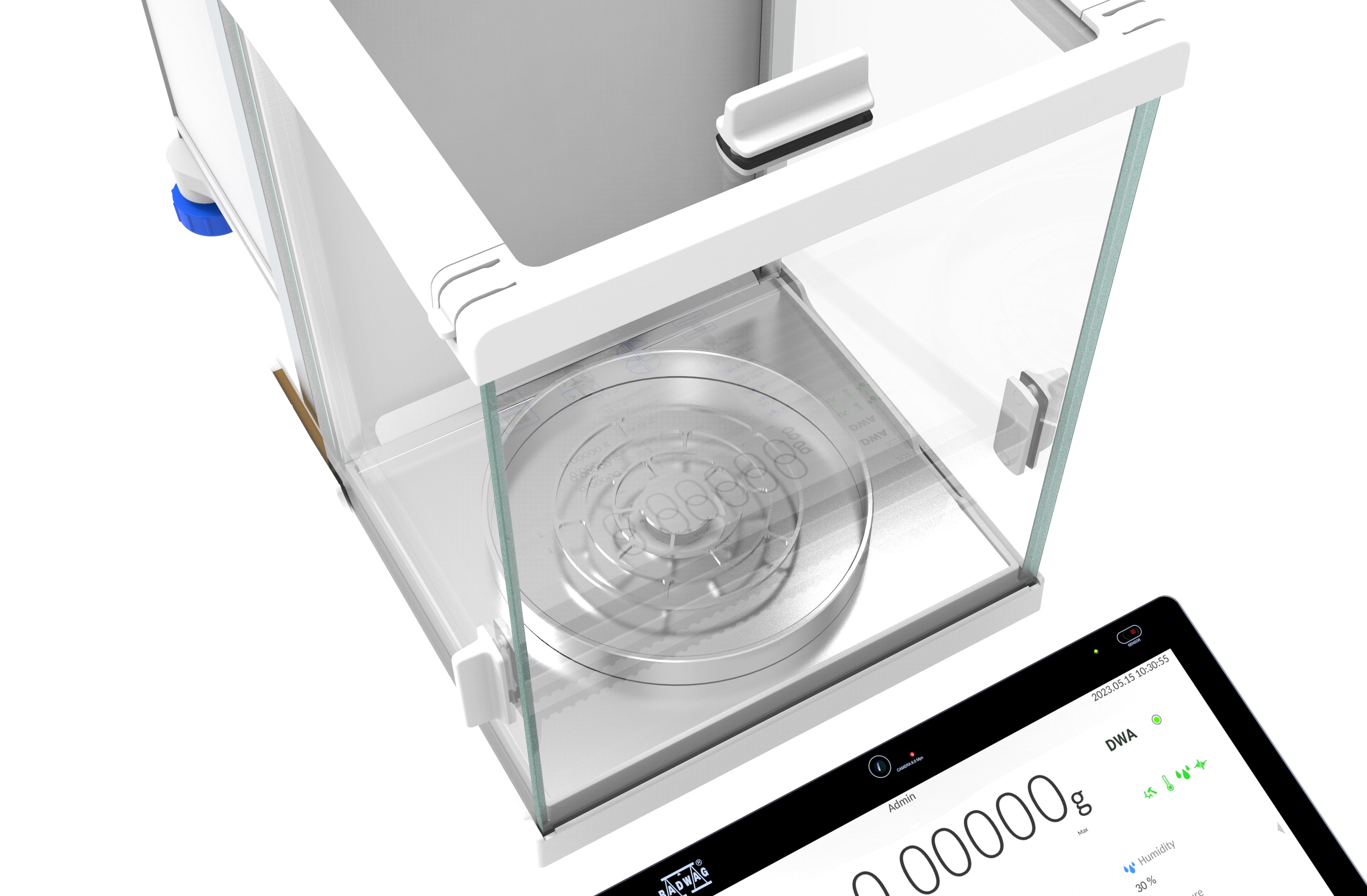

RADWAG XA 120/250.5Y XA 5Y Analytical Balance, 120/250g Capacity, 0.01/0.1mg Readability, 21 CFR Part 11, Internal Calibration, OIML Class I
RADWAG XA 120/250.5Y Analytical Balance — Dual-Range Precision with 21 CFR Part 11 Compliance
Analytical laboratories needing both semi-micro sensitivity and extended capacity in a single instrument will value the RADWAG XA 120/250.5Y Analytical Balance. Its dual-range design provides 0.01 mg readability up to 120 g and 0.1 mg readability to 250 g, all managed through a 10-inch touchscreen and secured by full 21 CFR Part 11 compliance for regulated pharmaceutical and research environments.
Key Features
- Dual-Range Operation (120/250 g): Automatically switch between 0.01 mg and 0.1 mg resolution depending on the load, giving operators semi-micro precision for lighter samples and extended capacity for heavier ones.
- 21 CFR Part 11 Ready: Secure user authentication, electronic signatures, and comprehensive audit trails protect data integrity in FDA-regulated workflows.
- 10-Inch Touchscreen with Widgets: A large, configurable display presents live environmental metrics, process guidance, and weighing data without leaving the home screen.
- Automatic Internal Calibration: Self-calibration triggered by temperature or schedule ensures traceable accuracy across shifts without operator involvement.
- Touch-Free IR Sensor Control: Proximity-activated taring, door opening, and printing reduce physical disturbances that compromise sensitive analytical readings.
- OIML Class I Verification: Meets the highest metrological accuracy class for legal-for-trade and regulatory compliance applications.
Detailed Overview
The XA 120/250.5Y sits within RADWAG's flagship 5Y analytical balance line, bringing the platform's intelligent features to a dual-range configuration. Standard repeatability of 0.005 mg at 5 % load confirms semi-micro performance in the lower range, while the expanded 250 g capacity accommodates larger flasks and tare vessels that would exceed many analytical balances. The ReflexLEVEL semi-automatic levelling system guides operators through precise bubble-centre alignment, and the Dynamic Weighing Advisor monitors ambient conditions alongside USP minimum-weight compliance in real time. Connectivity via USB-A, USB-C, HDMI, Ethernet, Wi-Fi, and mobile hotspot ensures flexible integration with LIMS, external monitors, and remote-access devices.
Applications
- Pharmaceutical quality-control assay preparation
- Semi-micro analytical chemistry in R&D laboratories
- USP/EP reference-standard weighing
- Environmental and food-safety testing requiring high resolution
Why Choose the RADWAG XA 120/250.5Y?
The XA 120/250.5Y Analytical Balance brings dual-range versatility, regulatory compliance, and the 5Y platform's intelligent monitoring into one cohesive instrument. It is the natural choice for pharmaceutical labs, contract testing organisations, and research facilities that need semi-micro accuracy with extra capacity headroom. Order at Weighcore and elevate your analytical weighing capability.
| Maximum capacity | 120 / 250 g |
|---|---|
| Readability | 0.01 / 0.1 mg |
| Standard repeatability [5% Max] | 0.005 mg |
| Standard repeatability | 0.06 mg |
| Permissible repeatability [5% Max] | 0.012 mg |
| Permissible repeatability | 0.1 mg |
| Linearity | ±0.06 / 0.2 mg |
| Stabilization time | 4 s |
| Calibration | internal (automatic) |
| Display | 10″ touchscreen |
| Communication interface | USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot |
| Operating temperature | +10 — +40 °C |
| Operating temperature change rate | ±0.3°C/1h (±1°C/8h) |
| Weighing chamber dimensions | 168×160×228 mm |
| Weighing pan dimensions | ø90 open-work pan + ø85 (option) mm |
| Net weight | 9.8 kg |
| Minimum load | 1 mg |
| Verification unit [e] | 1 mg |
| Tare range | -250 g |
| Standard minimum weight (USP) | 10 mg |
| Standard minimum weight (U=1%, k=2) | 1 mg |
| Eccentric load deviation | 0.2 mg |
| Sensitivity time drift | 1×10⁻⁶/Year×Rt |
| OIML Class | I |
| Leveling system | semi-automatic - LevelSENSING |
| Weighing chamber doors | manual |
| Protection class | IP 43 |
| Relative humidity | 20% — 80% |
| Power supply | Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A Balance: 12 – 15V DC 1.6A max* |
| Relative humidity change rate | ±1%/h (±4%/8h) |
