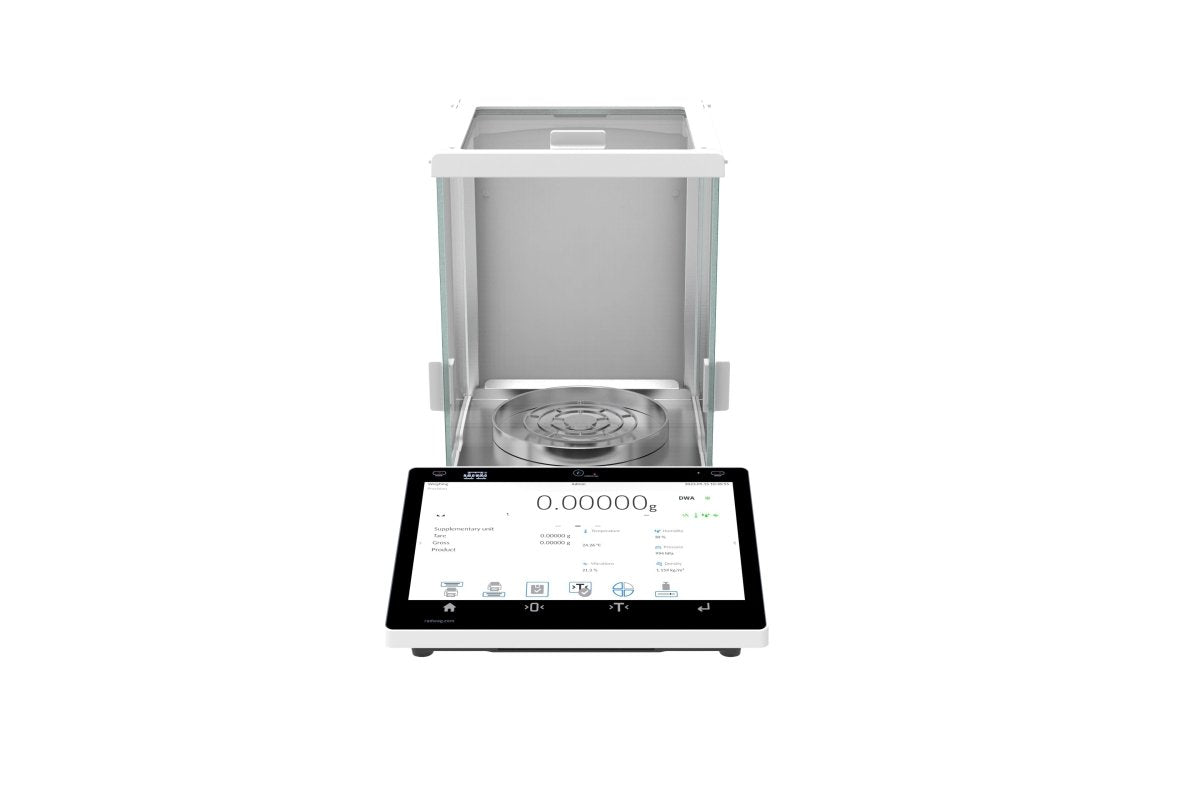

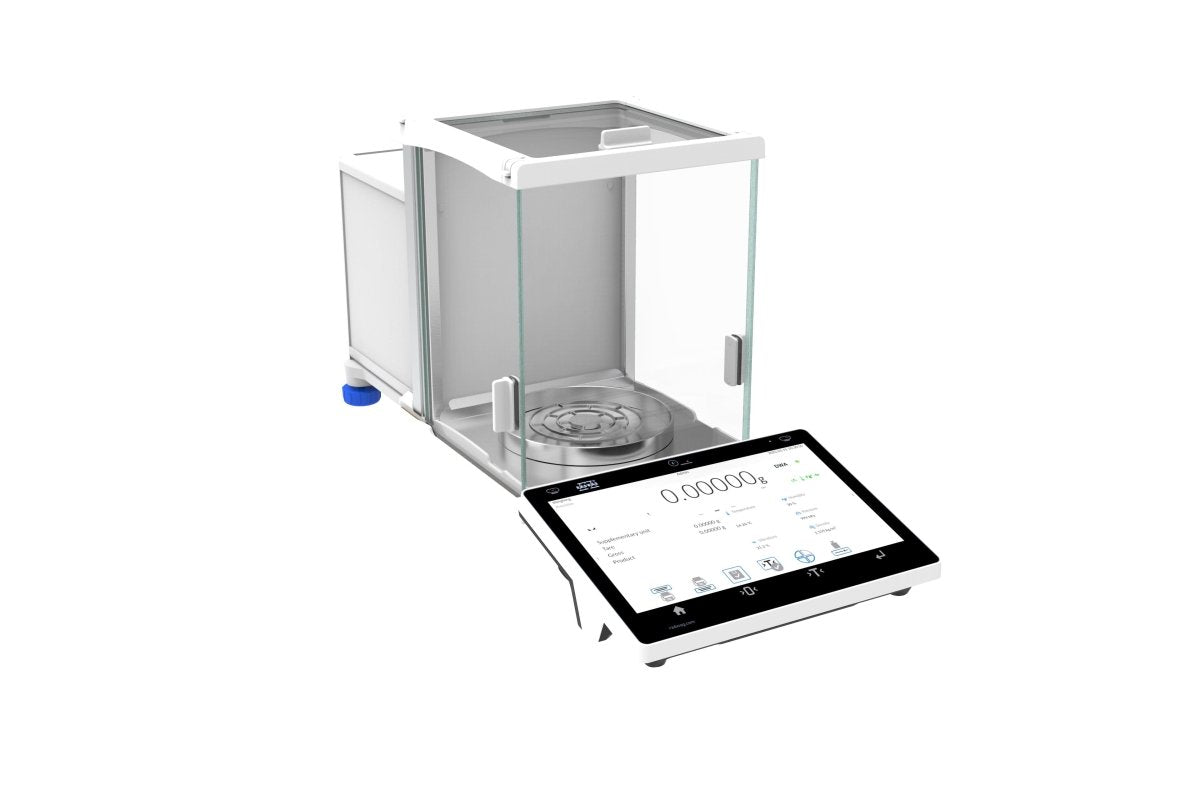

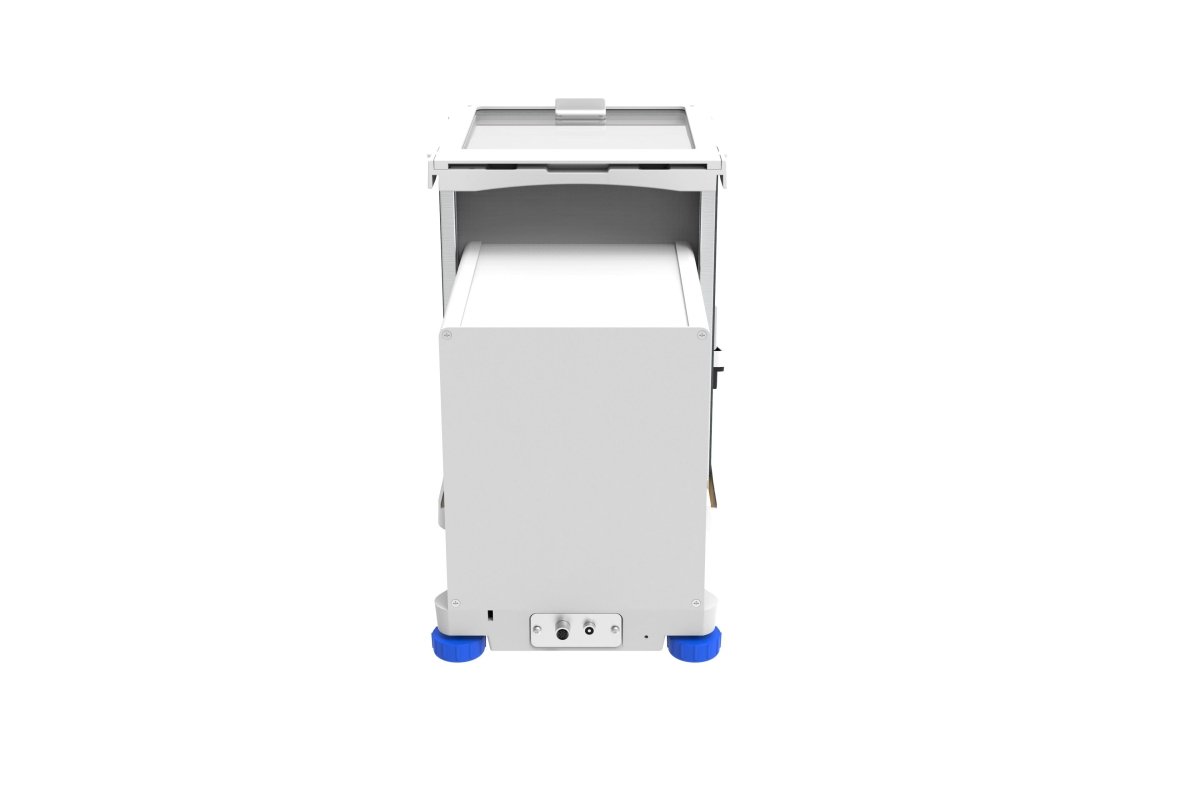

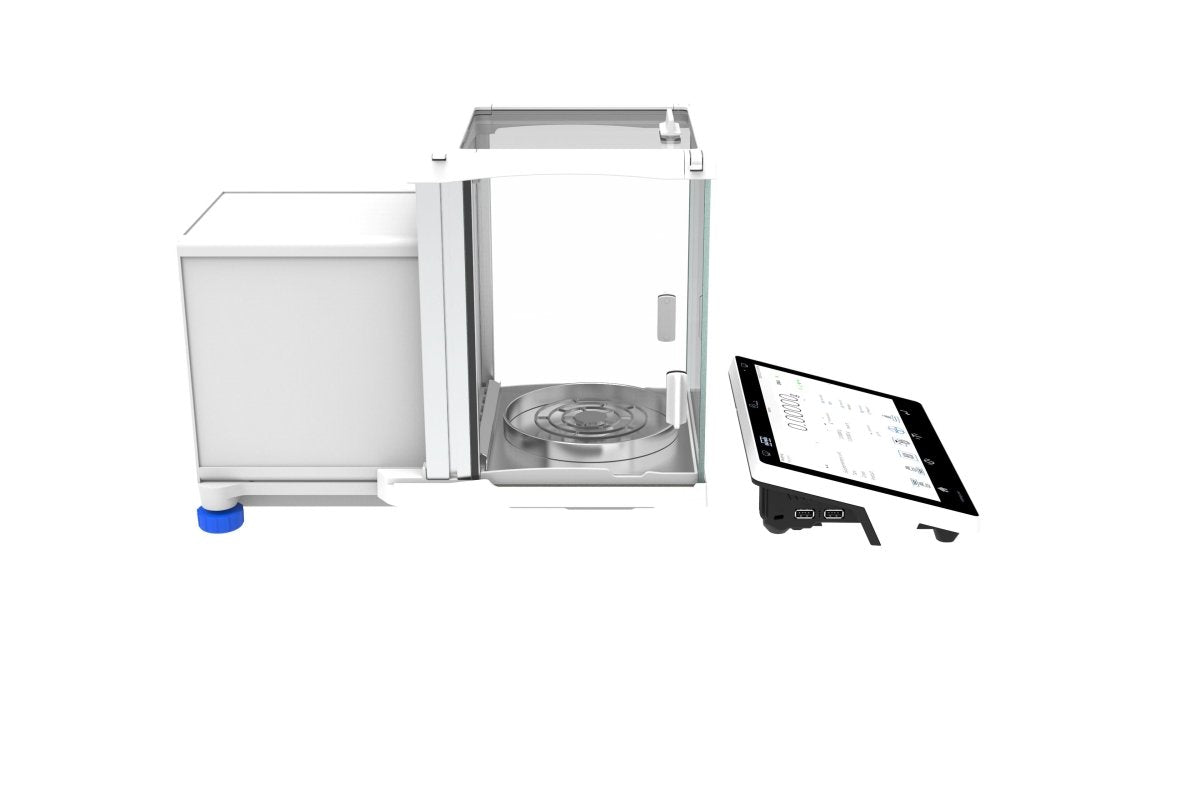

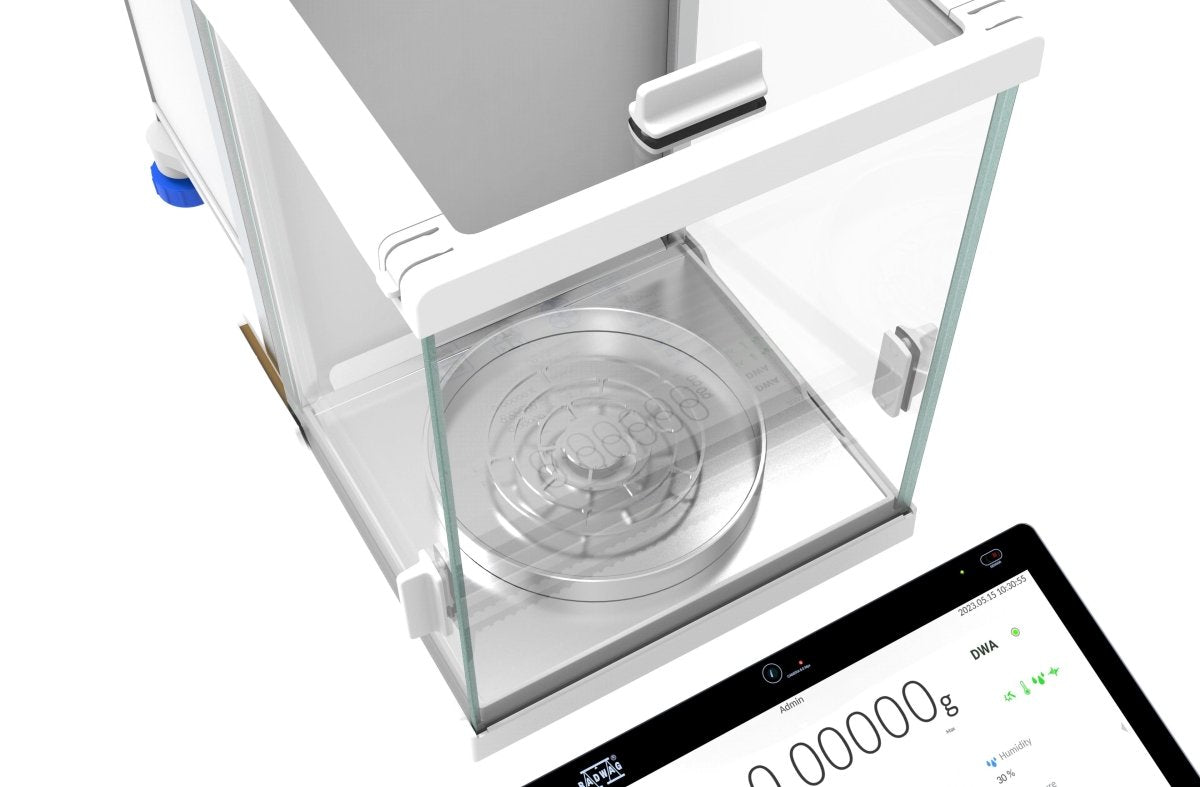

RADWAG XA 110.5Y XA 5Y Analytical Balance, 110g Capacity, 0.01mg Readability, 21 CFR Part 11, Internal Calibration, OIML Class I

RADWAG XA 110.5Y Analytical Balance — Semi-Micro Resolution on a Compliant 5Y Platform

Unlock semi-micro precision within a 21 CFR Part 11 compliant framework using the RADWAG XA 110.5Y Analytical Balance. With 110 g capacity and 0.01 mg readability, this instrument delivers ten-microgram resolution on the advanced 5Y technology platform, combining the Digital Weighing Auditor, a 10-inch interactive touchscreen, and touch-free IR sensors to create a measurement environment that meets the highest standards of pharmaceutical and research laboratory practice.

Key Features

• Semi-Micro 0.01 mg Readability: Ten-microgram resolution provides the sensitivity required for USP minimum weight compliance, trace-level quantification, and reference standard preparation where sub-milligram accuracy is essential.
• Digital Weighing Auditor (DWA): Continuous real-time monitoring of temperature, humidity, vibration, levelling, and calibration state ensures the balance is always operating within verified environmental parameters, with proactive alerts before conditions degrade measurement quality.
• 21 CFR Part 11 Regulatory Framework: Electronic records, signatures, and audit trails with role-based access control satisfy FDA requirements, while EU GMP Annex 11 alignment extends compliance to European pharmaceutical manufacturing standards.
• 10-Inch Widget-Based Touchscreen: Customizable dashboards show live weighing results, environmental trends, USP compliance status, and calibration schedules, reducing navigation time and keeping analysts focused on their measurements.
• Touch-Free IR Sensor Control: Proximity-activated taring, door control, and printing remove the need for physical button presses during measurements, protecting against vibration-induced disturbances at the 0.01 mg sensitivity level.

Detailed Overview

The RADWAG XA 110.5Y Analytical Balance achieves standard repeatability of 0.005 mg at 5% load, confirming performance at the boundary between analytical and semi-micro precision. Linearity of ±0.06 mg ensures trustworthy results across the full 110 g range, while the eccentric load deviation of 0.06 mg reflects uniform response across the pan surface. Internal automatic calibration compensates for environmental drift, and semi-automatic LevelSENSING corrects instrument orientation without manual adjustments. The comprehensive interface suite — USB-A, USB-C, HDMI, Ethernet, Wi-Fi, and hotspot — accommodates LIMS connectivity, external display mirroring, and remote instrument supervision from any connected device. Under-pan weighing capability further extends the instrument's versatility for density determination applications.

Applications

• Pharmaceutical dosage form content uniformity and potency assay
• USP minimum weight verification and SOP compliance
• Chemical and materials science research requiring semi-micro sensitivity
• Environmental trace analysis and micro-sample preparation

Why Choose the RADWAG XA 110.5Y?

Laboratories requiring the sensitivity of a semi-micro balance within a fully regulated environment will find the XA 110.5Y delivers both analytical capability and administrative compliance. The 5Y platform intelligence provides ongoing quality assurance beyond what conventional analytical balances offer, making this an investment in measurement confidence. Shop now at Weighcore to elevate your analytical weighing precision.
