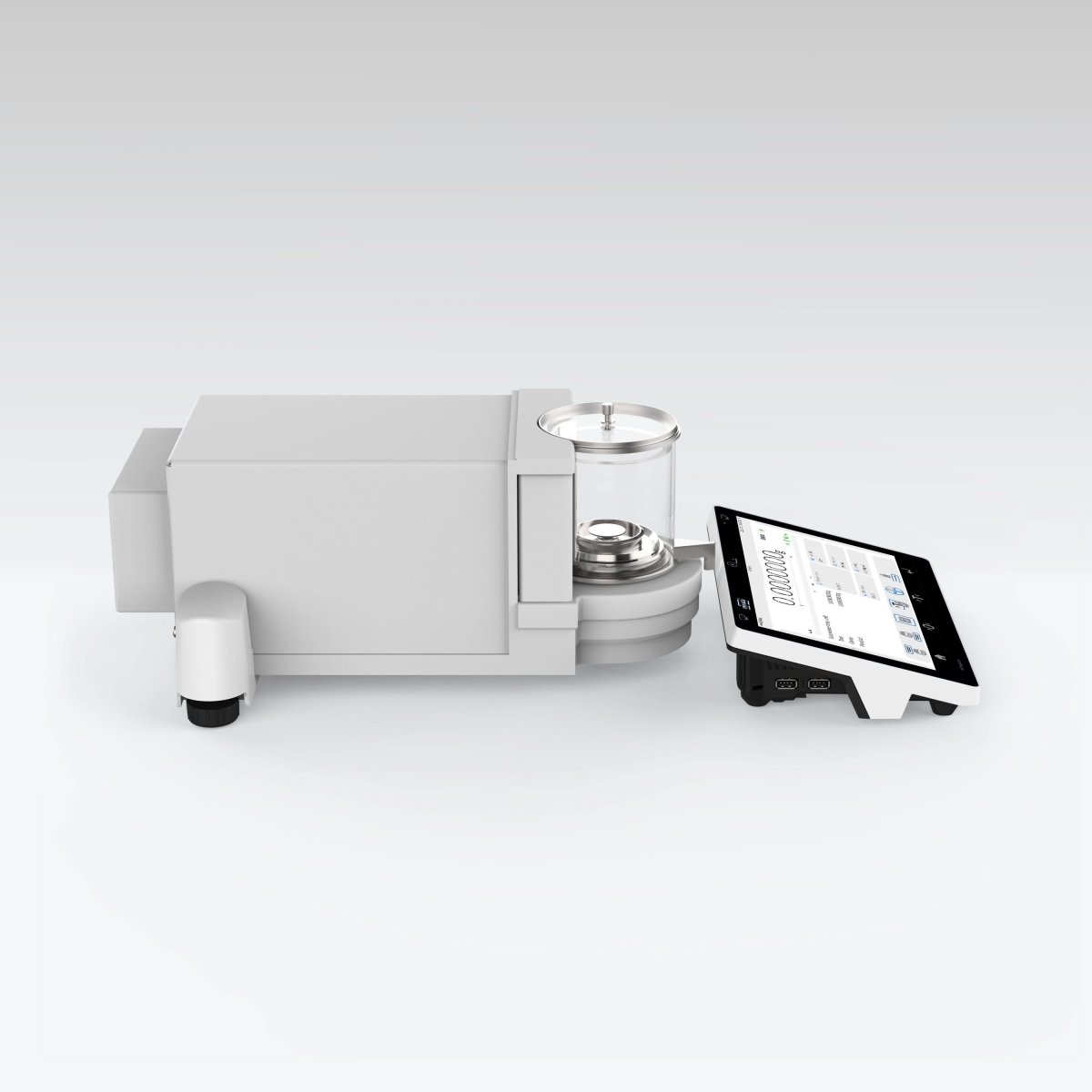

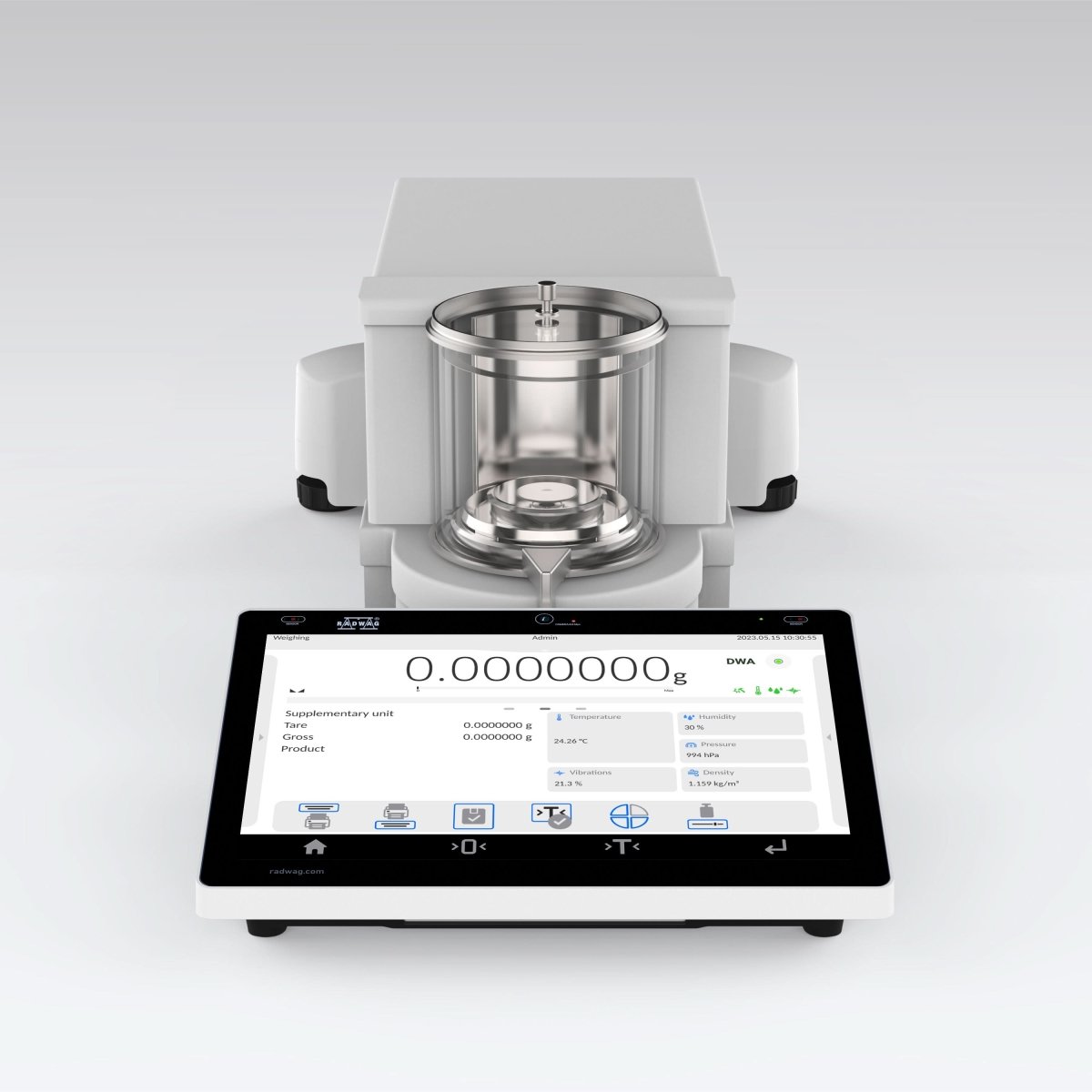

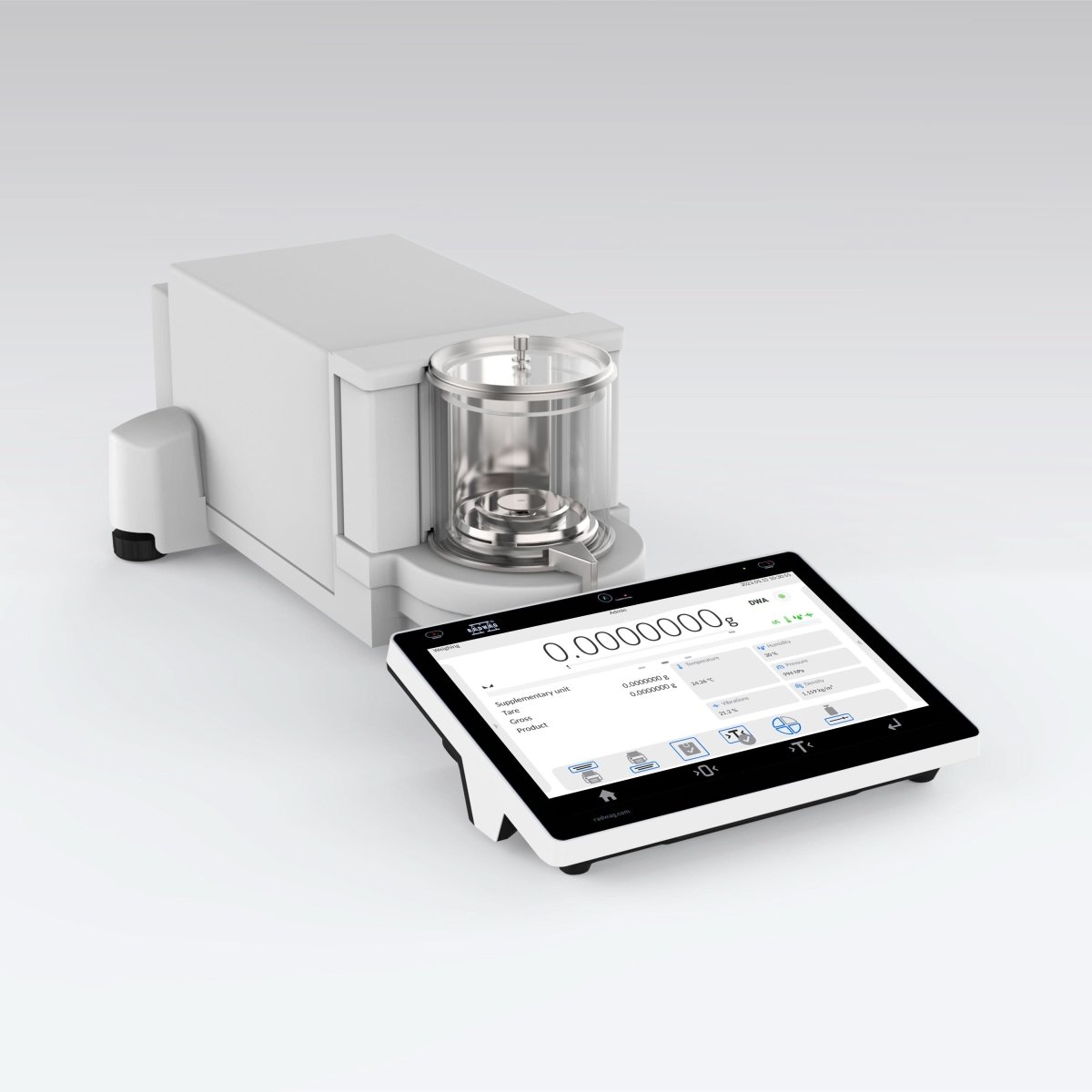

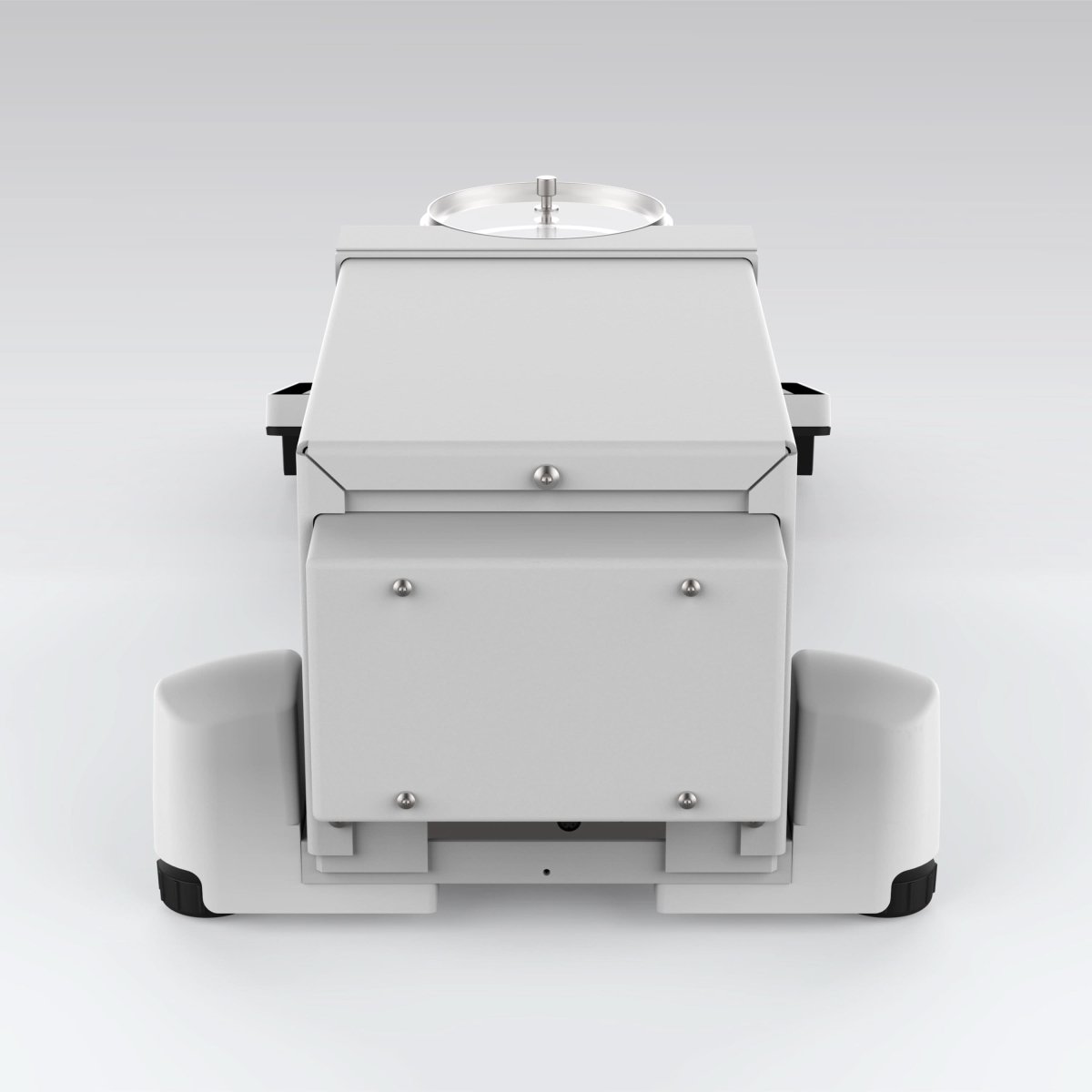

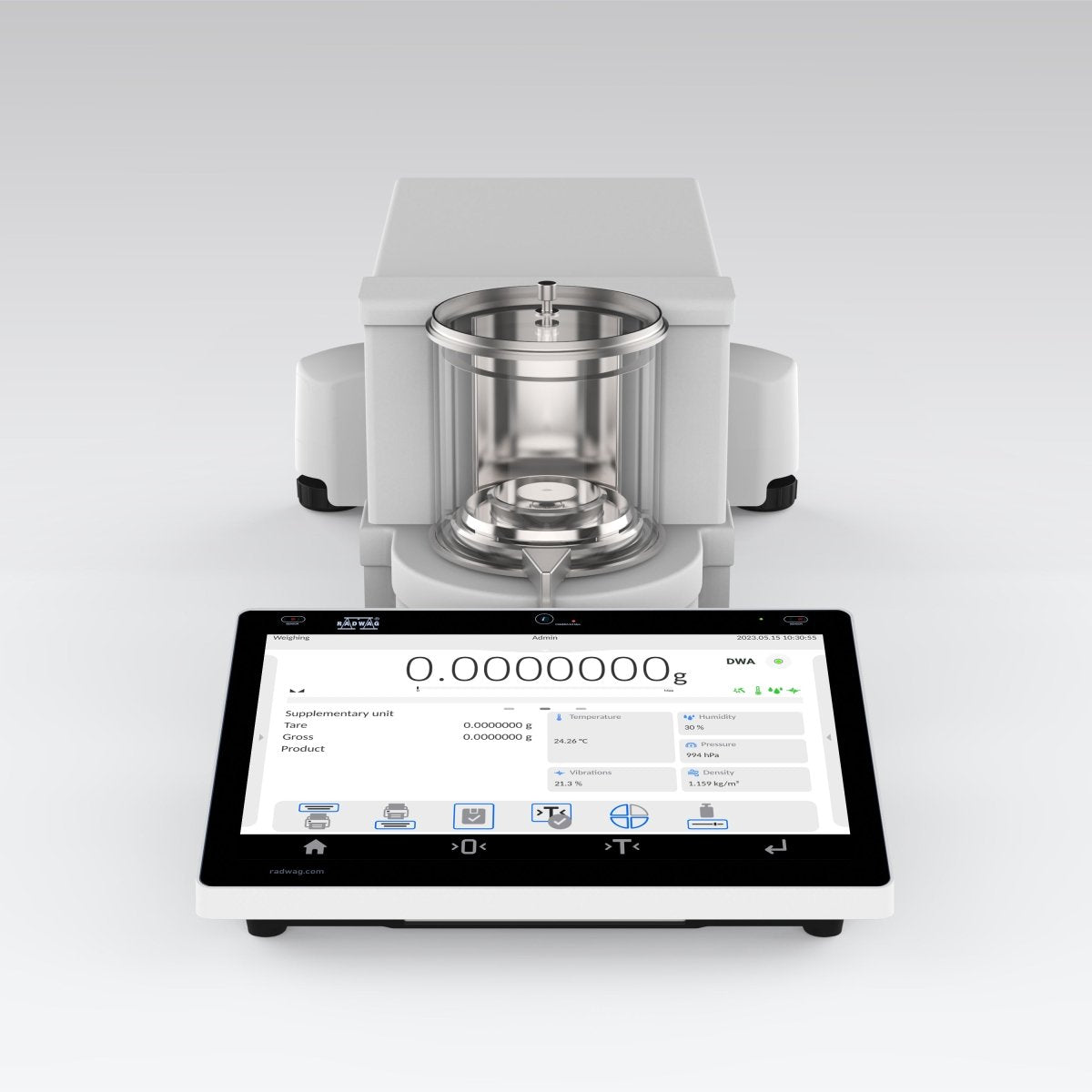

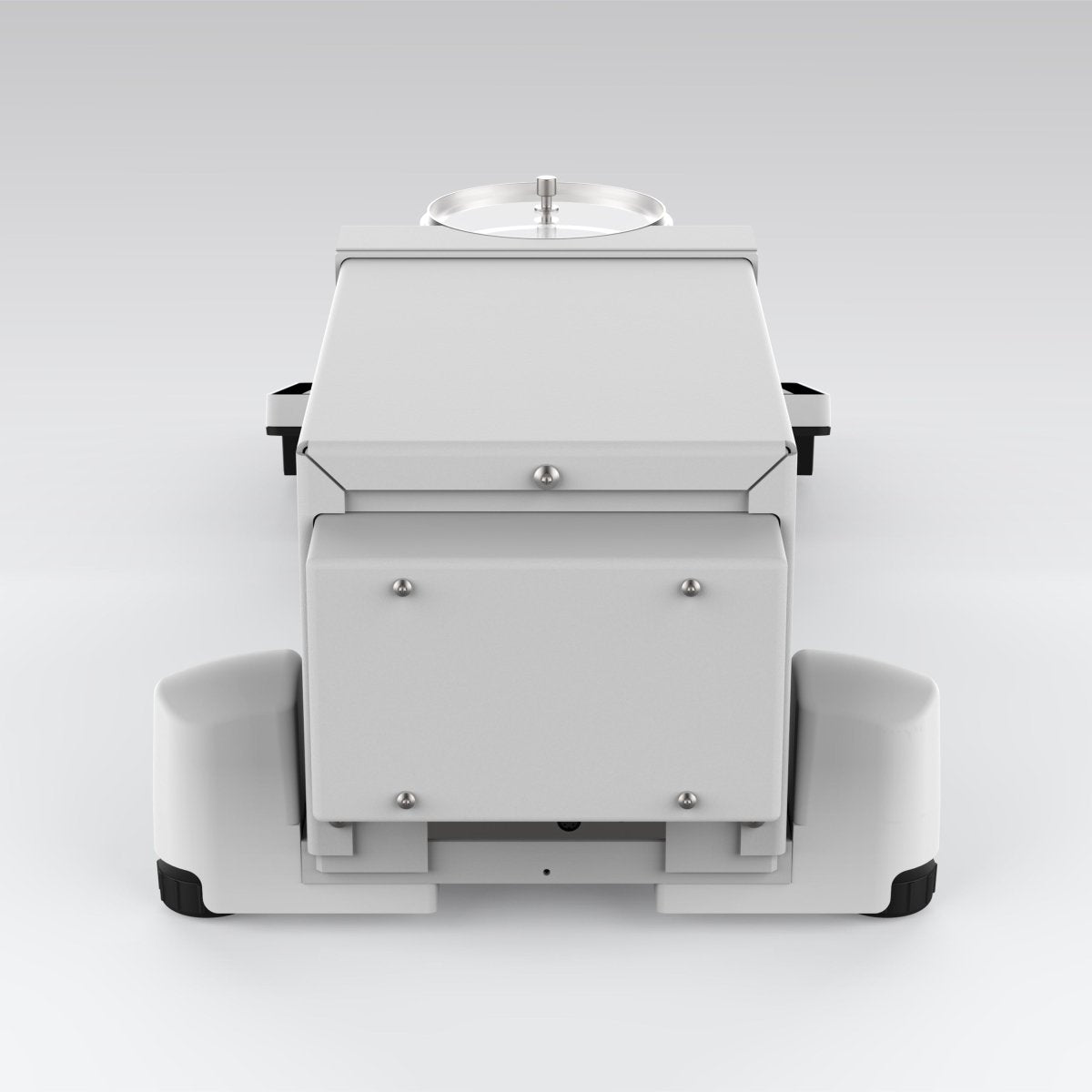

RADWAG UYA 6.5Y UYA 5Y Ultra-Microbalance, 6.1g Capacity, 0.1µg Readability, Internal Calibration, OIML Class I

RADWAG UYA 6.5Y Ultra-Microbalance — 0.1 µg Readability for the Highest Precision Demands

At the frontier of mass measurement, the RADWAG UYA 6.5Y Ultra-Microbalance achieves 0.1 µg readability across a 6.1 g capacity range. Designed for OIML Class I compliance and equipped with automatic internal calibration, a 10-inch touchscreen, and the ReflexLEVEL automatic levelling system, this instrument sets the standard for ultra-precise weighing in calibration laboratories, pharmaceutical research, and advanced materials science.

Key Features

• 0.1 µg Readability: Sub-microgram resolution resolves the smallest mass differences, enabling measurements that push the boundaries of conventional weighing technology.
• 6.1 g Maximum Capacity: Sufficient for calibration weight verification, micro-sample preparation, and filter deposit measurement at the highest achievable precision.
• Automatic Internal Calibration: Two-point self-adjustment with built-in mass standards maintains traceability at this extreme resolution, with full GLP documentation.
• OIML Class I Verification: The most stringent metrological classification validates the balance for the highest-accuracy regulated applications.
• ReflexLEVEL Automatic Levelling: Motorized levelling eliminates one of the most critical error sources at sub-microgram resolution, maintaining optimal instrument orientation continuously.
• 10-Inch Touchscreen with Customizable Widgets: Real-time environmental monitoring, measurement statistics, and process data are available directly on the home screen for complete situational awareness.

Detailed Overview

The UYA 6.5Y achieves standard repeatability of 0.2 µg at 5 % load and linearity of ±1.5 µg, representing extraordinary measurement performance. Eccentric load deviation of just 1.5 µg confirms uniform response across the weighing pan surface. The fully enclosed anti-vibration draftshield and controlled weighing environment protect measurements from even the slightest environmental disturbances. Semi-automatic LevelSENSING works alongside ReflexLEVEL for continuous orientation monitoring. Connectivity through USB-A, USB-C, Ethernet, Wi-Fi, and Hotspot supports validated data transfer, and the balance supports 21 CFR Part 11 compliance for pharmaceutical and regulated research applications.

Applications

• National and accredited calibration laboratory weight verification
• Pharmaceutical micro-dosing research and development
• Environmental particulate filter gravimetric analysis
• Materials science thin-film and nano-coating mass determination
• Forensic trace evidence measurement and documentation

Why Choose this ultra-microbalance?

The UYA 6.5Y represents the absolute pinnacle of weighing precision in the RADWAG portfolio. For laboratories where sub-microgram resolution is not optional but essential, this ultra-microbalance delivers verified accuracy, automated calibration, and full regulatory support. Add to cart and achieve the ultimate in measurement precision at Weighcore.
