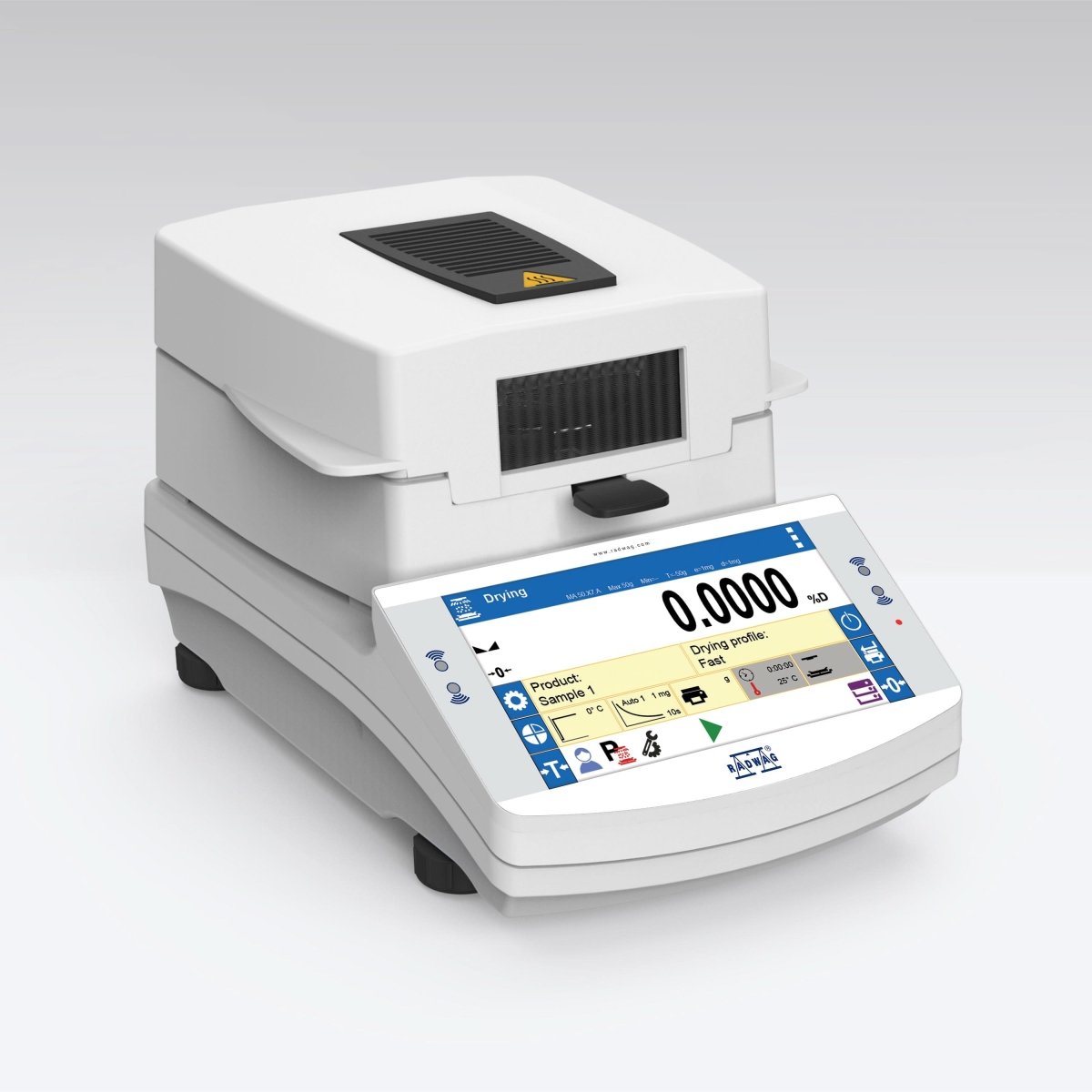

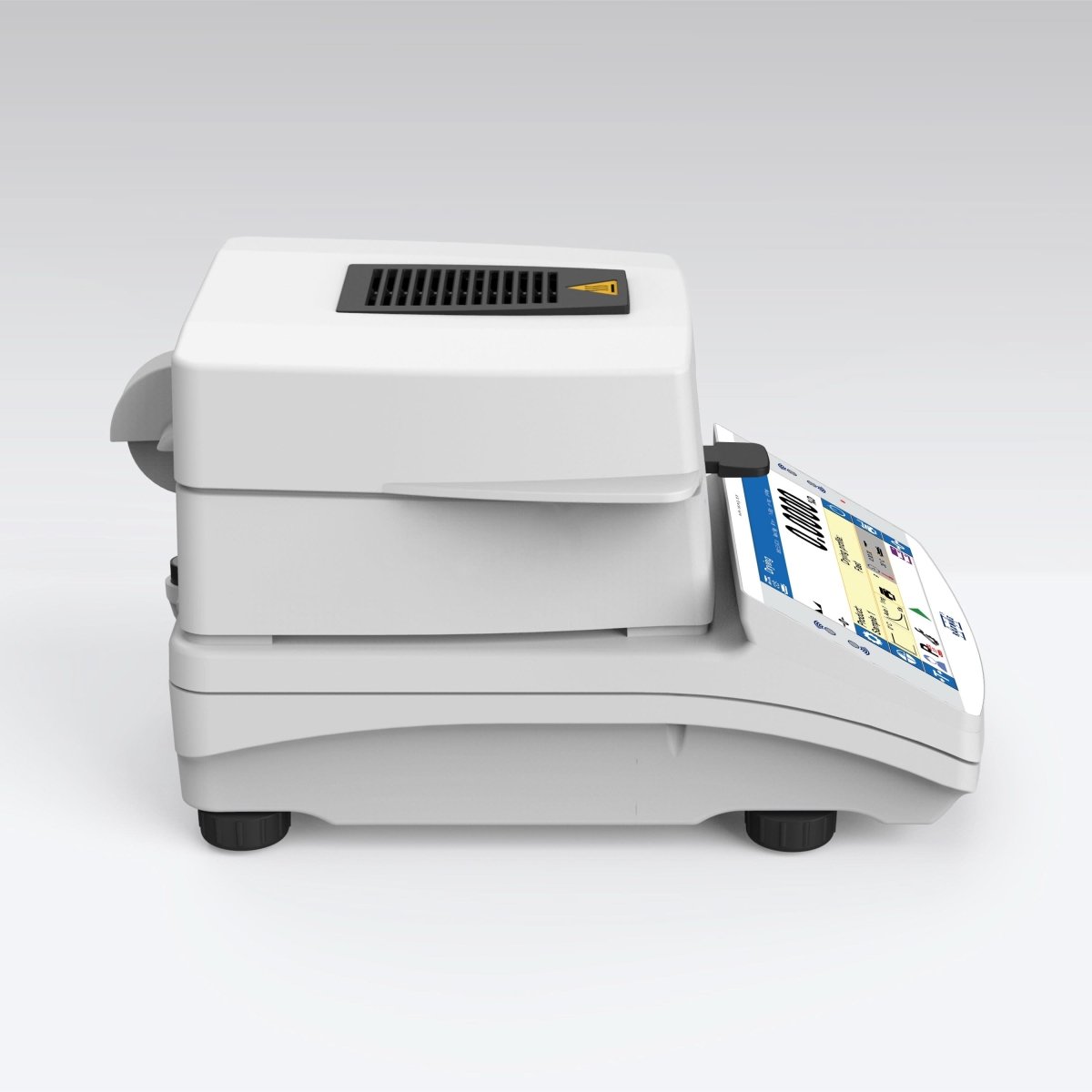

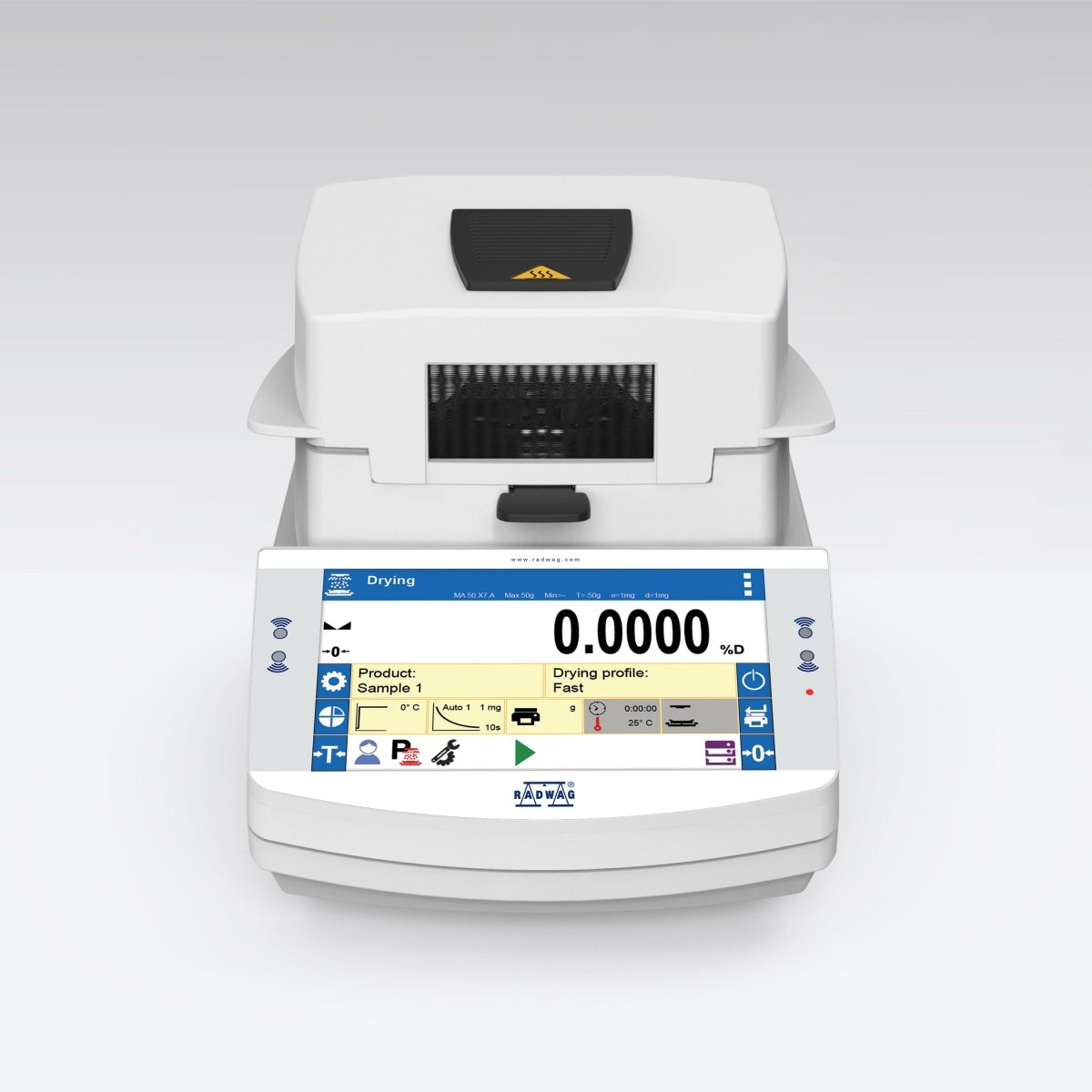

RADWAG MA X7.A.NS MA 50.X7.A.NS Moisture Analyzer, 50g Capacity, 1mg Readability, Metal Heater, 160°C Max
RADWAG MA 50.X7.A.NS Moisture Analyzer — Automated Chamber with 7-Inch Touchscreen Control
Maintaining sample integrity during moisture analysis demands minimal operator contact with the instrument. The RADWAG MA 50.X7.A.NS Moisture Analyzer features a fully automated drying chamber that opens and closes via button or proximity sensors, combined with a 50 g capacity, 1 mg readability, and a vivid 7-inch touchscreen for streamlined operation.
Key Features
- Automated Drying Chamber: Motorised opening and closing eliminates manual handling, keeping the analyzer clean, reducing mechanical shock, and maintaining consistent sample positioning between tests.
- Metal Heater to 160 °C: The robust heating element delivers even thermal distribution for reliable moisture determination across powders, granules, and semi-solid materials.
- 7-Inch Colour Touchscreen: A responsive display with graphical interface simplifies method programming, real-time drying curve monitoring, and result review without requiring extensive training.
- Touch-Free IR Sensor Operation: Two programmable proximity sensors allow operators to start, stop, and navigate functions without touching the instrument, ideal for cleanroom and hygienic environments.
- Four Drying Profiles: Standard, fast, step, and mild modes accommodate different sample types, from heat-sensitive biological materials to robust industrial compounds.
Detailed Overview
The RADWAG MA 50.X7.A.NS Moisture Analyzer is part of the MA X7.A series, which prioritises hands-free operation and contamination prevention. With a moisture content readability of 0.001% and four configurable finish modes, operators can tailor analysis to match established reference methods or develop new protocols. The ø90 mm sample pan handles specimens up to 20 mm high, while sample traceability functions log all parameters and results for subsequent review. RS232, USB-A, USB-B, Ethernet, and Wi-Fi connectivity facilitate data transfer to laboratory management systems and external printers. External calibration with GLP reporting ensures ongoing measurement accuracy for regulated environments.
Applications
- Food production moisture testing for ingredient quality verification
- Pharmaceutical excipient and granulation moisture control
- Chemical manufacturing process monitoring
- Construction material testing for cement, aggregates, and soils
Why Choose the RADWAG MA 50.X7.A.NS?
The automated chamber design, combined with touch-free operation and a clear graphical display, makes this moisture analyzer ideal for environments where cleanliness and efficiency are priorities. Its versatile drying options and thorough data recording support consistent, traceable results. Add to cart to introduce automated moisture analysis into your quality control workflow.
| Maximum Capacity | 50 g |
|---|---|
| Readability | 1 mg |
| Moisture content readability | 0.001% |
| Maximum sample weight | 50 g |
| Heating module | metal heater |
| Heating module power | 450 W |
| Drying temperature range | Max 160 °C |
| Drying method | 4 drying profiles (standard, fast, step, mild) |
| Moisture content repeatability | +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g) |
| Display | 7″ graphic colour touchscreen |
| Display mode | %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC |
| Finish mode | 4 modes (automatic, manual, time-defined, user-defined) |
| Weighing pan dimensions | ø90, h= 8 mm |
| Maximum sample height | 20 mm |
| Weighing chamber | automatic |

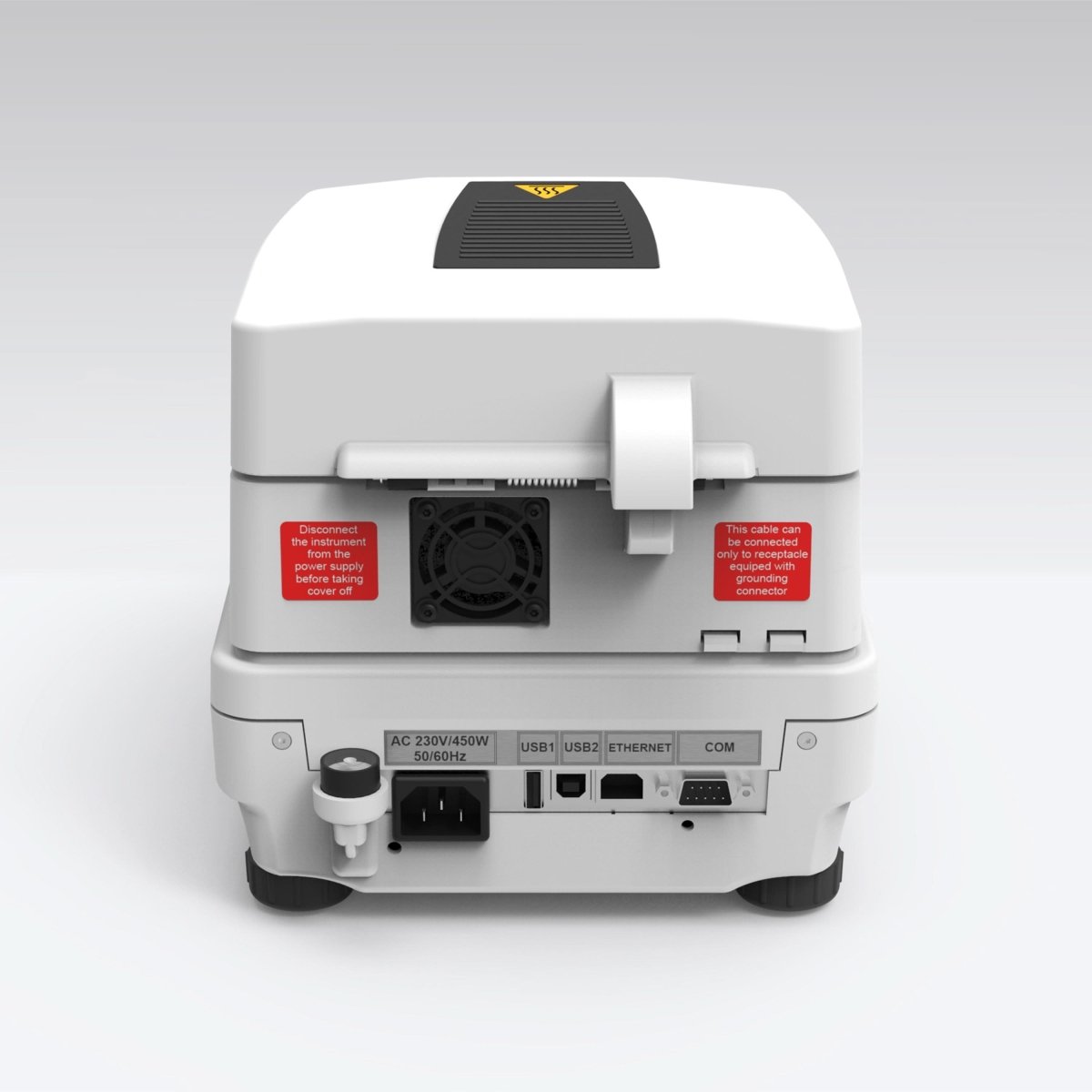

| Communication interface | RS232¹, USB-A, USB-B, Ethernet, Wi-Fi® |
| Calibration | external |
| External adjustment | For all models, GLP report |
| Internal / External adjustment | Depending on the type of moisture analyzer, GLP report |
| Internal adjustment | For .IC models only, GLP report |
| Drying temperature control | One- or two-point, depending on the drying profile (equipment: GT105k-12/Z Control Thermometer) |
| Drying temperature adjustment | Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer) |
| Mass indication control | External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer) |
| Moisture content indication control | Certified MV Test Set |
| Additional functions | sample traceability |
| Leveling system | manual |
| Protection class | IP 43 |
| Operating temperature | +10 — +40 °C |
| Power supply | 100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz |
| Power consumption | 6 W |
| Net weight | 5.2 kg |
| Tare range | -50 g |
