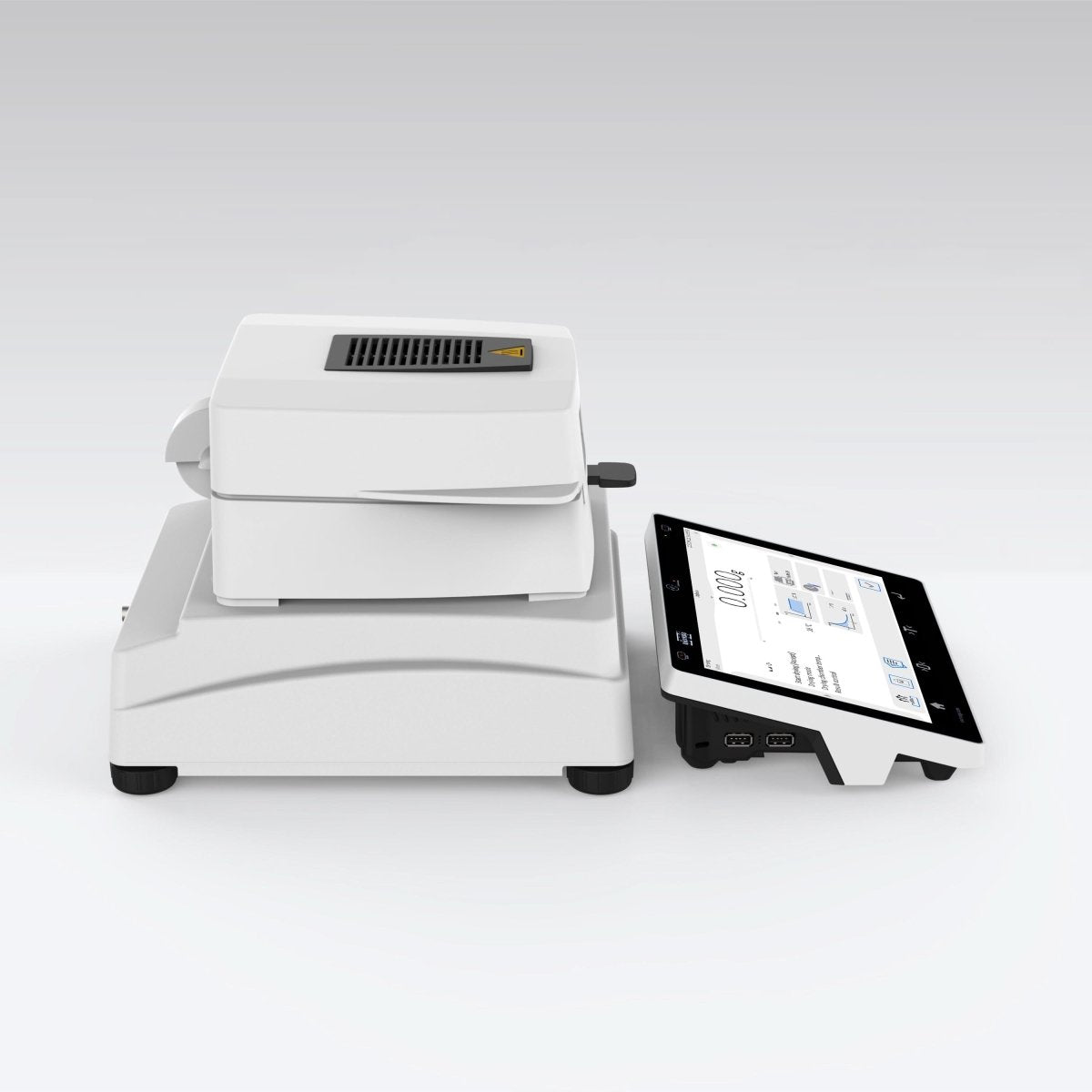

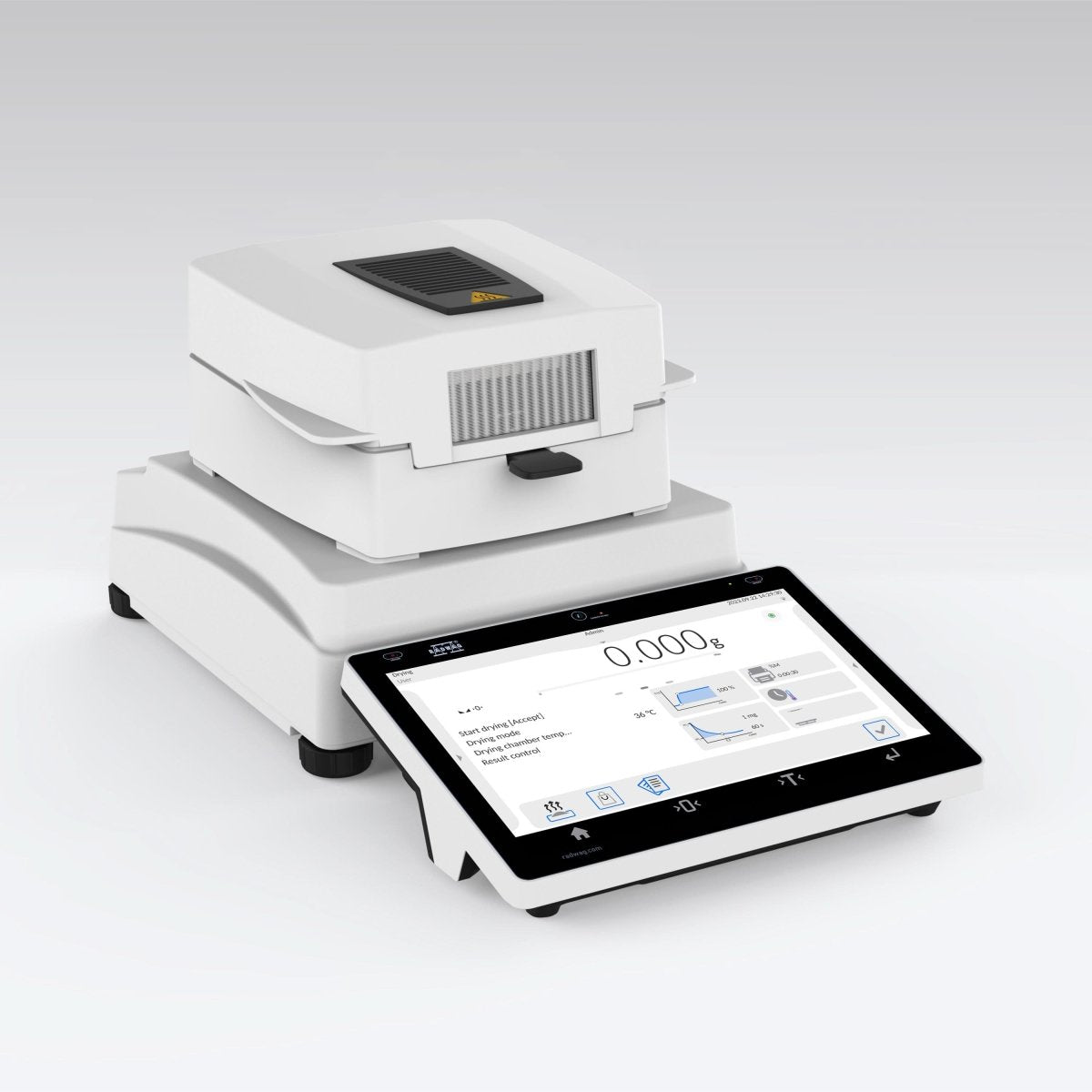

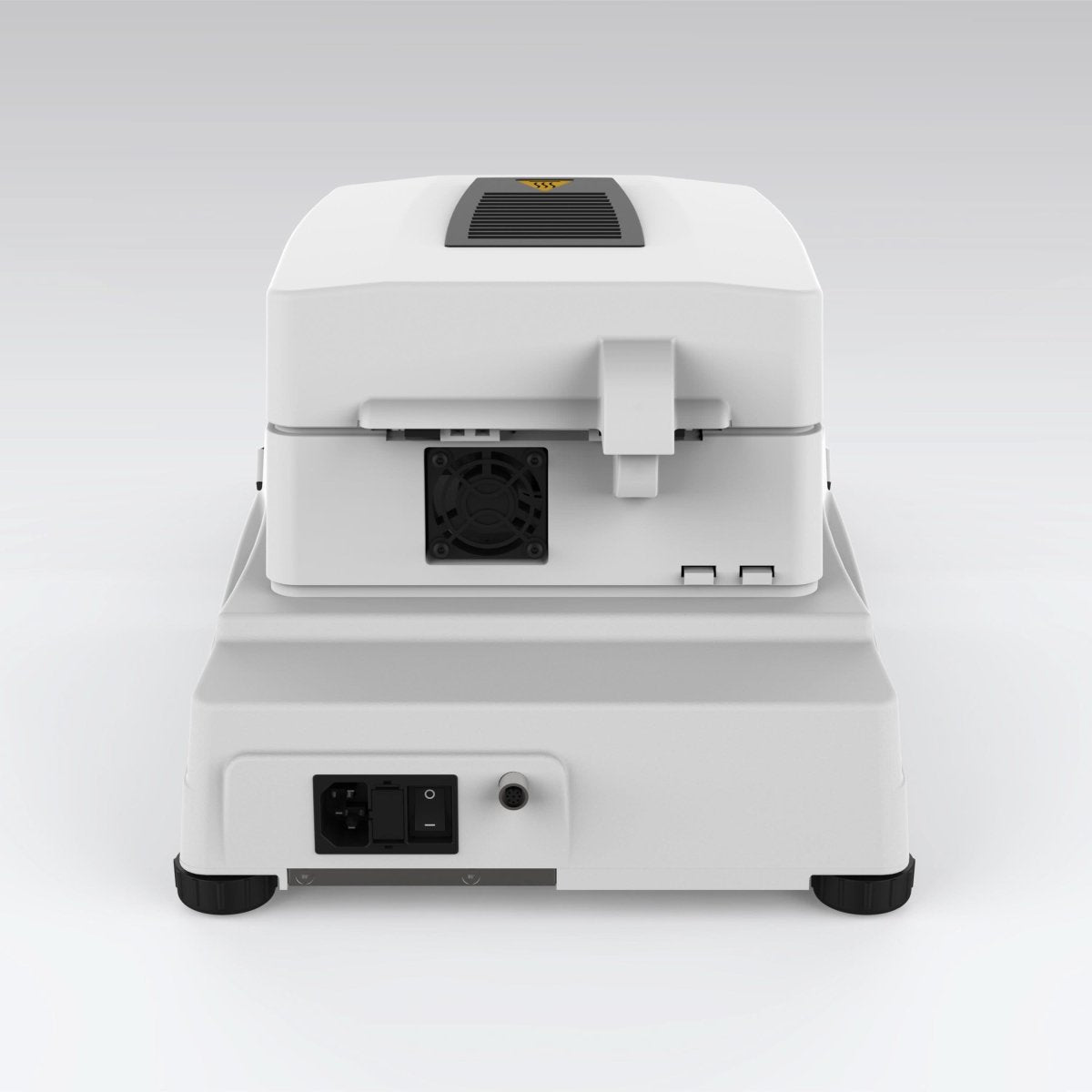

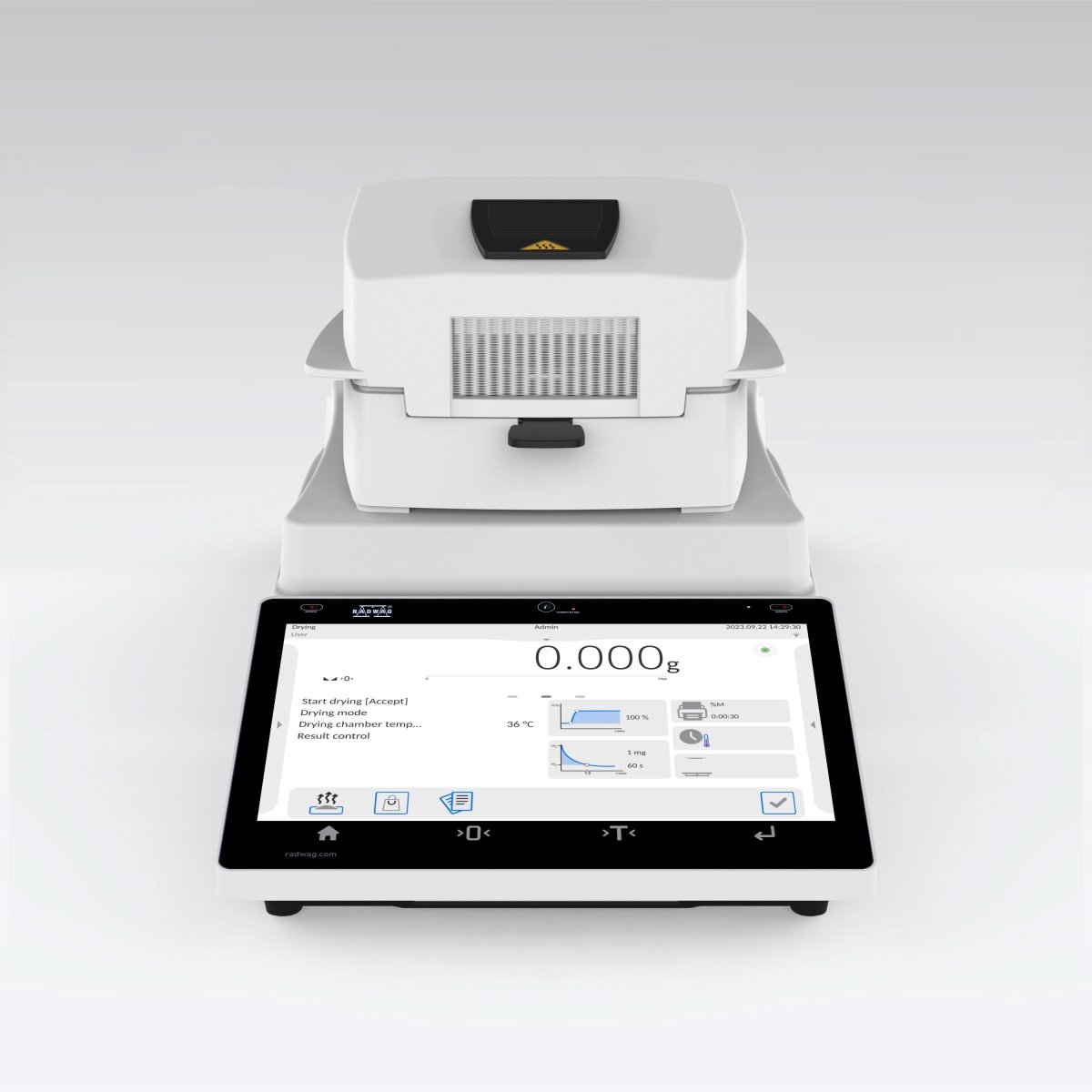

RADWAG MA 50.5Y.IC MA 5Y.IC Moisture Analyzer, 50g Capacity, 1mg Readability, Internal Calibration
RADWAG MA 50.5Y.IC Moisture Analyzer — Self-Calibrating IR Analyzer with 10-Inch Display
Laboratories that run frequent moisture tests throughout the day benefit from instruments that maintain their own calibration accuracy. The RADWAG MA 50.5Y.IC Moisture Analyzer pairs automatic internal calibration with an infrared heating element, 50 g capacity, and 1 mg readability on a 10-inch touchscreen platform designed for high-throughput moisture determination.
Key Features
- Automatic Internal Calibration: A motor-driven reference weight verifies and adjusts balance sensitivity without manual intervention, ensuring accuracy between tests without external weights.
- IR Emitter Heating to 160 °C: Provides reliable, even sample drying with infrared energy, suitable for a broad range of common laboratory and production materials.
- 10-Inch Touchscreen with Widgets: The large display presents drying curves, environmental monitoring, and result history on configurable widget screens for efficient workflow navigation.
- Semi-Automatic LevelSENSING: Detects and alerts to leveling errors, guiding the operator to correct instrument alignment and maintain measurement accuracy.
- Automated Drying Chamber: Consistent opening and closing minimizes operator handling of hot components and ensures repeatable chamber conditions for every test.
Detailed Overview
The MA 50.5Y.IC is a member of RADWAG's MA 5Y.IC series, which differentiates itself from the base 5Y platform through built-in internal calibration capability. Moisture content readability reaches 0.001 %, and mass readability is 1 mg. Four drying profiles (standard, fast, step, mild) and four finish modes (automatic, manual, time-defined, user-defined) provide flexibility across sample types and standard methods. Results display in eight formats including %MC, %DC, ATRO, and g/kg. The 450 W IR emitter heats the ø90 mm pan efficiently. Connectivity includes USB-A, USB-C, HDMI, Ethernet, Wi-Fi, and Hotspot for seamless integration with quality management systems and remote monitoring stations.
Applications
- Routine moisture checks in food quality control laboratories
- Pharmaceutical intermediate moisture verification
- Plastics and powder coating moisture acceptance testing
- Research and development material characterization
Why Choose the RADWAG MA 50.5Y.IC?
Internal calibration removes a maintenance step that can disrupt busy testing schedules. Combined with the 5Y platform's touchscreen interface and comprehensive connectivity, this model is well suited to laboratories seeking efficient, traceable moisture analysis. Order today and simplify your calibration routine with a self-calibrating moisture analyzer.
| Brand | RADWAG |
|---|---|
| Model | MA 50.5Y.IC MA 5Y.IC |
| Maximum Capacity | 50 g |
| Readability | 1 mg |
| Maximum Sample Weight | 50 g |
| Heater Type | IR emitter |
| Temperature Range | max 160 °C |
| Heating Profiles | 4 drying profiles (standard, fast, step, mild) |
| Moisture Content Readability | 0.001% |
| Moisture Content Repeatability | +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g) |
| Calibration | internal (automatic) |
| Leveling System | semi-automatic - LevelSENSING |
| Pan Size | ø90, h= 8 mm |
| Maximum Sample Height | 20 mm |
| Weighing Chamber | automatic |
| Display | 10″ touchscreen |
| Display Mode | %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC |
| Finish Mode | 4 modes (automatic, manual, time-defined, user-defined) |
| Connectivity | USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot |
| Protection Class | IP 43 |
| Operating Temperature | +10 — +40 °C |
| Heater Power | 450 W |
| Power Consumption | 6 W |
| Net Weight | 5.3 kg |
| Tare Range | -50 g |
