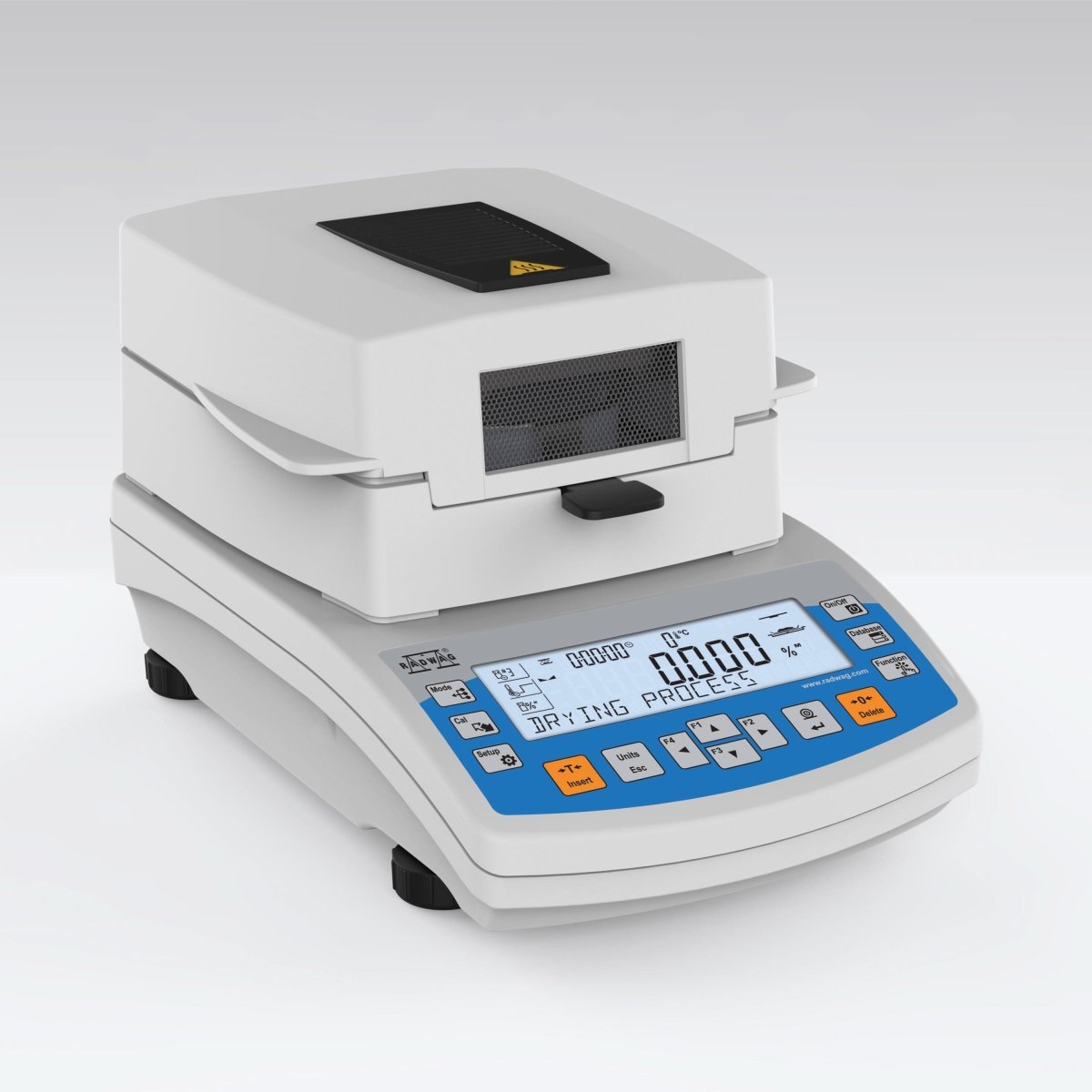

RADWAG MA 50/1.R.WH Moisture Analyzer — Halogen Heating with 0.1 mg Readability
When standard IR heating falls short, halogen technology steps in. The RADWAG MA 50/1.R.WH Moisture Analyzer pairs a halogen heating module reaching 250 °C with exceptional 0.1 mg weighing readability and 50 g capacity. This combination enables faster drying cycles and higher-precision moisture results, making it a compelling choice for analytical laboratories that handle challenging or low-moisture samples.
Key Features
- Halogen Heating to 250 °C: Rapid, high-temperature drying significantly shortens analysis time and enables effective moisture extraction from difficult sample matrices.
- 0.1 mg Weighing Readability: Sub-milligram resolution on the weighing side elevates the accuracy of moisture calculations, particularly beneficial when testing low-moisture or high-value materials.
- 50 g Maximum Capacity: Sufficient for most analytical moisture determinations while keeping sample sizes manageable for precise weighing.
- 0.0001 % Moisture Content Readability: Highly granular moisture readings support demanding specifications in pharmaceutical, chemical, and materials testing.

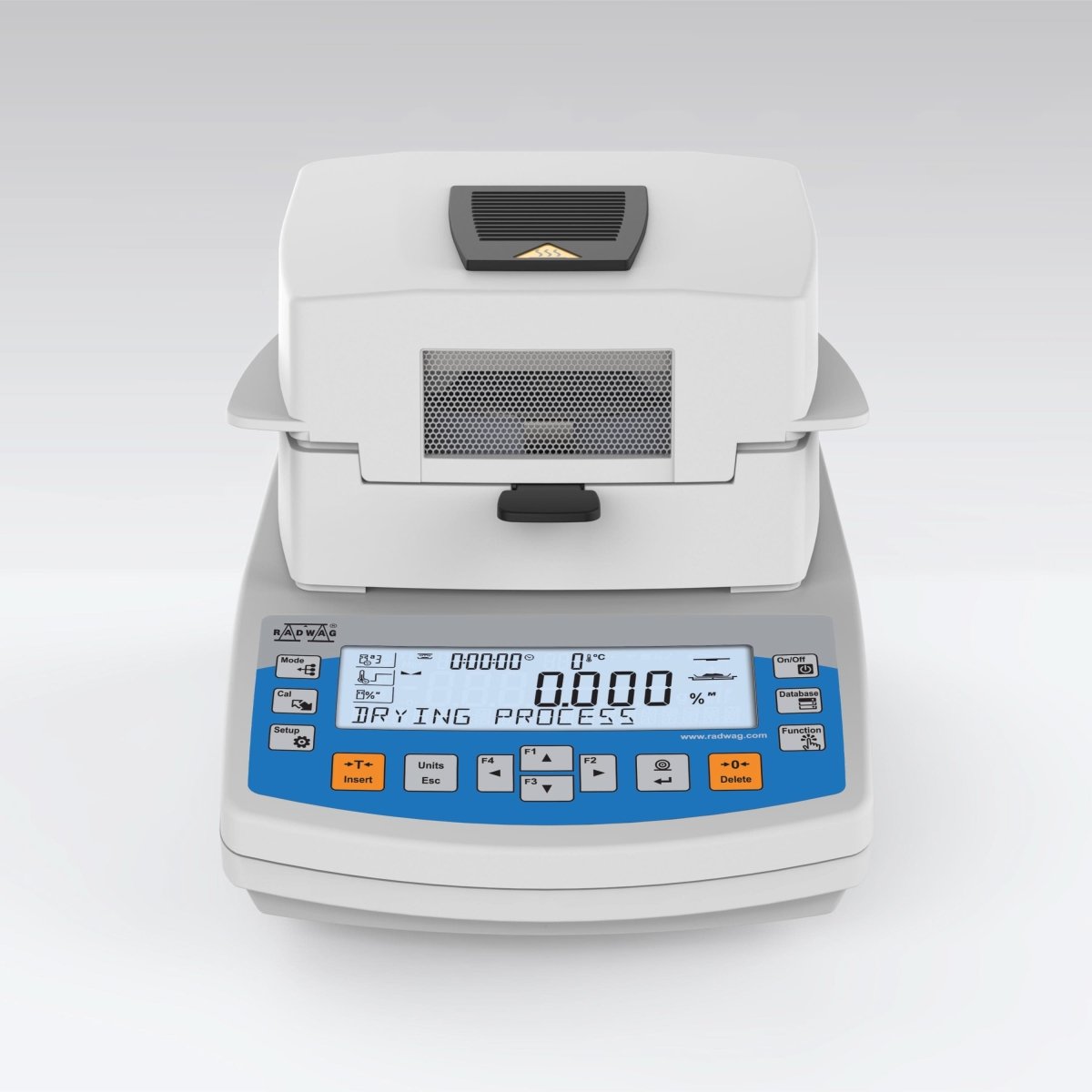

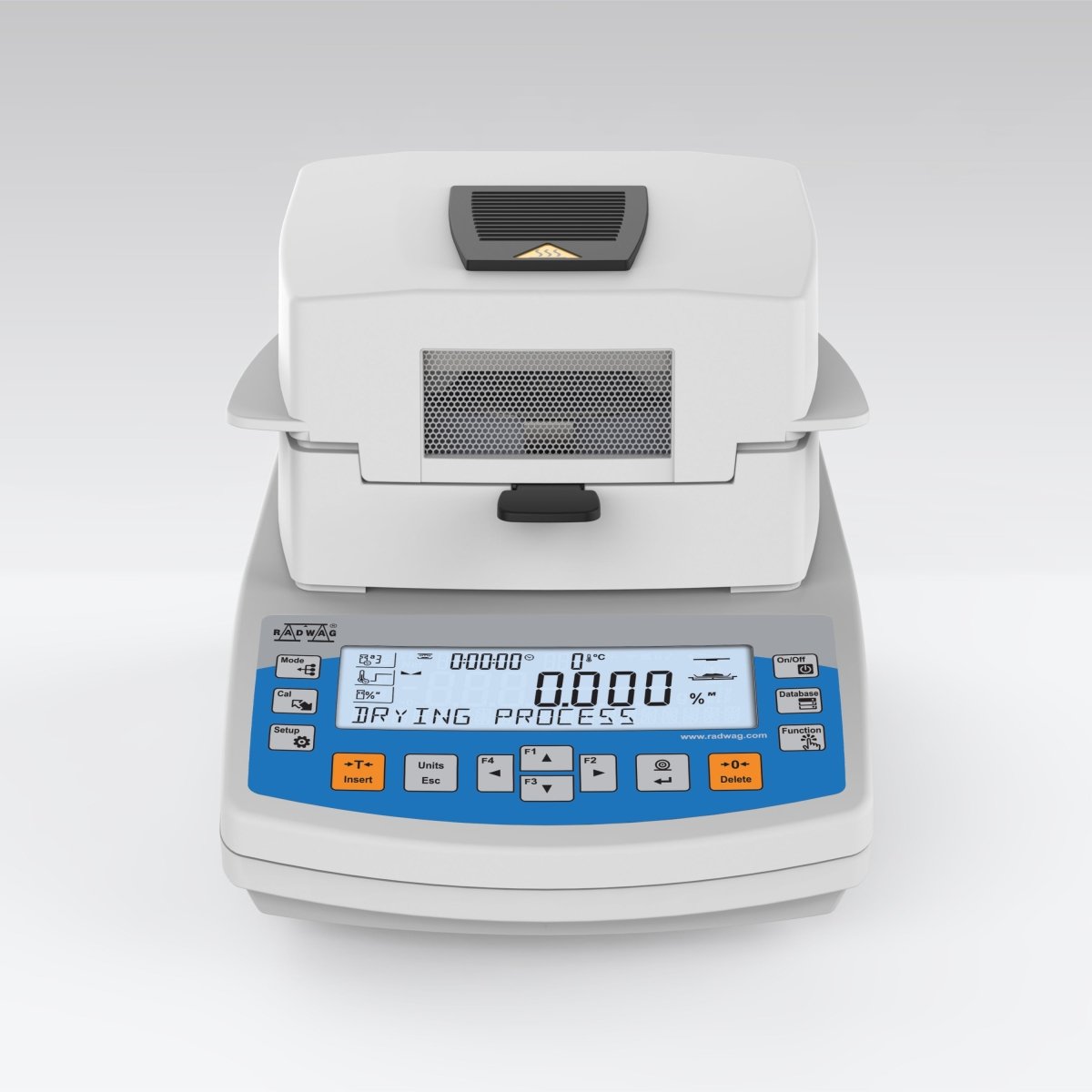

- LCD Display with Pictogram Navigation: Clear status indicators and an informative text line guide operators through drying programs and result interpretation.
Detailed Overview
The MA 50/1.R.WH belongs to the RADWAG MA R series, extending the line's capabilities with halogen heating for applications that require higher temperatures or faster energy transfer than conventional IR or metal heaters provide. Moisture content repeatability reaches ±0.05 % for 2 g samples and ±0.01 % for 10 g samples. The 90 mm diameter pan accepts standard sample preparations, and the 20 mm maximum sample height accommodates thicker layers when needed. External calibration with certified weights maintains measurement traceability, while the RS 232 interface supports data export to documentation and quality management systems. Manual levelling and IP 43 protection round out a practical, lab-ready design.
Applications
- Pharmaceutical raw material and finished product moisture analysis
- Chemical feedstock quality verification requiring high-temperature drying
- Advanced materials and polymer moisture characterization
- Food safety testing where rapid turnaround is critical
Why Choose this moisture analyzer?
The MA 50/1.R.WH stands apart with its halogen heating capability and sub-milligram readability, addressing applications where standard moisture analyzers cannot deliver sufficient speed or resolution. If your protocols require drying temperatures above 160 °C or demand the highest precision from every measurement, this analyzer is built for the task. Order today at Weighcore.
| Maximum Capacity | 50 g |
|---|---|
| Readability | 0.1 mg |
| Moisture content readability | 0.0001% |
| Heating module | halogen |
| Heating module power | 450 W |
| Tare range | -50 g |
| Maximum sample weight | 50 g |
| Moisture content repeatability | +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g) |
| Drying temperature range | max 250 °C |
| Drying method | 4 drying profiles (standard, fast, step, mild) |
| Finish mode | 4 modes (automatic, manual, time-defined, user-defined) |
| Display | LCD (backlit) |
| Display mode | %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC |
| Weighing pan dimensions | ø90, h= 8 mm |
| Maximum sample height | 20 mm |
| Leveling system | manual |

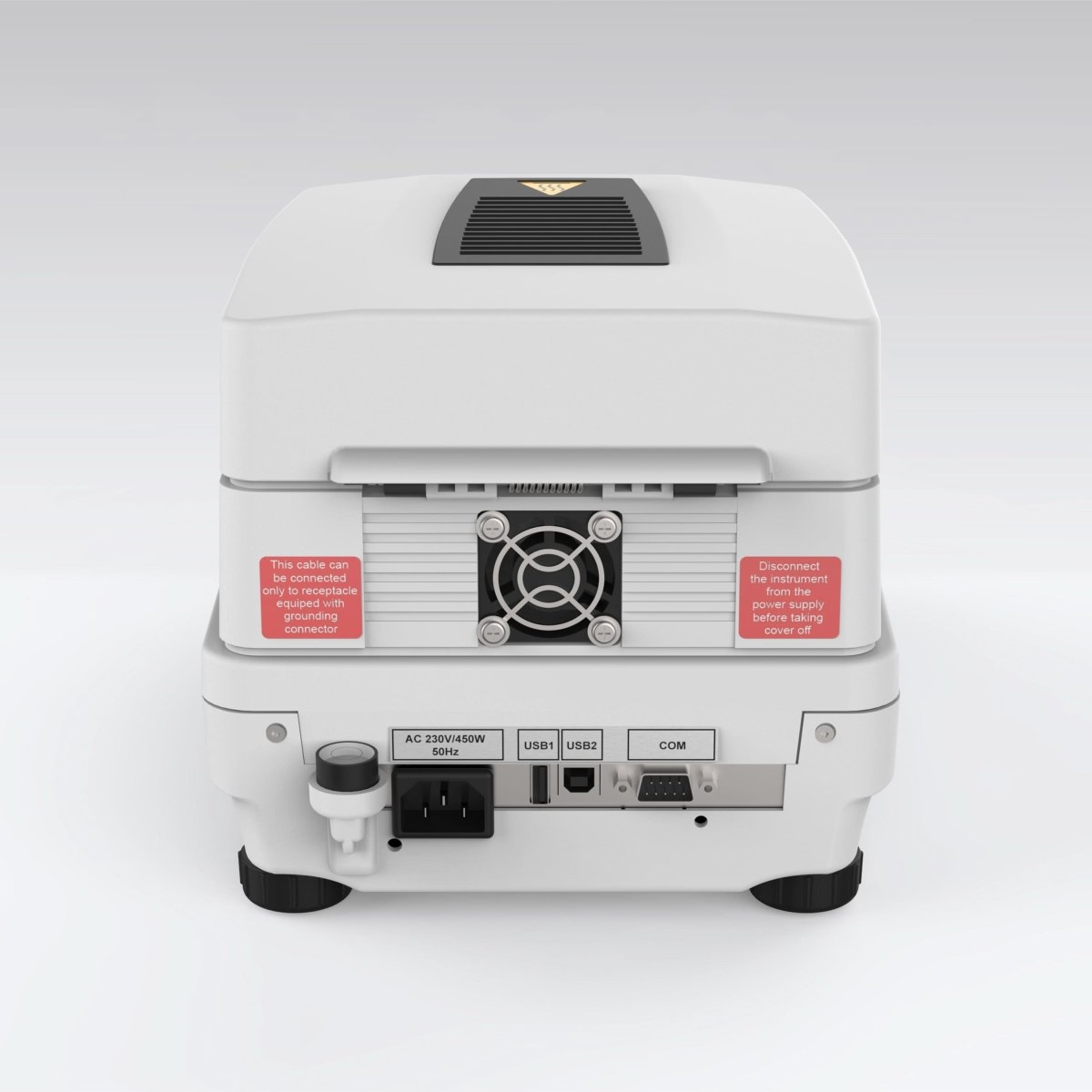

| Communication interface | RS232¹, USB-A, USB-B, Wi-Fi® |
| Protection class | IP 43 |
| Operating temperature | +10 — +40 °C |
| Power supply | 100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz |
| Power consumption | 4 W |
| Mass indication control | External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer) |
| Internal adjustment | For .IC models only, GLP report |
| External adjustment | For all models, GLP report |
| Internal / External adjustment | Depending on the type of moisture analyzer, GLP report |
| Drying temperature control | One- or two-point, depending on the drying profile (equipment: GT105k-12/Z Control Thermometer) |
| Drying temperature adjustment | Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer) |
| Moisture content indication control | Certified MV Test Set |
| Additional functions | sample traceability |
| Net weight | 4.8 kg |
| Calibration | external |
