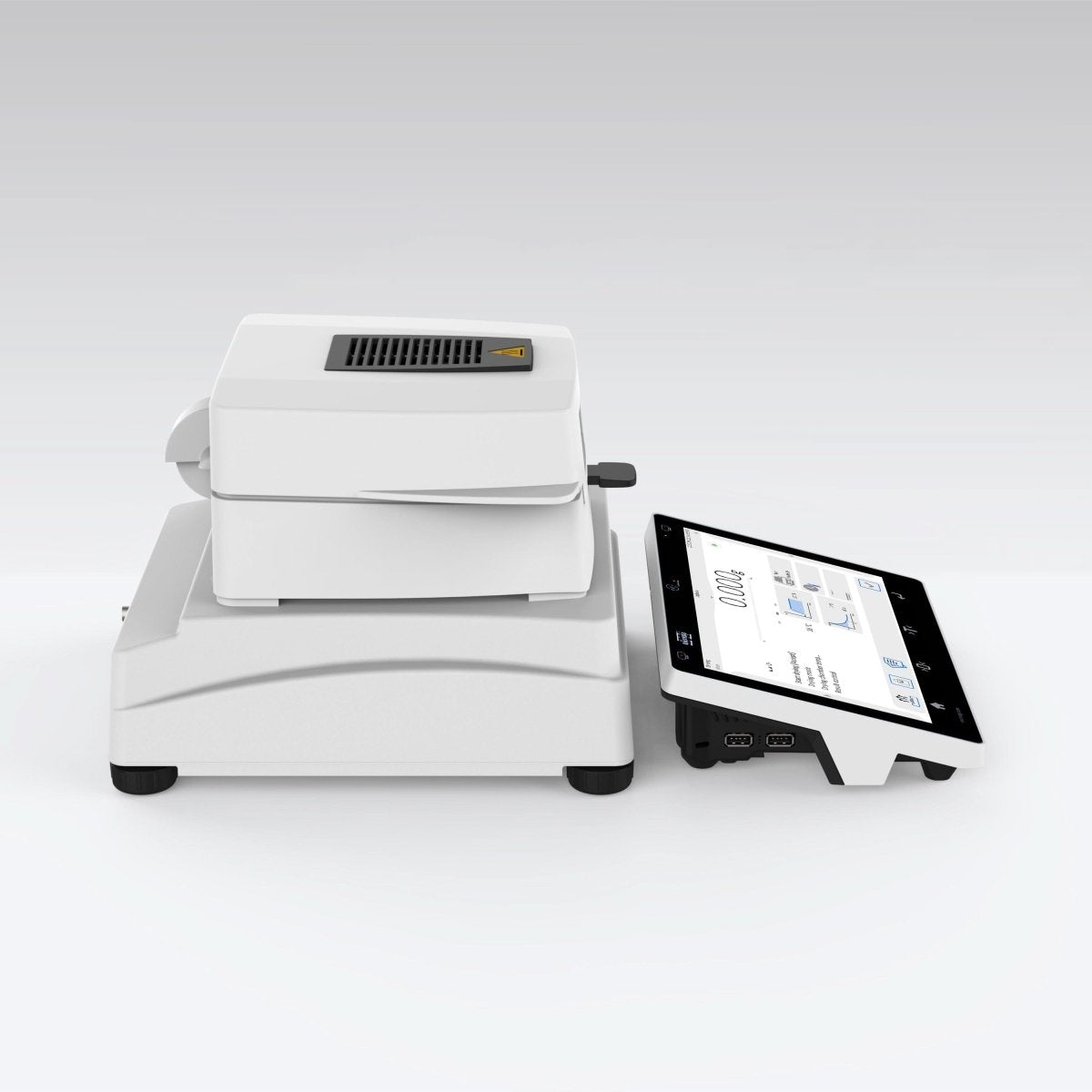

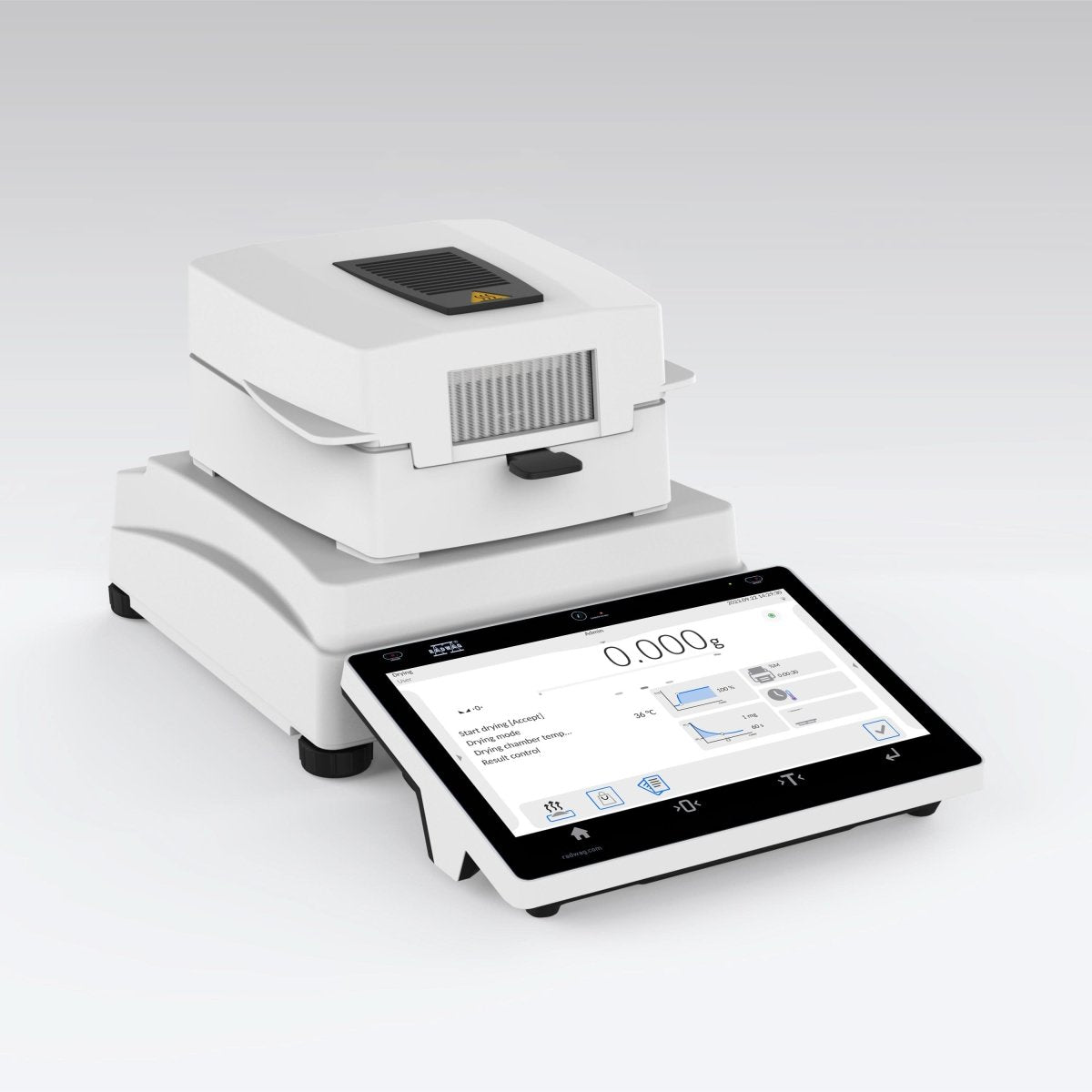

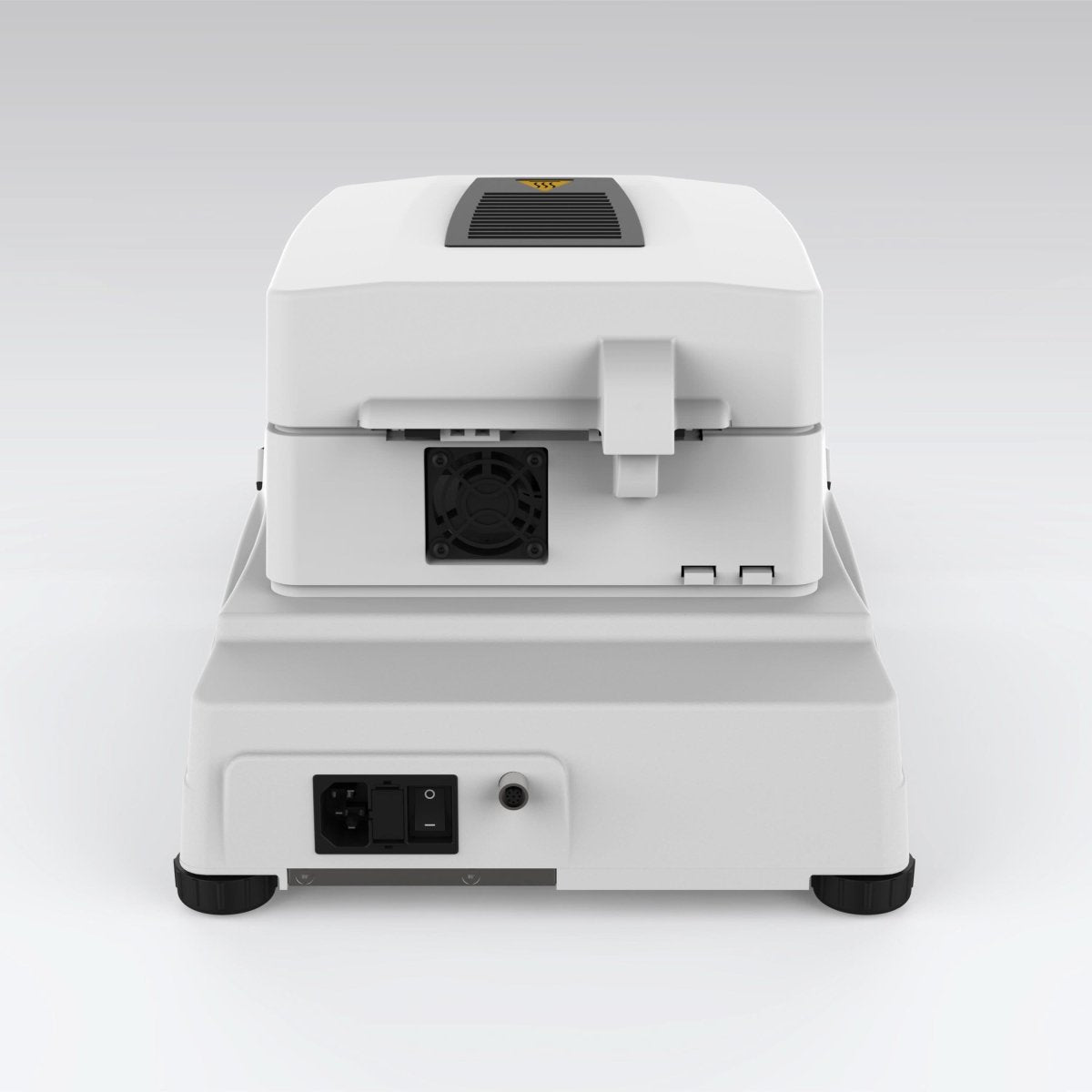

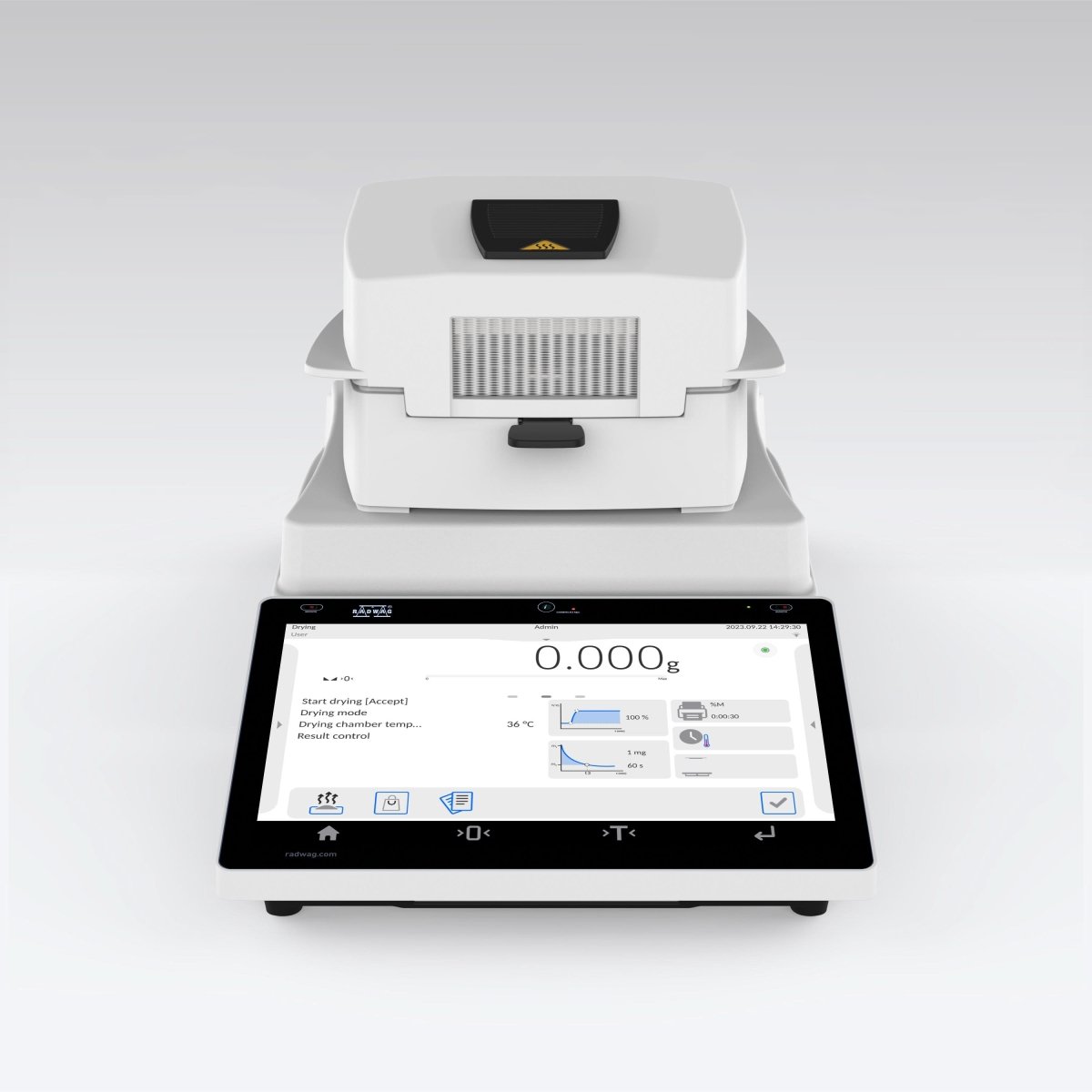

RADWAG MA 50/1.5Y.IC.WH MA 5Y.IC.WH Moisture Analyzer, 50g Capacity, 0.1mg Readability, Internal Calibration
RADWAG MA 50/1.5Y.IC.WH Moisture Analyzer — Halogen Heating with Internal Calibration
Accelerate your moisture testing with halogen-powered performance using the RADWAG MA 50/1.5Y.IC.WH Moisture Analyzer. This 50 g capacity instrument features 0.1 mg readability, internal automatic calibration, and a halogen heating module reaching 250 degrees Celsius, delivering rapid, thorough drying for a wide variety of sample materials.
Key Features
- Halogen Heating to 250 °C: Reaches higher temperatures faster than metal or standard infrared heaters, significantly shortening drying times for thermally robust materials.
- Internal Automatic Calibration: Keeps the weighing system verified without external calibration weights, maintaining measurement traceability and reducing scheduled maintenance tasks.
- 0.1 mg Readability: Captures fine mass changes during drying, providing moisture content readability of 0.0001 percent for accurate low-moisture determinations.
- 10-Inch Touchscreen Display: Presents drying curves, numerical results, method parameters, and environmental data on a spacious interface for rapid interpretation and program management.
- Four Drying Modes: Standard, mild, fast, and step profiles allow tailored heating programs that balance speed with sample protection for each material type tested.
- Semi-Automatic LevelSENSING: Detects and alerts to leveling deviations, ensuring the balance mechanism operates under optimal conditions throughout each test.
Detailed Overview
The MA 50/1.5Y.IC.WH is part of the RADWAG MA 5Y.IC.WH series, targeting applications where halogen heating provides measurable speed advantages over infrared or metal heater alternatives. Moisture content repeatability of plus or minus 0.05 percent for 2 g samples and plus or minus 0.01 percent for 10 g samples confirms the instrument's reliability across typical sample sizes. The THBR 2.0 ambient monitoring system tracks environmental variables alongside each test, creating a comprehensive data record for compliance and troubleshooting purposes. Connectivity through RS 232, USB-A, USB-B, Ethernet, and Wi-Fi facilitates direct data transfer to laboratory information systems and quality management platforms, while the on-board database stores methods, user profiles, and results for convenient auditing.
Applications
- Rapid moisture determination in food production and bakery operations
- Pharmaceutical raw material and finished product moisture testing
- High-temperature drying of thermally stable minerals and soils
- Chemical and plastics industry moisture verification at incoming inspection
Why Choose the RADWAG MA 50/1.5Y.IC.WH?
Halogen heating delivers faster results when time matters, and internal calibration ensures those results remain accurate without manual verification steps. This moisture analyzer is built for labs that need both speed and reliability from their moisture testing equipment. Order the MA 50/1.5Y.IC.WH today for efficient, traceable moisture analysis.
| Maximum Capacity | 50 g |
|---|---|
| Readability | 0.1 mg |
| Maximum Sample Weight | 50 g |
| Heater Type | halogen |
| Temperature Range | max 250 °C |
| Moisture Content Readability | 0.0001% |
| Moisture Content Repeatability | +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g) |
| Calibration | internal (automatic) |
| Leveling System | semi-automatic - LevelSENSING |
| Pan Size | ø90, h= 8 mm |
| Maximum Sample Height | 20 mm |
| Display | 10″ touchscreen |
| Connectivity | USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot |
| Operating Temperature | +10 — +40 °C |
| Protection Class | IP 43 |
| Power Supply | 100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz |
| Power Consumption | 6 W |
| Tare Range | -50 g |
| Net Weight | 5.3 kg |
| Weighing chamber | automatic |
| Display mode | %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC |
| Drying method | 4 drying profiles (standard, fast, step, mild) |
| Finish mode | 4 modes (automatic, manual, time-defined, user-defined) |
| Additional functions | sample traceability |
| Heating module power | 450 W |
| Mass indication control | External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer) |
| Internal adjustment | For .IC models only, GLP report |
| External adjustment | For all models, GLP report |
| Drying temperature control | One- or two-point, depending on the drying profile (equipment: GT105k-12/Z Control Thermometer) |
| Moisture content indication control | Certified MV Test Set |
| Internal / External adjustment | Depending on the type of moisture analyzer, GLP report |
| Drying temperature adjustment | Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer) |
