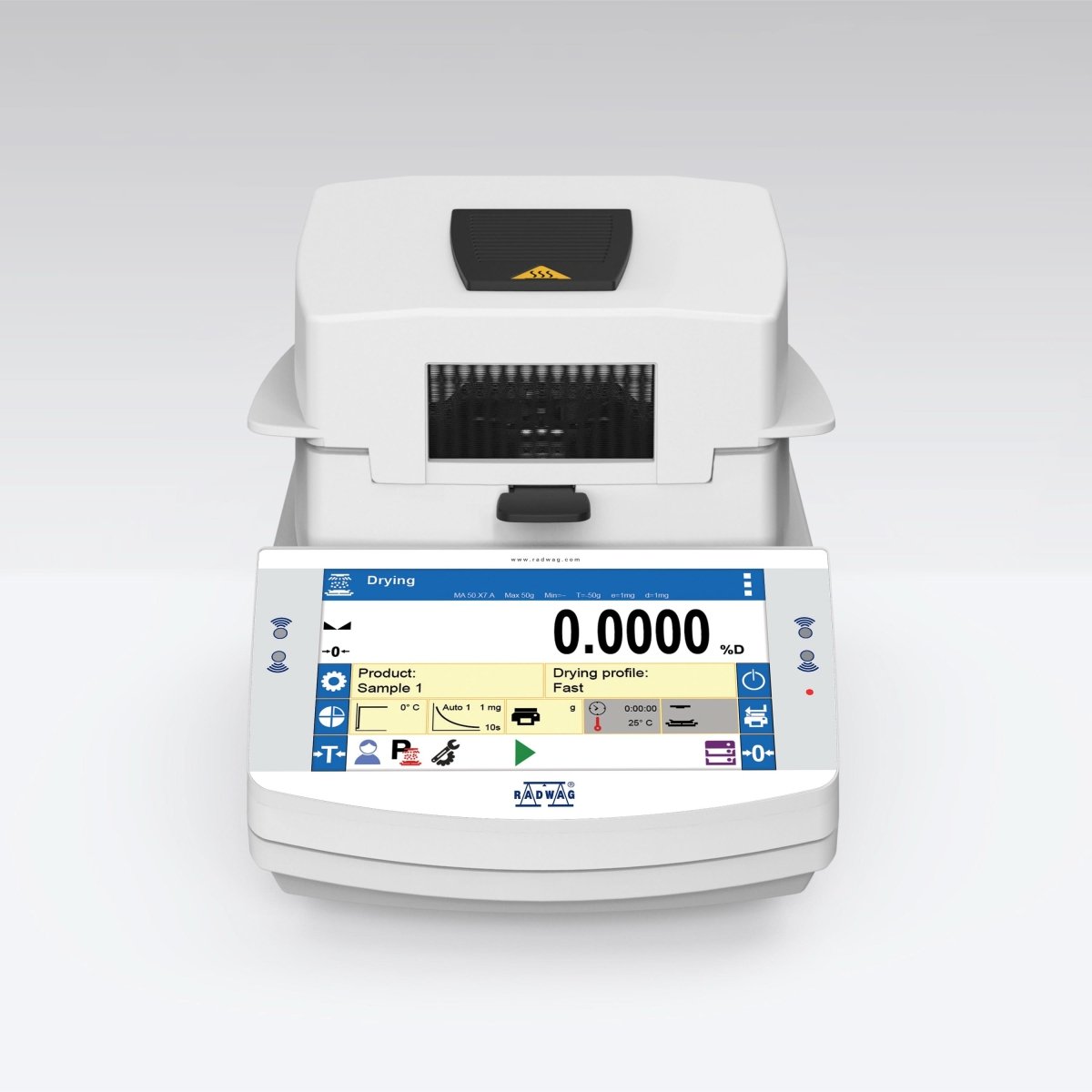

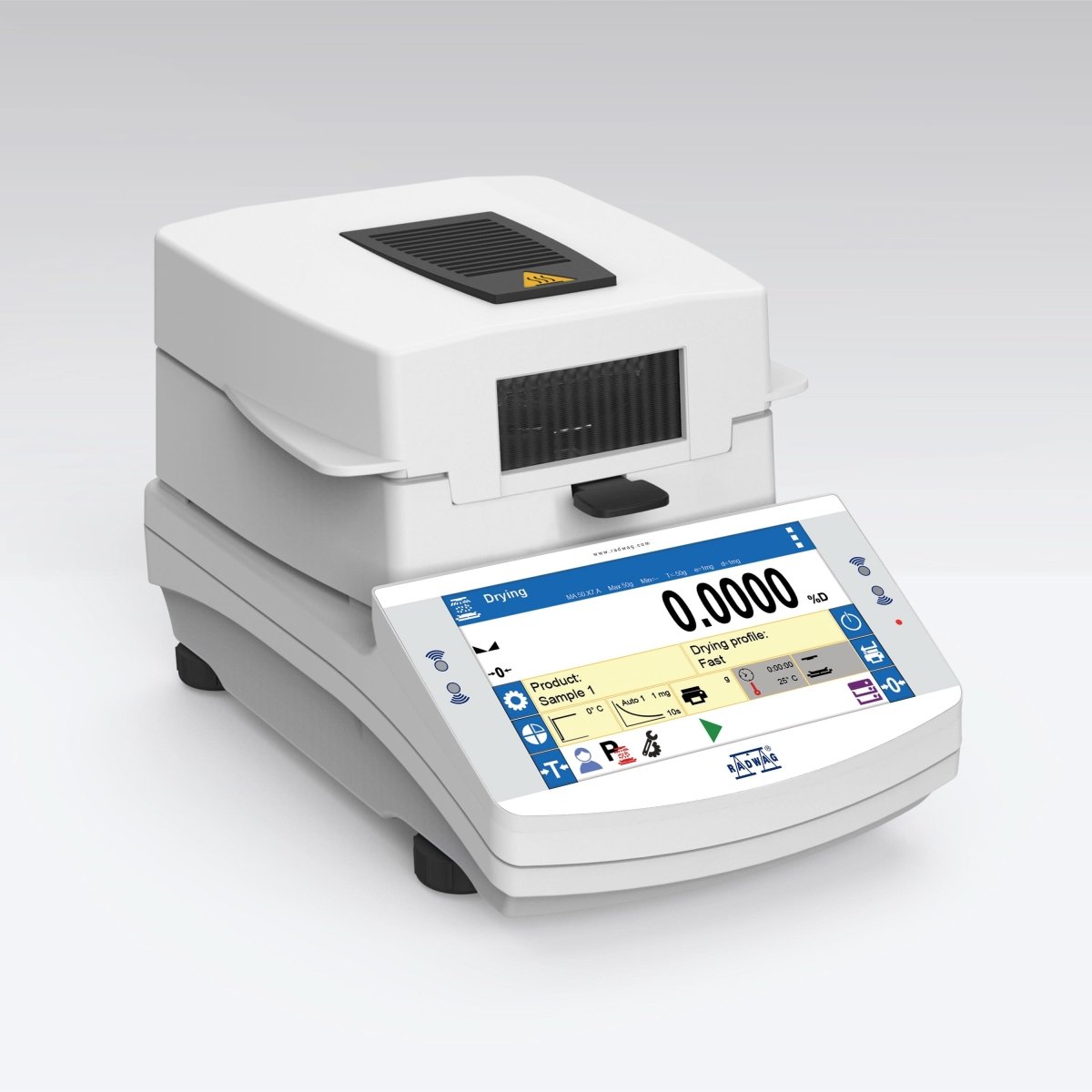

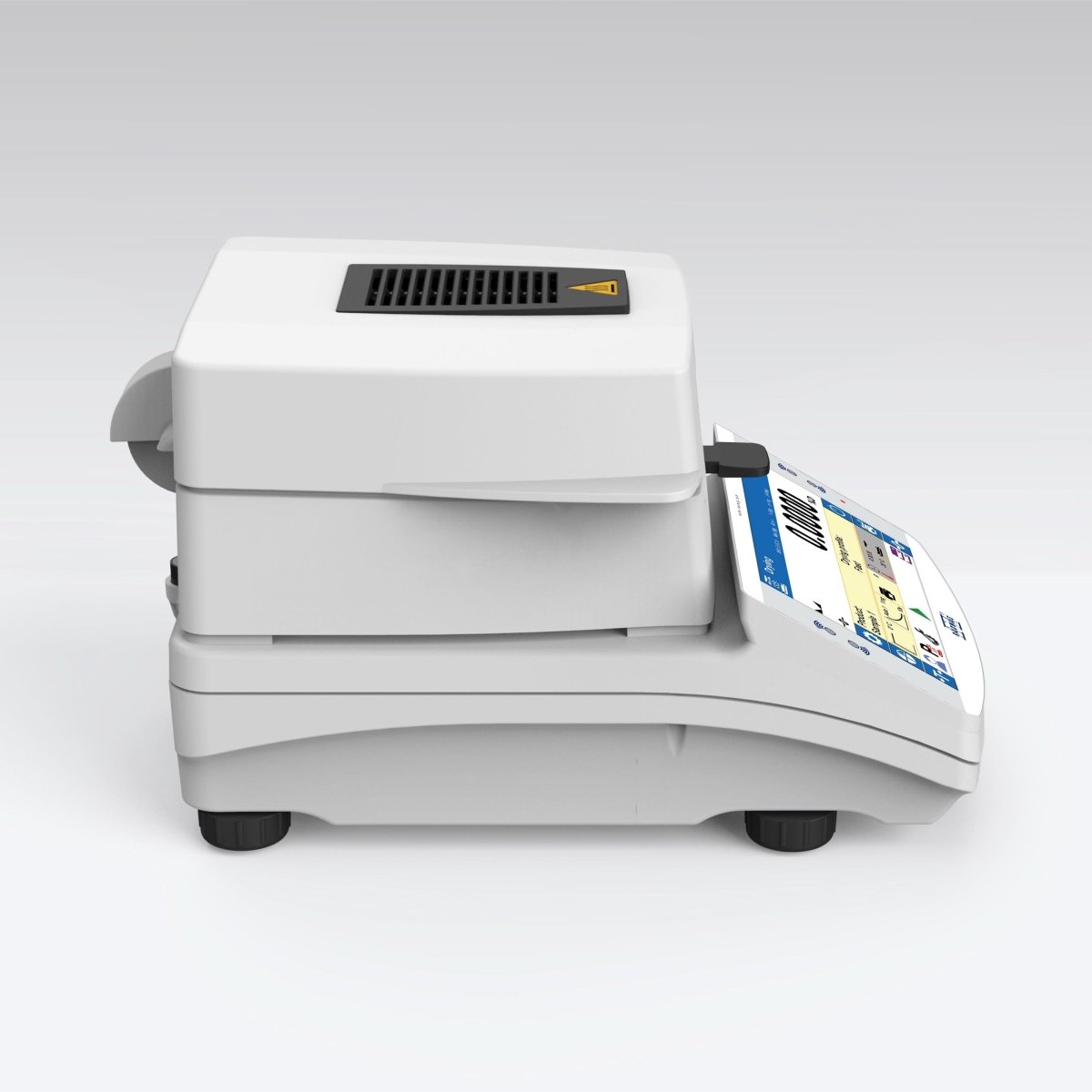

RADWAG MA X7.IC.A.WH MA 210.X7.IC.A.WH Moisture Analyzer, 210g Capacity, 1mg Readability, Halogen, 250°C Max
RADWAG MA 210.X7.IC.A.WH Moisture Analyzer — Touchscreen Halogen Analyser with Automatic Chamber
Laboratories seeking a premium moisture analysis experience will find it in the RADWAG MA 210.X7.IC.A.WH Moisture Analyzer. Combining a 210 g capacity, halogen heating to 250 °C, and an automatic drying chamber controlled through a vivid 7-inch touchscreen, this instrument raises the bar for repeatability, automation, and ease of use in moisture determination.
Key Features
- Automatic Drying Chamber: Motorised opening and closing eliminates manual handling, prevents mechanical shocks, and ensures each measurement cycle begins under identical conditions for superior repeatability.
- 7-Inch Colour Touchscreen: A capacitive display guides operators through drying programmes, displays real-time moisture curves, and provides clear status indicators with minimal learning effort.
- Halogen Heater to 250 °C: Rapid, even heating shortens drying time and produces consistent temperature profiles across the entire sample pan surface.
- 210 g Maximum Capacity: Process full-weight samples of granules, powders, pastes, and slurries without sub-sampling, preserving representative results.
- Touch-Free IR Sensor Operation: Two programmable proximity sensors allow hands-free chamber control, taring, and data export, maintaining analyser cleanliness and reducing operator fatigue.
Detailed Overview
The MA 210.X7.IC.A.WH sits at the top of RADWAG's X7 moisture analyser range, distinguished by its automatic chamber mechanism and interactive touchscreen. Moisture content repeatability of ±0.05 % (2 g sample) and ±0.01 % (10 g sample) meets the demands of method validation and routine production control. The 90 mm pan accepts standard disposable inserts for fast sample changeovers, and the 20 mm maximum sample height handles thicker layers when test procedures require them. External calibration ensures weighing accuracy, while RS 232, USB-A, USB-B, Ethernet, and Wi-Fi interfaces transfer results to printers, LIMS, and quality-management software. The automated chamber not only improves repeatability but also extends the operational life of the instrument by applying consistent, controlled forces during every opening and closing cycle.
Applications
- Food production moisture compliance testing
- Pharmaceutical granulate and excipient moisture verification
- Chemical and polymer process-control measurements
- Textile and paper moisture assessment
Why Choose the RADWAG MA 210.X7.IC.A.WH?
The MA 210.X7.IC.A.WH Moisture Analyzer delivers the automation, precision, and touchscreen clarity that high-volume moisture testing operations need. Its automatic chamber and IR sensor controls minimise human variability, while robust connectivity keeps your data flowing to quality systems. Order from Weighcore and automate your moisture analysis workflow.
| Maximum capacity | 210 g |
|---|---|
| Readability | 1 mg |
| Moisture content readability | 0.001% |
| Heating module | halogen |
| Heating module power | 450 W |
| Drying temperature range | Max 250 °C |
| Drying temperature control | One- or two-point, depending on the drying profile (equipment: GT105k-12/Z Control Thermometer) |
| Drying temperature adjustment | Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer) |
| Display | 7″ graphic colour touchscreen |
| Display mode | %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC |

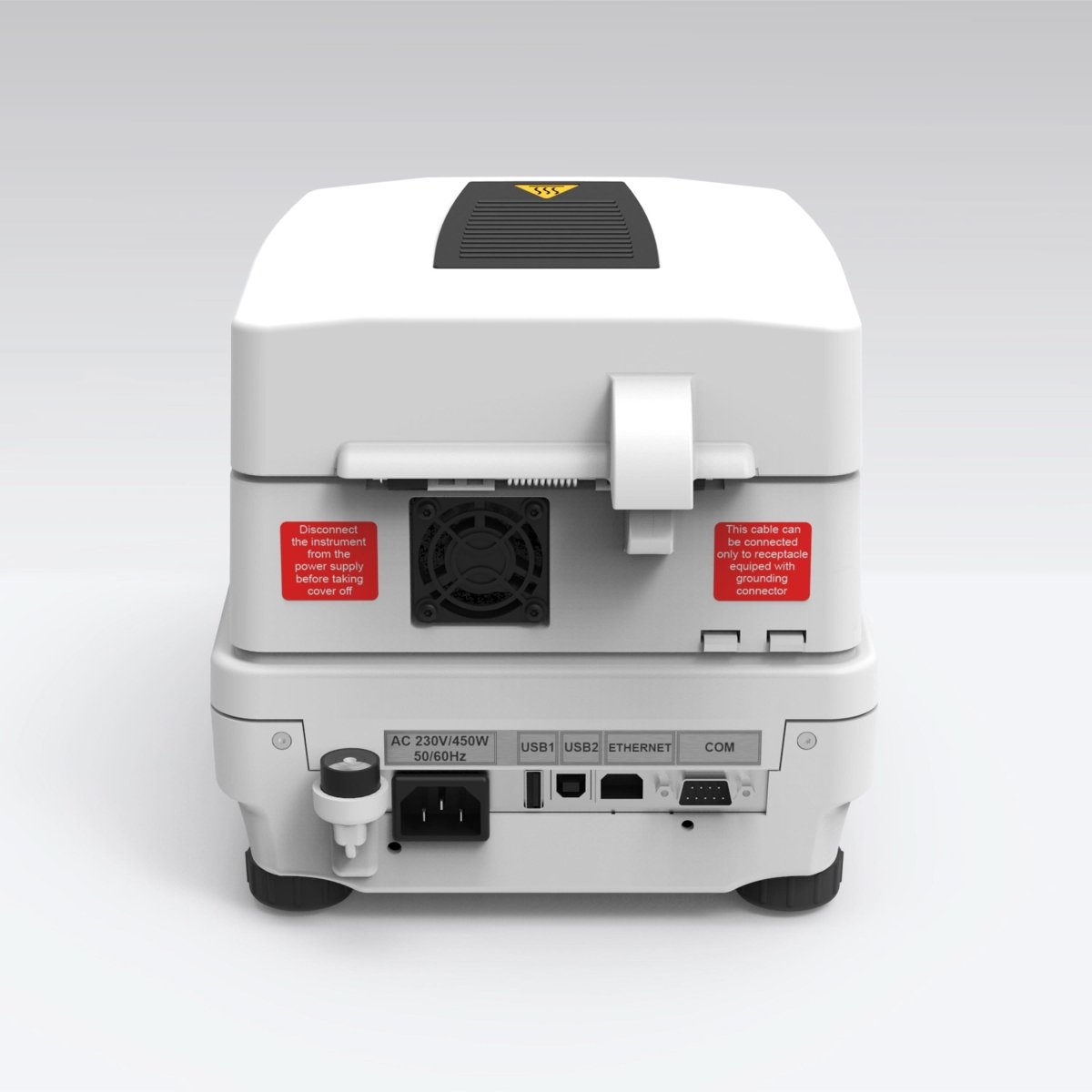

| Communication interface | RS232¹, USB-A, USB-B, Ethernet, Wi-Fi® |
| Weighing pan dimensions | ø90, h= 8 mm |
| Net weight | 5.2 kg |
| Tare range | -210 g |
| Calibration | external |
| Maximum sample weight | 210 g |
| Moisture content repeatability | +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g) |
| Leveling system | manual |
| Weighing chamber | automatic |
| Maximum sample height | 20 mm |
| Protection class | IP 43 |
| Drying method | 4 drying profiles (standard, fast, step, mild) |
| Finish mode | 4 modes (automatic, manual, time-defined, user-defined) |
| Additional functions | sample traceability |
| Power supply | 100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz |
| Power consumption | 6 W |
| Operating temperature | +10 — +40 °C |
| Mass indication control | External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer) |
| Internal adjustment | For .IC models only, GLP report |
| External adjustment | For all models, GLP report |
| Moisture content indication control | Certified MV Test Set |
| Internal / External adjustment | Depending on the type of moisture analyzer, GLP report |
