RADWAG MA 210.R MA R Moisture Analyzer, 210g Capacity, 1mg Readability, 160°C Max
RADWAG MA 210.R Moisture Analyzer — 210 g Capacity for High-Volume Moisture Testing
Testing larger or denser samples requires a moisture analyzer with ample capacity and dependable drying performance. The RADWAG MA 210.R Moisture Analyzer accommodates samples up to 210 g with 1 mg readability, using an IR emitter that reaches 160 °C. Part of the practical MA R series, it combines an informative LCD display with intuitive pictogram navigation to keep moisture analysis straightforward and efficient.
Key Features
- 210 g Maximum Capacity: Generous sample range allows testing of bulkier materials or running larger sample sizes to improve statistical representativeness of moisture results.
- 1 mg Weighing Readability: Milligram precision on the weighing side ensures accurate initial and final mass measurements, directly improving the reliability of calculated moisture content.
- IR Emitter Heating to 160 °C: Infrared drying provides rapid, uniform energy transfer to the sample surface, supporting efficient evaporation of free and bound moisture.

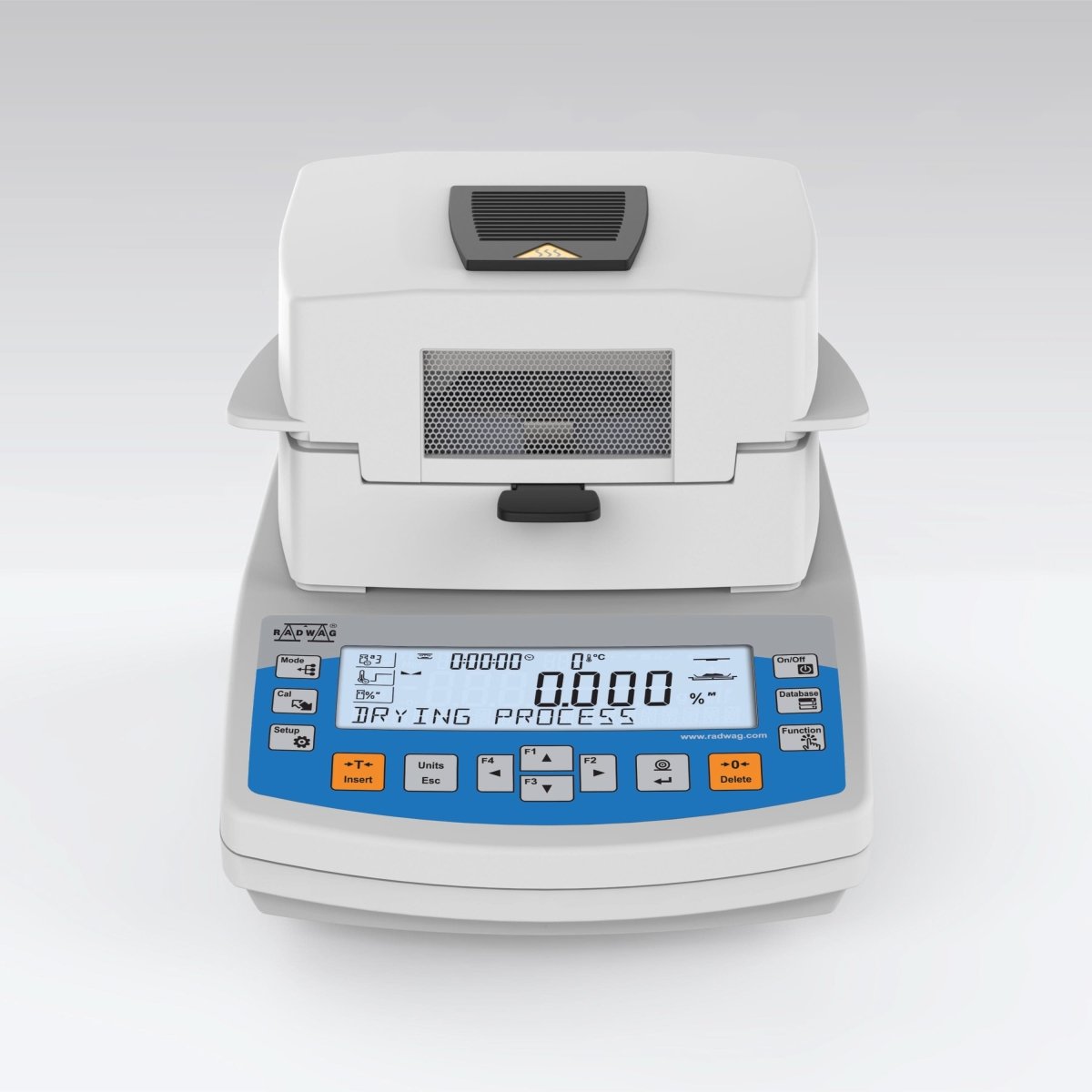

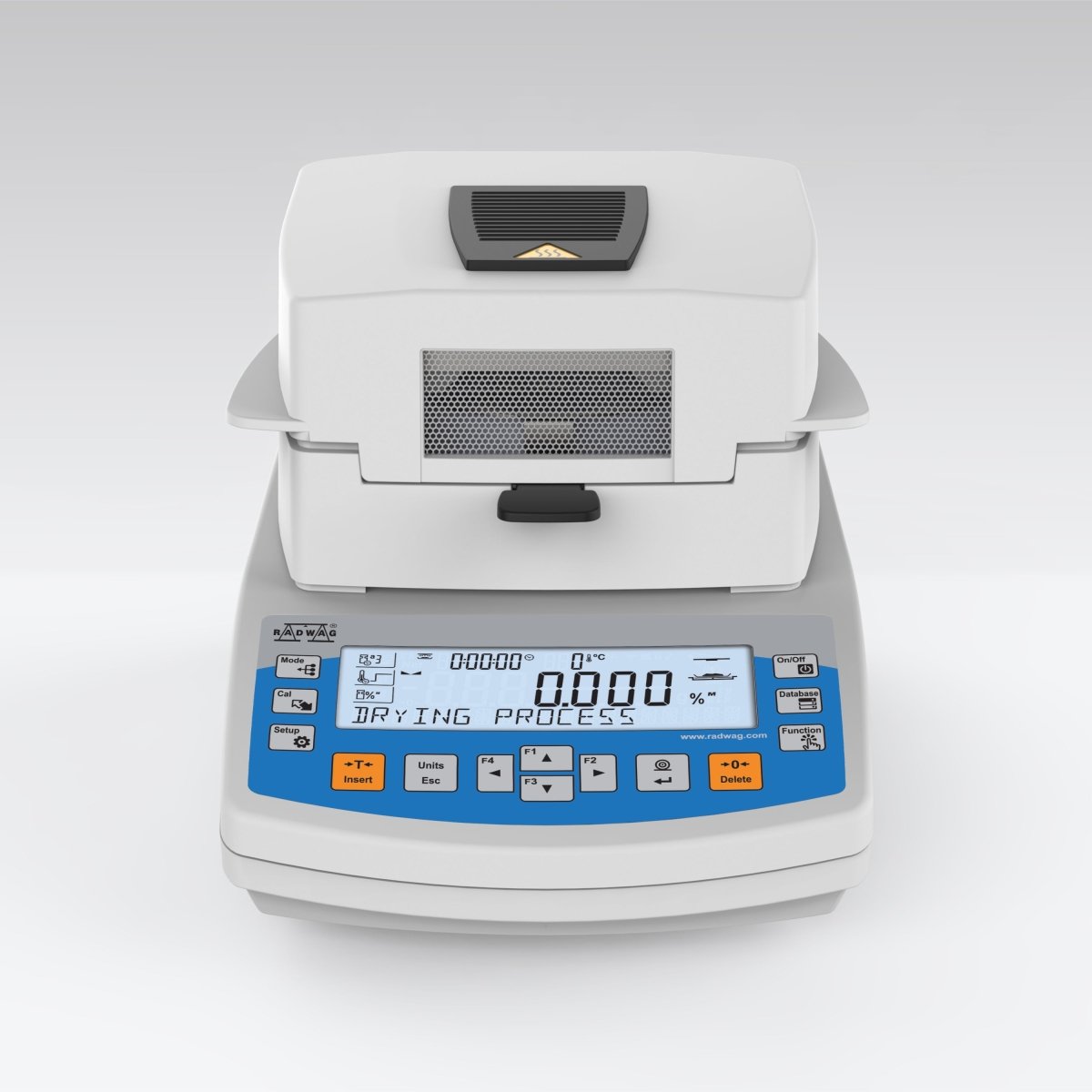

- LCD Display with Pictogram Navigation: Status indicators for active modes, connectivity, and service functions are displayed as easy-to-read icons, enabling quick orientation during testing.
- External Calibration Support: Calibrate with certified external weights for full traceability, meeting the documentation requirements of quality management systems.
Detailed Overview
The MA 210.R achieves moisture content repeatability of ±0.05 % for 2 g samples and ±0.01 % for 10 g samples, with a moisture readability of 0.001 %. Its 90 mm diameter pan and 20 mm maximum sample height suit most standard sample preparations. The RS 232 communication interface connects the analyzer to external devices for data export and documentation. Manual levelling keeps the setup uncomplicated, while the IP 43 protection rating guards the instrument against typical laboratory dust and splashes. This model is well suited for operations that need higher capacity without the added complexity of touchscreen-based systems.
Applications
- Food production moisture testing of grains, flours, and dried ingredients
- Construction material moisture verification for concrete aggregates and sand
- Paper and packaging moisture content assessment
- General laboratory moisture determination for teaching and training
Why Choose this moisture analyzer?
The MA 210.R offers a no-nonsense approach to high-capacity moisture analysis. Its expanded 210 g range, reliable IR heating, and intuitive LCD make it an excellent fit for production-adjacent laboratories and quality teams that process large or heavy samples regularly. Order today to enhance your moisture testing capability.
| Maximum Capacity | 210 g |
|---|---|
| Readability | 1 mg |
| Moisture content readability | 0.001% |
| Heating module | IR emitter |
| Heating module power | 450 W |
| Tare range | -210 g |
| Maximum sample weight | 210 g |
| Moisture content repeatability | +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g) |
| Drying temperature range | max 160 °C |
| Drying method | 4 drying profiles (standard, fast, step, mild) |
| Finish mode | 4 modes (automatic, manual, time-defined, user-defined) |
| Display | LCD (backlit) |
| Display mode | %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC |
| Weighing pan dimensions | ø90, h= 8 mm |
| Maximum sample height | 20 mm |
| Leveling system | manual |

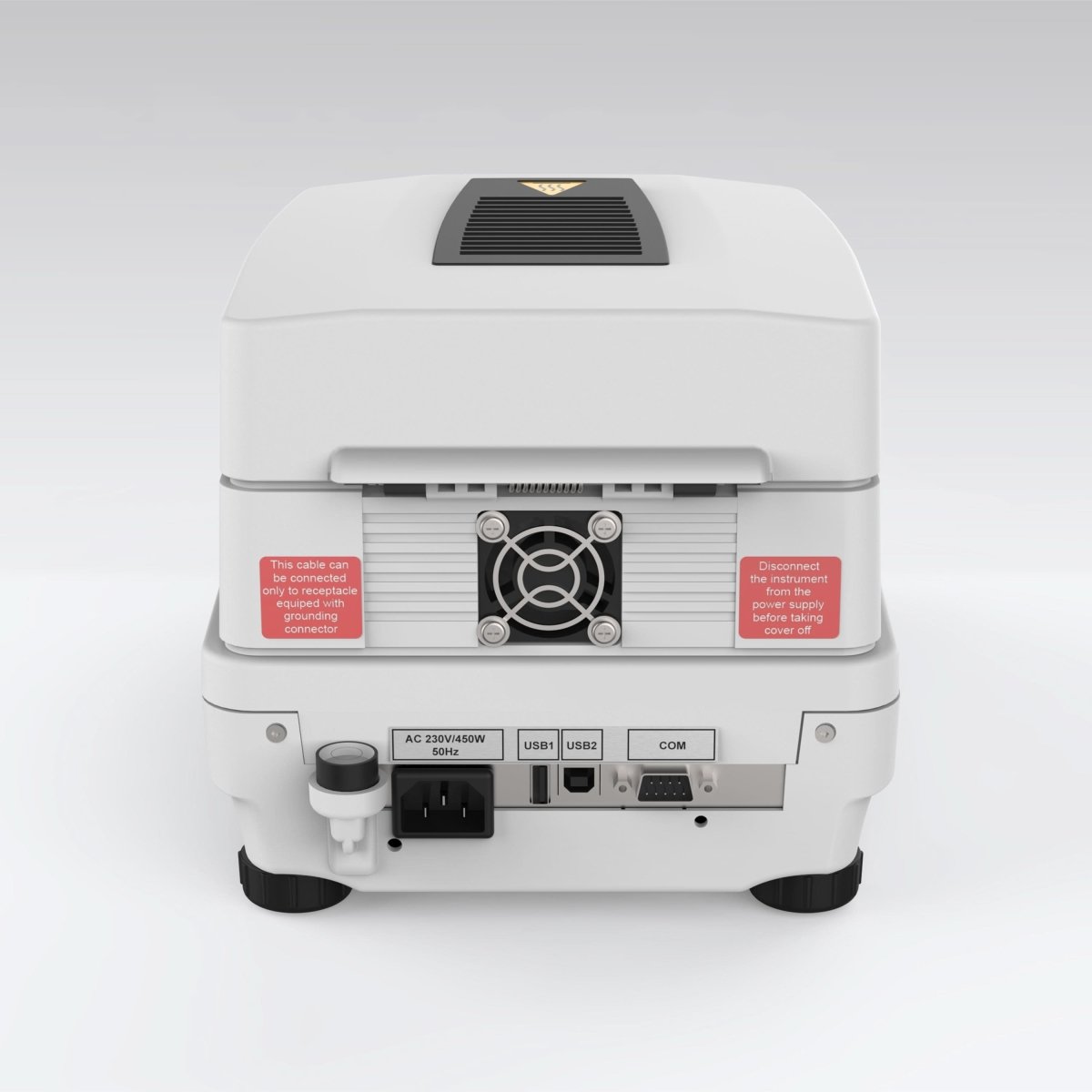

| Communication interface | RS232¹, USB-A, USB-B, Wi-Fi® |
| Protection class | IP 43 |
| Operating temperature | +10 — +40 °C |
| Power supply | 100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz |
| Power consumption | 4 W |
| Mass indication control | External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer) |
| Internal adjustment | For .IC models only, GLP report |
| External adjustment | For all models, GLP report |
| Internal / External adjustment | Depending on the type of moisture analyzer, GLP report |
| Drying temperature control | One- or two-point, depending on the drying profile (equipment: GT105k-12/Z Control Thermometer) |
| Drying temperature adjustment | Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer) |
| Moisture content indication control | Certified MV Test Set |
| Additional functions | sample traceability |
| Net weight | 4.8 kg |
| Calibration | external |
