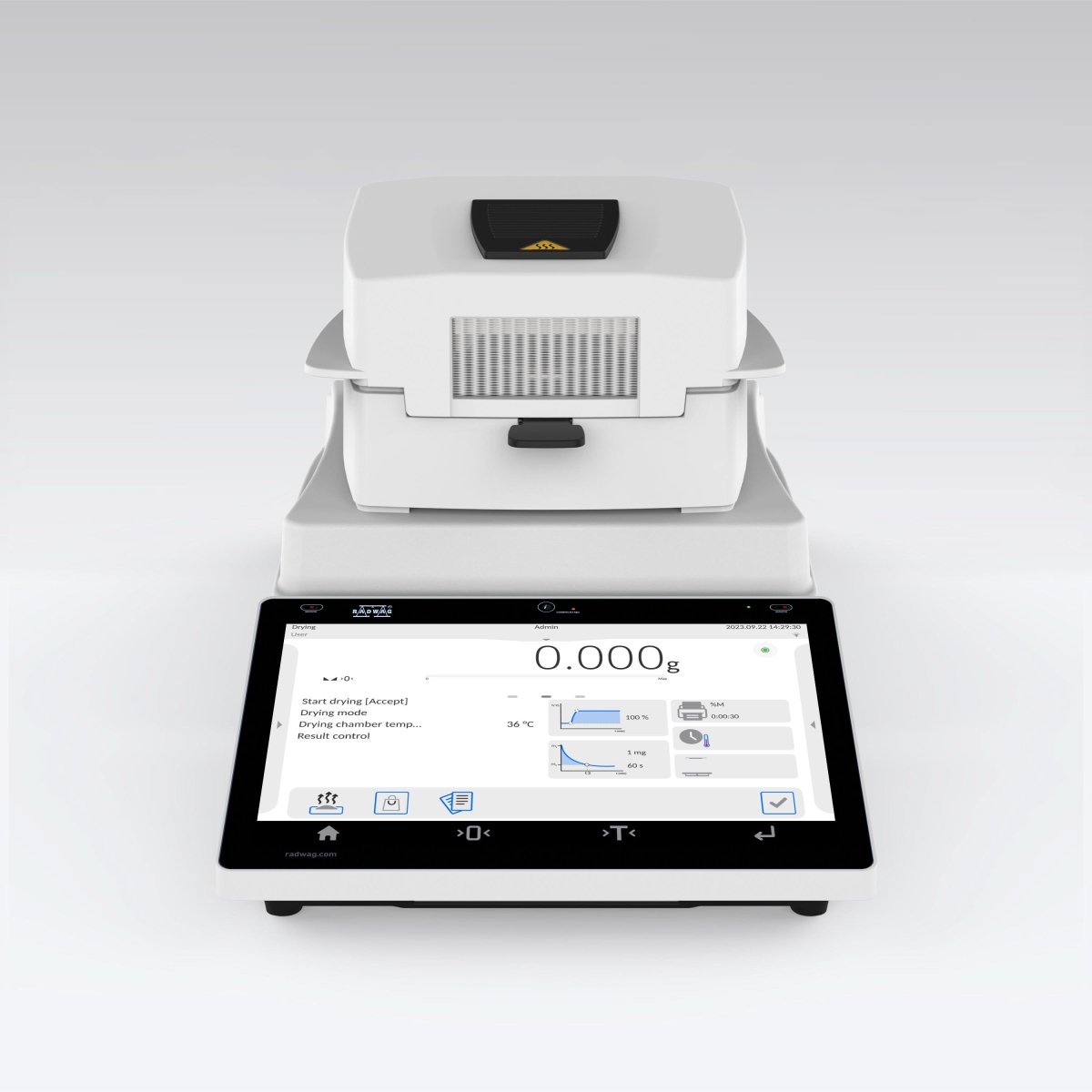

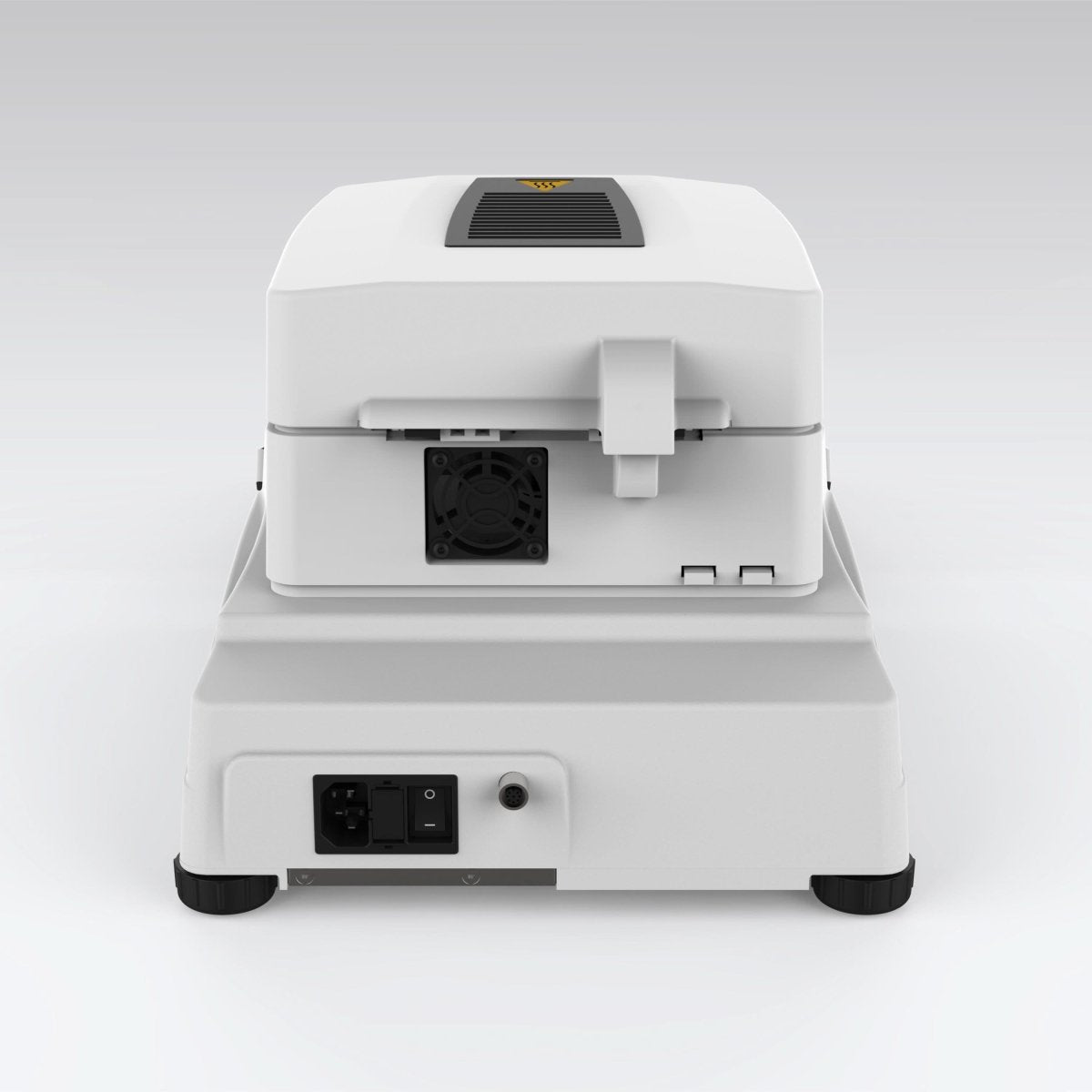

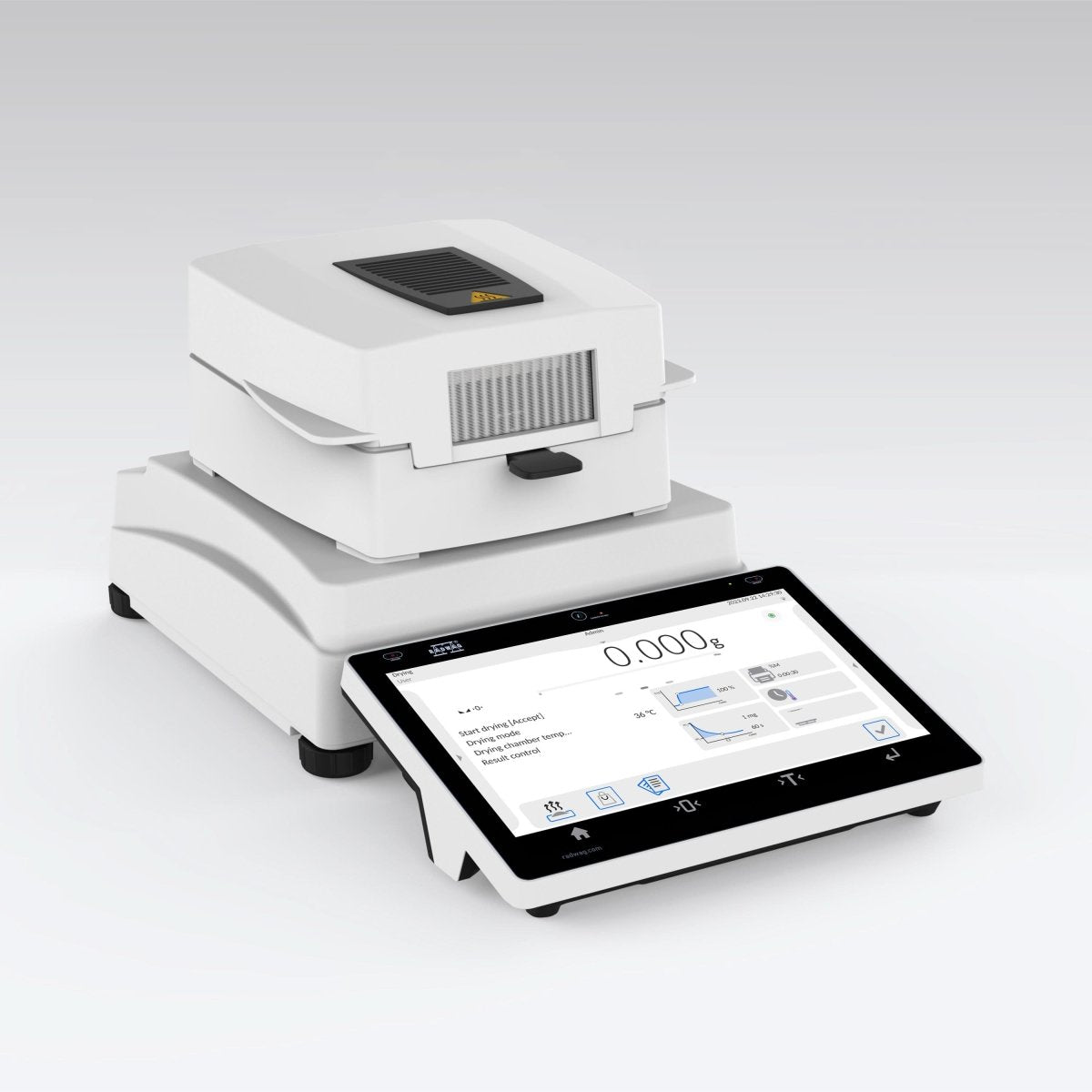

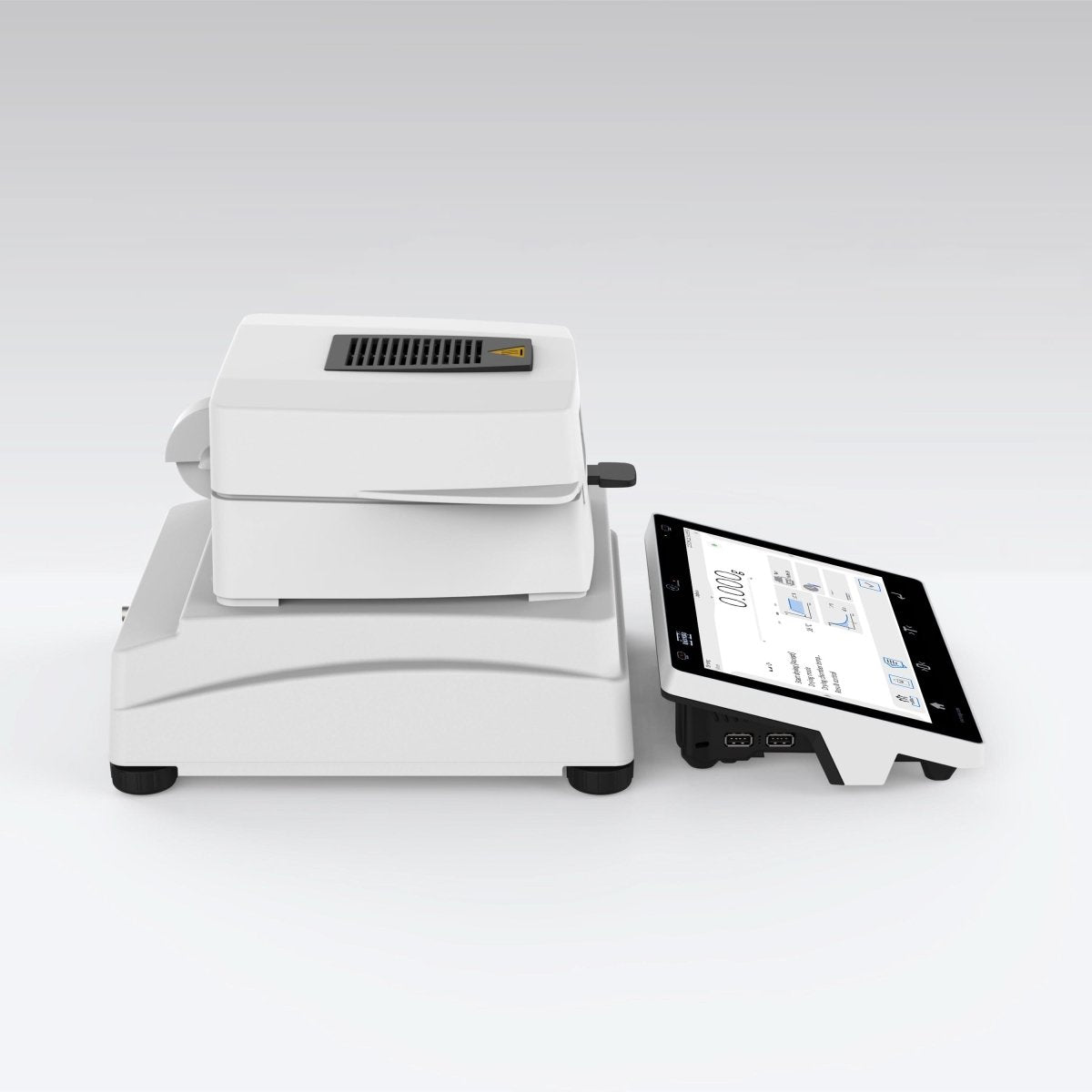

RADWAG MA 210.5Y.IC.NS MA 5Y.IC.NS Moisture Analyzer, 210g Capacity, 1mg Readability, Internal Calibration
RADWAG MA 210.5Y.IC.NS Moisture Analyzer — 210 g Capacity with Metal Heater and Internal Calibration
Reliably determine moisture content in larger samples using the RADWAG MA 210.5Y.IC.NS Moisture Analyzer. Combining a 210 g capacity, 1 mg readability, and metal heater technology with internal automatic calibration, this 5Y-series instrument is well-suited for production and quality laboratories that routinely process bulk powders, granular materials, and food products.
Key Features
- 210 g Extended Capacity: Tests larger, more representative portions of heterogeneous materials, improving statistical confidence in reported moisture values.
- Metal Heater Technology: Provides durable, consistent heating up to 160 degrees Celsius with lower maintenance requirements than halogen alternatives, making it suitable for high-volume daily use.
- Internal Automatic Calibration: Maintains weighing accuracy independently, reducing maintenance overhead and ensuring the balance mechanism meets specification between scheduled verifications.
- Four Drying Profiles: Standard, mild, fast, and step modes enable operators to tailor the heating program to each material type, balancing speed and sample protection.
- 10-Inch Touchscreen Interface: Displays real-time drying curves, method parameters, and stored results clearly, facilitating quick program selection and comprehensive data review.
- Semi-Automatic LevelSENSING: Monitors the instrument's level and alerts operators to deviations, supporting reliable weighing accuracy in environments where surfaces may shift or vibrate.
Detailed Overview
The MA 210.5Y.IC.NS belongs to the RADWAG MA 5Y.IC.NS moisture analyzer series, designed for facilities where extended capacity and self-calibration are operational priorities. Moisture content readability of 0.001 percent and repeatability of plus or minus 0.05 percent for 2 g samples ensure reliable performance across varying sample sizes. The metal heater module offers long-term stability and even thermal output, requiring less frequent replacement than bulb-based heating elements. Connectivity through RS 232, USB-A, USB-B, Ethernet, and Wi-Fi integrates the analyzer into quality management systems and laboratory networks. The THBR 2.0 ambient monitoring system logs temperature, humidity, and barometric pressure alongside each drying test, creating a complete environmental record for compliance documentation.
Applications
- Bulk powder and granule moisture testing in chemical production
- Food manufacturing quality control for grains, flour, and snack products
- Pharmaceutical excipient and raw material incoming inspection
- Environmental and agricultural sample moisture characterization
Why Choose the RADWAG MA 210.5Y.IC.NS?
This moisture analyzer delivers the extended capacity and robust heating your high-throughput operation needs, backed by internal calibration that eliminates scheduling burdens. Its durable metal heater and intuitive touchscreen keep your moisture testing running efficiently, test after test. Order the MA 210.5Y.IC.NS today for dependable, self-calibrating moisture analysis.
| Maximum Capacity | 210 g |
|---|---|
| Readability | 1 mg |
| Maximum Sample Weight | 210 g |
| Heater Type | metal heater |
| Temperature Range | max 160 °C |
| Moisture Content Readability | 0.001% |
| Moisture Content Repeatability | +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g) |
| Calibration | internal (automatic) |
| Leveling System | semi-automatic - LevelSENSING |
| Pan Size | ø90, h= 8 mm |
| Maximum Sample Height | 20 mm |
| Display | 10″ touchscreen |
| Connectivity | USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot |
| Operating Temperature | +10 — +40 °C |
| Protection Class | IP 43 |
| Power Supply | 100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz |
| Power Consumption | 6 W |
| Tare Range | -210 g |
| Net Weight | 5.4 kg |
| Weighing chamber | automatic |
| Display mode | %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC |
| Drying method | 4 drying profiles (standard, fast, step, mild) |
| Finish mode | 4 modes (automatic, manual, time-defined, user-defined) |
| Additional functions | sample traceability |
| Heating module power | 450 W |
| Mass indication control | External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer) |
| Internal adjustment | For .IC models only, GLP report |
| External adjustment | For all models, GLP report |
| Drying temperature control | One- or two-point, depending on the drying profile (equipment: GT105k-12/Z Control Thermometer) |
| Moisture content indication control | Certified MV Test Set |
| Internal / External adjustment | Depending on the type of moisture analyzer, GLP report |
| Drying temperature adjustment | Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer) |
