RADWAG MA 200/1.5Y.WH MA 5Y.WH Moisture Analyzer, 200g Capacity, 0.1mg Readability

RADWAG MA 200/1.5Y.WH Moisture Analyzer — 200 g Halogen Drying with Touchscreen Control

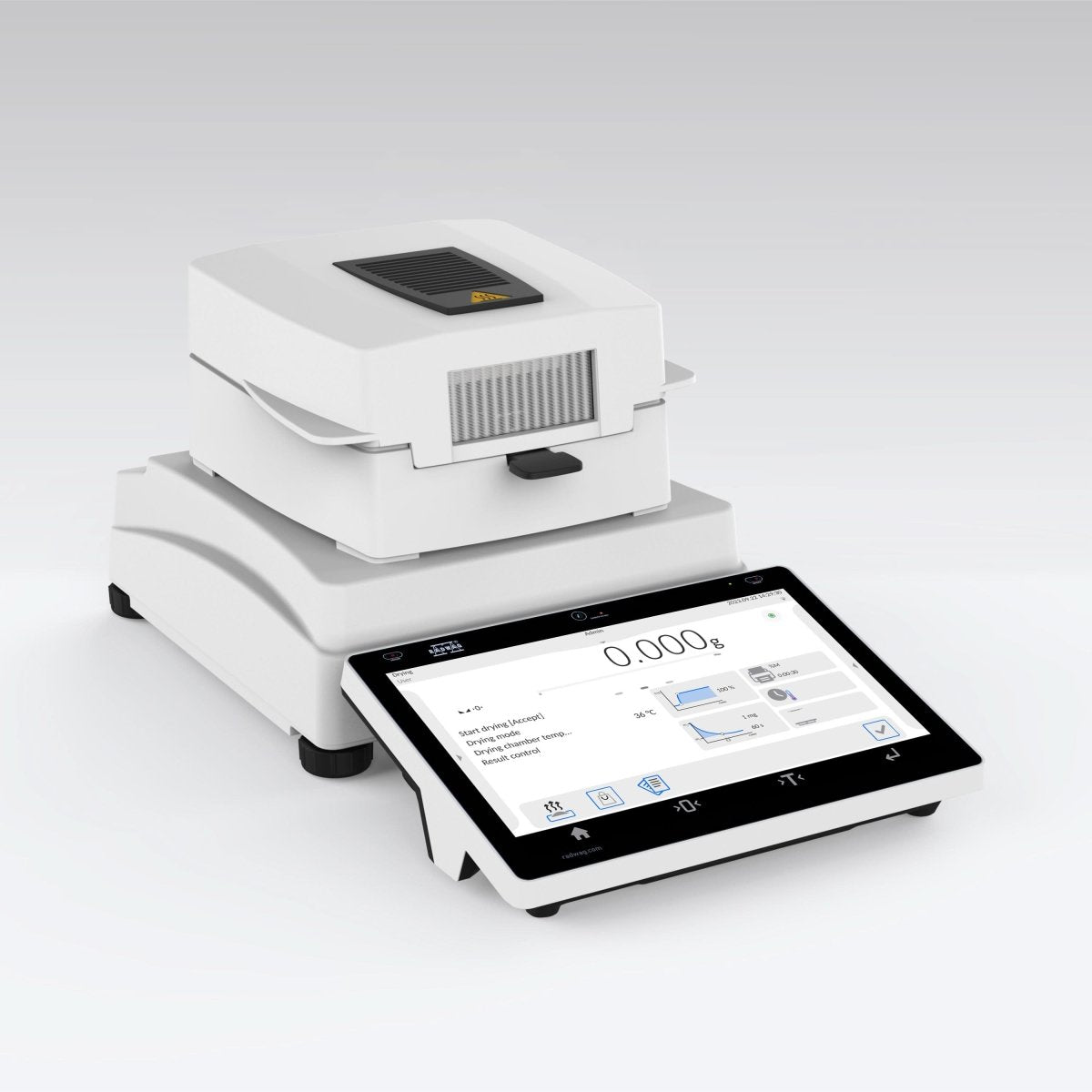

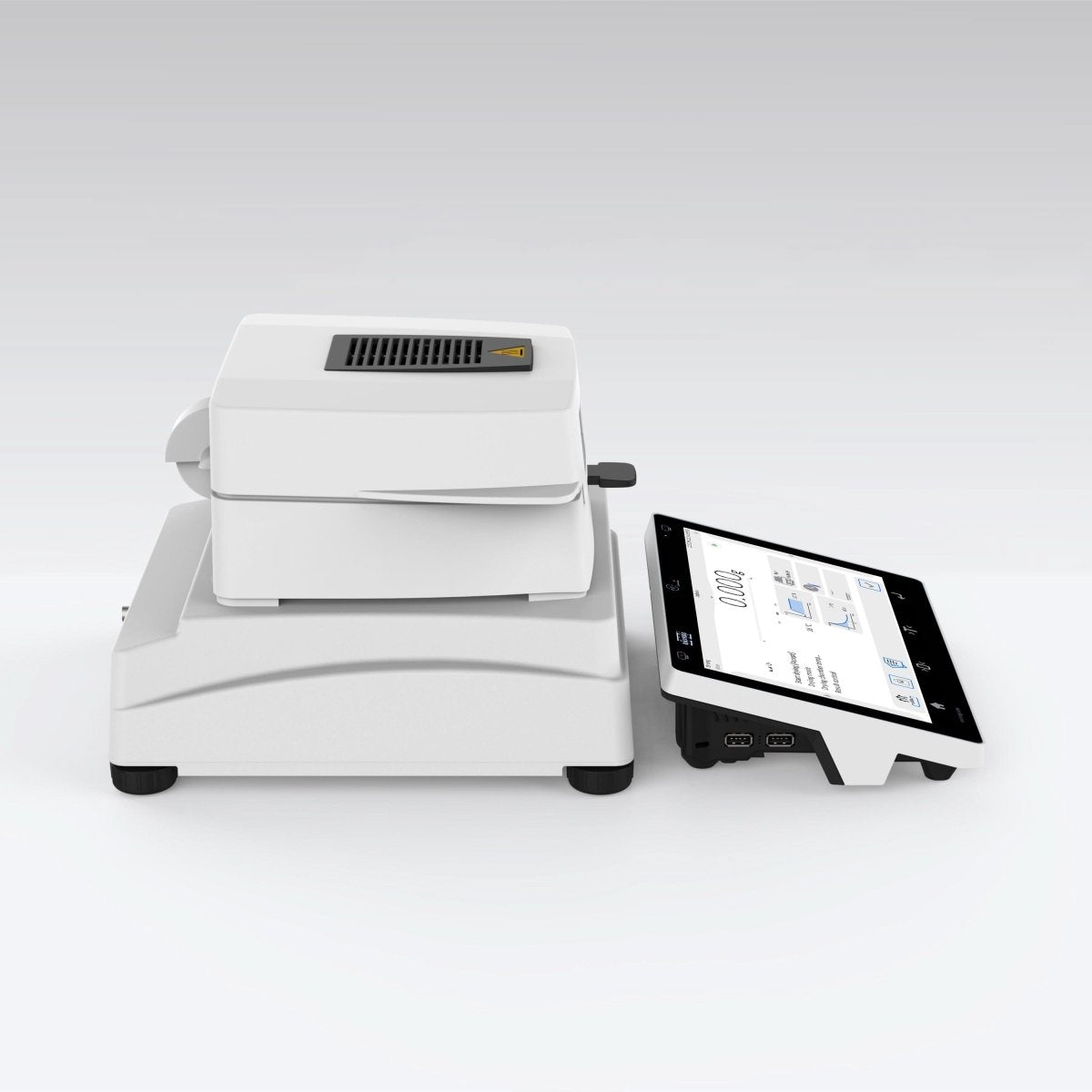

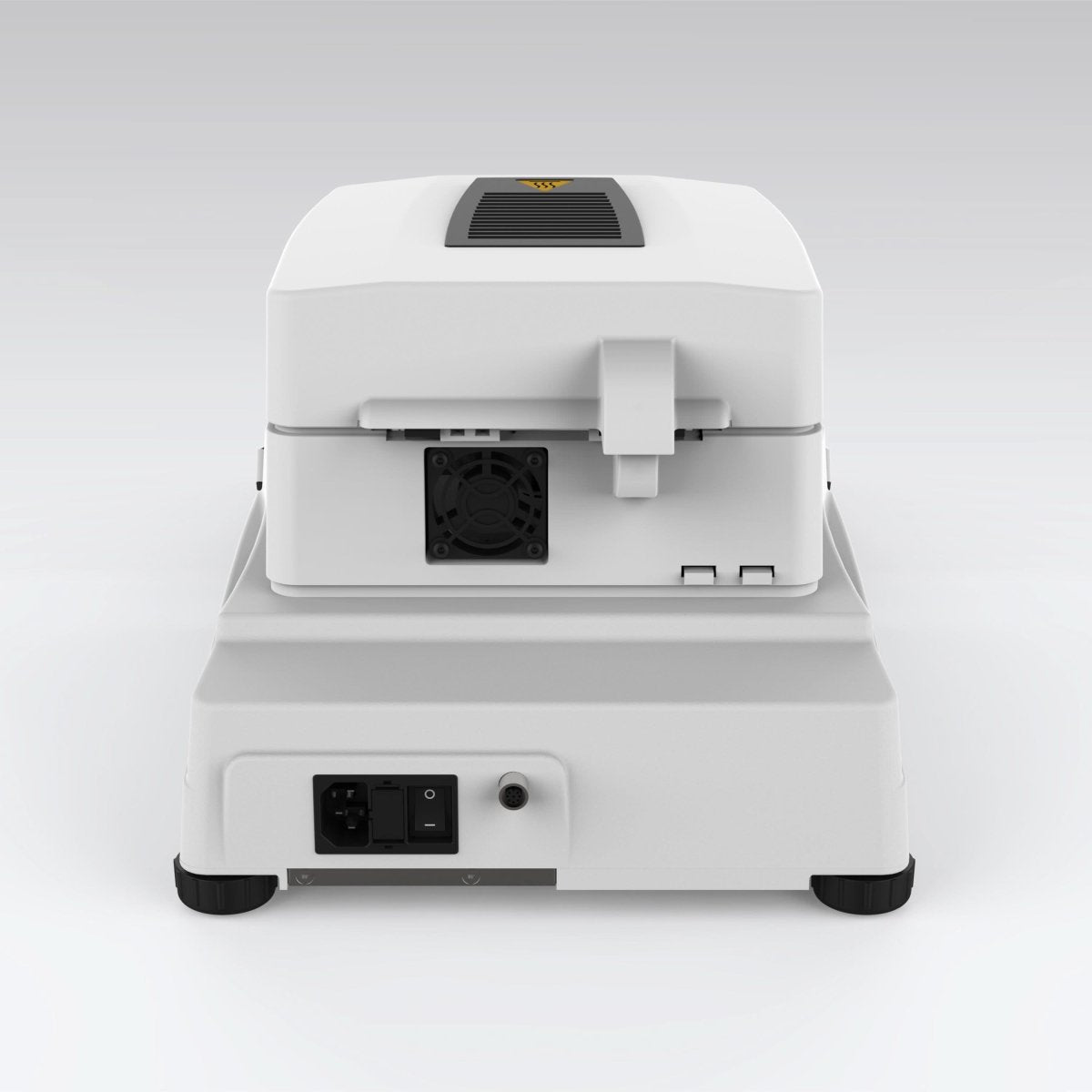

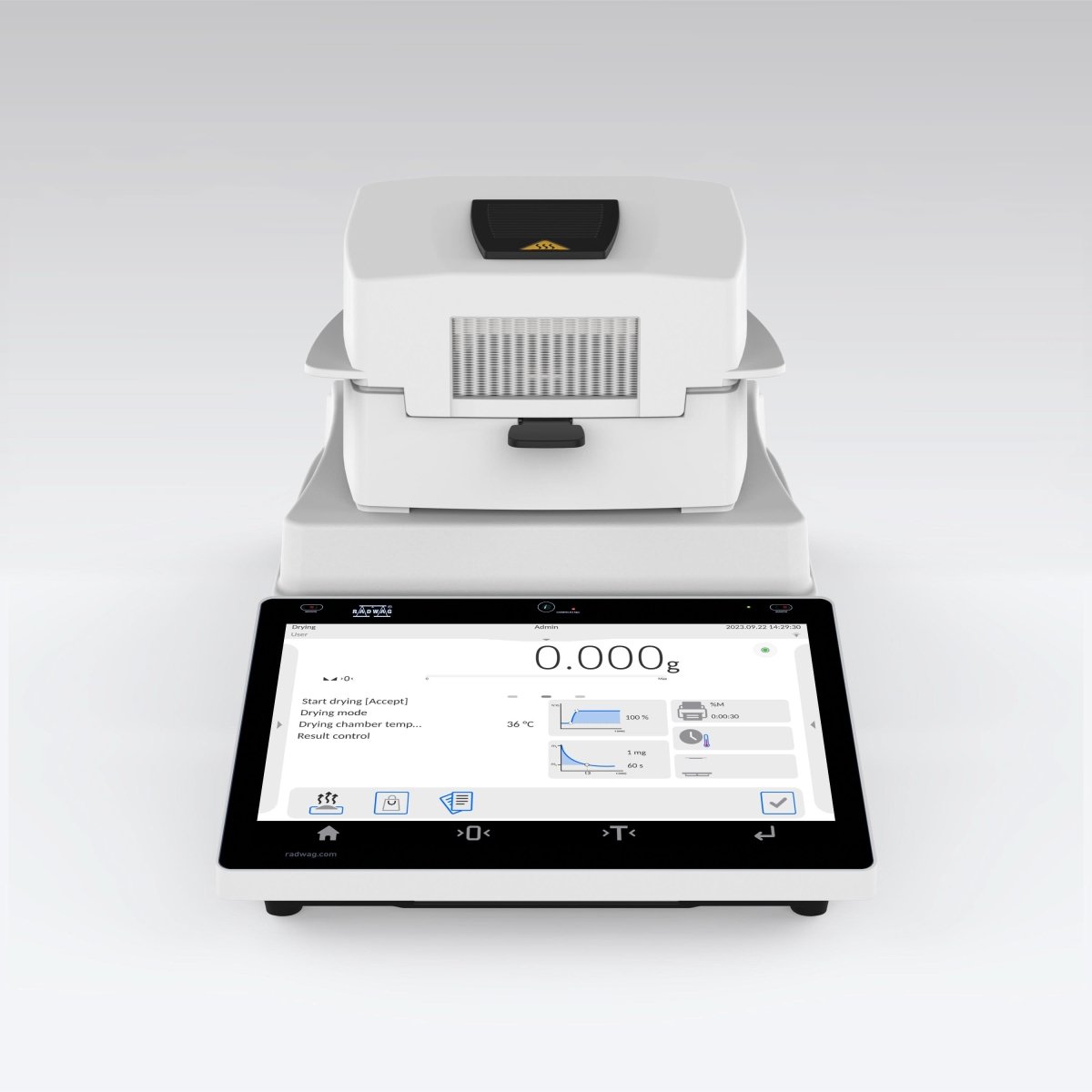

High-moisture or thermally resistant bulk materials demand a combination of elevated drying temperatures and sufficient capacity for representative sample sizes. The RADWAG MA 200/1.5Y.WH Moisture Analyzer meets both requirements with a halogen heater reaching 250 °C, 200 g capacity, and 0.1 mg readability, all managed through a 10-inch touchscreen interface.

Key Features

• Halogen Heating to 250 °C: Reaches high temperatures rapidly, accelerating drying cycles on stubborn samples such as mineral compounds, dense polymers, and adhesive materials.
• 200 g Capacity at 0.1 mg Readability: Tests large sample portions with fine mass resolution, improving statistical representativeness when analyzing heterogeneous or coarsely ground materials.
• 10-Inch Touchscreen with Widget Interface: Presents real-time drying curves, environmental data, and sample traceability information on configurable multi-screen layouts.
• Semi-Automatic LevelSENSING: Monitors balance tilt and guides leveling adjustments, maintaining weighing accuracy as operating conditions change.
• Automated Drying Chamber: Proximity-sensor activation opens and closes the chamber consistently, protecting operators from hot surfaces and reducing handling-related vibration.

Detailed Overview

The MA 200/1.5Y.WH is part of RADWAG's 5Y.WH moisture analyzer series, pairing the 5Y platform's touchscreen capabilities and advanced connectivity with a halogen heating module. The 450 W halogen lamp delivers fast heat ramp-up, shortening test cycles on materials that require temperatures above 160 °C. Moisture content resolution reaches 0.0001 %, and four drying profiles (standard, fast, step, mild) accommodate different material properties. Four finish modes provide endpoint flexibility. Connectivity through USB-A, USB-C, HDMI, Ethernet, Wi-Fi, and Hotspot supports integration with LIMS, networked printers, and factory quality systems. Sample traceability ensures complete documentation of test conditions and operator identity for audit compliance.

Applications

• Bulk polymer and resin moisture testing before processing
• Mineral and aggregate moisture verification in construction
• Large-sample food ingredient moisture assessment
• Chemical intermediate moisture content determination

Why Choose the RADWAG MA 200/1.5Y.WH?

Combining halogen heating power with 200 g capacity, this model handles the thermally demanding, large-sample moisture tests that smaller or lower-temperature analyzers cannot. The 5Y touchscreen platform adds modern data management and connectivity, bridging production-floor utility with laboratory-grade documentation. Add the MA 200/1.5Y.WH to your cart for versatile, high-temperature moisture analysis.
