RADWAG MA 110.R MA R Moisture Analyzer, 110g Capacity, 1mg Readability, 160°C Max
RADWAG MA 110.R Moisture Analyzer — Reliable IR Drying with LCD Display
Accurate moisture determination starts with dependable instrumentation. The RADWAG MA 110.R Moisture Analyzer provides 110 g capacity and 1 mg readability through an IR emitter heating module, reaching temperatures up to 160 °C. Its clear backlit LCD with pictogram status indicators gives operators immediate insight into active modes and connectivity, streamlining routine testing.
Key Features
- 110 g Capacity with 1 mg Readability: Sufficient sample range for most standard moisture tests while delivering milligram precision that supports tight quality specifications.
- IR Emitter Heating to 160 °C: Infrared radiation ensures even heat distribution across the sample pan, promoting consistent evaporation and reproducible moisture content readings.

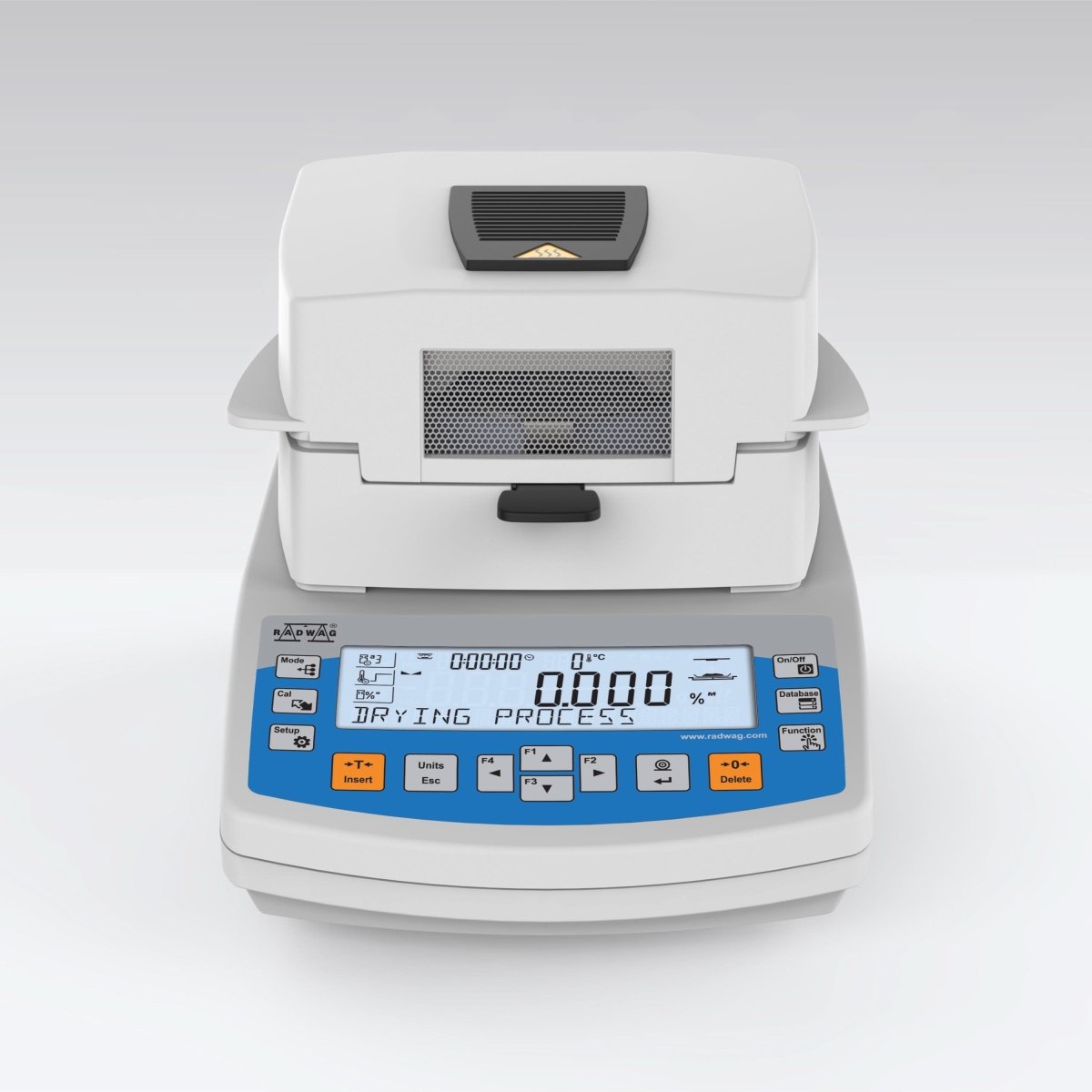

- Backlit LCD with Information Line: An additional text line displays product names, tare values, or supplementary messages, helping operators track samples during sequential testing.
- Pictogram Status Indicators: On-screen icons show active modes, computer connections, and service functions at a glance, reducing the learning curve for new users.
- Compact and Practical Design: With a 90 mm diameter pan and 20 mm maximum sample height, the MA 110.R fits comfortably on standard laboratory benches while accommodating typical sample sizes.
Detailed Overview
This instrument belongs to the RADWAG MA R series, which combines straightforward operation with dependable analytical performance. Moisture content repeatability reaches ±0.05 % for 2 g samples and ±0.01 % for 10 g samples, while the 0.001 % moisture readability supports detailed reporting. External calibration via certified weights ensures measurement traceability, and the RS 232 interface enables data output to printers or computers for record keeping. Manual levelling provides a cost-effective approach for laboratories that do not require automated alignment, keeping the instrument accessible for educational and small-scale QC settings.
Applications
- Incoming raw material moisture inspection in food processing
- Moisture verification of paper, textiles, and packaging materials
- Educational laboratory moisture analysis training
- Routine quality control in small to medium production facilities
Why Choose this moisture analyzer?
The MA 110.R delivers solid moisture analysis performance in a user-friendly, economical package. Its clear LCD, pictogram navigation, and reliable IR heating make it a practical choice for laboratories seeking dependable results without unnecessary complexity. Order today and bring consistent moisture measurement to your quality control workflow.
| Maximum Capacity | 110 g |
|---|---|
| Readability | 1 mg |
| Moisture content readability | 0.001% |
| Heating module | IR emitter |
| Heating module power | 450 W |
| Tare range | -110 g |
| Maximum sample weight | 110 g |
| Moisture content repeatability | +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g) |
| Drying temperature range | max 160 °C |
| Drying method | 4 drying profiles (standard, fast, step, mild) |
| Finish mode | 4 modes (automatic, manual, time-defined, user-defined) |
| Display | LCD (backlit) |
| Display mode | %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC |
| Weighing pan dimensions | ø90, h= 8 mm |
| Maximum sample height | 20 mm |
| Leveling system | manual |

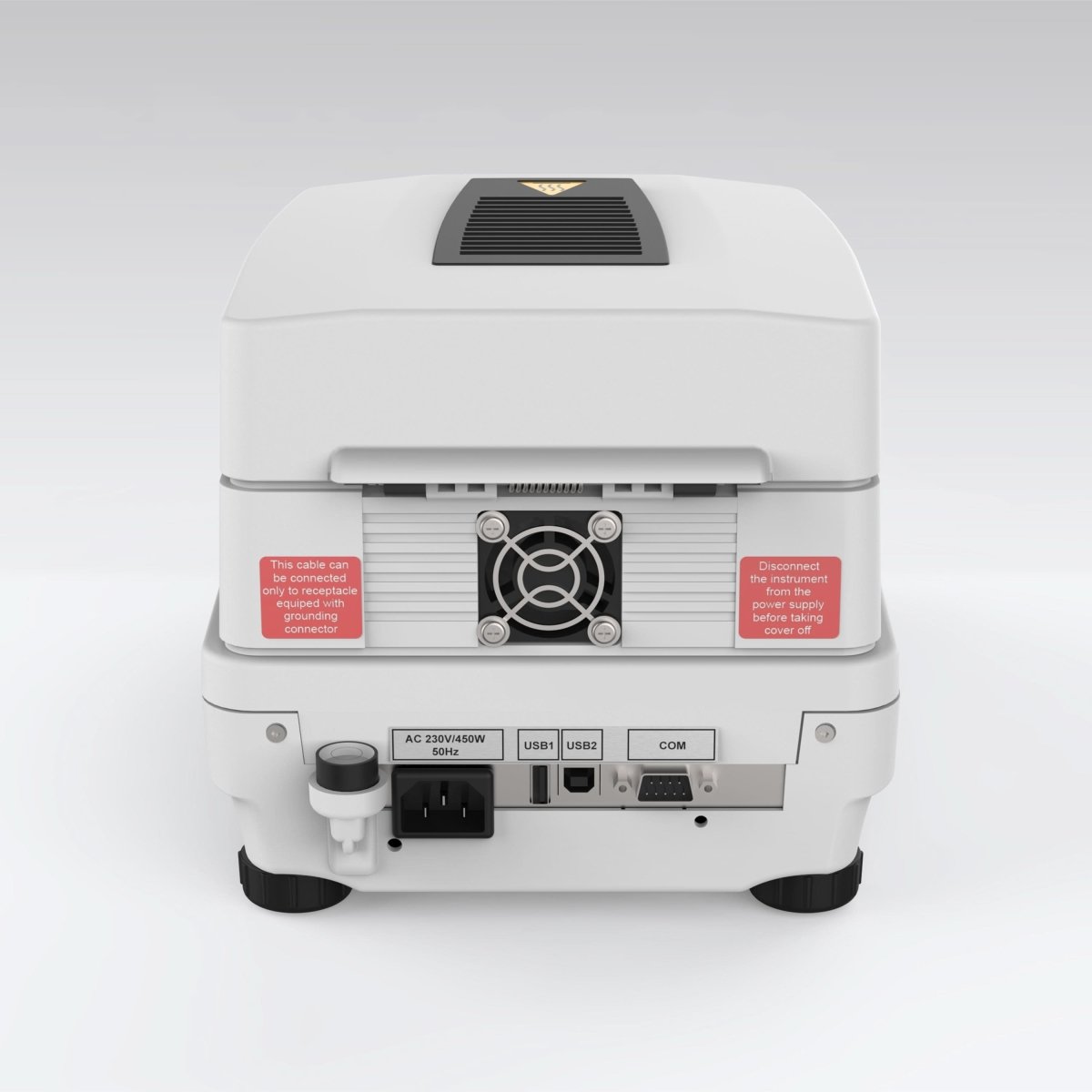

| Communication interface | RS232¹, USB-A, USB-B, Wi-Fi® |
| Protection class | IP 43 |
| Operating temperature | +10 — +40 °C |
| Power supply | 100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz |
| Power consumption | 4 W |
| Mass indication control | External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer) |
| Internal adjustment | For .IC models only, GLP report |
| External adjustment | For all models, GLP report |
| Internal / External adjustment | Depending on the type of moisture analyzer, GLP report |
| Drying temperature control | One- or two-point, depending on the drying profile (equipment: GT105k-12/Z Control Thermometer) |
| Drying temperature adjustment | Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer) |
| Moisture content indication control | Certified MV Test Set |
| Additional functions | sample traceability |
| Net weight | 4.8 kg |
| Calibration | external |
