RADWAG MA 110.5Y.WH MA 5Y.WH Moisture Analyzer, 110g Capacity, 1mg Readability
RADWAG MA 110.5Y.WH Moisture Analyzer — Halogen Drying with 10-Inch Touchscreen and 250 °C Range
Fast, thorough moisture removal calls for intense heating capability and intelligent control. The RADWAG MA 110.5Y.WH Moisture Analyzer pairs a halogen drying lamp reaching 250 °C with a 110 g capacity and 1 mg readability, all managed through an expansive 10-inch touchscreen interface suited for laboratories and production environments with diverse sample types.
Key Features
- Halogen Heating to 250 °C: Rapid infrared energy transfer from the halogen lamp significantly shortens drying cycles compared to metal heaters, boosting throughput without sacrificing accuracy.

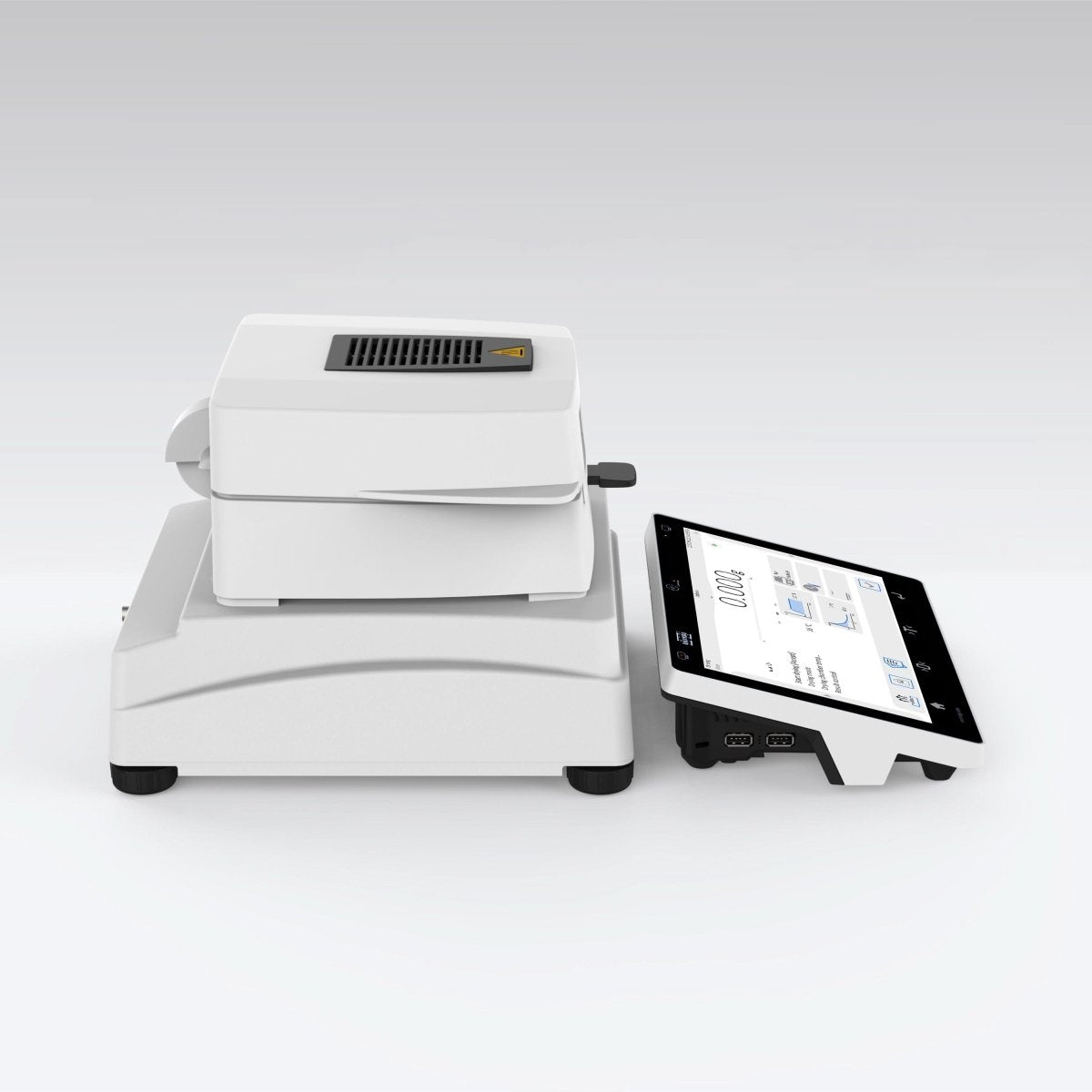

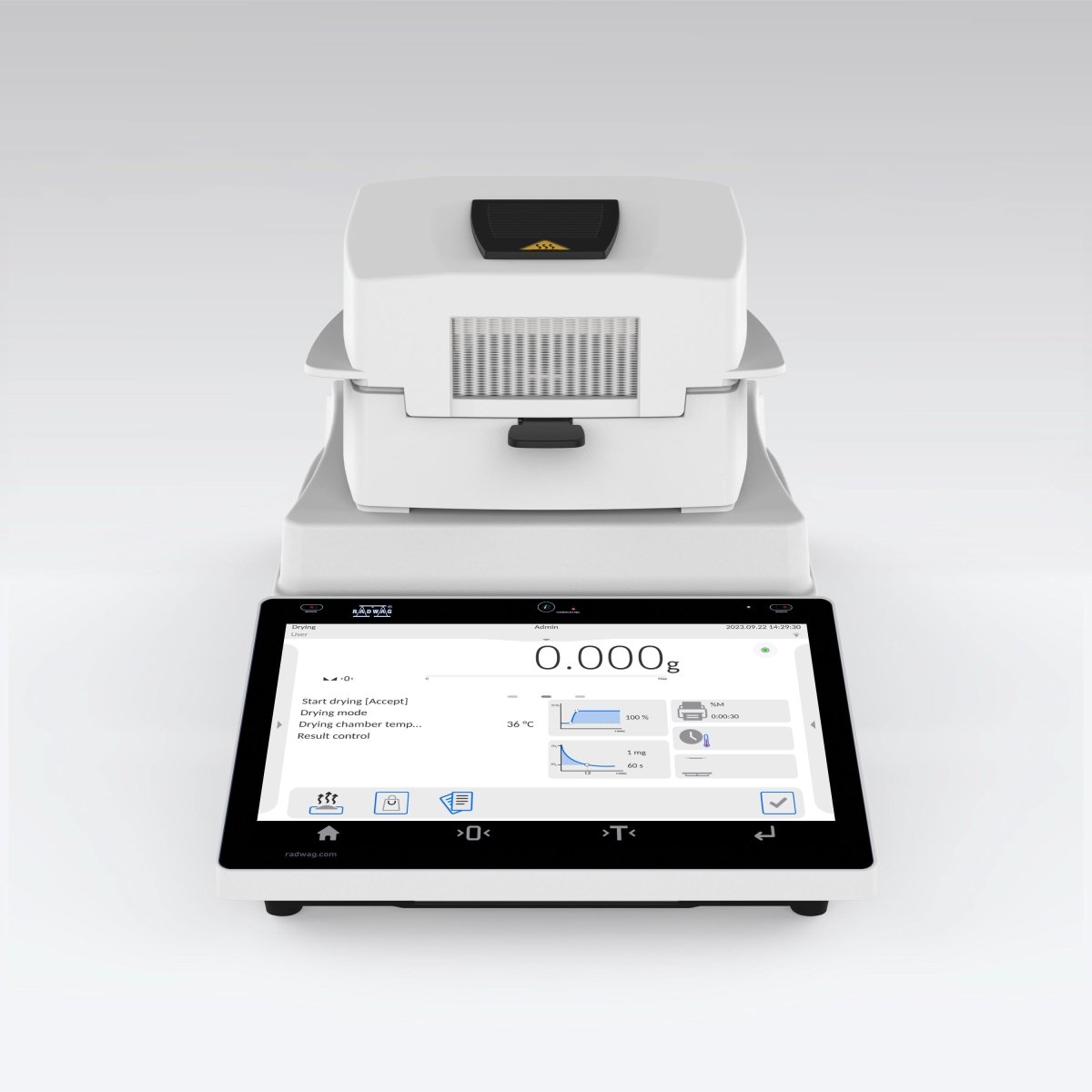

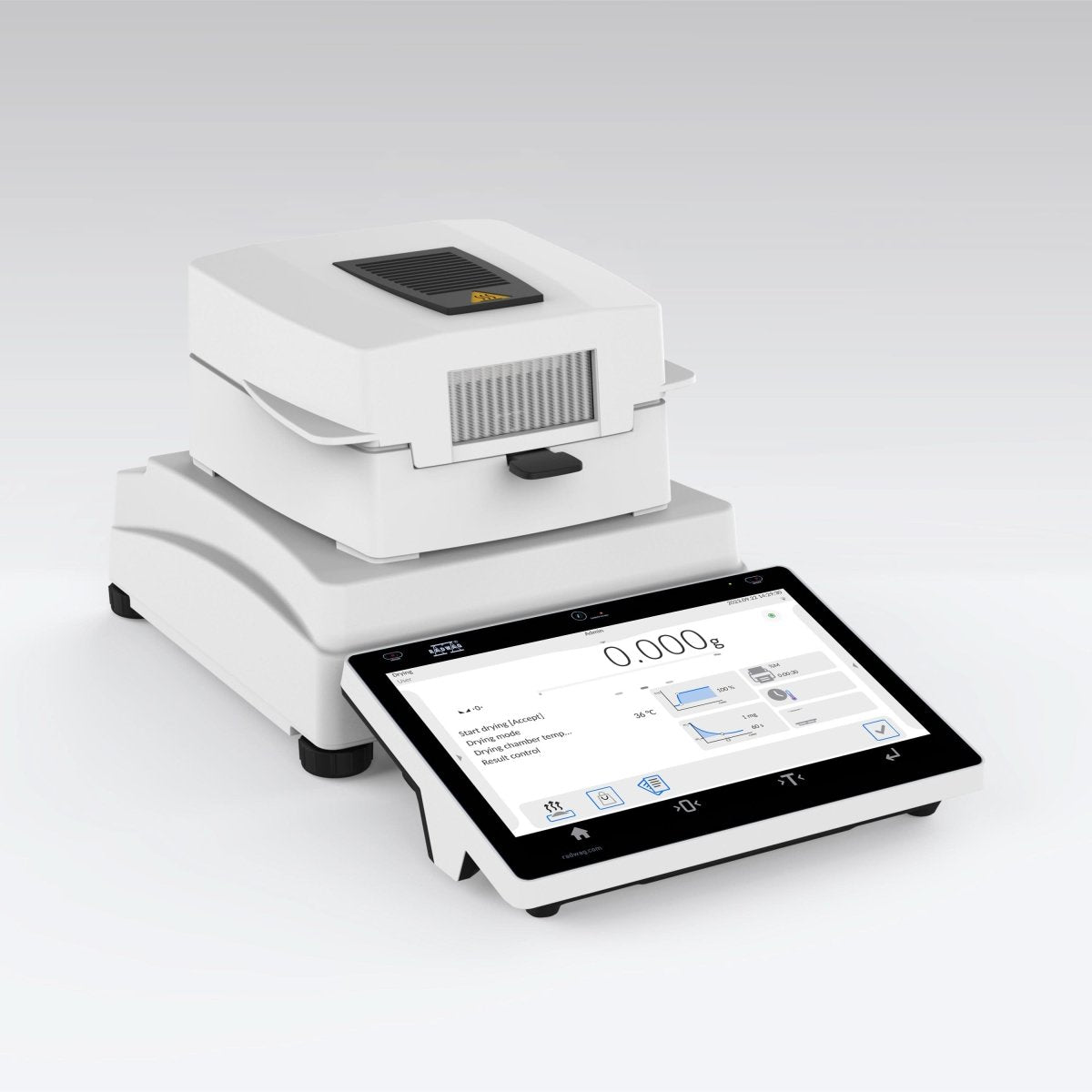

- 10-Inch Touchscreen Display: A large, widget-enabled interface provides real-time visualisation of drying curves, moisture percentages, and environmental parameters for full process transparency.
- Automatic Drying Chamber: Motorised opening and closing minimises operator handling, maintains cleanliness, and ensures consistent pan positioning across repeated measurements.
- Four Targeted Drying Modes: Standard, fast, step, and mild profiles allow optimisation for every material, from thermally robust minerals to delicate biological specimens.
- Semi-Automatic LevelSENSING: Guided levelling verification ensures the balance mechanism is properly aligned before each analysis, supporting measurement accuracy from the start.
Detailed Overview
Operating on the 5Y.WH platform, the RADWAG MA 110.5Y.WH Moisture Analyzer combines halogen lamp speed with the precision of a 0.001% moisture content readability. The unit supports four distinct finish modes—automatic, manual, time-defined, and user-defined—so operators can align termination criteria with established reference procedures. A ø90 mm sample pan accepts specimens up to 20 mm in height, while built-in sample traceability captures all measurement data for audit readiness. USB-A, USB-C, HDMI, Ethernet, Wi-Fi, and hotspot connectivity options ensure smooth integration with data systems, printers, and remote monitoring setups. External calibration with GLP report generation provides verified mass and temperature accuracy.
Applications
- Rapid moisture screening in food and beverage production lines
- Pharmaceutical granulation and coating moisture verification
- Plastics and polymer moisture control before processing
- Agricultural product testing for grain, feed, and seed moisture
Why Choose the RADWAG MA 110.5Y.WH?
The MA 110.5Y.WH delivers the speed of halogen drying paired with the modern 5Y touchscreen ecosystem. Its automated chamber, flexible drying profiles, and broad connectivity make it a powerful tool for laboratories that analyse a high volume of samples with varied thermal requirements. Add to cart to accelerate your moisture analysis workflow.
| Maximum Capacity | 110 g |
|---|---|
| Readability | 1 mg |
| Moisture content readability | 0.001% |
| Maximum sample weight | 110 g |
| Heating module | halogen |
| Heating module power | 450 W |
| Drying temperature range | max 250 °C |
| Drying method | 4 drying profiles (standard, fast, step, mild) |
| Moisture content repeatability | +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g) |
| Display | 10″ touchscreen |
| Display mode | %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC |
| Finish mode | 4 modes (automatic, manual, time-defined, user-defined) |
| Weighing pan dimensions | ø90, h= 8 mm |
| Maximum sample height | 20 mm |
| Weighing chamber | automatic |
| Communication interface | USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot |
| Calibration | external |
| External adjustment | For all models, GLP report |
| Internal / External adjustment | Depending on the type of moisture analyzer, GLP report |
| Internal adjustment | For .IC models only, GLP report |
| Drying temperature control | One- or two-point, depending on the drying profile (equipment: GT105k-12/Z Control Thermometer) |
| Drying temperature adjustment | Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer) |
| Mass indication control | External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer) |
| Moisture content indication control | Certified MV Test Set |
| Additional functions | sample traceability |
| Leveling system | semi-automatic - LevelSENSING |
| Protection class | IP 43 |
| Operating temperature | +10 — +40 °C |
| Power supply | 100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz |
| Power consumption | 6 W |
| Net weight | 5.3 kg |
| Tare range | -110 g |
