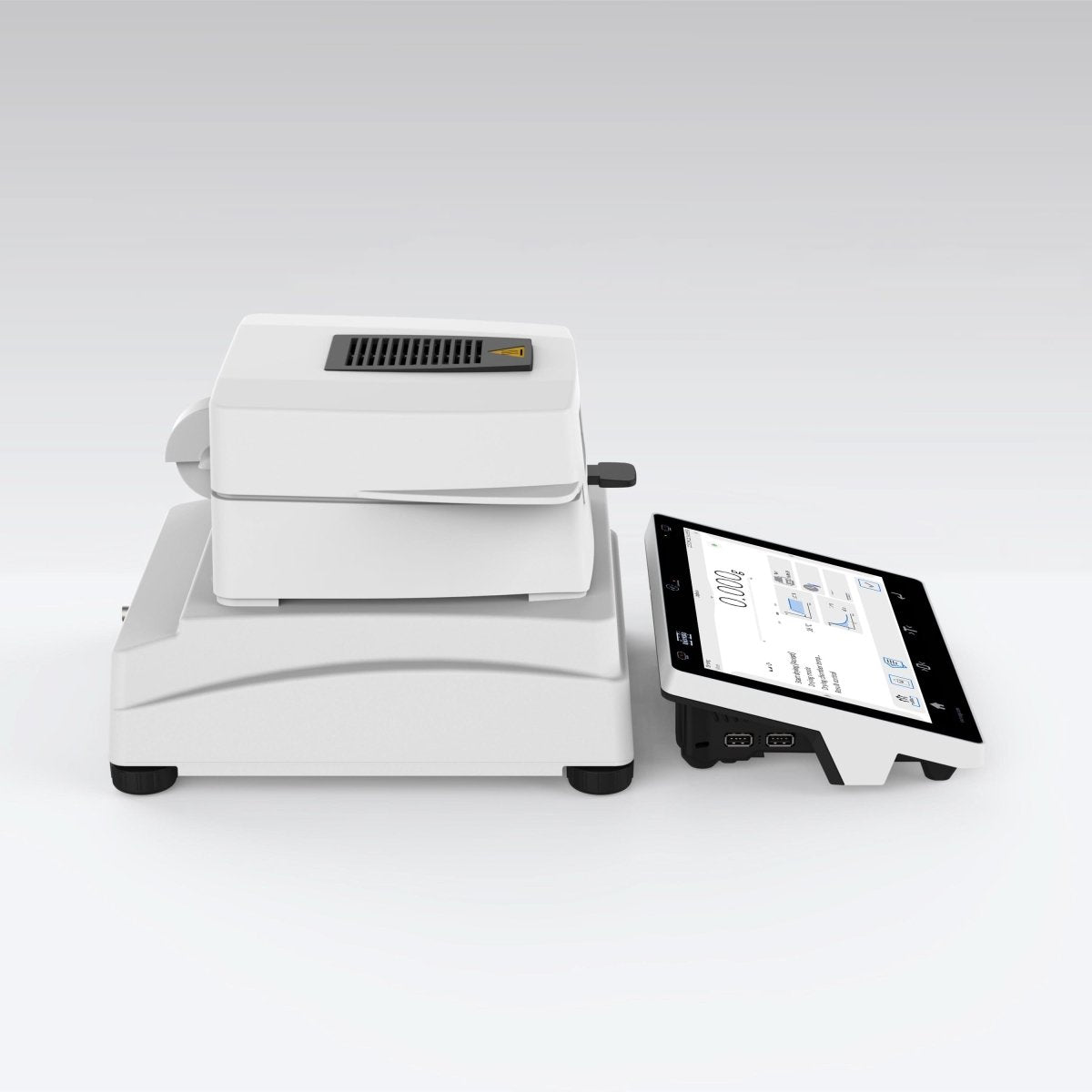

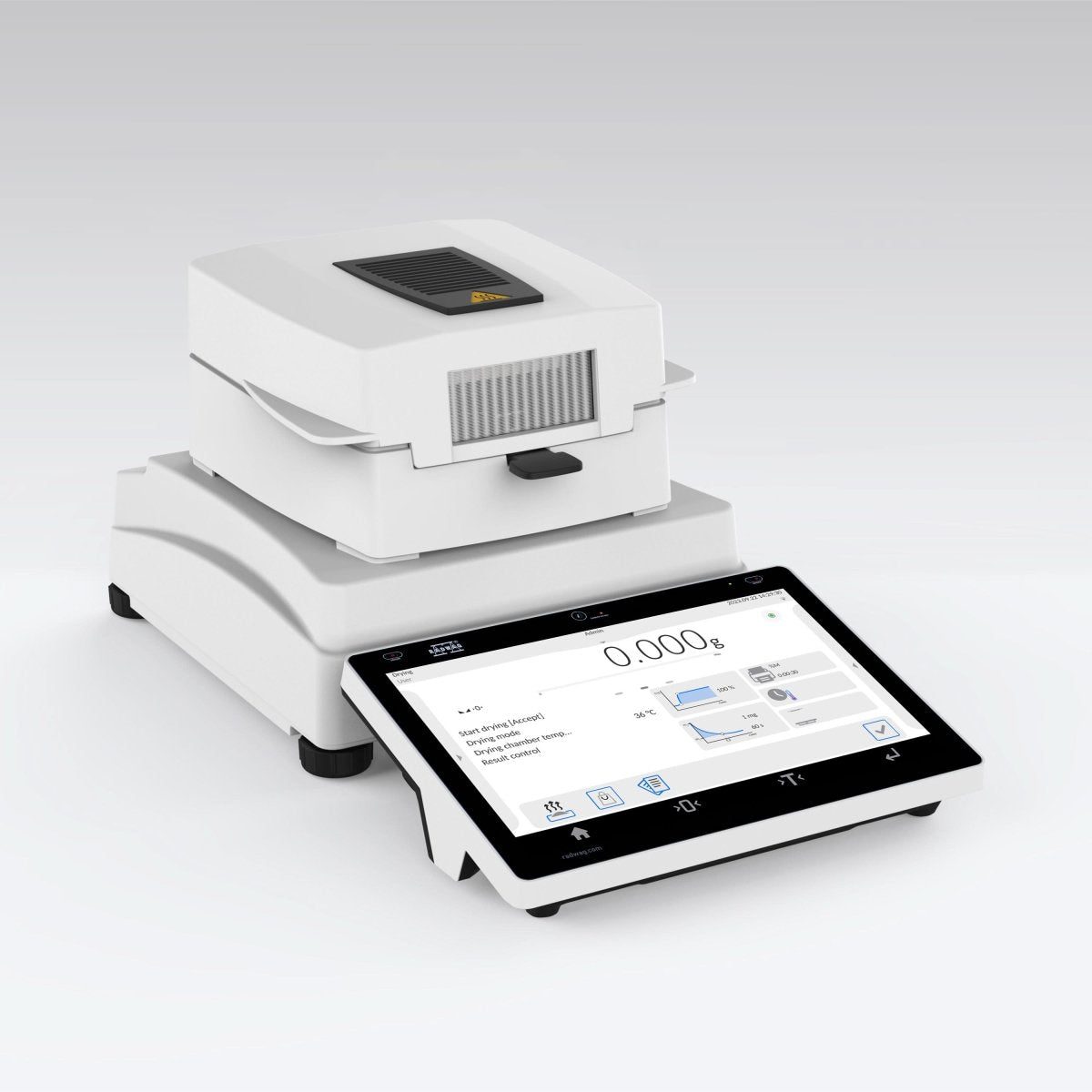

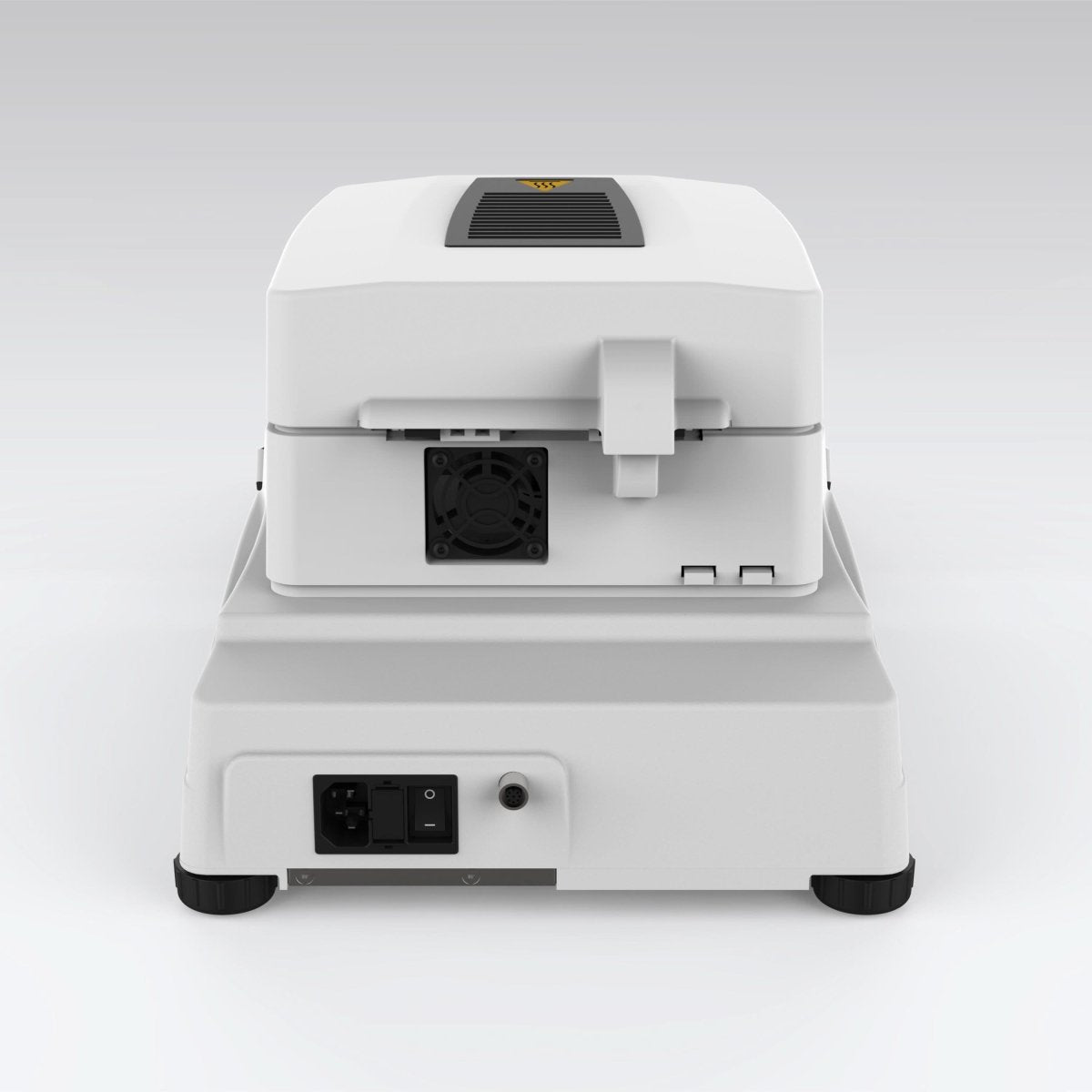

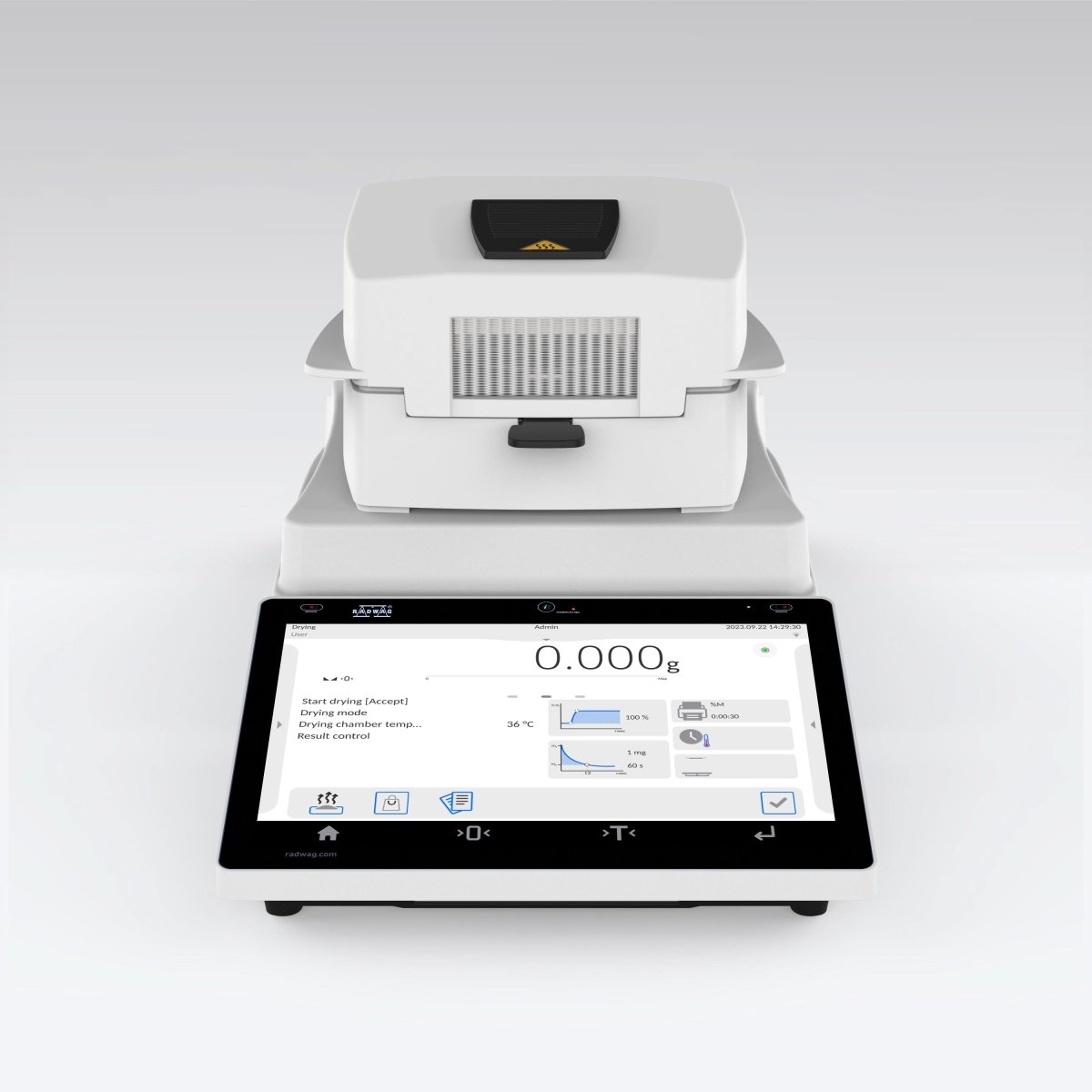

RADWAG MA 110.5Y.IC MA 5Y.IC Moisture Analyzer, 110g Capacity, 1mg Readability, Internal Calibration
RADWAG MA 110.5Y.IC Moisture Analyzer — Internal Calibration with IR Emitter and 10-Inch Display
Self-calibrating moisture analyzers eliminate the reliance on external reference weights, simplifying ongoing accuracy management. The RADWAG MA 110.5Y.IC Moisture Analyzer features automatic internal calibration, a 110 g capacity at 1 mg readability, and an IR emitter heating module, all operated through a 10-inch touchscreen with customisable widget displays.
Key Features
- Automatic Internal Calibration: GLP-reported self-calibration maintains mass measurement accuracy without external weights, reducing maintenance time and supporting continuous compliance.
- IR Emitter Heating Module: Infrared radiation provides efficient, uniform heating up to 160 °C, offering gentle yet effective moisture removal for a broad range of sample types.
- 10-Inch Touchscreen Interface: Widget-enabled display provides live drying curves, moisture content percentages, ambient monitoring, and system status in a highly visual, customisable layout.
- Automatic Drying Chamber: Motorised lid operation via buttons or proximity sensors reduces operator contact, maintaining sample integrity and instrument cleanliness between tests.
- Semi-Automatic LevelSENSING: Guided alignment verification confirms the balance cell is properly levelled, a prerequisite for accurate mass determination during drying analysis.
Detailed Overview
The RADWAG MA 110.5Y.IC Moisture Analyzer extends the 5Y.IC platform with internal calibration capability that distinguishes it from externally calibrated models in the same family. Four drying profiles—standard, fast, step, and mild—address materials ranging from thermally sensitive pharmaceuticals to dense mineral samples, while four finish modes allow precise control over when each analysis concludes. Moisture content readability of 0.001% ensures fine-grained detection of moisture variations. The ø90 mm disposable pan accepts samples up to 20 mm high, and sample traceability records all test parameters for full audit documentation. Connectivity through USB-A, USB-C, HDMI, Ethernet, Wi-Fi, and hotspot supports seamless integration with laboratory information management systems.
Applications
- Pharmaceutical production moisture monitoring with internal calibration traceability
- Food industry incoming material verification
- Polymer and plastic pellet moisture control before moulding
- Environmental and agricultural sample moisture analysis
Why Choose the RADWAG MA 110.5Y.IC?
The internal calibration feature sets this model apart for facilities that prioritise autonomous accuracy management and simplified SOP compliance. Combined with the modern 5Y touchscreen ecosystem and IR emitter heating, it provides a complete moisture analysis solution that requires minimal manual intervention. Order today to streamline your quality assurance with self-calibrating moisture determination.
| Maximum Capacity | 110 g |
|---|---|
| Readability | 1 mg |
| Moisture content readability | 0.001% |
| Maximum sample weight | 110 g |
| Heating module | IR emitter |
| Heating module power | 450 W |
| Drying temperature range | max 160 °C |
| Drying method | 4 drying profiles (standard, fast, step, mild) |
| Moisture content repeatability | +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g) |
| Display | 10″ touchscreen |
| Display mode | %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC |
| Finish mode | 4 modes (automatic, manual, time-defined, user-defined) |
| Weighing pan dimensions | ø90, h= 8 mm |
| Maximum sample height | 20 mm |
| Weighing chamber | automatic |
| Communication interface | USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot |
| Calibration | internal (automatic) |
| External adjustment | For all models, GLP report |
| Internal / External adjustment | Depending on the type of moisture analyzer, GLP report |
| Internal adjustment | For .IC models only, GLP report |
| Drying temperature control | One- or two-point, depending on the drying profile (equipment: GT105k-12/Z Control Thermometer) |
| Drying temperature adjustment | Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer) |
| Mass indication control | External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer) |
| Moisture content indication control | Certified MV Test Set |
| Additional functions | sample traceability |
| Leveling system | semi-automatic - LevelSENSING |
| Protection class | IP 43 |
| Operating temperature | +10 — +40 °C |
| Power supply | 100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz |
| Power consumption | 6 W |
| Net weight | 5.3 kg |
| Tare range | -110 g |
