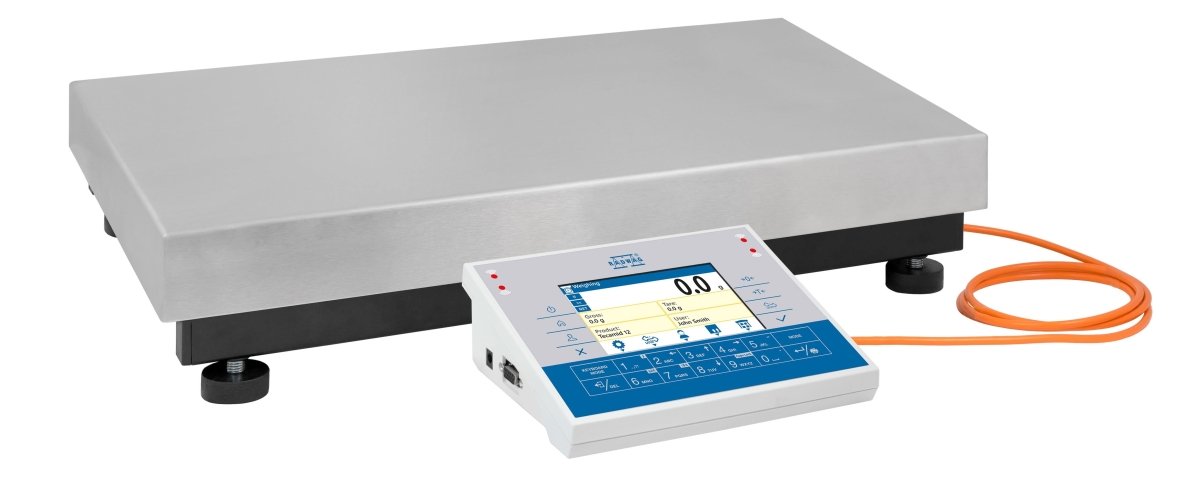

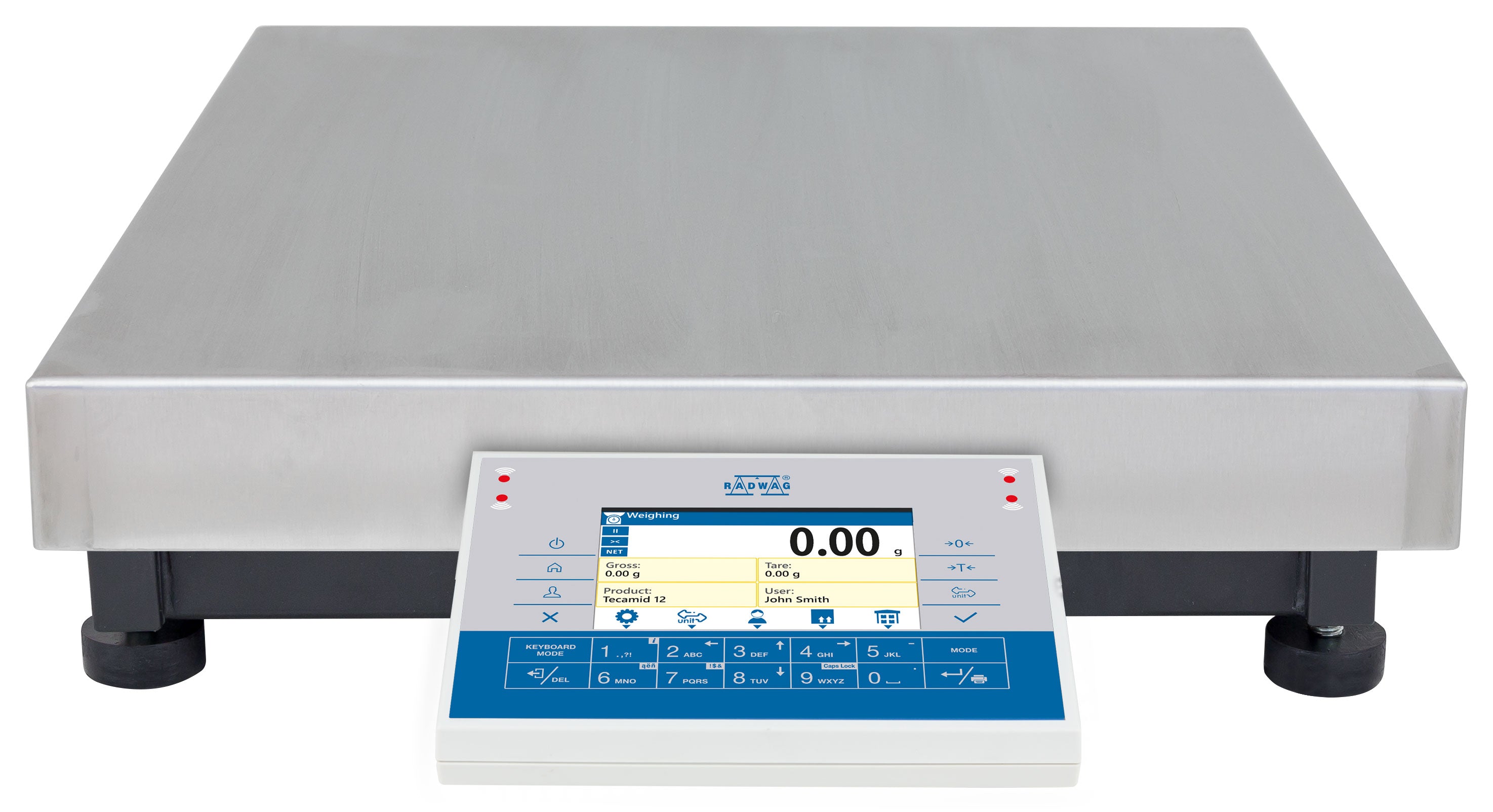

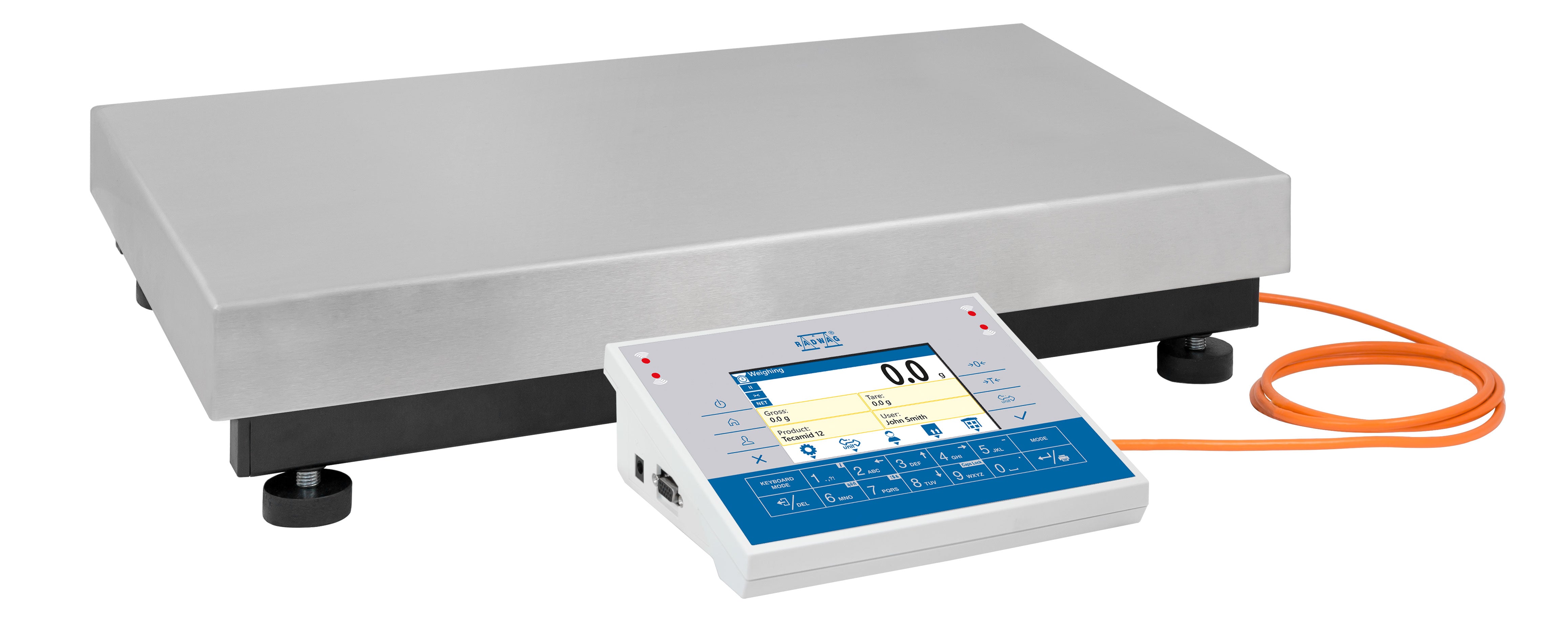

RADWAG C32 PM C32.60.PM.05 Precision Balance, 60kg Capacity, 0.5g Readability, Internal Calibration

RADWAG C32.60.PM Precision Balance — 60 kg Capacity on a Large-Format Weighing Platform

High-load precision weighing in production and logistics environments calls for a robust platform that maintains accuracy even under challenging conditions. The RADWAG C32.60.PM Precision Balance handles loads up to 60 kg with 0.5 g readability on a generous 400 × 500 mm pan, delivering industrial-grade performance through RADWAG's enhanced MonoBLOCK technology.

Key Features

• 60 kg Capacity with 0.5 g Readability: Enables precision weighing of heavy components, bulk containers, and large assemblies that exceed the capacity of bench-top balances.
• MonoBLOCK Weighing Technology: An advanced single-element load cell design ensures minimal eccentricity error, fast stabilization, and long-term measurement stability across the full capacity range.
• 400 × 500 mm Stainless Steel Pan: The oversized platform accommodates bulky items and irregularly shaped loads without overhanging edges, reducing positioning errors during weighing.
• 1-Second Stabilization: Rapid response speeds up counting, dosing, and check-weighing processes, helping production teams maintain throughput targets.
• Automatic Internal Calibration: Self-calibrates to compensate for temperature variations, keeping the balance within specification without manual weights or scheduled calibration breaks.

Detailed Overview

The C32.60.PM is built on RADWAG's C32 PM platform, which uses an enlarged MonoBLOCK sensor with integrated four-point overload protection. Repeatability reaches 0.21 g at 5 % of capacity and 0.4 g at full load, with linearity held to ±1.5 g. The 5-inch colour display provides clear operation feedback, while IP 43 ingress protection allows use in dusty or splash-prone industrial settings. Connectivity includes dual RS232, USB-A, USB-B, Ethernet, Wi-Fi, and four digital I/O channels, enabling integration with PLCs, label printers, and factory automation systems. The intuitive interface ensures quick setup and minimal training for production operators who need reliable results without complex menu navigation.

Applications

• Industrial parts counting and inventory control
• Batch dosing and formulation in chemical manufacturing
• Check-weighing packaged goods on production lines
• Logistics receiving and dispatch weight verification
• Laboratory weighing of heavy samples and large vessels

Why Choose the RADWAG C32.60.PM?

This precision balance bridges the gap between high-capacity industrial scales and laboratory-grade accuracy. MonoBLOCK technology ensures measurement stability during dynamic loading, while automatic calibration keeps the instrument compliant without production downtime. Order today to bring 0.5 g precision to your high-capacity weighing operations.
