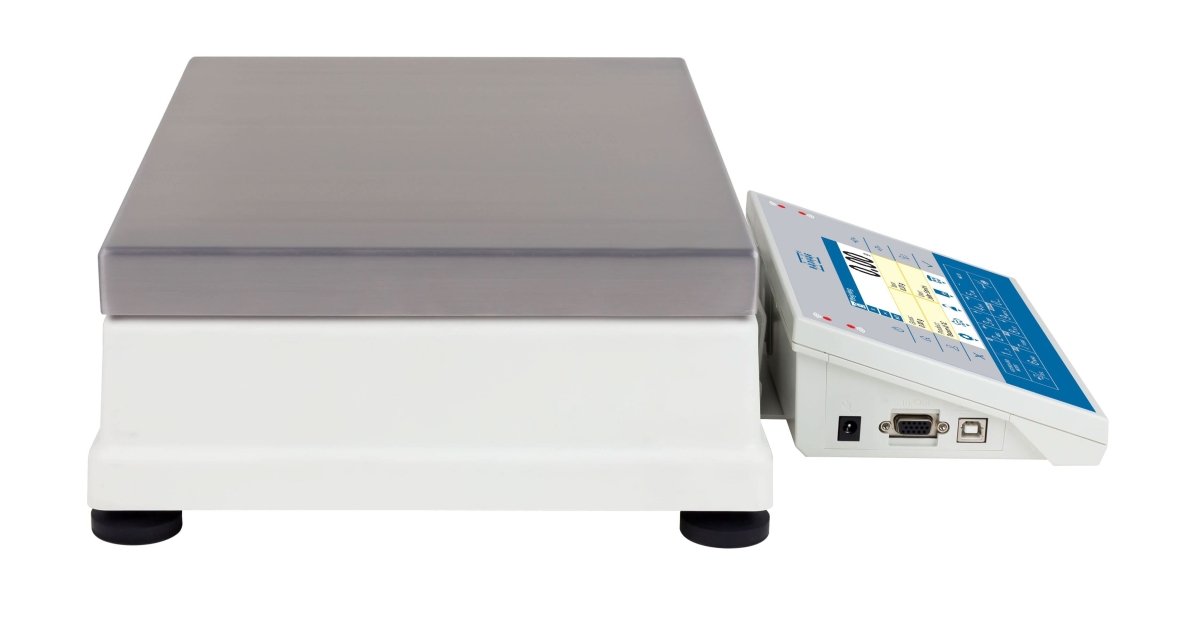

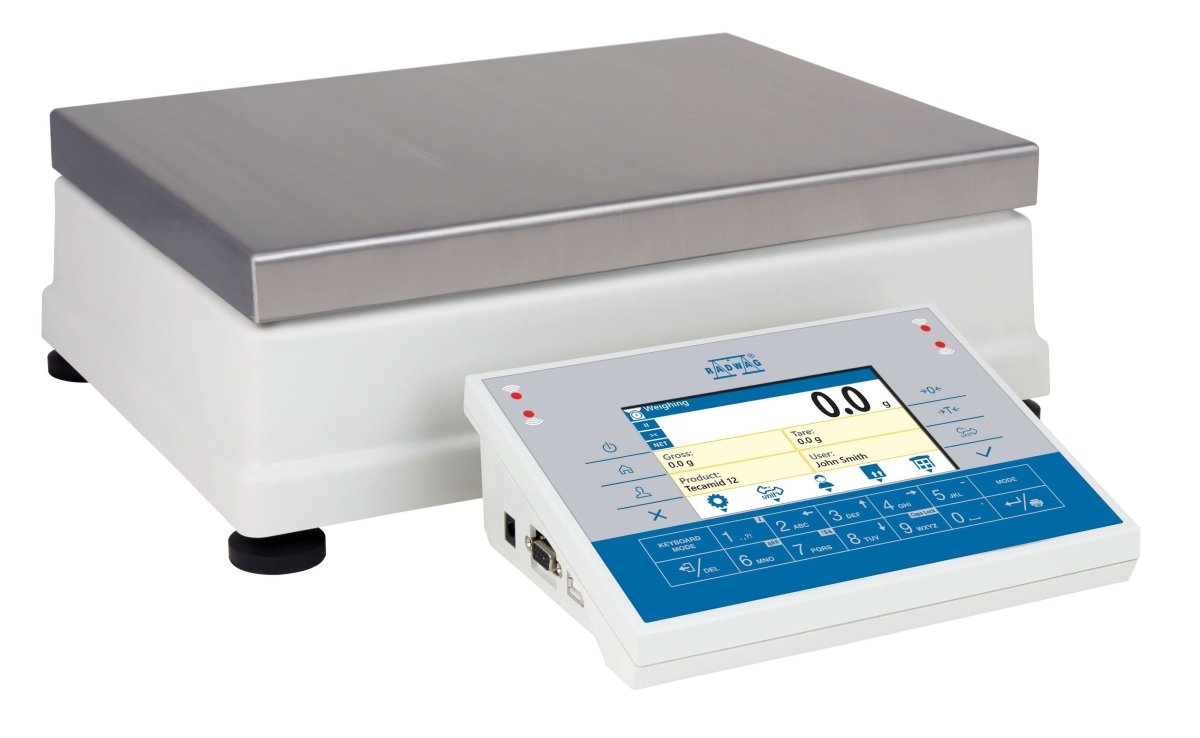

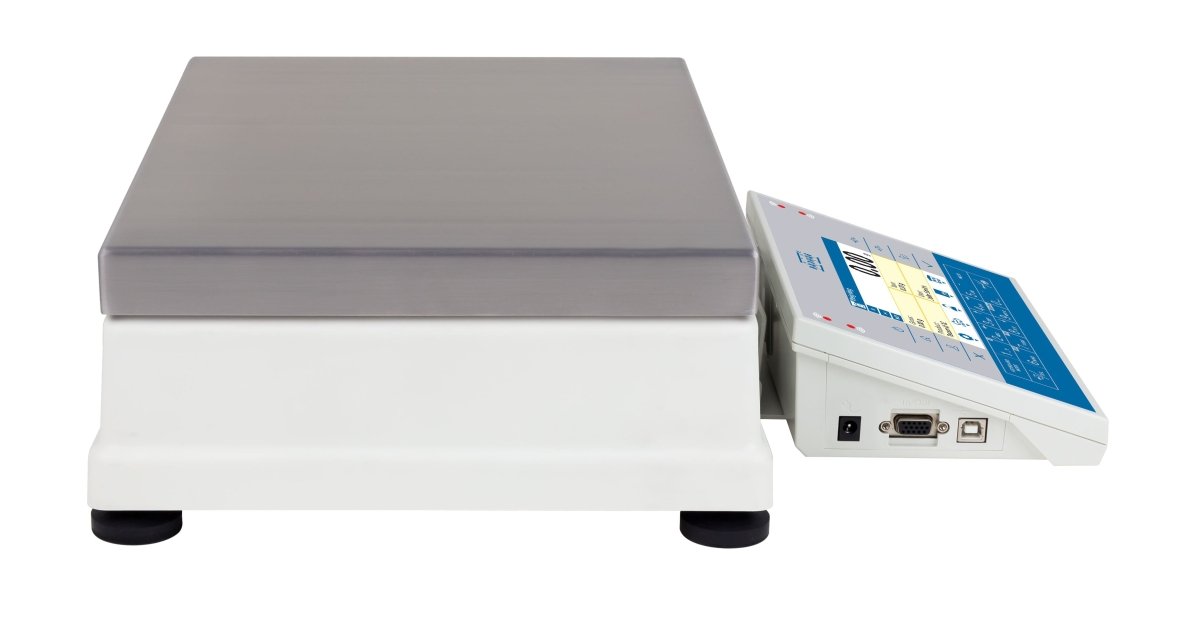

RADWAG C32 PM C32.25.PM Precision Balance, 25kg Capacity, 0.1g Readability, Internal Calibration, OIML Class II

RADWAG C32.25.PM Precision Balance — MonoBLOCK 25 kg Weighing with 0.1 g Resolution

Weighing loads up to 25 kg at 0.1 g readability demands a robust load-cell platform that maintains accuracy across the full range. The RADWAG C32.25.PM Precision Balance uses RADWAG's MonoBLOCK technology to deliver exactly that — high capacity, excellent repeatability, and fast stabilisation on a single-piece sensor that resists the drift and eccentricity errors common in multi-component load cells.

Key Features

• 25 kg Capacity at 0.1 g Readability: Weigh heavy containers, bulk materials, and large assemblies while retaining the resolution needed for OIML Class II verified measurements.
• MonoBLOCK Load Cell: A single-element sensor minimises eccentricity error, provides long-term stability, and achieves sub-second stabilisation times even at high loads.

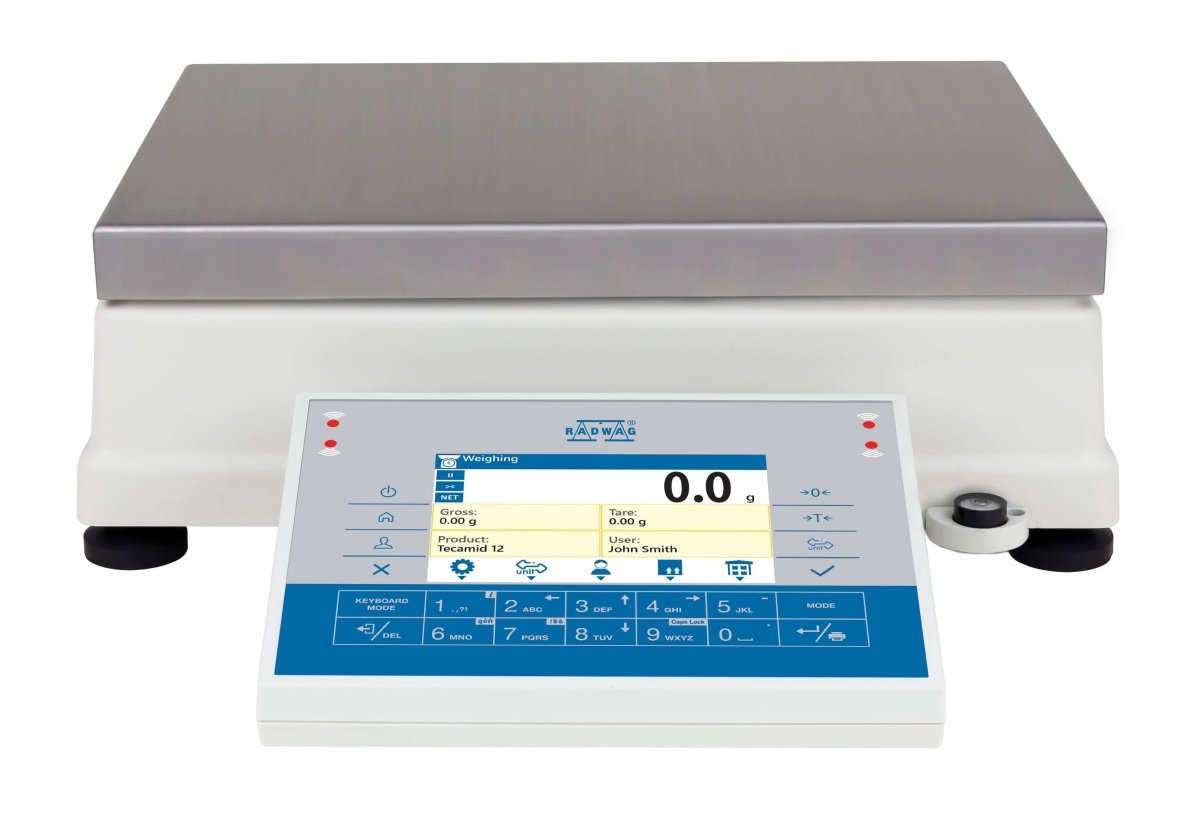

• 5-Inch Colour Graphic Display: Clear visuals with intuitive navigation make operation straightforward for technicians and lab staff without extensive training.
• Automatic Internal Calibration: Temperature-activated and scheduled calibration cycles keep the balance within specification autonomously, reducing maintenance overhead.
• Touch-Free IR Sensors: Two programmable infrared sensors let operators tare and print without physically touching the balance, improving hygiene and workflow speed.
• Comprehensive Interfaces: Dual RS 232, USB-A, USB-B, Ethernet, and Wi-Fi cover virtually every connectivity requirement for printers, PCs, and network infrastructure.

Detailed Overview

The C32.25.PM is part of RADWAG's PM series, which leverages the MonoBLOCK single-block weighing mechanism for superior metrological performance at high capacities. Stabilisation within 1 second dramatically accelerates throughput compared to conventional high-capacity balances. Repeatability of 0.04 g at 5 % load and 0.1 g at maximum capacity underscores the sensor's consistency. Thirteen built-in weighing functions — from totalising and check-weighing to statistical analysis — support varied industrial and laboratory workflows. The preload range of 2.5 kg accounts for heavy tare containers before counting begins, and the USP minimum weight of 82 g provides a clear lower threshold for traceable measurements.

Applications

• Industrial component counting and inventory management
• Chemical batch preparation requiring sub-gram accuracy at high load
• Food production recipe scaling and ingredient verification
• Logistics and packaging verification for quality compliance

Why Choose the RADWAG C32.25.PM?

The C32.25.PM Precision Balance combines MonoBLOCK sensor technology with a rich feature set to serve operations that need high-capacity weighing at 0.1 g precision. Its fast response, automatic calibration, and broad connectivity make it equally at home on a production floor or in a heavy-duty lab. Add it to your cart at Weighcore and experience MonoBLOCK performance firsthand.
