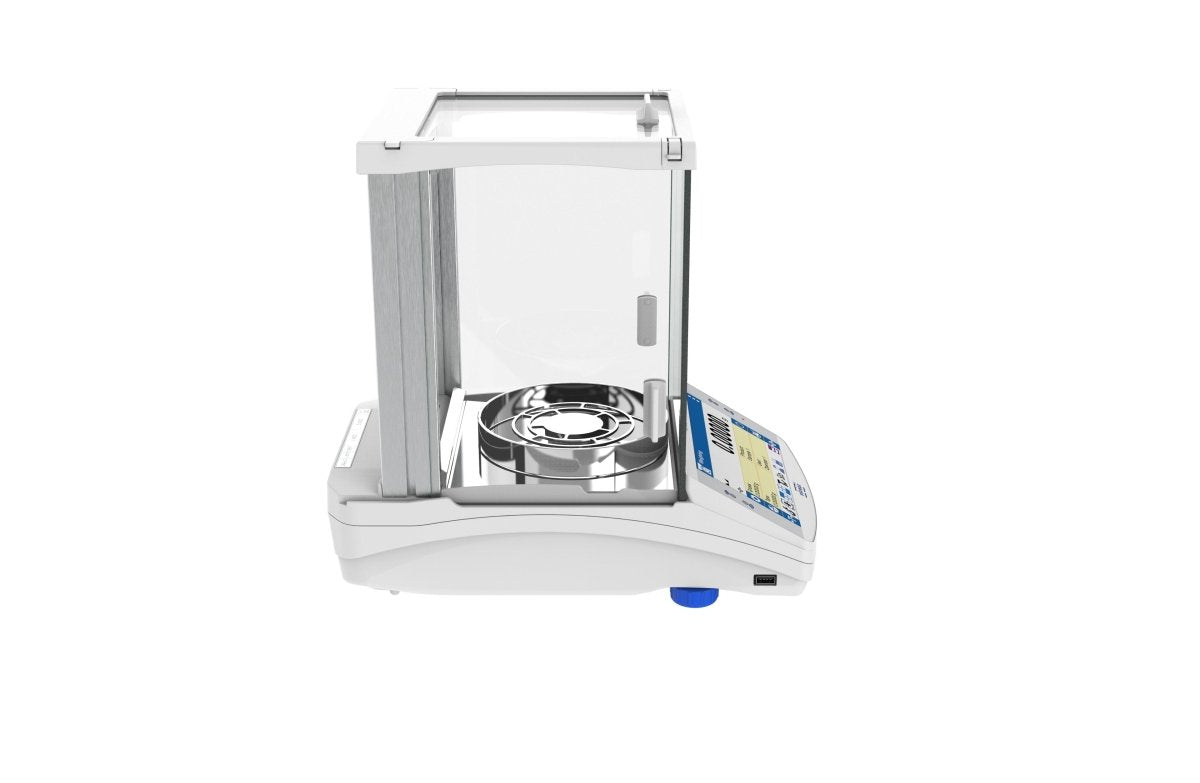

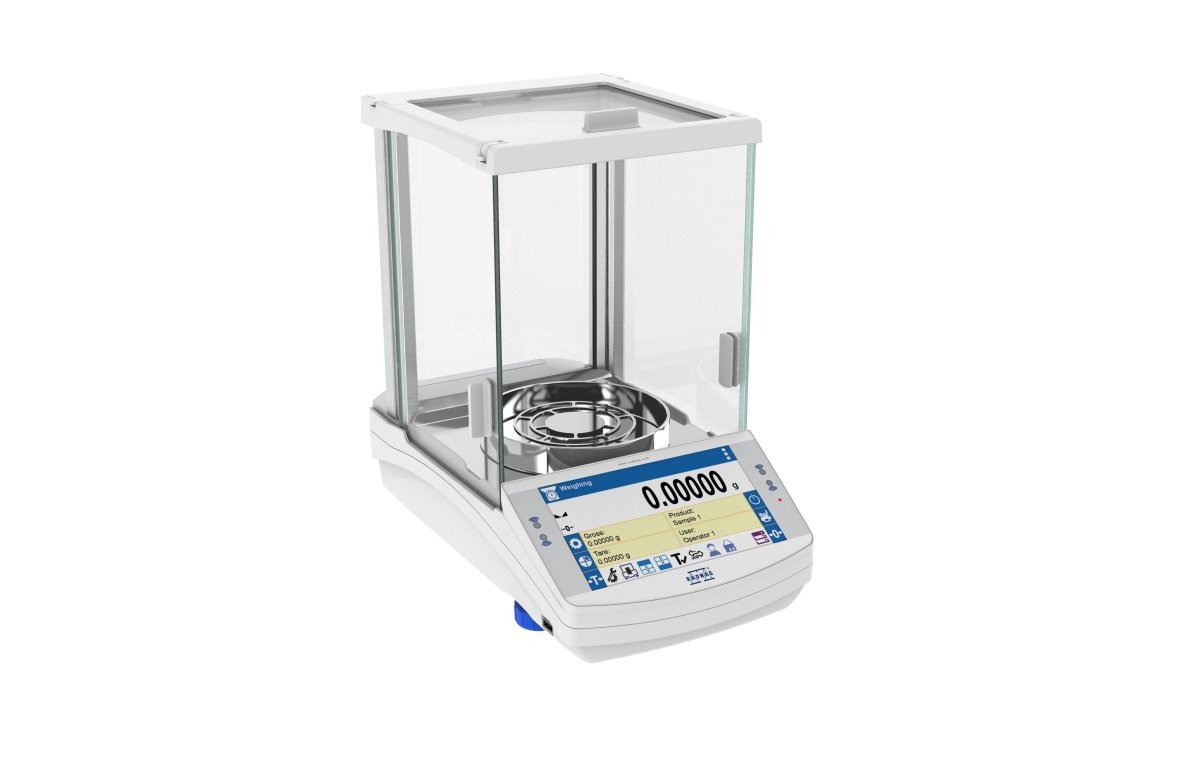

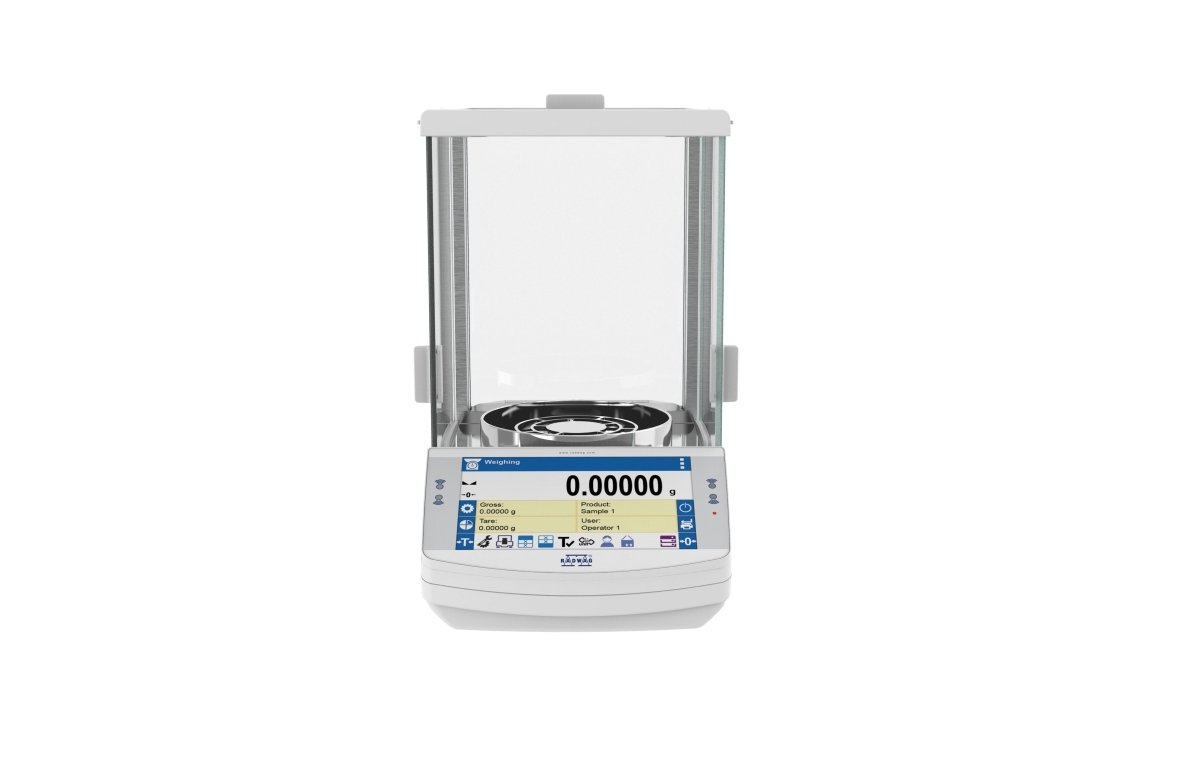

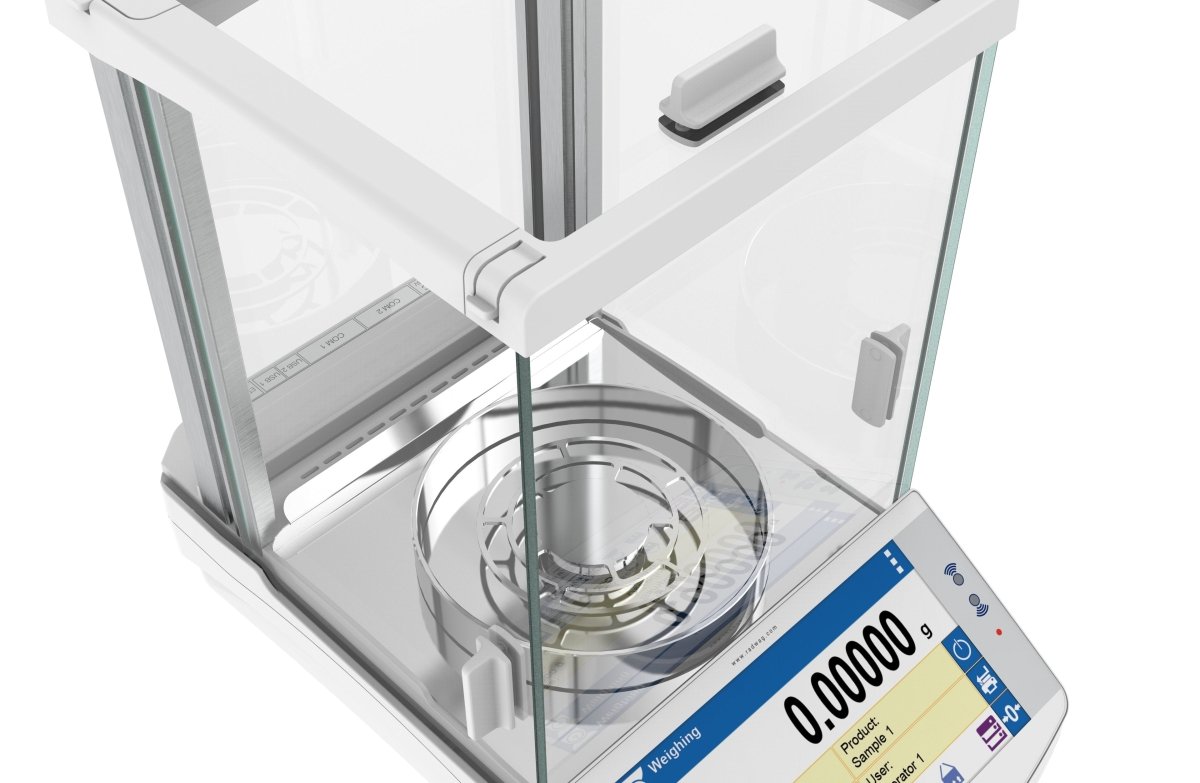

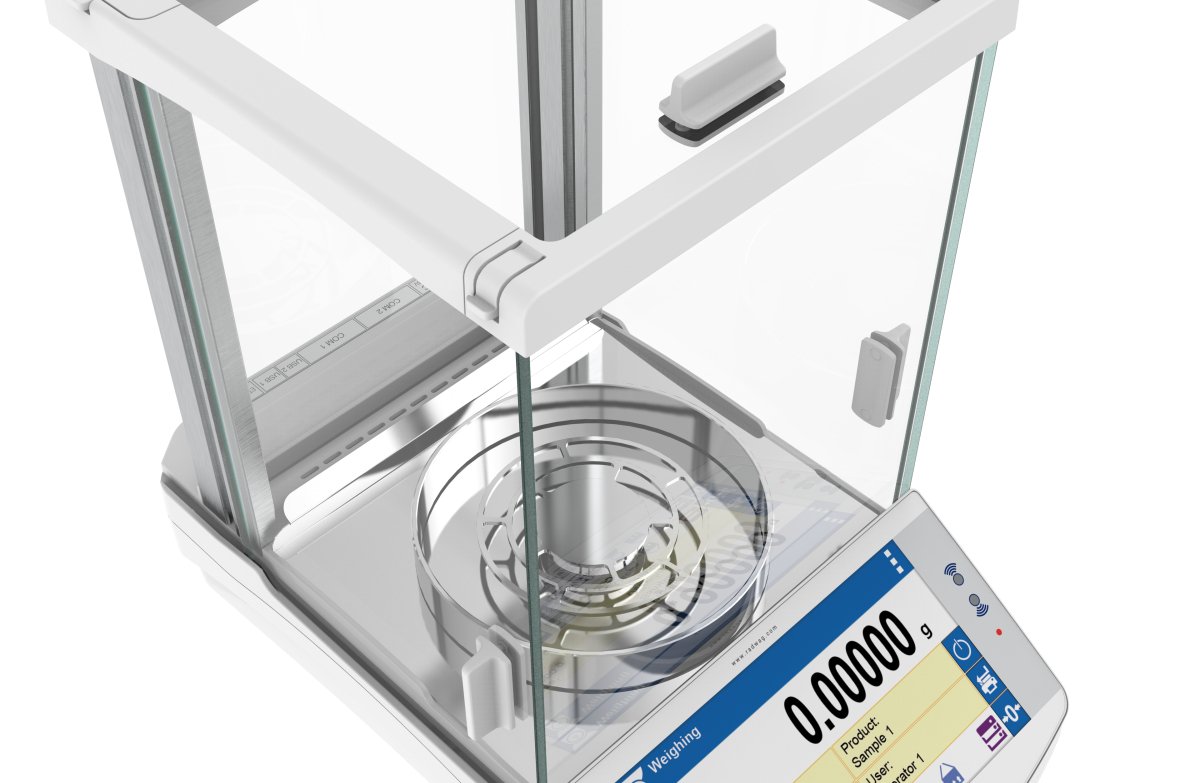

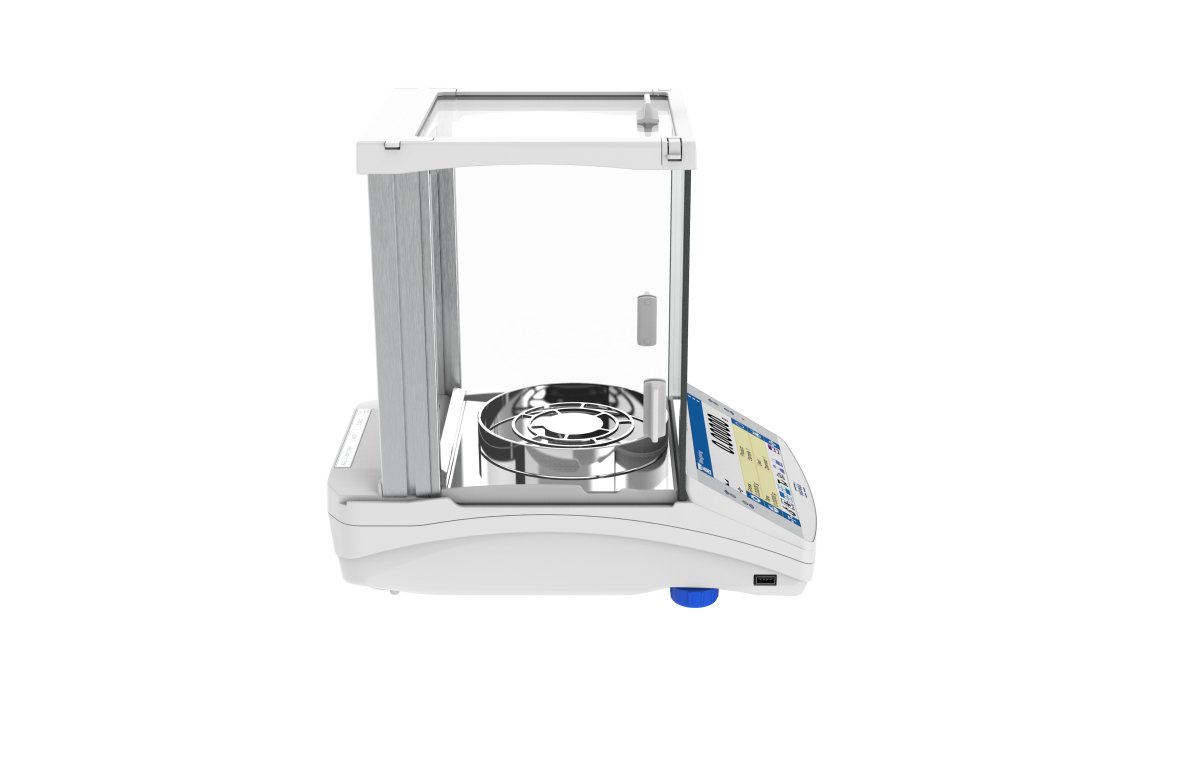

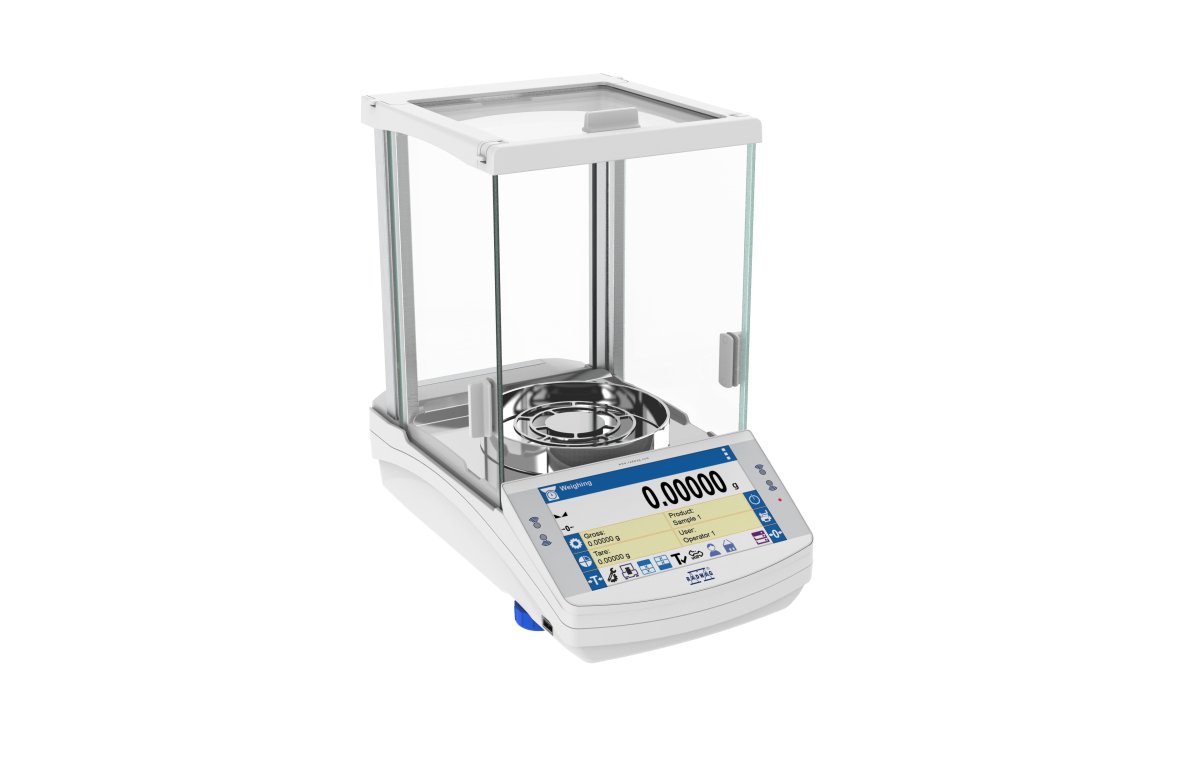

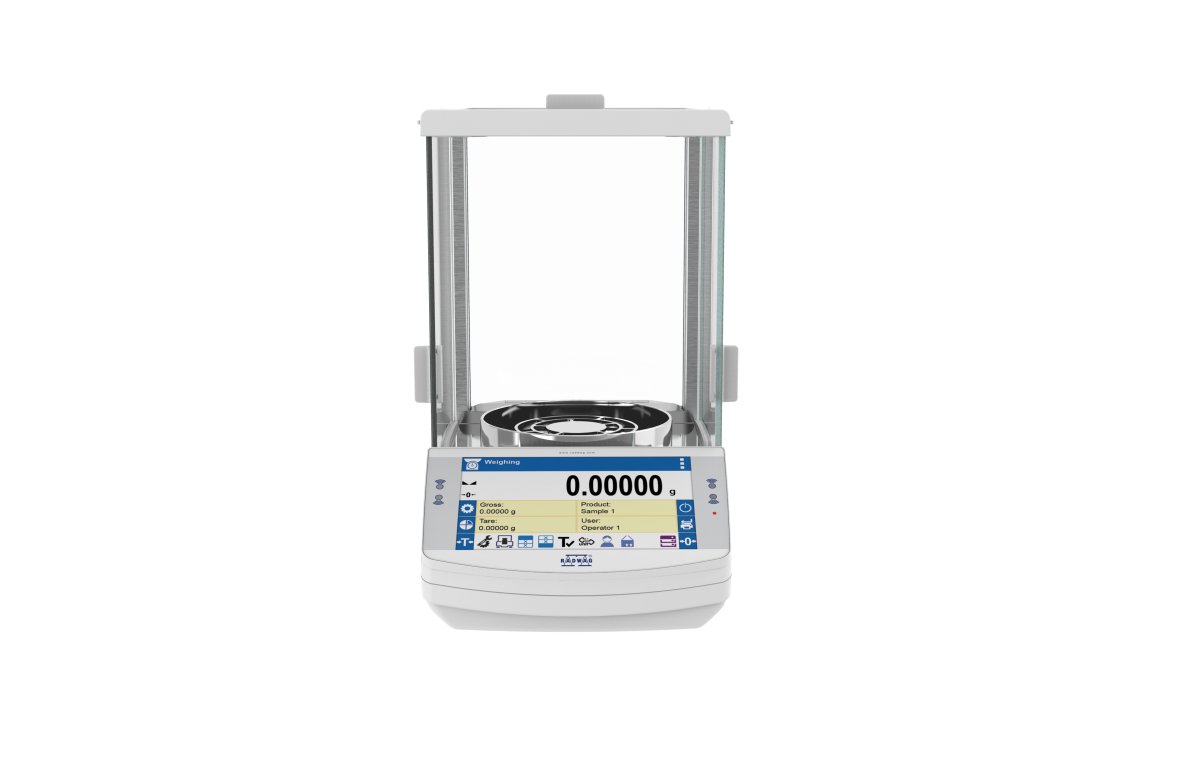

RADWAG AS X7 AS 310.X7 Analytical Balance, 310g Capacity, 0.1mg Readability, Internal Calibration, OIML Class I
RADWAG AS 310.X7 Analytical Balance — Extended 310 g Capacity with OIML Class I Precision
Laboratories that routinely handle heavier sample vessels alongside analytical-grade accuracy will benefit from the extended range of the RADWAG AS 310.X7 Analytical Balance. With 310 g capacity and 0.1 mg readability backed by OIML Class I certification, this instrument accommodates larger tare loads while maintaining the precision needed for rigorous analytical work.
Key Features
- 310 g Capacity with 0.1 mg Readability: Greater weighing range compared to standard 220 g models allows use of heavier containers and larger sample quantities without exceeding the balance capacity.
- OIML Class I Certified: The highest metrological accuracy class for non-automatic weighing instruments, confirming performance for critical analytical and regulated measurements.
- 7-Inch Colour Touchscreen with Customisable Interface: Rearrange buttons and display elements to match your workflow, reducing navigation steps and improving operator efficiency during repetitive tasks.
- 18 Weighing Functions and Modes: Comprehensive software supports formulation, differential weighing, statistical analysis, density determination, and more within one unified system.
- Touch-Free Operation with IR Sensors: Two proximity sensors enable hands-free taring, printing, and mode selection, minimising environmental disturbance during sensitive analytical measurements.
- Under-Pan Weighing Hook: Built-in capability for density determination and suspended-load experiments extends the analytical versatility of this instrument beyond standard gravimetric tasks.
Detailed Overview
The RADWAG AS 310.X7 Analytical Balance operates on the X7 platform with a semi-automatic LevelSENSING system that ensures proper alignment before each use. Repeatability of 0.07 mg at 5% load and 0.1 mg at full capacity provides consistent results, while 2.5-second stabilisation balances speed with measurement quality. The ø100 mm weighing pan sits inside a 190 × 190 × 222 mm manually operated chamber, and automatic internal calibration keeps the instrument within specification between scheduled verifications. Seven integrated databases store product, user, and formulation records, and RS232, dual USB-A, USB-B, Wi-Fi, and Ethernet connectivity support data transfer to printers, barcode scanners, and LIMS platforms. Optional ambient condition monitoring through the THBR 2.0 system adds environmental oversight for GLP-compliant operations.
Applications
- Chemical analysis requiring heavier volumetric glassware
- Pharmaceutical quality control with larger-tare containers
- Environmental testing and regulatory compliance weighing
- Academic and research laboratories with diverse sample requirements
Why Choose the RADWAG AS 310.X7?
The AS 310.X7 extends the working range of analytical weighing without compromising on OIML Class I accuracy. Its customisable touchscreen, extensive weighing modes, and robust connectivity make it a flexible tool for laboratories with varied analytical demands. Add to cart to expand your analytical capacity with a versatile, certified balance.
| Maximum Capacity | 310 g |
|---|---|
| Readability | 0.1 mg |
| Standard repeatability [5% Max] | 0.07 mg |
| Standard repeatability [Max] | 0.1 mg |
| Permissible repeatability [5% Max] | 0.12 mg |
| Permissible repeatability [Max] | 0.15 mg |
| Linearity | ±0.3 mg |
| Minimum load | 10 mg |
| Standard minimum weight (USP) | 140 mg |
| Standard minimum weight (U=1%, k=2) | 14 mg |
| Verification unit [e] | 1 mg |
| Tare range | -310 g |
| Stabilization time | 2.5 s |
| Calibration | internal (automatic) |
| OIML Class | I |
| Weighing pan dimensions | ø100 mm |
| Weighing chamber dimensions | 190×190×222 mm |
| Display | 7″ graphic colour touchscreen |
| Weighing chamber doors | manual |
| Touch-free operation | 2 IR Sensors |

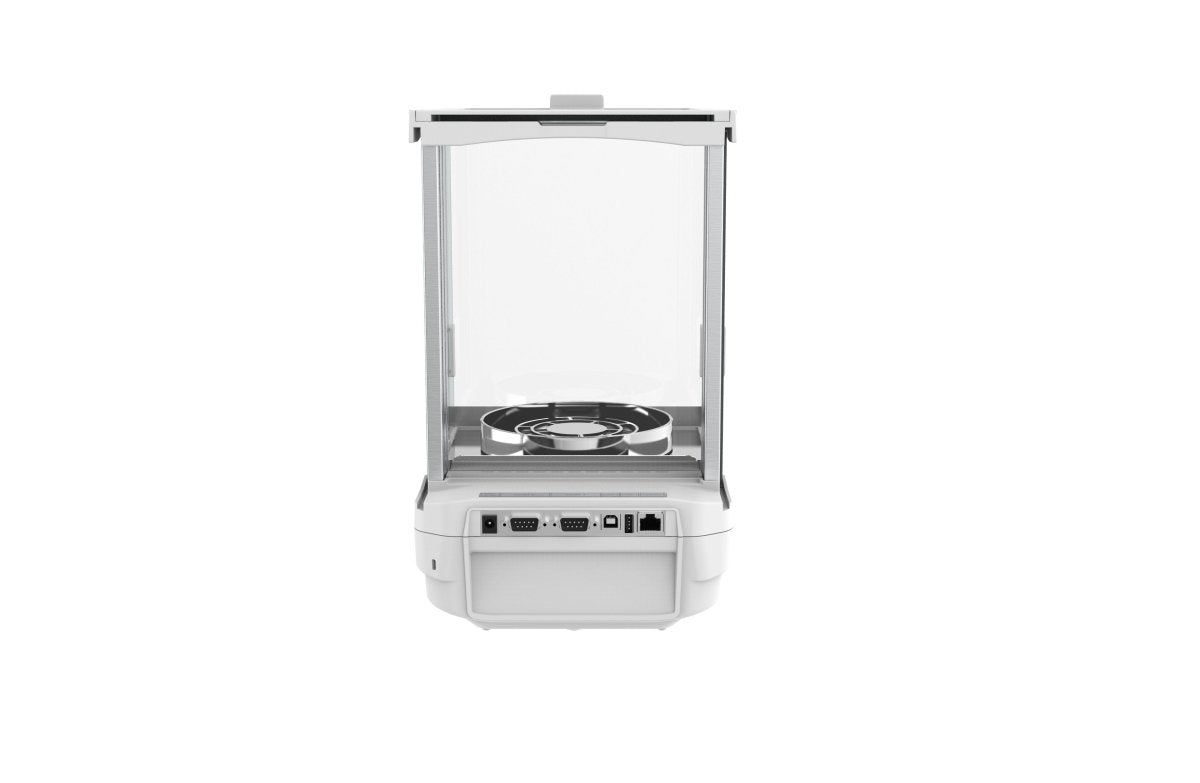

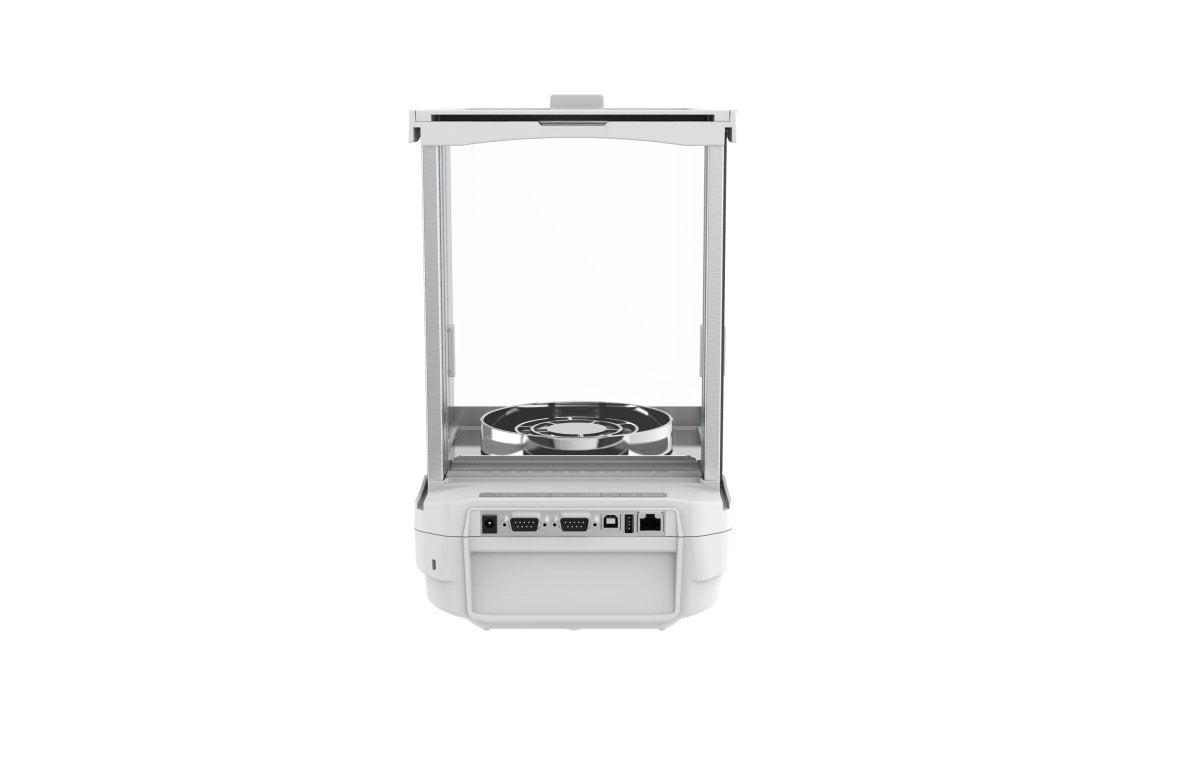

| Communication interface | RS232, 2×USB-A (interchangeable), USB-B, Wi-Fi®, Ethernet |
| Database capacity | 7 |
| Protection class | IP 43 |
| Operating temperature | +10 — +40 °C |
| Relative humidity | 40% — 80% |
| Leveling system | semi-automatic - LevelSENSING |
| Power supply | Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A Balance: 12 – 15V DC 0.8A max |
| Power consumption max. | 4 W |
| Net weight | 7.32 kg |
| Ambient conditions monitoring (option) | THBR 2.0 System, THBR BOX, THB P, THB W, THB S |
