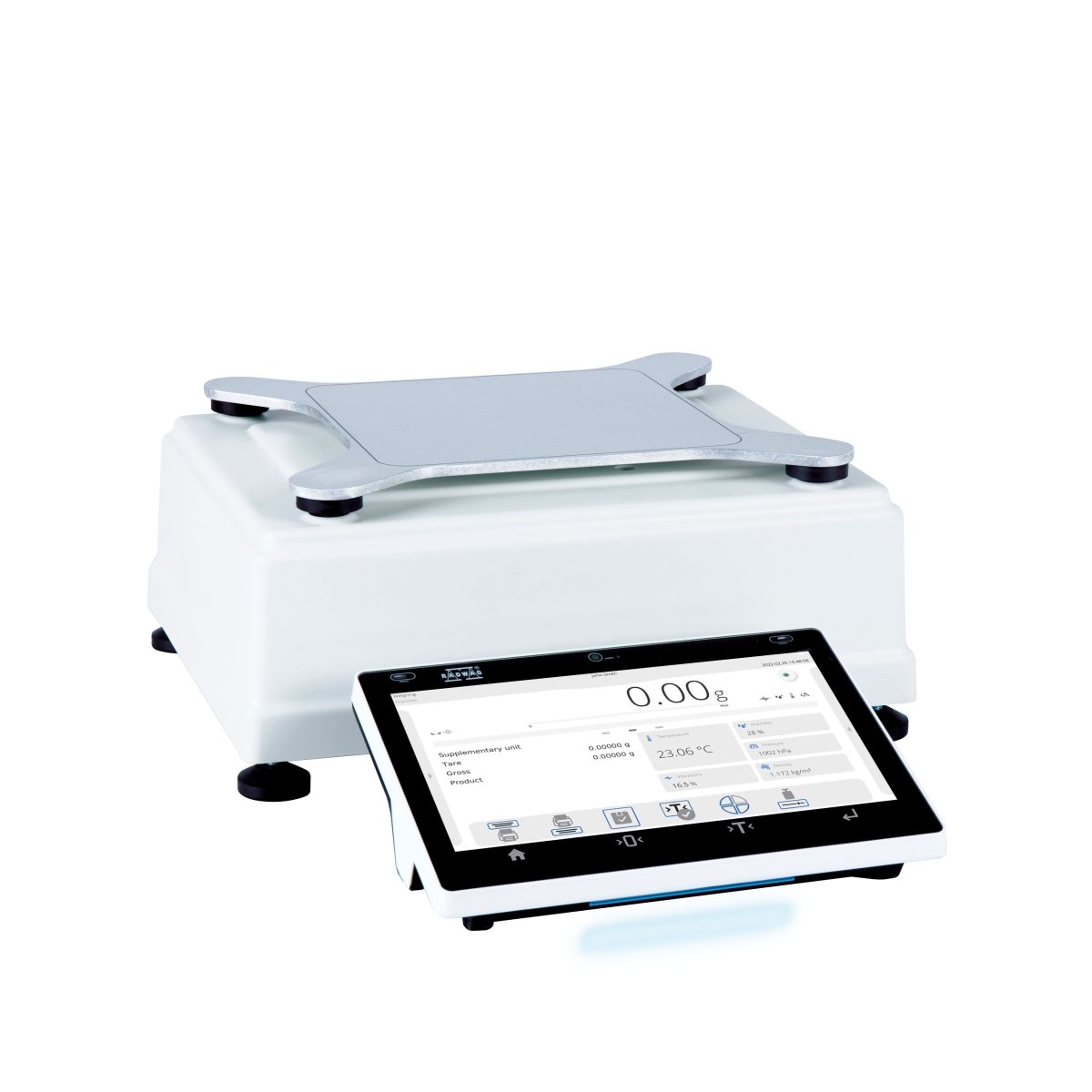

RADWAG 5Y.50.PM 5Y PM Precision Balance, 50kg Capacity, 0.1g Readability, Internal Calibration, OIML Class II

RADWAG 5Y.50.PM Precision Balance — 50 kg MONO BLOCK Weighing with OIML Class II Verification

Heavy-duty precision weighing in production and laboratory settings demands a balance that pairs large capacity with metrological-grade accuracy. The RADWAG 5Y.50.PM Precision Balance handles loads up to 50 kg at 0.1 g readability, verified to OIML Class II and powered by a forged MONO BLOCK load cell that delivers 1-second stabilization for rapid throughput.

Key Features

• 50 kg Capacity at 0.1 g Readability: Weighs large containers, drums, and production-batch components with sub-gram resolution, supporting both formulation precision and inventory verification.
• OIML Class II Verified: Meets international legal-metrology standards for high-accuracy weighing, enabling use in trade, quality certification, and regulated manufacturing processes.
• MONO BLOCK Load Cell: A single-piece forged weighing cell provides exceptional stability, fast 1-second response, and long-term durability under continuous heavy-load operation.
• 10-Inch 5Y Touchscreen Terminal: Customizable widget layout, method storage, and user-profile management on a large, responsive display reduce setup and training time.
• Internal Automatic Calibration: Maintains measurement accuracy through temperature- and time-triggered self-calibration, eliminating the need for heavy external reference weights.
• Semi-Automatic LevelSENSING: Visual on-screen guidance ensures the balance stays properly leveled, critical when even small tilt angles affect 0.1 g accuracy on a 50 kg range.

Detailed Overview

The RADWAG 5Y.50.PM Precision Balance achieves repeatability of 0.04 g at 5% load and linearity of ±0.3 g, delivering proportional accuracy whether weighing a few kilograms or approaching full capacity. USP minimum-weight compliance down to 82 g ensures that pharmaceutical and compounding applications meet documentation thresholds. The 350 × 260 mm stainless-steel pan accommodates large vessels, while the balance's 12 kg net weight and sturdy construction withstand continuous industrial use. USB-A, USB-C, HDMI, Ethernet, Wi-Fi, and Hotspot connectivity integrate the balance into laboratory networks or allow remote display mirroring on tablets and computers. IP 43 protection shields the electronics from dust and splashes typical of production-floor conditions.

Applications

• Industrial batch formulation and ingredient dispensing
• Large-container filling verification in packaging lines
• Pharmaceutical large-batch compounding and QC
• Research and development prototype testing at kilogram scale

Why Choose the RADWAG 5Y.50.PM?

Combining 50 kg capacity with Class II accuracy and a modern touchscreen platform, this balance meets the needs of facilities that handle heavy loads without compromising on measurement quality. Internal calibration and MONO BLOCK construction minimize maintenance, while full connectivity keeps data flowing seamlessly. Order today to add high-capacity precision to your operation.
