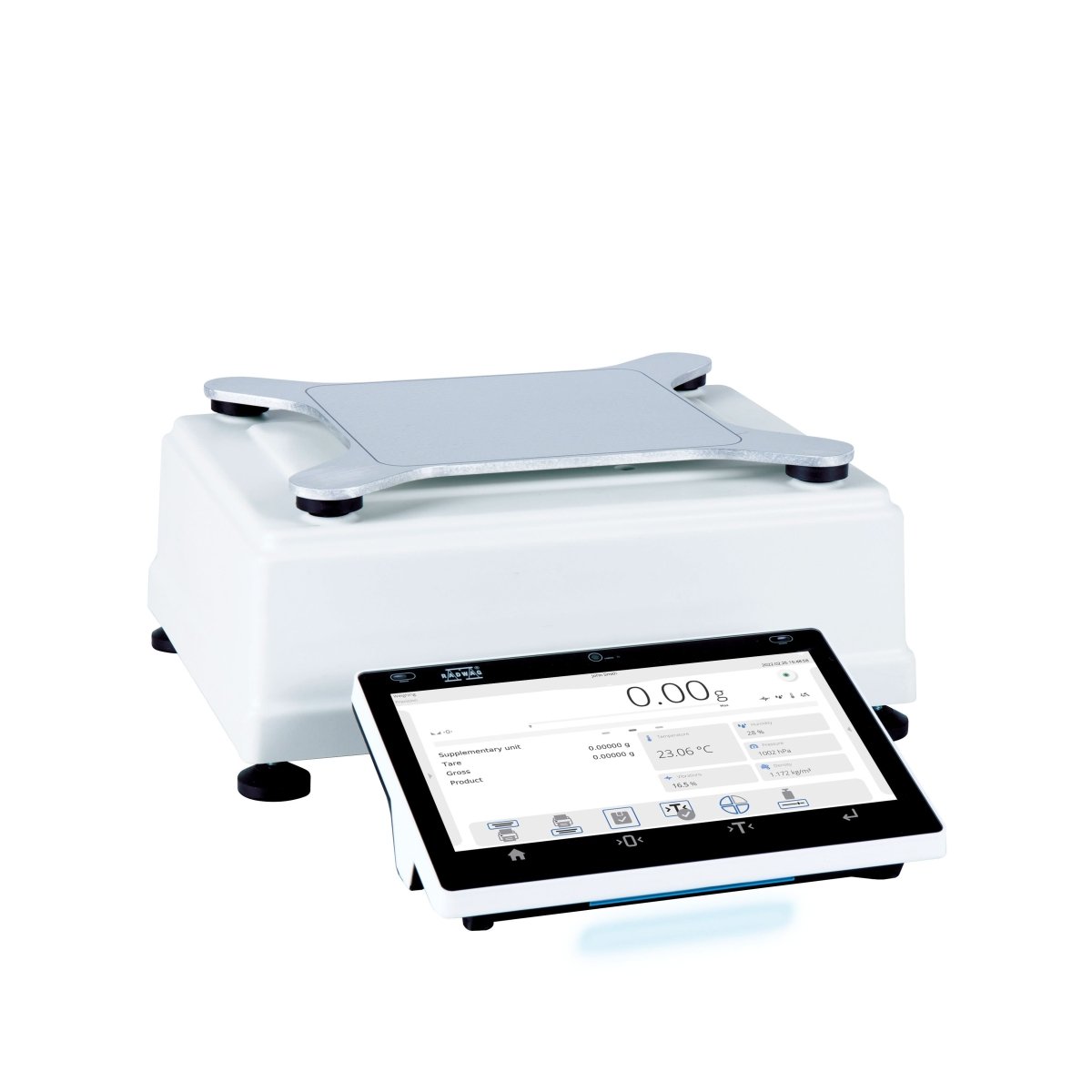

RADWAG 5Y.25.PM 5Y PM Precision Balance, 25kg Capacity, 0.1g Readability, Internal Calibration, OIML Class II

RADWAG 5Y.25.PM Precision Balance — 25 kg Capacity with 21 CFR Part 11 Data Integrity

High-capacity precision weighing in regulated environments demands both measurement performance and robust data management. The RADWAG 5Y.25.PM Precision Balance handles loads up to 25 kg with 0.1 g readability and ships with full 21 CFR Part 11 compliance, including electronic signatures, audit trails, and validated electronic records — all accessible through a 10-inch Elipsis 5Y touchscreen terminal.

Key Features

• 25 kg Capacity at 0.1 g Readability: A wide weighing range paired with fine resolution covers bulk containers, large vessels, and smaller reference samples in a single instrument without compromising measurement detail.
• 21 CFR Part 11 Data Integrity: Built-in electronic signatures, validation protocols, and audit-trail management satisfy FDA requirements for pharmaceutical and biotech manufacturing facilities.
• 10-Inch Elipsis 5Y Touchscreen: The large display terminal supports widget customisation, user-specific profiles, and real-time DWA ambient monitoring for complete operational visibility on every weighing task.
• Automatic Internal Calibration: A motorised internal mass adjusts span and linearity automatically, maintaining OIML Class II accuracy without external weights or manual recalibration procedures.
• RFID and NFC Compatibility: Secure operator authentication via RFID or NFC tags streamlines user management and strengthens compliance documentation in multi-operator laboratories.
• Versatile Communication: USB-A, USB-C, HDMI, Ethernet, Wi-Fi, and Hotspot interfaces ensure seamless integration with laboratory networks, external monitors, and peripheral devices.

Detailed Overview

The 5Y.25.PM belongs to the RADWAG 5Y PM precision balance platform, designed for demanding applications where data traceability is as important as measurement accuracy. Repeatability of 0.04 g at 5 % load and 0.1 g at maximum capacity, combined with ±0.3 g linearity, ensures dependable results throughout the operating range. The stainless-steel 250 × 250 mm weighing pan accommodates large vessels and heavy containers with ease. A 1-second stabilisation time supports rapid throughput in production environments, while the semi-automatic levelling system with LevelSENSING continuously monitors instrument orientation and alerts operators when repositioning is needed.

Applications

• Pharmaceutical batch weighing and formulation
• Industrial raw-material intake verification
• Food and beverage recipe preparation at scale
• Chemical compounding and large-volume dosing
• Regulated R&D laboratories requiring full data traceability

Why Choose the RADWAG 5Y.25.PM?

Combining high capacity with regulatory-ready data handling, the 5Y.25.PM suits any facility where traceability and throughput must coexist. The oversized touchscreen and automated calibration reduce operator workload, while 21 CFR Part 11 support eliminates compliance concerns. Order the RADWAG 5Y.25.PM Precision Balance from Weighcore to equip your team with certified high-capacity weighing.
