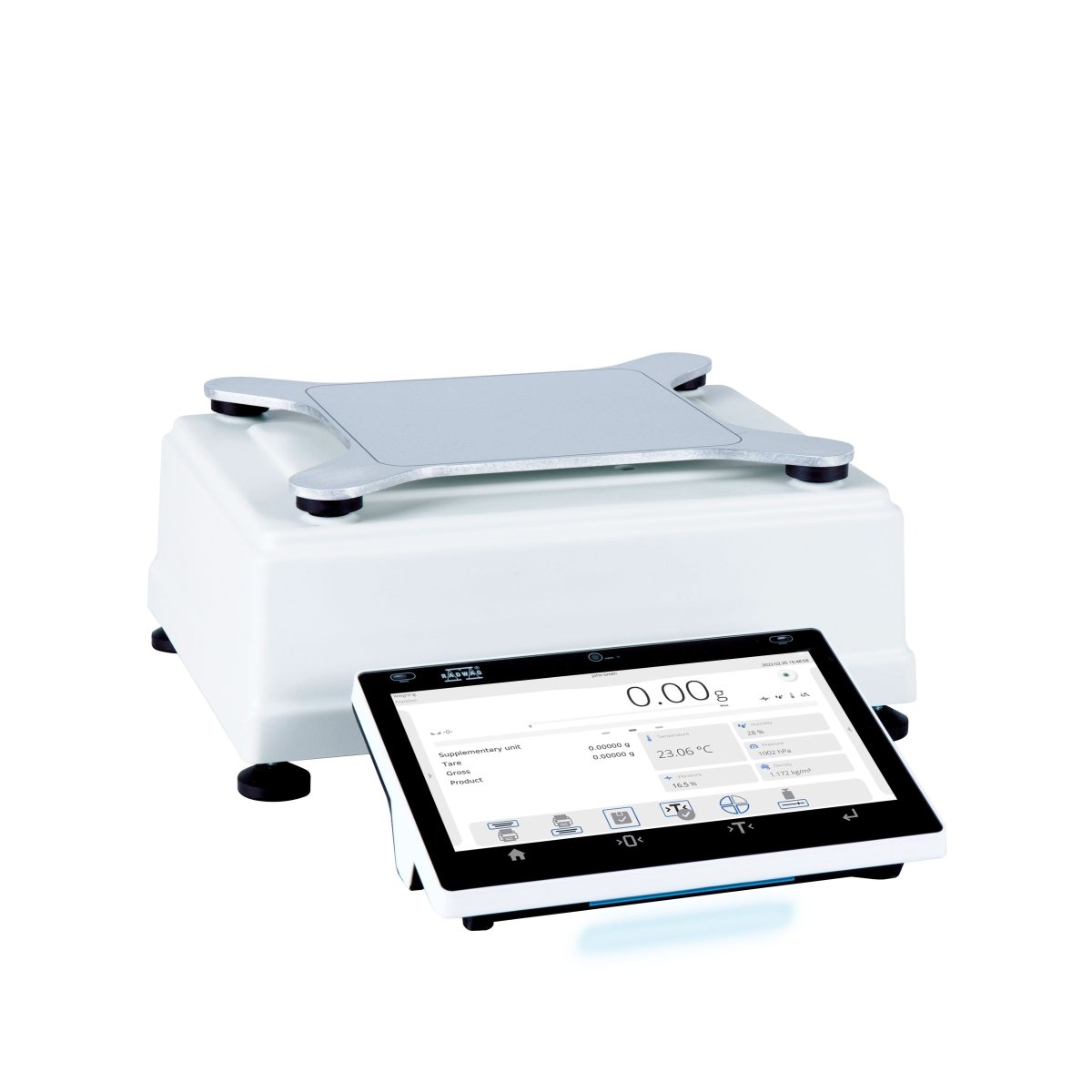

RADWAG 5Y.20.PM 5Y PM Precision Balance, 20kg Capacity, 0.01g Readability, Internal Calibration

RADWAG 5Y.20.PM Precision Balance — 20 kg Capacity with 0.01 g Resolution and MONO BLOCK Technology

Weighing loads up to 20 kg at 0.01 g resolution demands advanced sensor technology and rock-solid stability. The RADWAG 5Y.20.PM Precision Balance leverages MONO BLOCK technology for fast, stable measurements within approximately 1 second, paired with automatic internal calibration and the full 5Y touchscreen platform for laboratories and production facilities that handle heavy samples with high-precision requirements.

Key Features

• MONO BLOCK Weighing Technology: A single-piece force compensation mechanism delivers superior stability and rapid ~1-second stabilisation, even when measuring loads close to the 20 kg maximum capacity.
• 20 kg Capacity at 0.01 g Readability: Exceptional resolution-to-capacity ratio enables precision measurements of heavy samples, containers, and multi-component assemblies without compromising on detail.
• 10-Inch Touchscreen with Full Widget Suite: The Elipsis 5Y display terminal offers customisable widgets for real-time monitoring of measurements, environmental conditions, and system status.
• Automatic Internal Calibration: Self-calibration maintains measurement integrity through temperature and time-triggered routines, ensuring accuracy throughout extended operating periods.
• Semi-Automatic LevelSENSING: Guided levelling verification simplifies setup and confirms proper alignment before each measurement session, supporting consistent results.
• Extensive Connectivity: USB-A, USB-C, HDMI, Ethernet, Wi-Fi, and hotspot capability provide comprehensive integration with LIMS, remote displays, and enterprise systems.

Detailed Overview

The RADWAG 5Y.20.PM Precision Balance builds on the PM platform designed for high-capacity precision applications. Repeatability of 0.004 g at 5% load and 0.015 g at full capacity, combined with linearity of ±0.03 g, demonstrate the metrological quality enabled by MONO BLOCK sensor technology. The 200 × 185 mm stainless steel pan accommodates a wide variety of containers and components, while the balance supports electronic signatures, audit trails, and encrypted records compatible with 21 CFR Part 11 and EU GMP Annex 11 frameworks. RFID and NFC tag compatibility enables user verification and sample tracking, adding another layer of data integrity. At 12 kg net weight, the instrument is substantial but purpose-built for permanent installation in high-throughput weighing stations.

Applications

• High-capacity formulation and batching in pharmaceutical production
• Precision weighing of heavy components in engineering and materials science
• Quality control of large-batch ingredients in food and chemical industries
• Research applications requiring high-load, high-resolution measurements

Why Choose the RADWAG 5Y.20.PM?

MONO BLOCK technology delivers the stability and speed that laboratories need when working at the 20 kg scale with 0.01 g precision. Coupled with the 5Y platform's regulatory features and modern connectivity, this balance addresses the most demanding high-capacity precision weighing requirements. Order today to bring 20 kg high-resolution capability to your facility.
