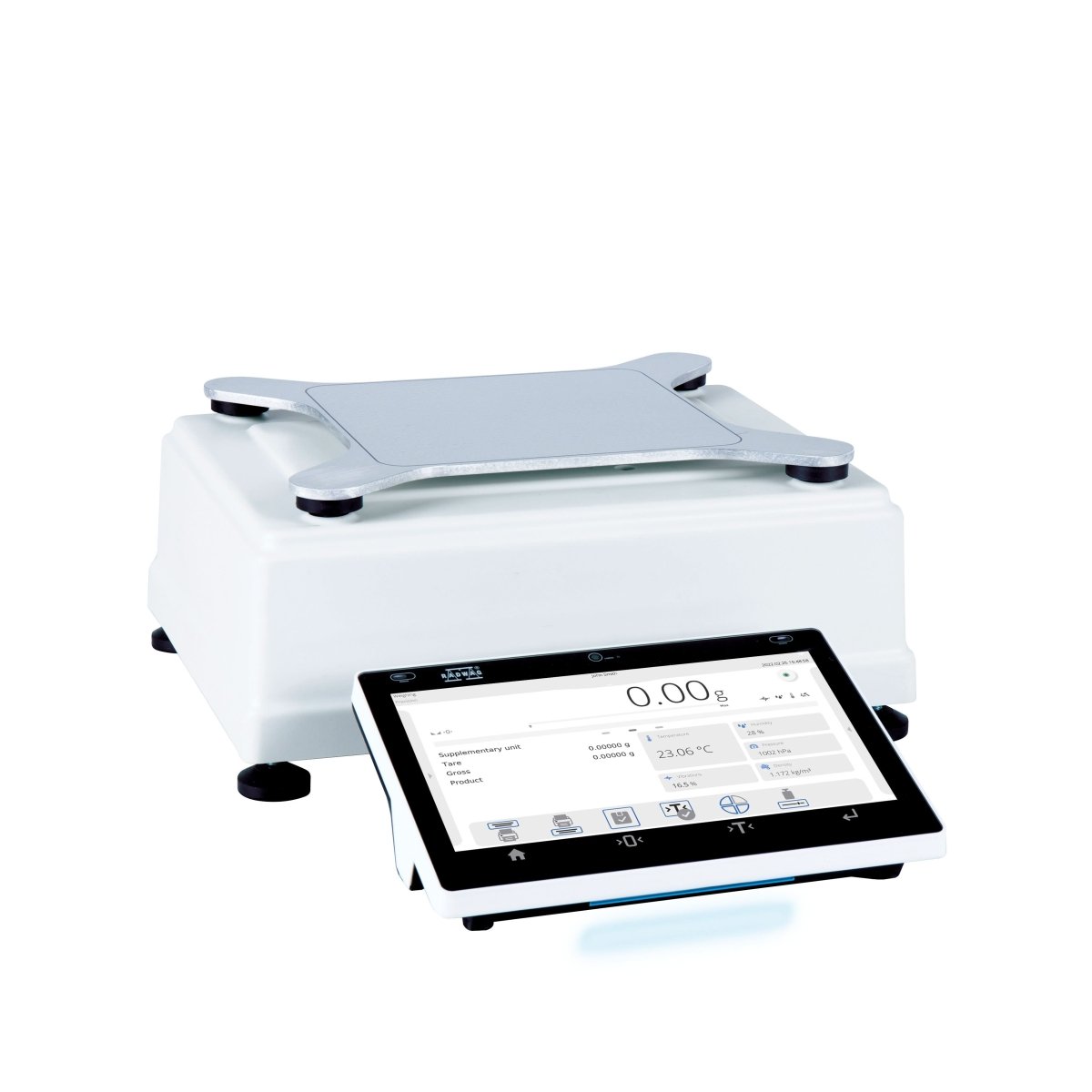

RADWAG 5Y.15.PM Precision Balance — 15 kg Capacity with MONO BLOCK Weighing Cell and 10-Inch Touchscreen

Industrial and laboratory environments processing mid-range loads need a balance that combines high capacity with fine resolution and rapid response. The RADWAG 5Y.15.PM Precision Balance handles up to 15 kg at 0.01 g readability, powered by MONO BLOCK technology that delivers fast stabilization and long-term stability on a connected 10-inch touchscreen platform.

Key Features

• 15 kg Capacity at 0.01 g Readability: Bridges the gap between analytical sensitivity and industrial capacity, making it suitable for formulations, batching, and high-accuracy component weighing.
• MONO BLOCK Weighing Cell: A single-piece forged load cell provides rapid 1-second stabilization and excellent repeatability, reducing wait times during batch processing.
• 10-Inch Touchscreen (5Y Terminal): The Elipsis display presents customizable widgets, method management, and full data review on a responsive interface that simplifies even complex workflows.
• Internal Automatic Calibration: Self-calibration triggers based on temperature changes or time intervals, keeping the balance within specification without manual intervention.
• Semi-Automatic LevelSENSING: Provides on-screen leveling guidance, ensuring that the heavy platform stays properly aligned for accurate 0.01 g measurements.
• Full Connectivity Suite: USB-A, USB-C, HDMI, Ethernet, Wi-Fi, and Hotspot allow direct data transfer, remote display, and seamless LIMS integration.

Detailed Overview

The RADWAG 5Y.15.PM Precision Balance utilizes a monolithic load cell that yields repeatability of 0.004 g at 5% load and linearity of ±0.03 g across the 15 kg range. This performance satisfies USP minimum-weight requirements down to 8.2 g, making it applicable for pharmaceutical compounding and quality checks on larger batches. The 200 × 185 mm stainless-steel pan accommodates sizable containers and vessels, while under-pan weighing options extend utility to density determination. Operators can configure user profiles, weighing methods, and printout formats directly on the 10-inch terminal, reducing setup time when multiple analysts share the instrument. IP 43 protection guards the electronics against dust and water splashes encountered in production-adjacent environments.

Applications

• Industrial formulation and ingredient batching
• Pharmaceutical compounding and large-batch QC
• Chemical mixing and raw-material verification
• Research and development prototype weighing

Why Choose the RADWAG 5Y.15.PM?

MONO BLOCK technology and internal calibration give this balance the speed and accuracy that production and laboratory teams demand, while the 10-inch touchscreen makes operation intuitive for every skill level. Whether you are formulating at kilogram scale or verifying component masses, the 5Y.15.PM keeps your data precise and connected. Add to cart to upgrade your mid-range precision weighing.
