RADWAG 5Y.10.PM 5Y PM Precision Balance, 10kg Capacity, 0.01g Readability, Internal Calibration, OIML Class II

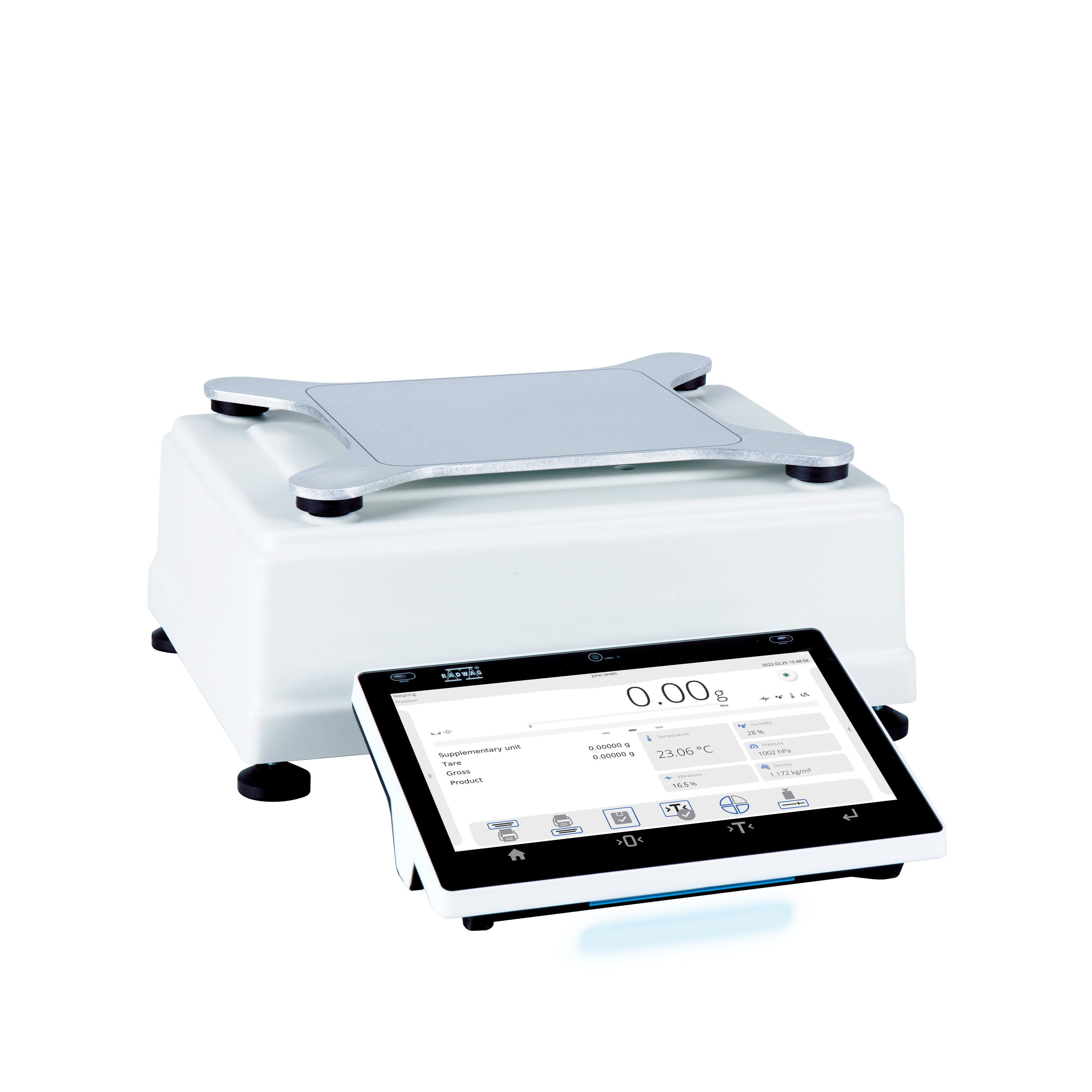

RADWAG 5Y.10.PM Precision Balance — MONO BLOCK Technology for 10 kg Weighing
Handling heavy loads with fine resolution is a challenge that the RADWAG 5Y.10.PM Precision Balance addresses through its proprietary MONO BLOCK sensor technology. Capable of weighing up to 10 kg with 0.01 g readability, this OIML Class II instrument delivers stable results in approximately one second, making it an efficient choice for demanding production and laboratory environments.
Key Features
- 10 kg Capacity at 0.01 g Readability: Bridge the gap between high-capacity weighing and fine resolution, ideal for tasks ranging from large sample preparation to component counting.
- MONO BLOCK Sensor Technology: A single-block weighing mechanism provides exceptional stability, rapid response, and resilience against ambient temperature and humidity fluctuations.
- One-Second Stabilization: Achieve final readings quickly, boosting throughput in repetitive weighing routines without compromising measurement integrity.
- Automatic Internal Calibration: Ensures ongoing accuracy by self-calibrating at user-defined intervals or when the balance detects changes in environmental conditions.
- 10-Inch Touchscreen with LevelSENSING: The large capacitive display simplifies navigation, while the semi-automatic levelling system prompts operators to maintain proper instrument alignment.
Detailed Overview
Built on the RADWAG PM platform, the 5Y.10.PM combines linearity of ±0.025 g with repeatability of 0.004 g at 5 % load, supporting precise formulation and quality assurance work. The pan dimensions are designed to accommodate bulky items comfortably, and the robust construction handles continuous use in both laboratory and industrial settings. Connectivity options — including USB-A, USB-C, Ethernet, Wi-Fi, and hotspot — ensure data reaches LIMS or ERP systems without additional hardware. Compliance with OIML Class II standards means the balance is ready for verified weighing in regulated industries.
Applications
- Industrial formulation and batching of raw materials
- Large-volume pharmaceutical compounding
- Quality assurance in food and beverage production
- Research and development sample preparation
- Parts counting and inventory control
Why Choose this precision balance?
When you need to weigh kilogram-scale loads with gram-level precision, the 5Y.10.PM offers MONO BLOCK reliability in a touchscreen-equipped package. Its rapid stabilization, internal calibration, and OIML verification make it suitable for regulated workflows as well as fast-paced production. Add to cart and equip your facility with high-capacity precision weighing.
| Maximum Capacity | 10 kg |
|---|---|
| Minimum load | 0.5 g |
| Readability | 0.01 g |
| Verification Unit | 0.1 g |
| Tare range | -10 kg |
| Repeatability (Max) | 0.01 g |
| Repeatability (5% Max) | 0.004 g |
| Minimum weight (USP) | 8.2 g |
| Minimum weight (U=1%,k=2) | 0.82 g |
| Linearity | ±0.025 g |
| Stabilization time | 1 s |
| Calibration | internal (automatic) |
| OIML Class | II |
| Leveling system | semi-automatic - LevelSENSING |
| Weighing pan dimensions | 200×185 mm |
| Display | 10″ touchscreen |
| Communication interface | USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot |
| Protection class | IP 43 |
| Operating temperature | +10 — +40 °C |
| Power supply | Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A Waga: 12 – 15V DC 1.4A max* |
| Net weight | 12.96 kg |
