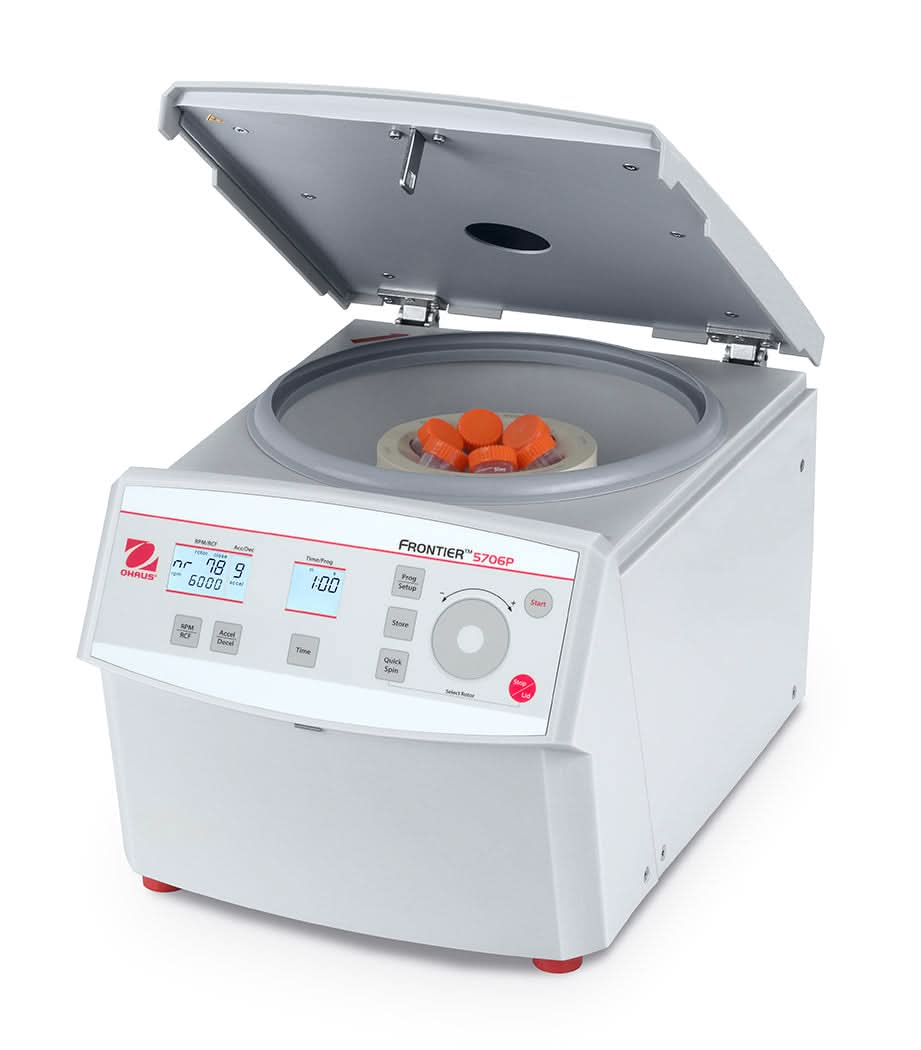

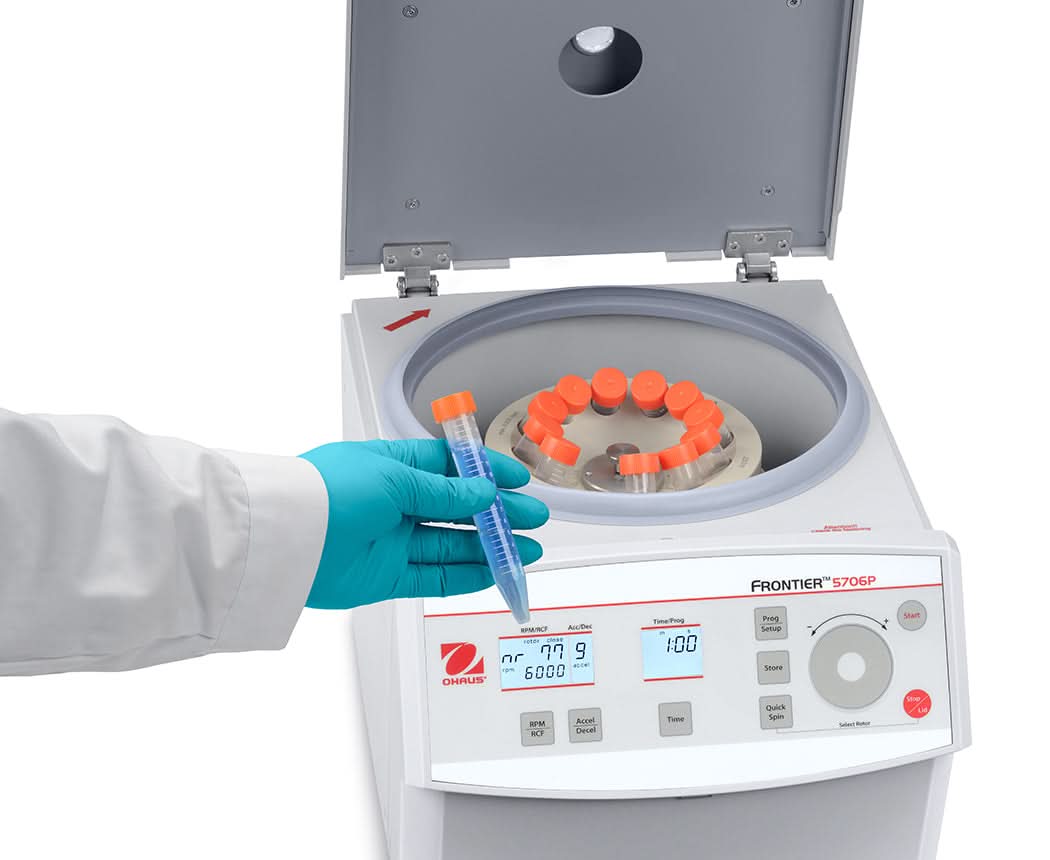

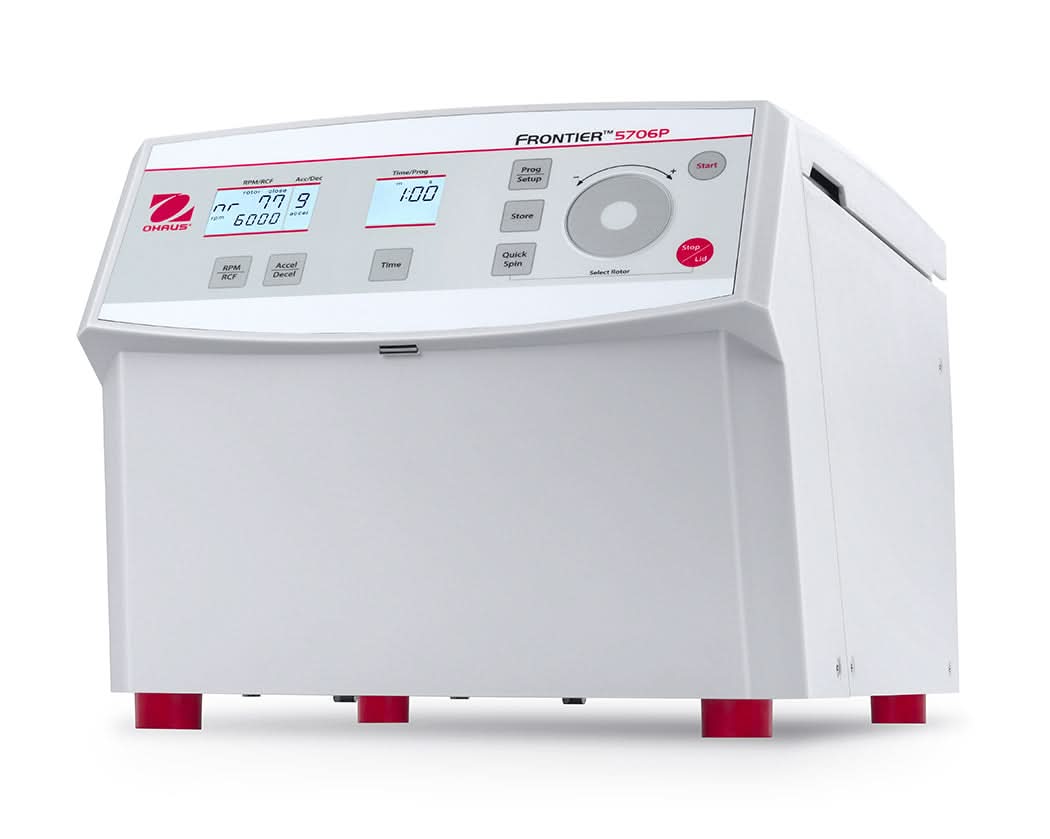

OHAUS FC5706P+R97 Frontier 5000 Multi Centrifuge, 6 x 50 ml Capacity, Rotor R97, LCD Display
OHAUS FC5706P+R97 Centrifuge — Frontier 5000 Multi Centrifuge Configured with Swing-Out Rotor R97

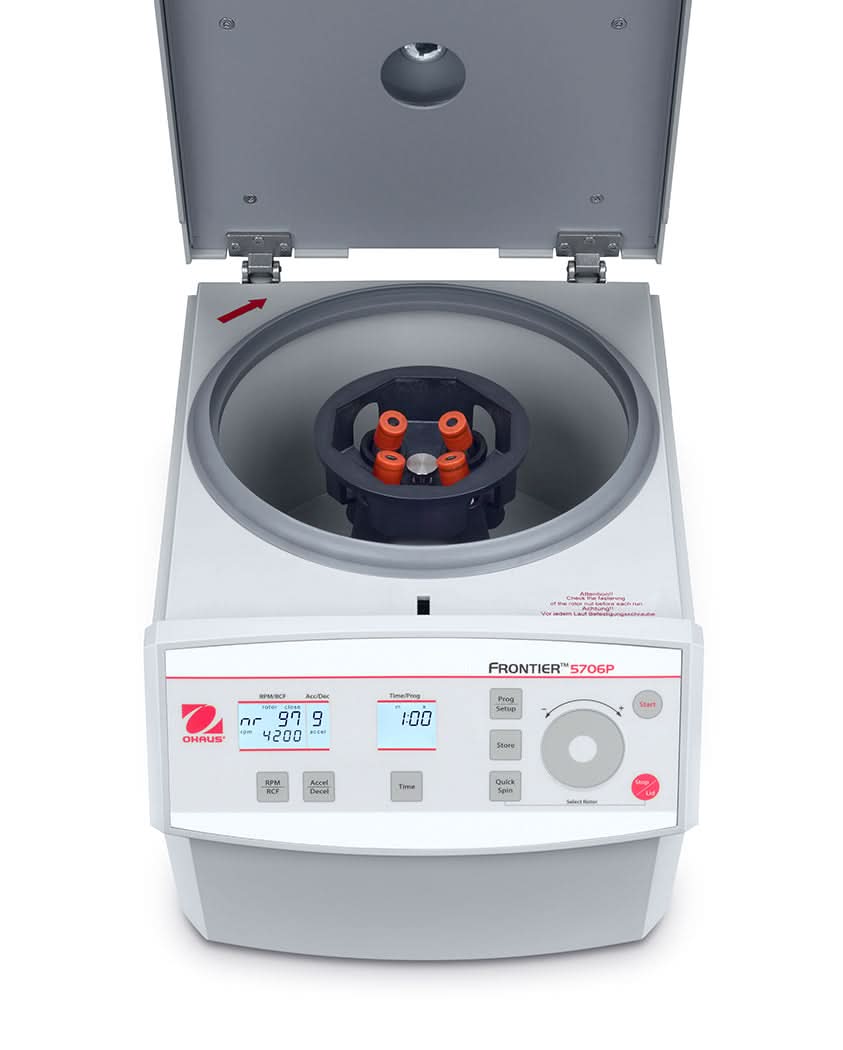

Swing-out rotors generate a horizontal pellet at the bottom of each tube — a significant advantage for samples that require consistent, easy-to-recover pellets without tilting. The OHAUS FC5706P+R97 Centrifuge pairs the Frontier 5000 platform with the R97 swing-out 4 × 10 ml rotor, making it a strong choice for urinalysis and moderate-volume clinical tube processing.
Key Features
- Swing-Out Rotor R97 Pre-Installed: The 4 × 10 ml swing-out rotor delivers flat, easily recovered pellets — particularly valuable for urinalysis sediment work.
- 6,000 rpm and 4,427 × g Capability: Adequate force for separation of blood components, urine sediment, and light cell pellets without sample damage.

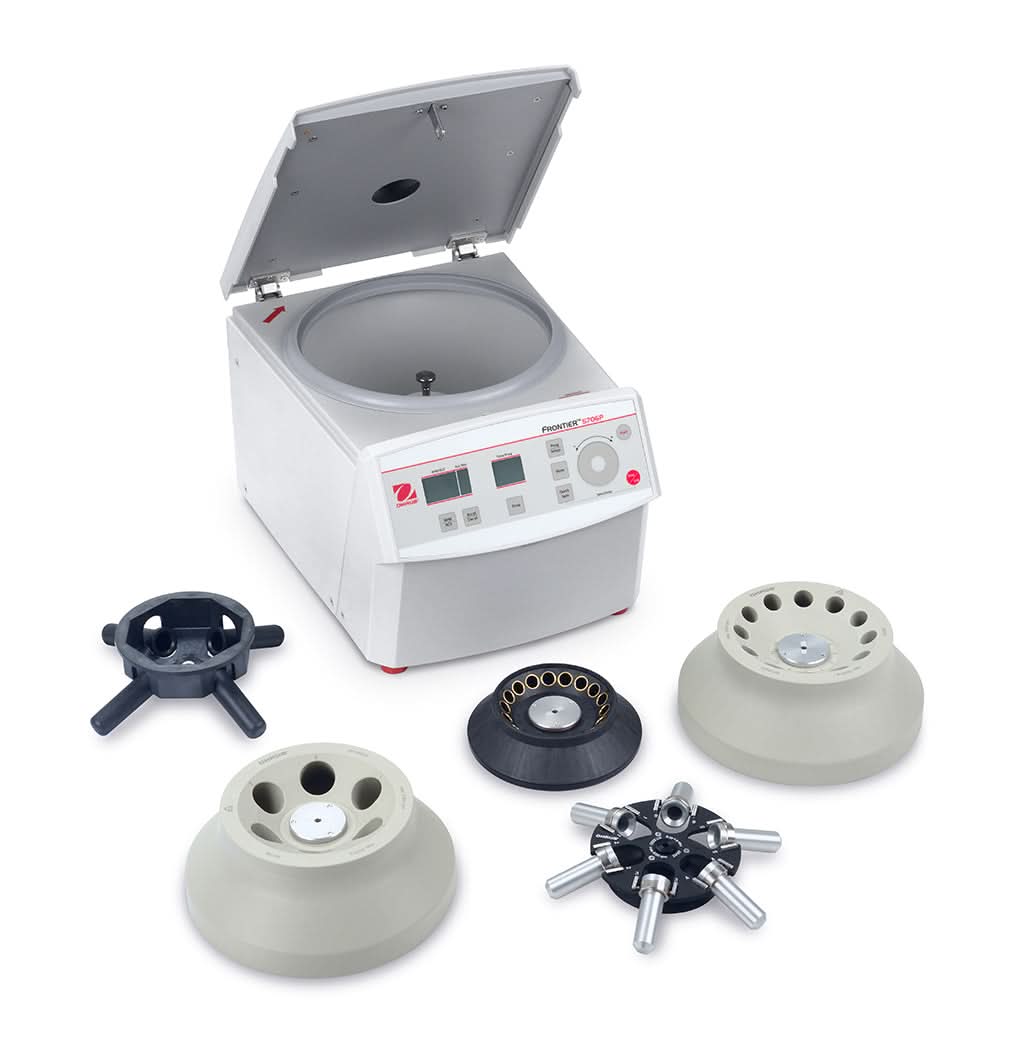

- Multi-Rotor Platform Flexibility: Compatible with angle and swing-out rotors for 50 ml, 15 ml, 5 ml, and 1.5/2.0 ml tubes across the Frontier 5000 rotor range.
- 99 Program Memories: Recall pre-validated run parameters instantly to maintain inter-operator consistency.
- 10-Stage Ramp Control: Gentle deceleration preserves pelleted sediment at the tube base for accurate microscopic analysis.
- Quiet Operation: Noise level held at or below 56 dB(A) supports a comfortable working environment.

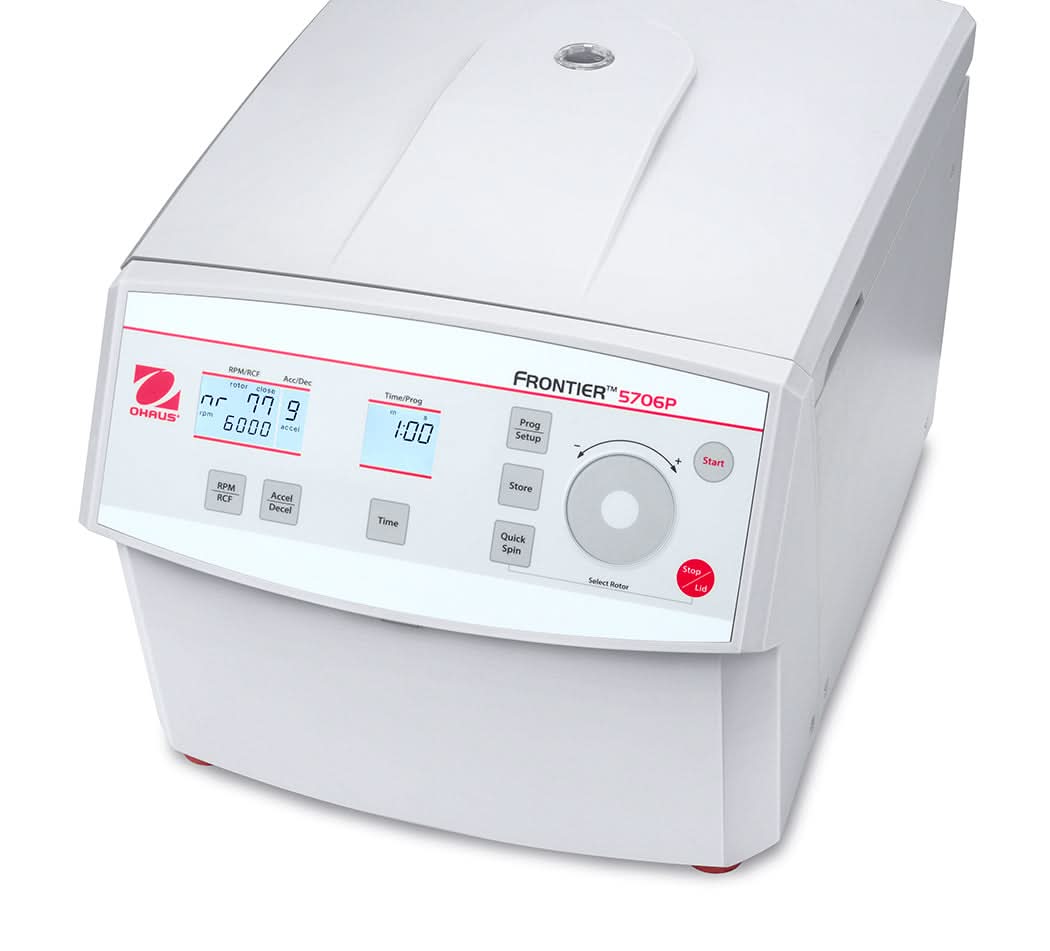

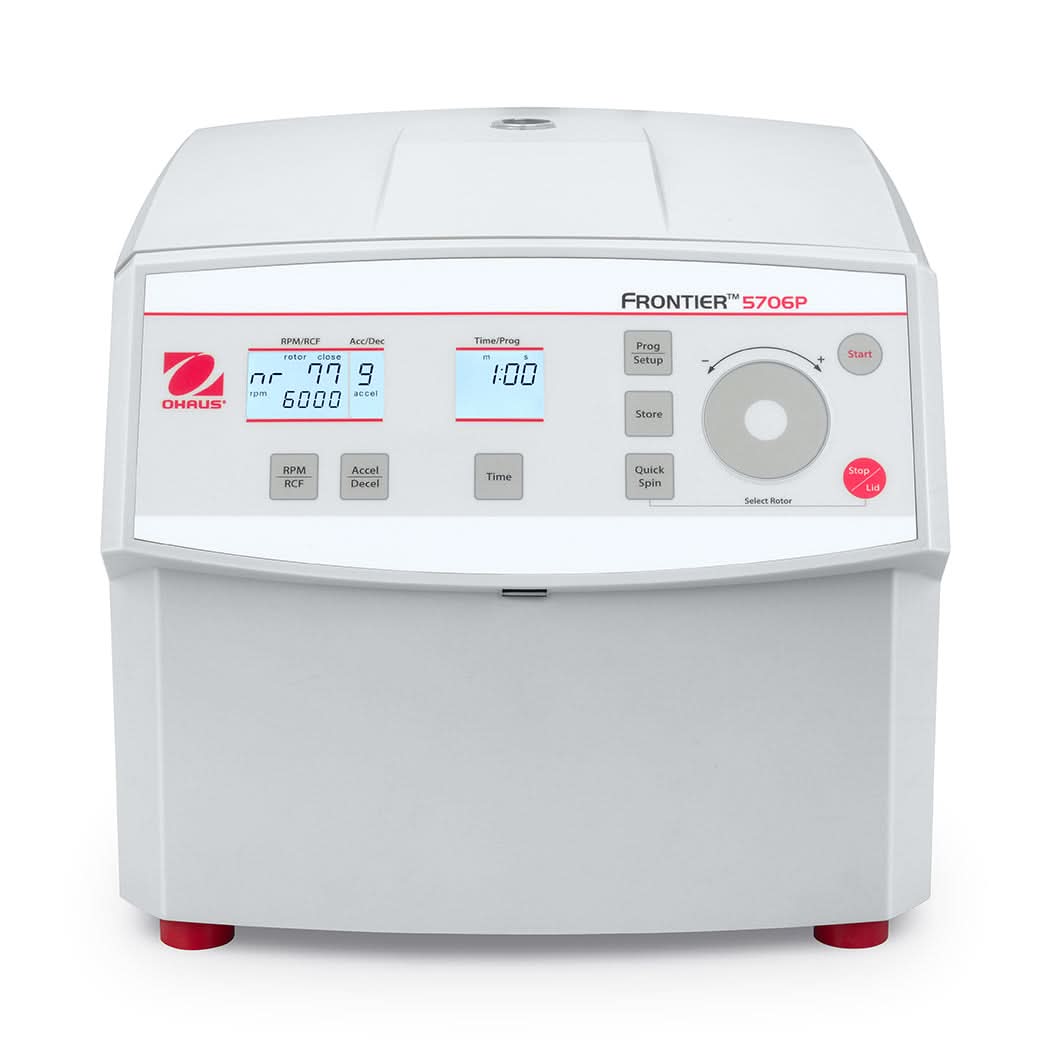

- Backlighted LCD: Clear display of current and set values for speed, RCF, and remaining run time.
Detailed Overview
The distinction of the FC5706P+R97 within the FC5706P family is its swing-out R97 rotor orientation. While angle rotors concentrate pellets along the tube wall, swing-out rotors deposit material at the very bottom — a geometry preferred for sediment analysis where sample recovery must be complete and undisturbed. The rotor platform's 200 to 6,000 rpm speed range is purposely matched to low-speed clinical applications rather than high-speed molecular work. The 70 W brushless motor keeps energy consumption minimal across continuous operation, and the standard programme memory bank of 99 slots accommodates labs with diverse or shift-dependent testing menus. Quickspin mode provides fast, manual-stop pulsing for collections that do not warrant a full timed run.
Applications
- Urinalysis sediment preparation and microscopy
- Clinical blood tube separation
- Low-speed cell pelleting in research settings
- General diagnostic centrifugation workflows
Why Choose the OHAUS FC5706P+R97?
Labs that perform regular urinalysis or need flat, horizontally deposited pellets for microscopy benefit specifically from a swing-out rotor configuration. The FC5706P+R97 delivers that advantage in a compact, quiet, and energy-efficient package. Add to cart to configure your clinical bench around reliable swing-out centrifugation.
| Brand | OHAUS |
|---|---|
| Model | FC5706P+R97 |
| Maximum Speed | 6,000 rpm |
| Maximum RCF | 4,427 × g |
| Rotor Capacity | 6 × 50 ml |
| Acceleration Levels | 10 |
| Deceleration Levels | 10 |
| Rotor Recognition | Manual |
| Timer Range | 10 sec – 99 h 59 min 59 sec; Quickspin; Continuous |
| Program Memories | 99 |
| Noise Level | ≤56 ± 2 dB(A) |
| Display | LCD with Backlight |

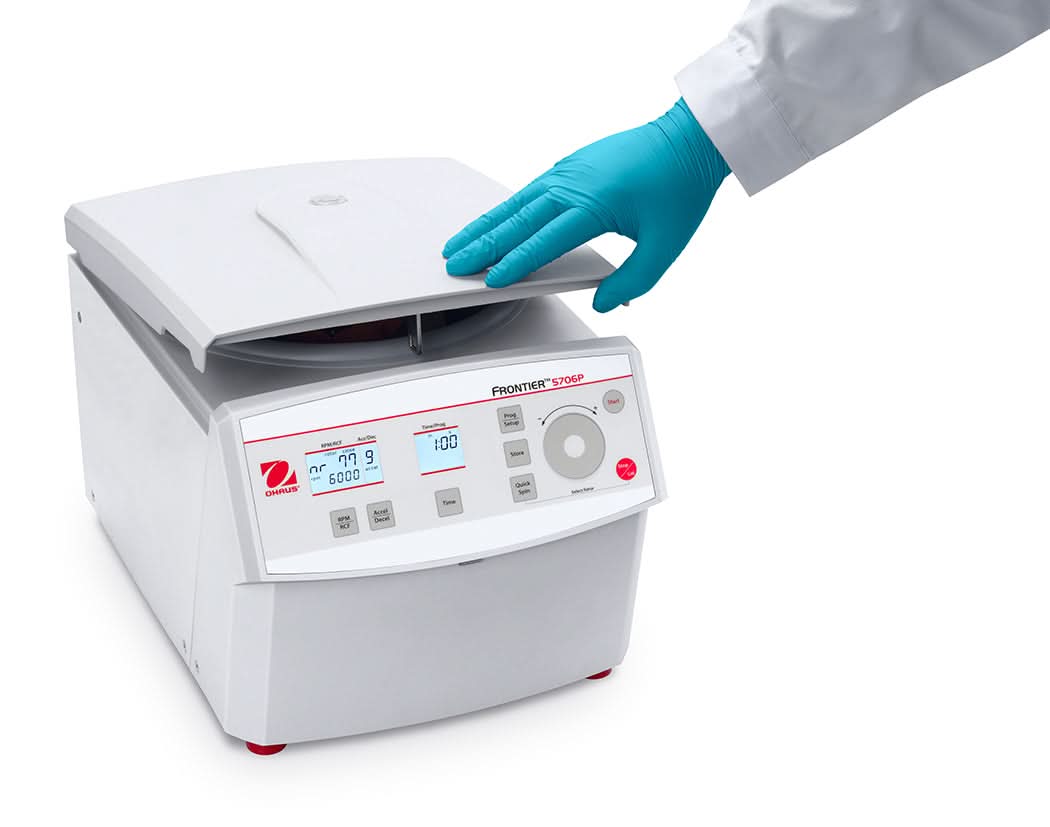

| Lid Lock | Mechanical |
| Power Consumption | 70 W |
| Safety Certifications | CE; FCC |
| Dimensions (L × H × W) | 540 mm × 365 mm × 370 mm |
| Net Weight | 14.2 kg |
| Speed Range | 200 rpm – 6,000 rpm |
| Maximum Relative Centrifugal Force | 4,427 x g |
| Maximum Capacity(rotor) | 6 x 50 ml |
| Rotor In Package | 31013397 - Rotor Swing out 4x10ml |
| Acceleration Gear | 10 |
| Deceleration Gear | 10 |
| Dimensions | 21.3 in x 14.3 in x 14.6 in (540 mm x 365 mm x 370 mm) (LxHxW) |
| Power | AC Power (Included) |
| Pre-cool Time | Not applicable |
| Rotor Compatibility | Angle 12 x 15 ml RB/FA ID; Swing out 6 x 5 ml RB; Angle 6 x 50 ml RB/FA; Swing out 4 x 10 ml; Angle 18 x 1.5/2.0 ml |
| Rotor Recognition Method | Manual |
| Running Time | Continous; 10 sec to 99 h 59 min 59 sec; Quickspin |
| Safety Certification | CE; FCC |
| Working Environment | 41°F – 95°F, 80%RH, non-condensing (5°C – 35°C, 80%RH, non-condensing) |
