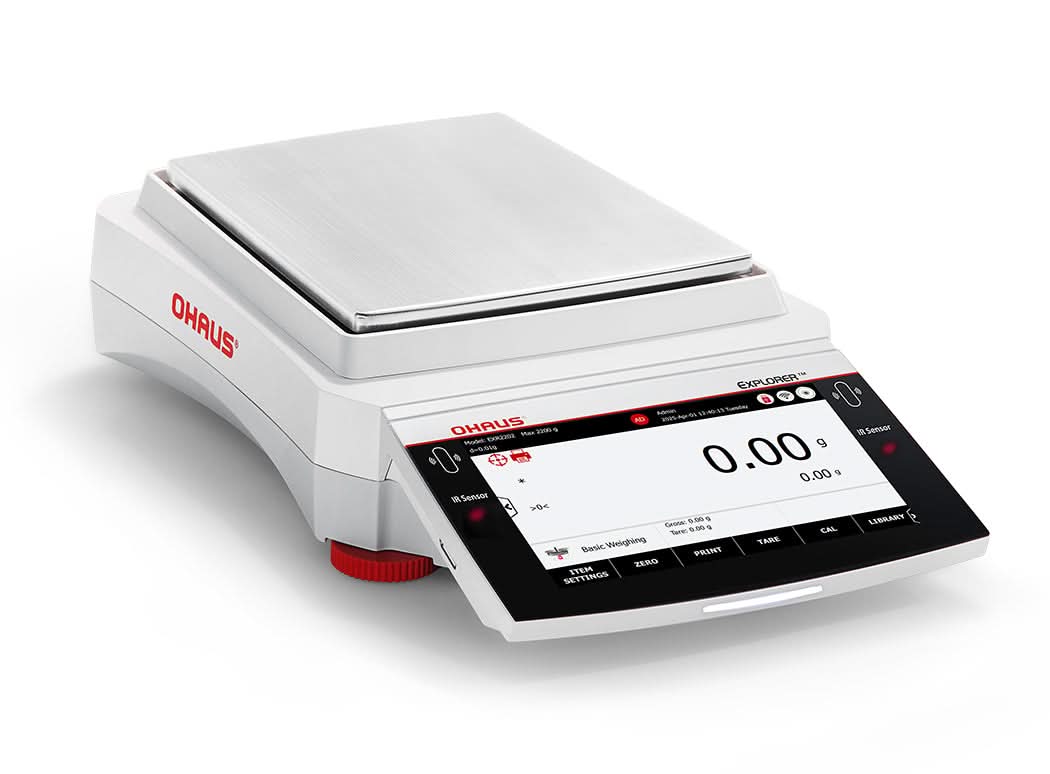

OHAUS EXR8202 Explorer EXR Precision Balance, 8200g Capacity, 0.01g Readability, AutoCal, Touchscreen

OHAUS EXR8202 Precision Balance — Maximum Capacity 8,200 g at High-Resolution 0.01 g

Demanding production processes that require 8 kg of measurement range without sacrificing hundredths-of-gram resolution have few instrument options. The OHAUS EXR8202 Precision Balance is one of them. At 0.01 g readability across 8,200 g of capacity, it delivers finer resolution than the EXR8201 at the same maximum load — a distinction that matters when tight tolerance targets must be met even at high batch masses. AutoCal™ maintains that resolution automatically.

Key Features

• 8,200 g Capacity at 0.01 g Readability: Finer than the 0.1 g class at the same load ceiling — designed for high-mass, tight-tolerance production and laboratory weighing.
• AutoCal™ Automatic Internal Calibration: Motorized internal weight self-activates on temperature change to keep 0.01 g accuracy traceable through demanding production environments.
• 201 × 178 mm Stainless-Steel Pan: Wide open platform handles large industrial containers, assemblies, and multi-component batches without loading restrictions.

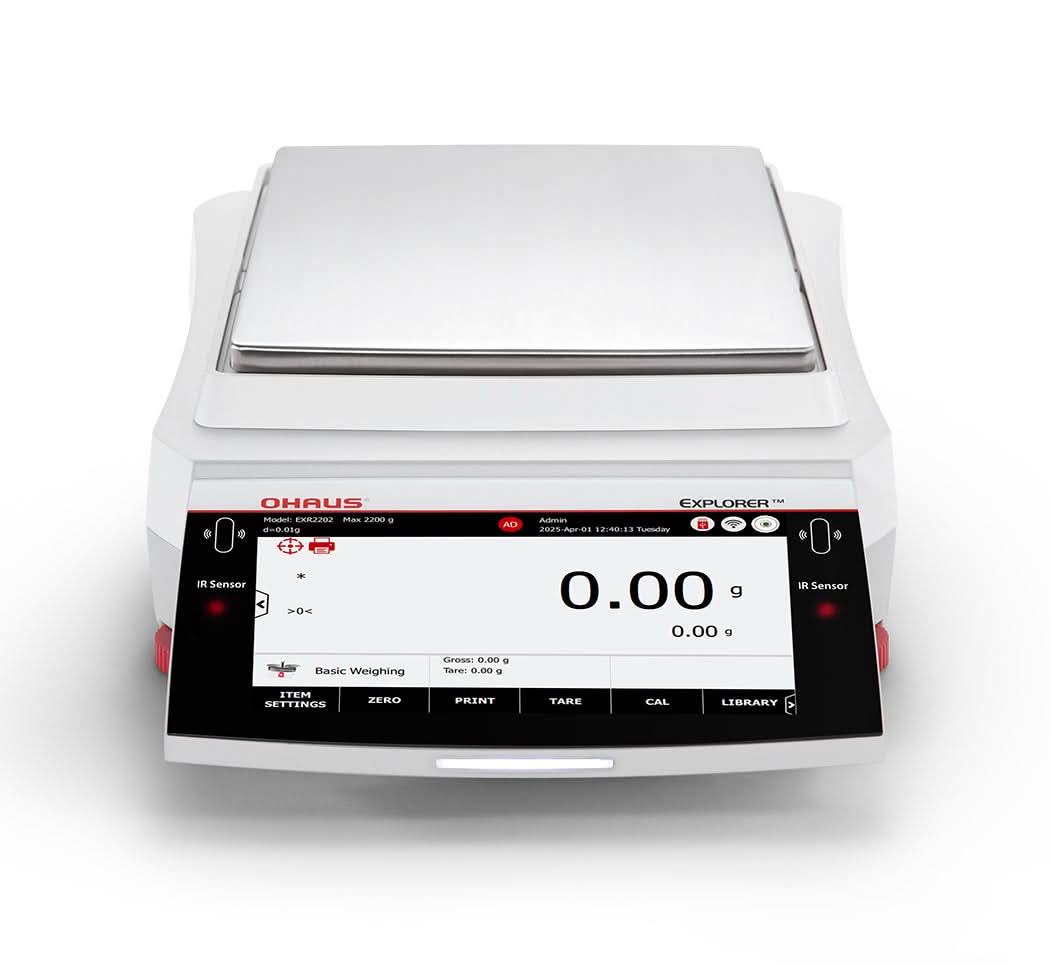

• 7-inch TFT Touchscreen: Full-color glass-overlay interface with touchless proximity control for hands-free taring and application switching in production settings.

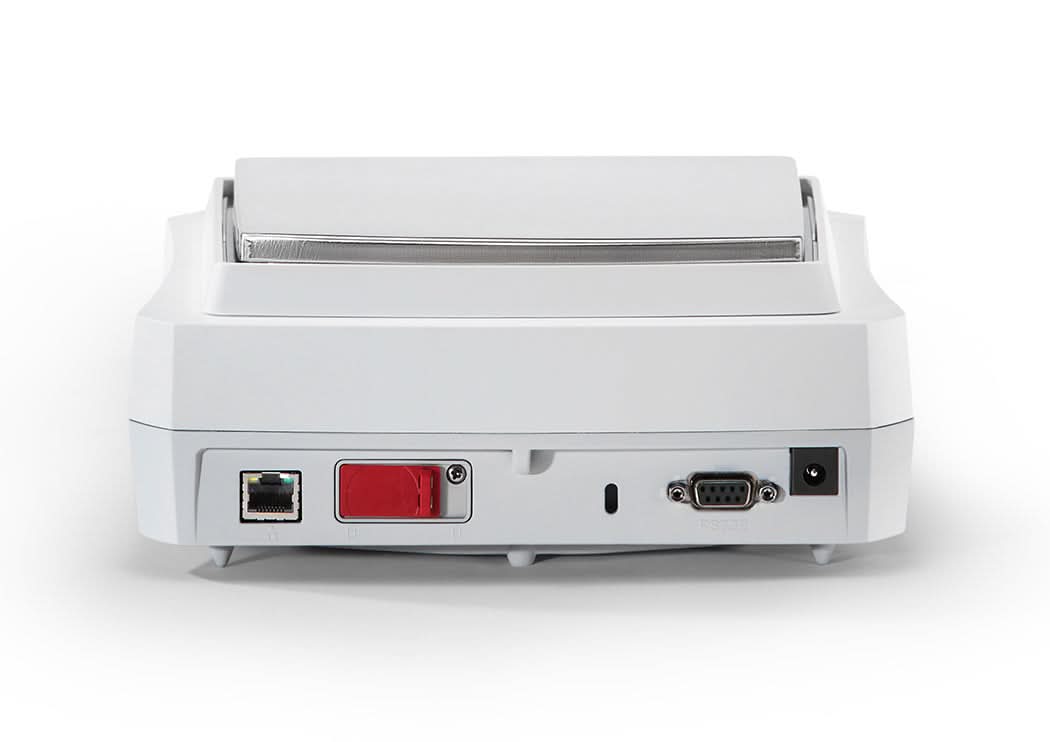

• USB, RS232, and Ethernet Connectivity: Wired connectivity ready for direct LIMS, ERP, or PC integration; optional Wi-Fi/Bluetooth for wireless data transfer.
• Application Suite: 11 built-in weighing modes — parts counting, formulation, totalization, check weighing, and more — all available natively without additional software.
• Regulatory Documentation Support: Four-tier user access, 100,000-event audit log, and NTP-synced timestamps cover traceability requirements in regulated production environments.

Detailed Overview

The EXR8202 is the high-resolution counterpart to the EXR8201, providing 0.01 g readability in place of 0.1 g at the same 8,200 g maximum capacity. This matters most when large-scale processes have tolerance specifications that demand 10 mg accuracy — for example, high-value chemical batches where an over- or under-dispensing error at scale has significant cost or safety implications. The physical footprint is identical to the EXR8201, maintaining the same wide 201 × 178 mm open platform and compact terminal profile. Operating conditions of 10°C–30°C and up to 80% non-condensing humidity suit typical controlled production environments. HID-compatible USB connectivity eliminates driver management when integrating the balance into existing laboratory or production IT infrastructure. The four-level user management system ensures that access to calibration settings, measurement parameters, and audit logs is appropriately controlled.

Applications

• High-value pharmaceutical and chemical bulk dispensing requiring 0.01 g accuracy at multi-kilogram scale
• Large-format production QC where tight tolerance specifications cannot be met at 0.1 g resolution
• Precision manufacturing of heavy components and assemblies where total mass must be confirmed to 10 mg
• Industrial parts-counting applications with large batch totals and precisely known per-unit masses
• Regulated laboratory operations requiring traceable, time-stamped records of high-mass weighing events

Why Choose the OHAUS EXR8202?

The OHAUS EXR8202 Precision Balance answers a specific production need: 8.2 kg of capacity at 0.01 g accuracy. For quality and production teams managing tight-tolerance, high-mass processes, this instrument reduces measurement uncertainty without requiring a more specialized metrology setup. Order today to bring 10 mg precision to your highest-capacity weighing operations.
