Ohaus Explorer™ Precision EXR Precision Balance
Ohaus Explorer™ EXR Precision Balance
Capacity: 220 g – 1,200 g | Readability: 1 mgThe Explorer EXR redefines precision balancing with a stunning 7" color touchscreen, digital high-speed load cell, touchless sensors, and advanced connectivity — all engineered for maximum performance and compliance in modern laboratory environments.
- 7" Color Touchscreen: TFT 16.7M color glass display with intuitive icon-based interface.
- AutoCal™ Technology: Built-in automatic calibration ensures consistent accuracy.
- Touchless Sensors: 2 infrared sensors for hands-free, contamination-free operation.
- Advanced Connectivity: RS232, USB Host ×2, USB-C, Ethernet, optional Wi-Fi & Bluetooth.
Why Choose Explorer™ EXR?
7" Color Touchscreen
A vivid TFT 16.7M color glass display with icon-based navigation delivers an unparalleled user experience. Adjust settings, manage users, and review data with simple touch gestures.
Digital High-Speed Load Cell
The advanced digital load cell delivers fast stabilization in just 1.5 seconds, providing accurate and reliable results with exceptional speed for high-throughput workflows.
AutoCal™ Calibration
Built-in automatic internal calibration triggered by time or temperature changes ensures consistently accurate measurements — no external weights or manual intervention required.
Touchless Sensors
Two built-in infrared sensors enable hands-free operation — tare, print, or trigger functions without touching the balance, reducing contamination risk in sensitive workflows.

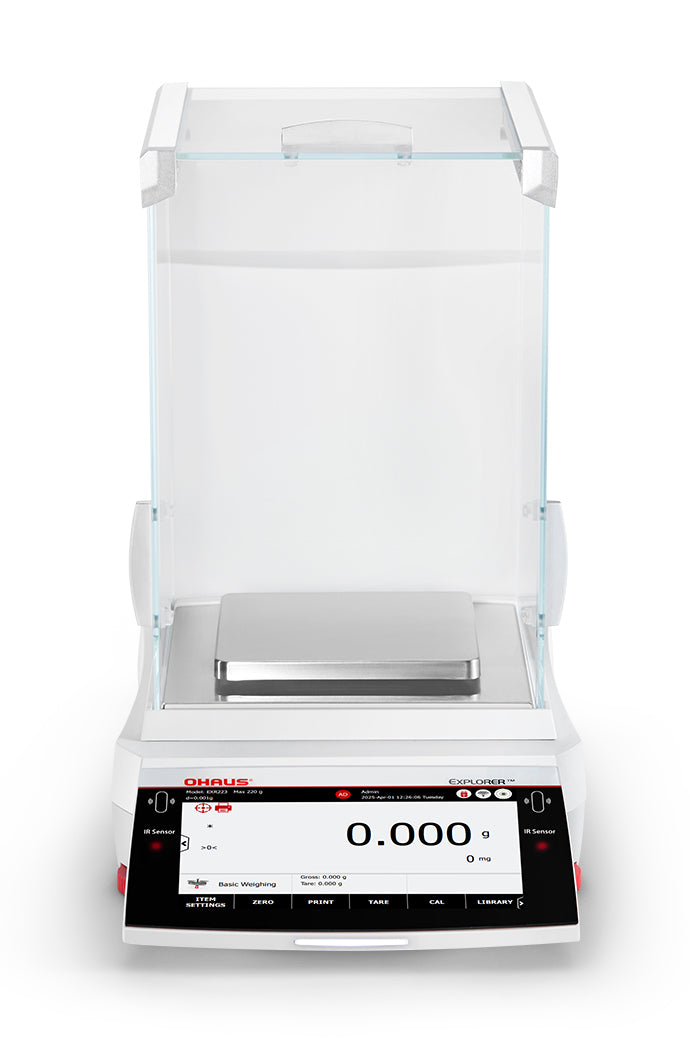

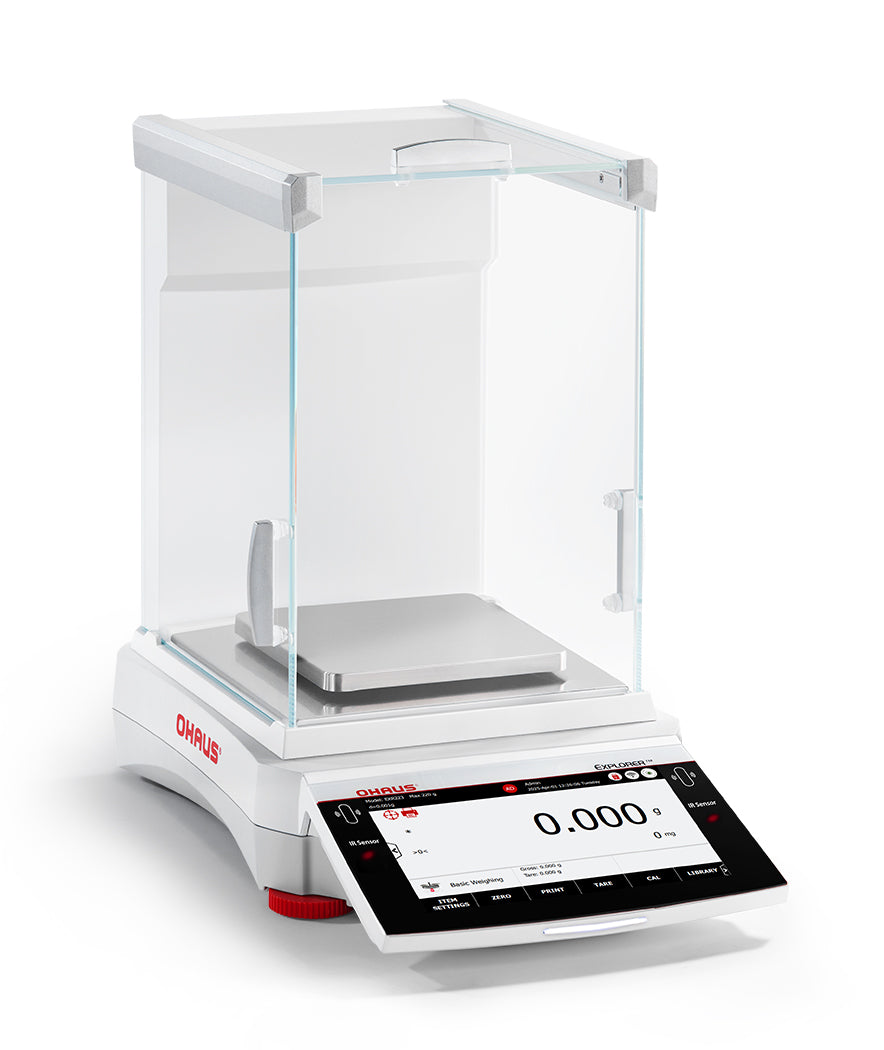

Chemical-Resistant Design
Metal housing with SST 316 stainless steel pan and anti-static glass draftshield withstands harsh lab chemicals and resists static interference for stable, reliable readings.
Universal Connectivity
RS232, USB Host ×2, USB-C Device, Ethernet RJ45 — all standard. Add optional Wi-Fi and Bluetooth for complete wireless integration with LIMS and laboratory systems.

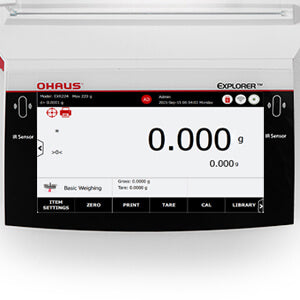

7" Intelligent Touchscreen Interface
The Explorer EXR features the most advanced display in its class — a 7-inch TFT 16.7 million color glass touchscreen that transforms complex laboratory tasks into simple, intuitive workflows.
- Icon-based navigation with glass overlay for durability
- Terminal status light for at-a-glance operational awareness
- 1,000 application sample library for rapid method recall
- 4-level user management with controlled access permissions
- HID plug-and-play PC connectivity — no drivers required
- Digital leveling system with on-screen guidance
GLP/GMP Compliance & Data Integrity
The Explorer EXR is engineered to meet the stringent documentation requirements of regulated laboratories, with built-in features that ensure complete data traceability and audit readiness.
NTP Time Synchronization
Network Time Protocol synchronization ensures precise, verifiable timestamps on all data for complete traceability and regulatory compliance.
100,000-Entry System Log
Internal logging of up to 100,000 entries provides a comprehensive audit trail of all balance activities — calibrations, user actions, and measurements.
4-Level User Management
Administrator, supervisor, and user access levels with password protection ensure only authorized personnel can modify critical balance settings.
GLP/GMP Data Output
Automatic documentation includes balance ID, date, time, user ID, project ID, and calibration data for complete, compliant records.
11 Built-In Application Modes
From basic weighing to advanced density determination, the Explorer EXR offers a comprehensive suite of application modes — plus a 1,000-sample library for instant method recall and streamlined workflows.
- Basic Weighing
- Parts Counting
- Check Counting
- Percent Weighing
- Check Weighing
- Dynamic Weighing
- Totalization
- Formulation
- Differential Weighing
- Density Determination
- Peak Hold
Comprehensive Connectivity
The Explorer EXR comes equipped with the most extensive connectivity options in its class, enabling seamless integration into any laboratory workflow and data management system.
- Dual USB Host (Type A): Connect USB drives, printers, or barcode scanners simultaneously.
- USB Device (Type C): High-speed PC connection with HID plug-and-play — no drivers needed.
- RS232 Serial: Standard serial communication for legacy systems and printers.
- Ethernet (RJ45): Network connectivity for LIMS integration and remote data access.
- Optional Wi-Fi & Bluetooth: Add wireless connectivity with optional dongles for ultimate flexibility.

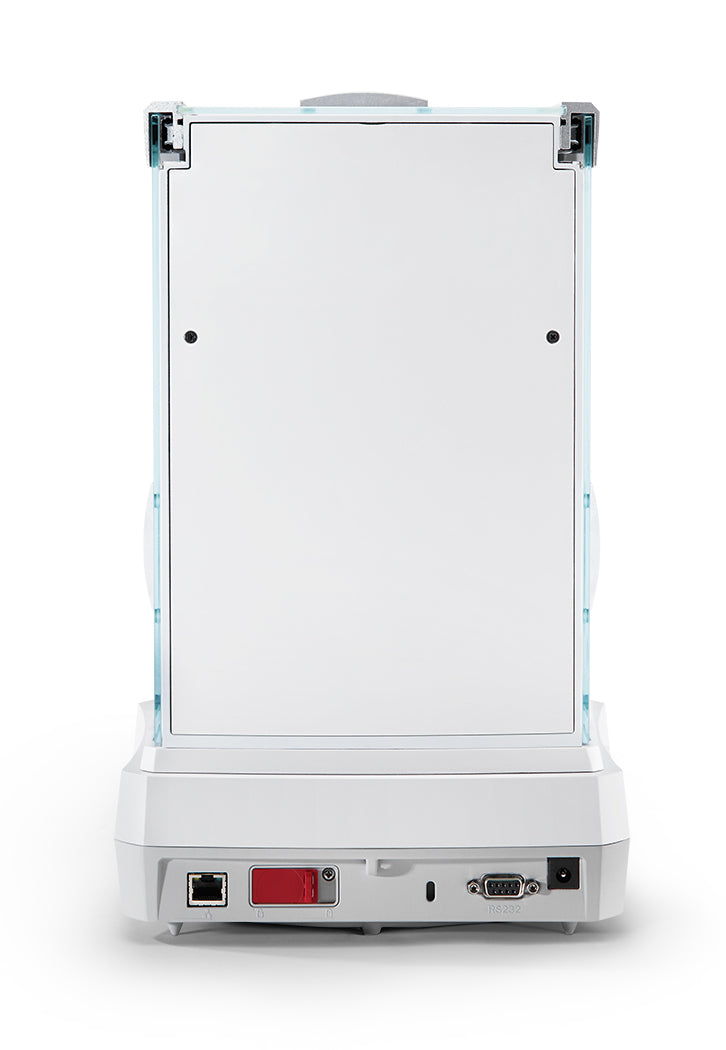

Built-In Ports & Interfaces
Every Explorer EXR includes a complete suite of communication ports as standard — no optional kits required for essential connectivity.
USB Host ×2
Type A ports for drives & peripherals
USB-C Device
HID plug-and-play PC connection
RS232 Serial
Legacy system & printer support
Ethernet RJ45
Network & LIMS integration
Wi-Fi / Bluetooth
Optional wireless dongles
Technical Specifications
