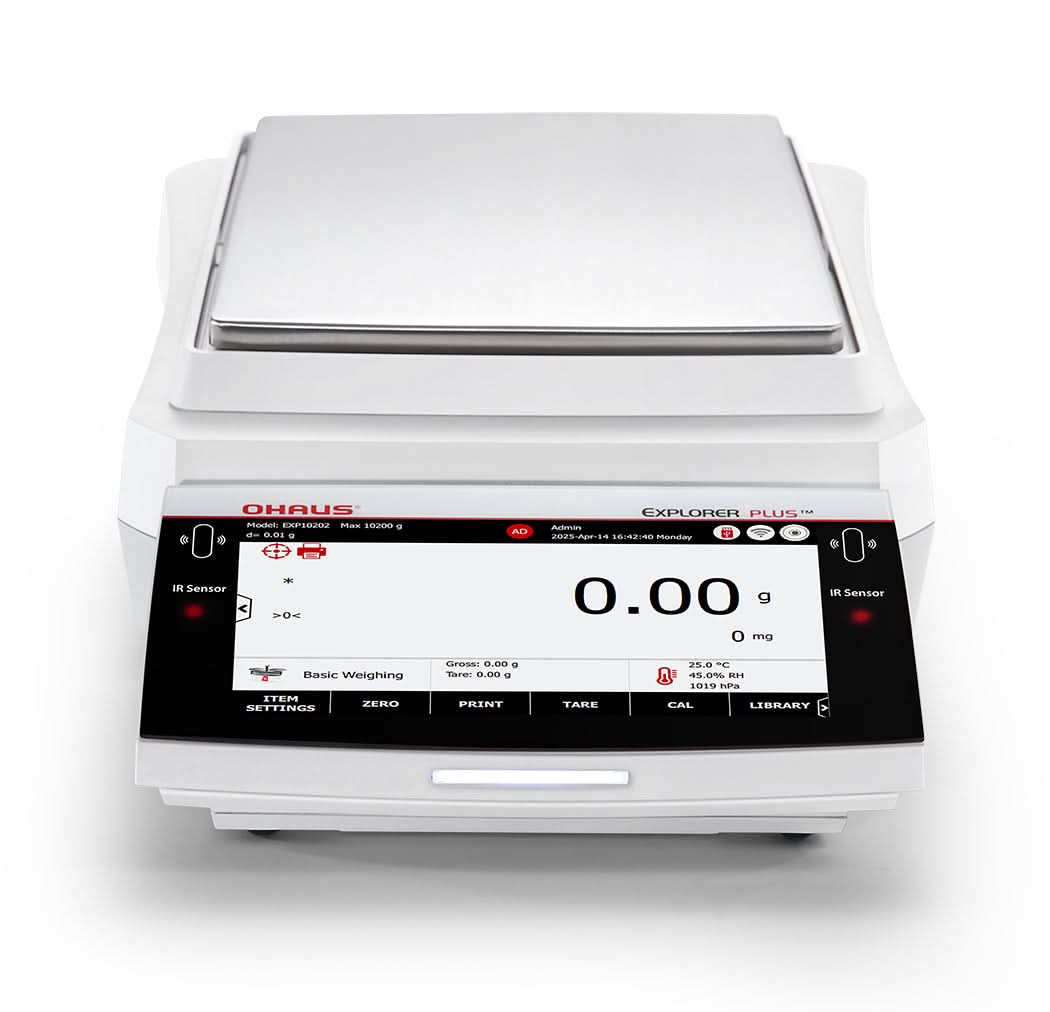

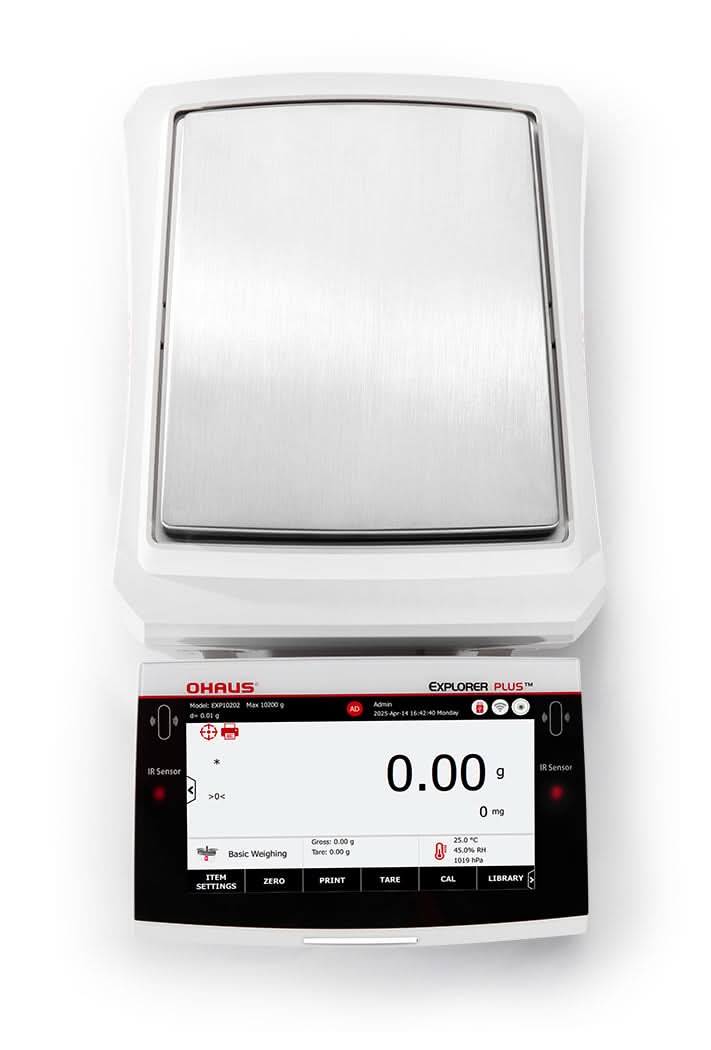

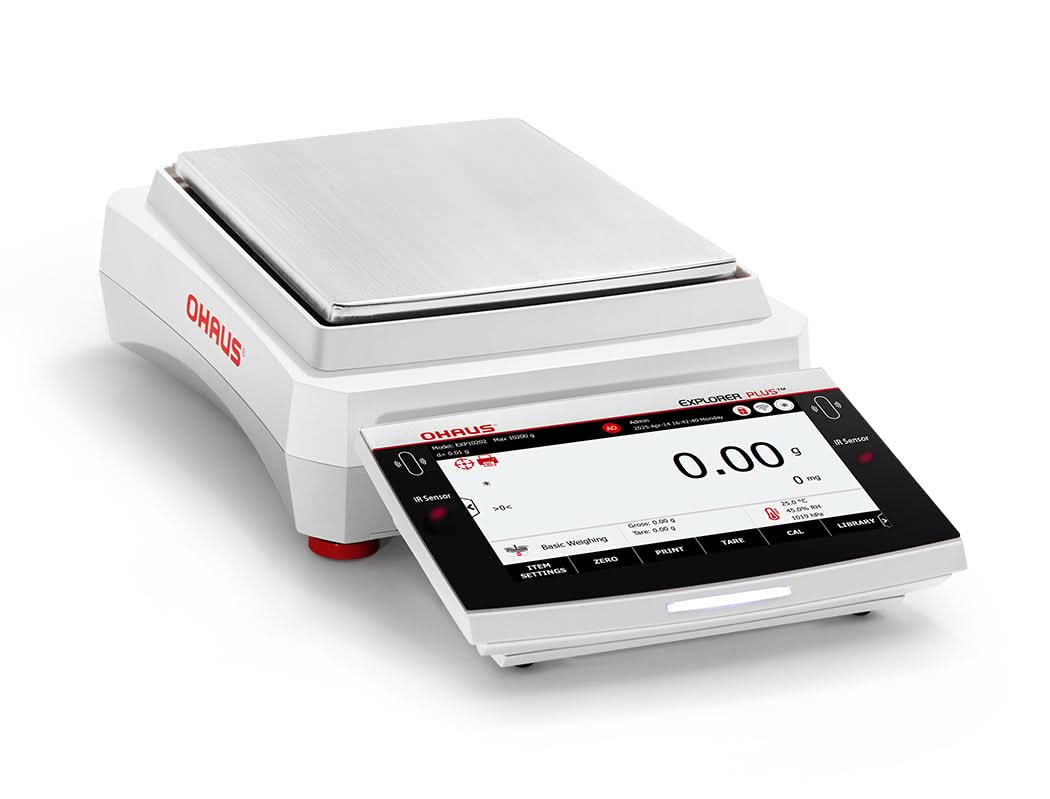

OHAUS EXP10201 Explorer EXP Precision Balance, 10,200g Capacity, 0.1g Readability, AutoCal, Touchscreen

OHAUS EXP10201 Precision Balance — 10,200g Capacity on a Next-Generation 7-Inch TFT Platform

Moving beyond the standard Explorer series, the OHAUS EXP10201 Precision Balance introduces the flagship EXP platform to large-capacity weighing. A 10,200 g range meets a 7-inch full-color TFT touchscreen, AutoCal automatic calibration, and an expanded connectivity suite—including native USB-C and optional Wi-Fi—bringing modern data-management capabilities to laboratory and production workflows at the 10 kg scale.

Key Features

• 7-Inch 16.7M Color TFT Touchscreen: A substantially larger display than the standard Explorer offers—with glass overlay for durability—presents results, status indicators, and the 3,000-entry application library in a clear, responsive interface.
• AutoCal Automatic Calibration: Temperature-triggered internal recalibration maintains ±0.2 g linearity across the 10.2 kg range without operator involvement, sustaining measurement accuracy through environmental changes in production environments.
• Multi-Port Connectivity: USB-A (×2), USB-B, USB-C, Ethernet (RJ45), and RS232 are all included; optional Wi-Fi and Bluetooth Dongle extend data transfer to wireless laboratory networks and mobile devices.
• 10,200g Capacity at 0.1g Readability with 1-Second Settling: Handles large-vessel formulation, heavy-sample inspection, and production-batch verification at a throughput pace that keeps operations moving.
• 3,000-Entry Application Sample Library: An onboard library stores sample data for rapid recall, enabling faster setup across the 15-plus built-in application modes including flow rate control, fill weight variation, and SQC.
• 4-Level User Management: Configurable access tiers protect balance settings and calibration parameters in multi-operator environments, supporting data integrity requirements of GLP and GMP quality frameworks.
• 100,000-Entry System Log: The internal audit trail captures measurement events, calibration records, and user actions—providing the traceability data needed for quality system reviews without external software.

Detailed Overview

The OHAUS EXP10201 Precision Balance represents the next evolution in the Explorer lineup, adding enterprise-grade data management features to a 10.2 kg capacity instrument. The 7-inch TFT display with 16.7 million colors delivers a visually clear interface well suited to production environments where operators may be a full arm's length from the balance. Motorized leveling simplifies installation and relocation, and NTP time synchronization keeps the system clock aligned with facility networks for accurate batch timestamps. The modular metal housing supports long service life in demanding conditions. With a 201 × 178 mm stainless steel pan, the balance accommodates large production containers, and ±0.2 g linearity over 10.2 kg ensures proportional accuracy across the full weighing range. The HID connection support allows direct use with standard USB keyboards and barcode readers without driver installation.

Applications

• Large-vessel pharmaceutical formulation and batch dispensing
• Flow rate control and fill weight variation testing in production environments
• High-volume sample preparation and dynamic weighing in research labs
• Multi-user production environments requiring tiered access and audit logging

Why Choose the OHAUS EXP10201?

Laboratory managers and production supervisors who need a large-capacity precision balance with next-generation connectivity, audit logging, and a clear 7-inch display will find the OHAUS EXP10201 Precision Balance a significant upgrade from the standard Explorer range. AutoCal precision, multi-port connectivity, and a 100,000-entry system log satisfy the data integrity requirements of modern quality programs. Order today to bring the flagship EXP platform to your 10 kg weighing applications.
