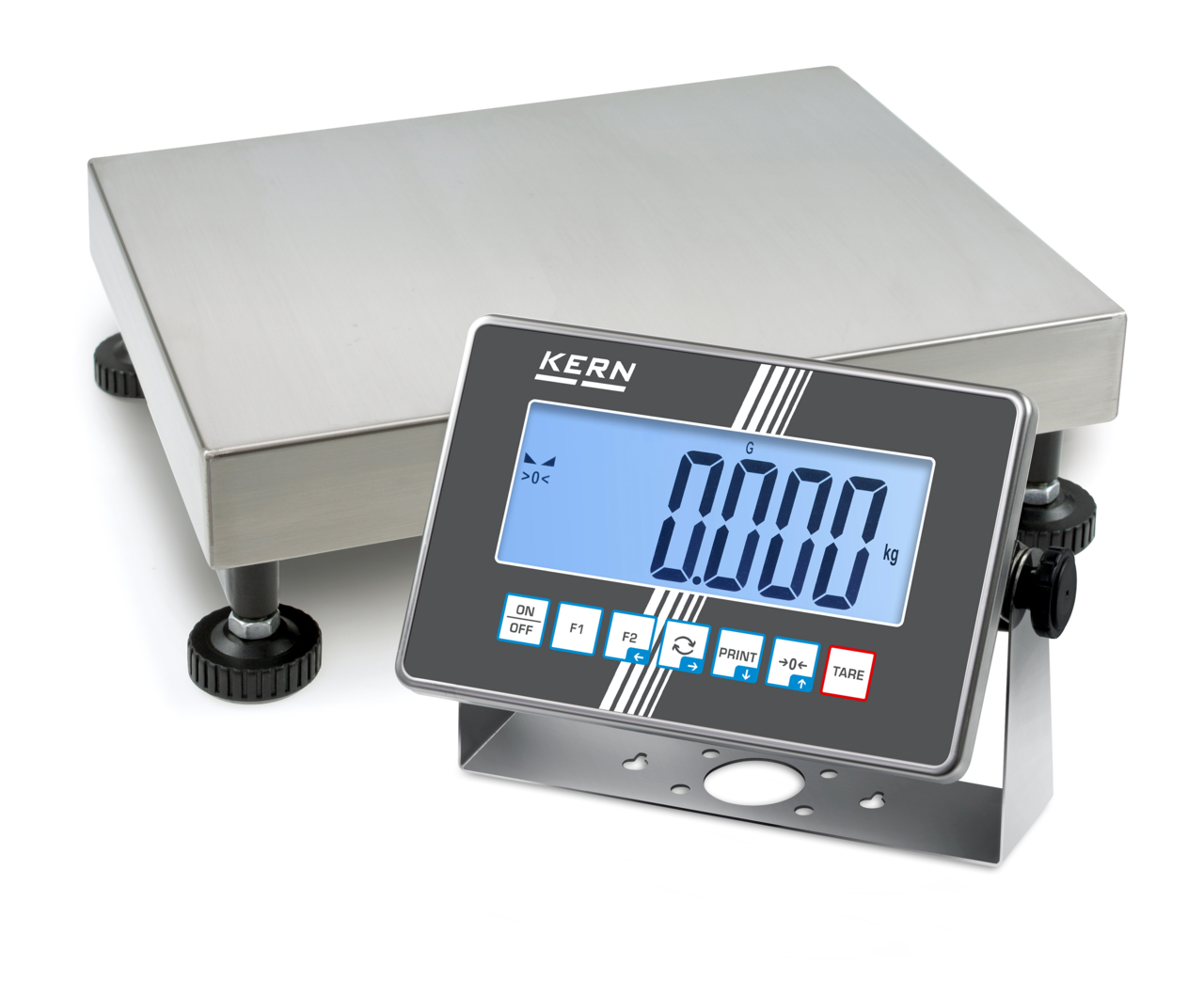

KERN & SOHN IXC 10K-3LM IXC Platform Scale, 15 kg Capacity, 0.005 kg Readability, IP68 Rated, RS-232 / USB

KERN & SOHN IXC 10K-3LM Platform Scale — IoT-Ready, 15 kg Capacity with Bluetooth BLE

Built on a 15.7×11.8 in powder-coated steel platform with an IP65-rated load cell, the KERN & SOHN IXC 10K-3LM IXC Platform Scale brings Industry 4.0 connectivity to standard platform-scale weighing. Bluetooth BLE v4.0 ships as standard; RS-232, USB, WiFi, Ethernet, and analogue signal outputs are factory-configurable options that turn the IXC into a fully networked process node at 6 kg; 15 kg dual-range capacity and 0.002 kg readability.

Key Features

• Bluetooth BLE v4.0 as standard: Wireless data transfer to Bluetooth-enabled PCs, tablets, and printers requires no additional hardware, allowing rapid deployment in paperless production and warehouse environments.
• Broad optional interface suite: Factory-installed options include RS-232, USB-Device, WiFi (802.11), Ethernet, Bluetooth BLE, and analogue 0–10 V / 4–20 mA outputs, covering any plant communication architecture.
• Dual-range capacity (6 kg; 15 kg): Switchable weighing ranges (6 kg; 15 kg) at 0.002 kg and 0.005 kg readability maximise accuracy across different load sizes without instrument changes.
• IP65 load cell protection: The silicone-coated load cell carries IP65 ingress protection, keeping the sensing element reliable in humid, dusty, and light-splash environments.
• Piece counting and checkweighing: Reference quantities up to 200 pieces enable parts counting, while configurable tolerance limits and audible/visual alerts support checkweighing on the same platform.
• GLP/ISO-compliant data output: Timestamped weight records support GLP and ISO documentation requirements, and the optional alibi memory stores an audit trail of all weighments internally.

Detailed Overview

The KERN & SOHN IXC 10K-3LM IXC Platform Scale ships with Bluetooth BLE v4.0 as standard, with factory-configurable RS-232, USB-Device, WiFi, Ethernet, and analogue 0–10 V / 4–20 mA options. The 15.7×11.8 in powder-coated steel platform covers 6 kg; 15 kg dual-range weighing at 0.002 kg readability; the IP65-rated load cell protects the measurement chain in humid and splash-prone environments. Strain-gauge technology with 3.000-division resolution underpins piece counting and checkweighing, while optional alibi memory and GLP printouts supply a complete audit trail.

Applications

• Connected production lines — wireless weight data to SCADA, MES, or ERP systems
• Logistics and distribution — Bluetooth-enabled receiving and dispatch verification
• Food and beverage — portioning, batching, and checkweighing with hygiene-area connectivity
• Chemical and pharmaceutical manufacturing — process integration via analogue or Ethernet output
• Quality assurance — automated tolerance checking with GLP/ISO audit trail

Why Choose the KERN & SOHN IXC 10K-3LM?

The KERN & SOHN IXC 10K-3LM IXC Platform Scale suits connected manufacturers, logistics operations, and trade-compliance facilities needing 15 kg capacity with multi-protocol connectivity. Bluetooth BLE v4.0 ships standard; factory options add RS-232, USB, WiFi, Ethernet, and analogue to fit any plant network. Add to cart at Weighcore.
