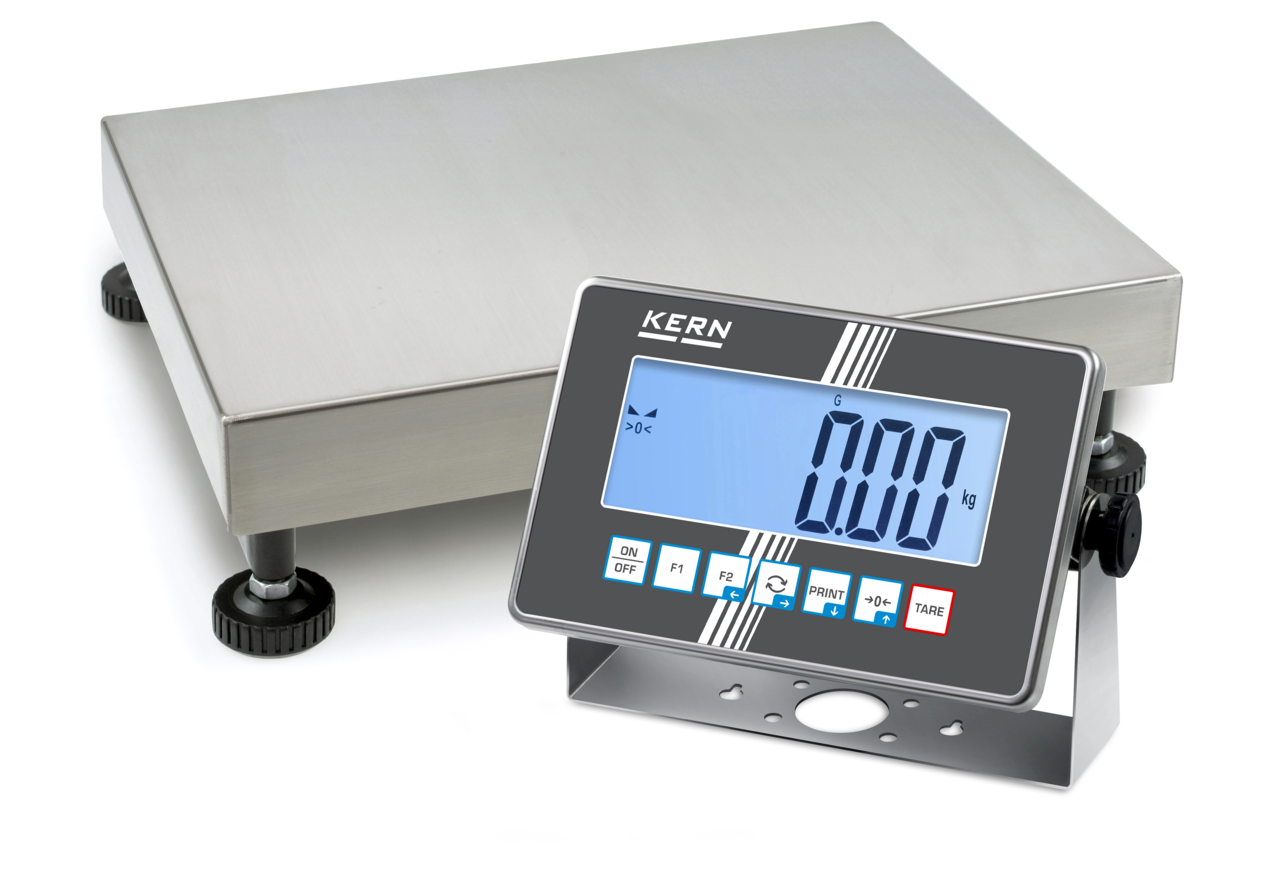

KERN & SOHN IXC 100K-2M IXC Platform Scale, 150 kg Capacity, 0.05 kg Readability, IP68 Rated, RS-232 / USB

KERN & SOHN IXC 100K-2M Platform Scale — IoT-Ready, 150 kg Capacity with Bluetooth BLE

Process engineers and quality managers building connected production lines will find the KERN & SOHN IXC 100K-2M IXC Platform Scale ready to integrate out of the box. Bluetooth BLE v4.0 is standard, with RS-232, USB, WiFi, Ethernet, and analogue interfaces available as factory options, giving the scale a connectivity profile that matches any plant architecture.

Key Features

• Bluetooth BLE v4.0 as standard: Wireless data transfer to Bluetooth-enabled PCs, tablets, and printers requires no additional hardware, allowing rapid deployment in paperless production and warehouse environments.
• Broad optional interface suite: Factory-installed options include RS-232, USB-Device, WiFi (802.11), Ethernet, Bluetooth BLE, and analogue 0–10 V / 4–20 mA outputs, covering any plant communication architecture.
• Dual-range capacity (60 kg; 150 kg): Switchable weighing ranges (60 kg; 150 kg) at 0.02 kg and 0.05 kg readability maximise accuracy across different load sizes without instrument changes.
• IP65 load cell protection: The silicone-coated load cell carries IP65 ingress protection, keeping the sensing element reliable in humid, dusty, and light-splash environments.
• Piece counting and checkweighing: Reference quantities up to 200 pieces enable parts counting, while configurable tolerance limits and audible/visual alerts support checkweighing on the same platform.
• GLP/ISO-compliant data output: Timestamped weight records support GLP and ISO documentation requirements, and the optional alibi memory stores an audit trail of all weighments internally.

Detailed Overview

The KERN & SOHN IXC 100K-2M IXC Platform Scale ships with Bluetooth BLE v4.0 as standard, with factory-configurable RS-232, USB-Device, WiFi, Ethernet, and analogue 0–10 V / 4–20 mA options. The 19.7×15.7 in powder-coated steel platform covers 60 kg; 150 kg dual-range weighing at 0.02 kg readability; the IP65-rated load cell protects the measurement chain in humid and splash-prone environments. Strain-gauge technology with 3.000-division resolution underpins piece counting and checkweighing, while optional alibi memory and GLP printouts supply a complete audit trail. OIML Class III and EC type approval qualify it for legal-for-trade applications.

Applications

• Heavy-goods production — IoT-integrated weighing of large assemblies and bulk materials
• Connected logistics — Bluetooth and WiFi data transfer for pallet-level receiving
• Chemical and process industries — analogue 0–10 V / 4–20 mA output to process controllers
• Food manufacturing — HACCP-aligned checkweighing with wireless data logging
• Quality management — GLP/ISO printouts and alibi memory for full traceability

Why Choose the KERN & SOHN IXC 100K-2M?

The KERN & SOHN IXC 100K-2M IXC Platform Scale suits connected manufacturers, logistics operations, and trade-compliance facilities needing 150 kg capacity with multi-protocol connectivity. Bluetooth BLE v4.0 ships standard; factory options add RS-232, USB, WiFi, Ethernet, and analogue to fit any plant network. Shop now at Weighcore.
