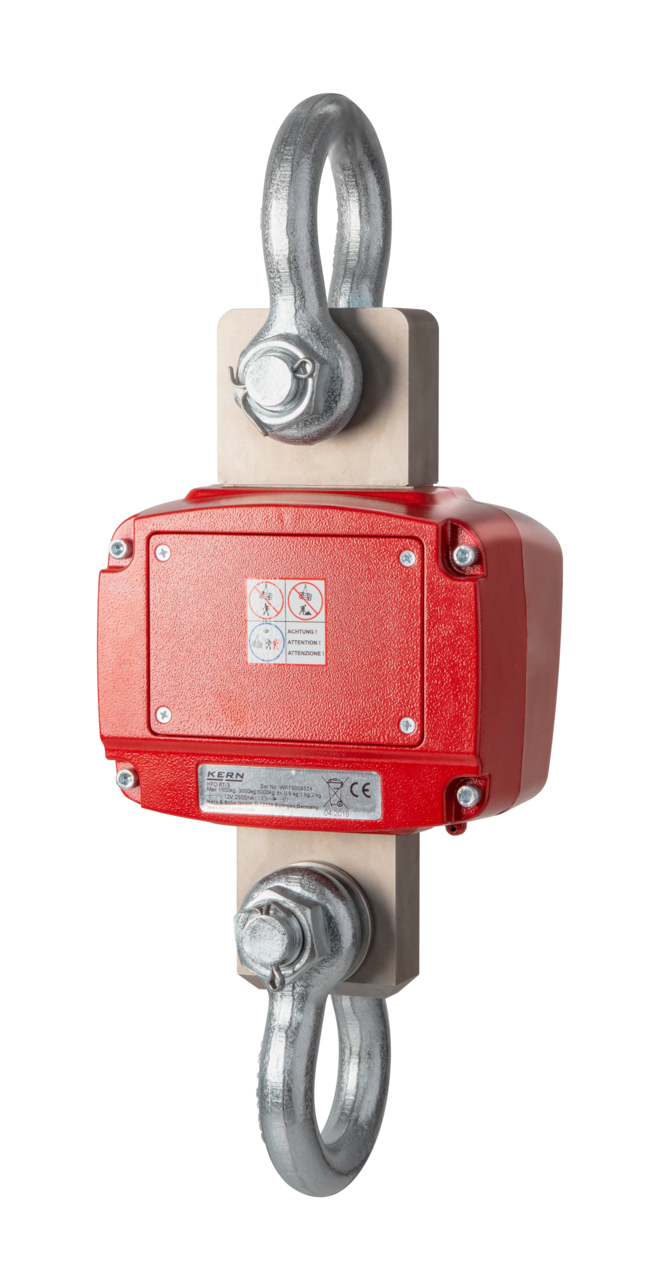

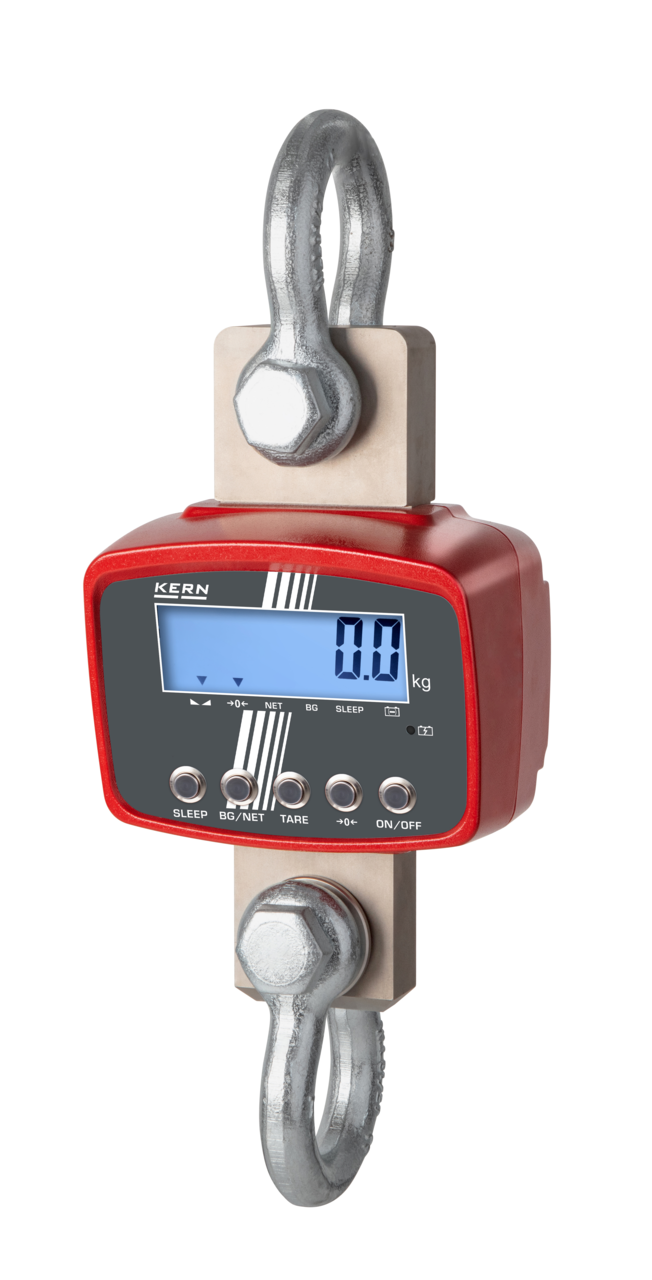

KERN & SOHN HFD 1T-4M HFD Crane Scale, 1500 kg Capacity, 0.5 kg Readability

KERN & SOHN HFD 1T-4M Crane Scale — 1.500 kg Capacity, 0.5 kg Readability

The KERN & SOHN HFD 1T-4M Crane Scale delivers 1.500 kg capacity with 0.5 kg readability, making it a dependable choice for overhead weighing in warehouses, workshops and industrial facilities. Built around a strain-gauge load cell and a compact HFD-series housing, the KERN & SOHN HFD 1T-4M Crane Scale offers wireless remote display (20 m).

Key Features

• 1.500 kg capacity at 0.5 kg readability: A single strain-gauge load cell delivers repeatable readings within ±0.5 kg across the full weighing range.
• Durable steel construction: Unalloyed forged steel load hook and plastic housing form a rugged assembly suited to repeated daily use in industrial lift environments.

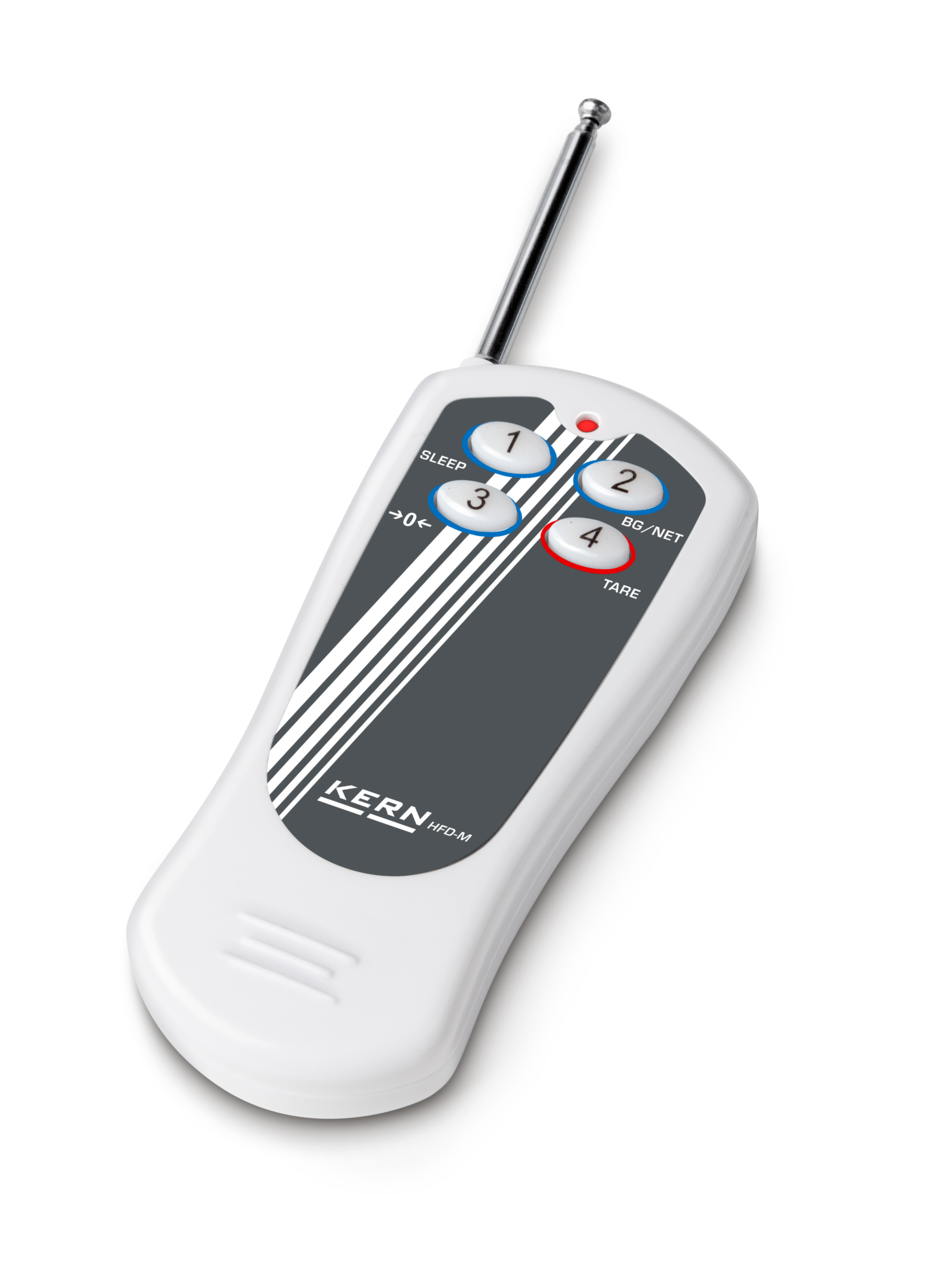

• Wireless remote display (up to 20 m): The integrated radio module streams live weight data to a separate remote display, keeping operators at a safe distance from suspended loads while monitoring readings in real time.
• Dual power supply: An internal rechargeable accumulator handles field use away from outlets, while a mains power adapter keeps the KERN & SOHN HFD 1T-4M running continuously on the workshop floor without battery management.
• LCD with LED backlight display: The backlit readout stays legible in low-light crane bays, loading docks and outdoor areas, reducing misreads during fast-paced lifting operations.
• 10 Hz measuring frequency: A 10 Hz internal sampling rate captures weight changes quickly, maintaining accuracy on items that settle slowly or swing during lifting.

Detailed Overview

The KERN & SOHN HFD 1T-4M Crane Scale is built around a single strain-gauge load cell in high-alloy steel with a plastic display housing, housed in a compact 194 mm × 129 mm body. With 1.500 kg capacity, 0.5 kg readability and linearity within ±0.5 kg, the scale meets the demands of overhead weighing in manufacturing and logistics. An integrated wireless module with a 20 m operating range streams measurements to a remote indicator, letting supervisors and operators monitor live readings from a safe working distance. A rechargeable accumulator covers field use while a mains power adapter keeps continuous operation possible in fixed installations, and the 2-second stabilization time ensures swift throughput during high-volume lifts.

Applications

• Overhead crane operations where operators work at a safe distance from suspended loads
• Freight and cargo weighing on high-bay racking systems and loading docks
• Rigging and lifting safety checks on construction, shipyard and offshore installations
• Livestock weighing in agricultural settings requiring wireless readout at a distance
• Batch accumulation and totalizing in multi-lift production or warehousing workflows

Why Choose the KERN & SOHN HFD 1T-4M?

The KERN & SOHN HFD 1T-4M Crane Scale is the practical choice for operations that rely on accurate, repeatable overhead weighing from a trusted industrial instrument. Whether you are managing freight intake, crane load safety or livestock monitoring, the HFD 1T-4M brings KERN & SOHN precision to every lift. Shop now at Weighcore.
