KERN & SOHN HFC 1T-4 HFC Crane Scale, 1000 kg Capacity, 0.5 kg Readability

KERN & SOHN HFC 1T-4 Crane Scale — 1.000 kg Capacity, 0.5 kg Readability

Reliable results in demanding lift-and-weigh workflows start with the KERN & SOHN HFC 1T-4 Crane Scale, rated to 1.000 kg with 0.5 kg readability. The KERN & SOHN HFC 1T-4 Crane Scale offers peak-hold capture, wireless remote display (20 m), making short work of overhead checkweighing across shifting production schedules.

Key Features

• 1.000 kg capacity at 0.5 kg readability: A single strain-gauge load cell delivers repeatable readings within ±1 kg across the full weighing range.
• Stainless steel load hook: The stainless steel hook resists corrosion and handles repeated loading cycles without surface degradation, extending operational life in humid or coastal environments.
• Peak and hold functions: The peak function captures maximum load readings during dynamic lifts, while the hold function freezes the display so operators can safely read weights after the load has settled.

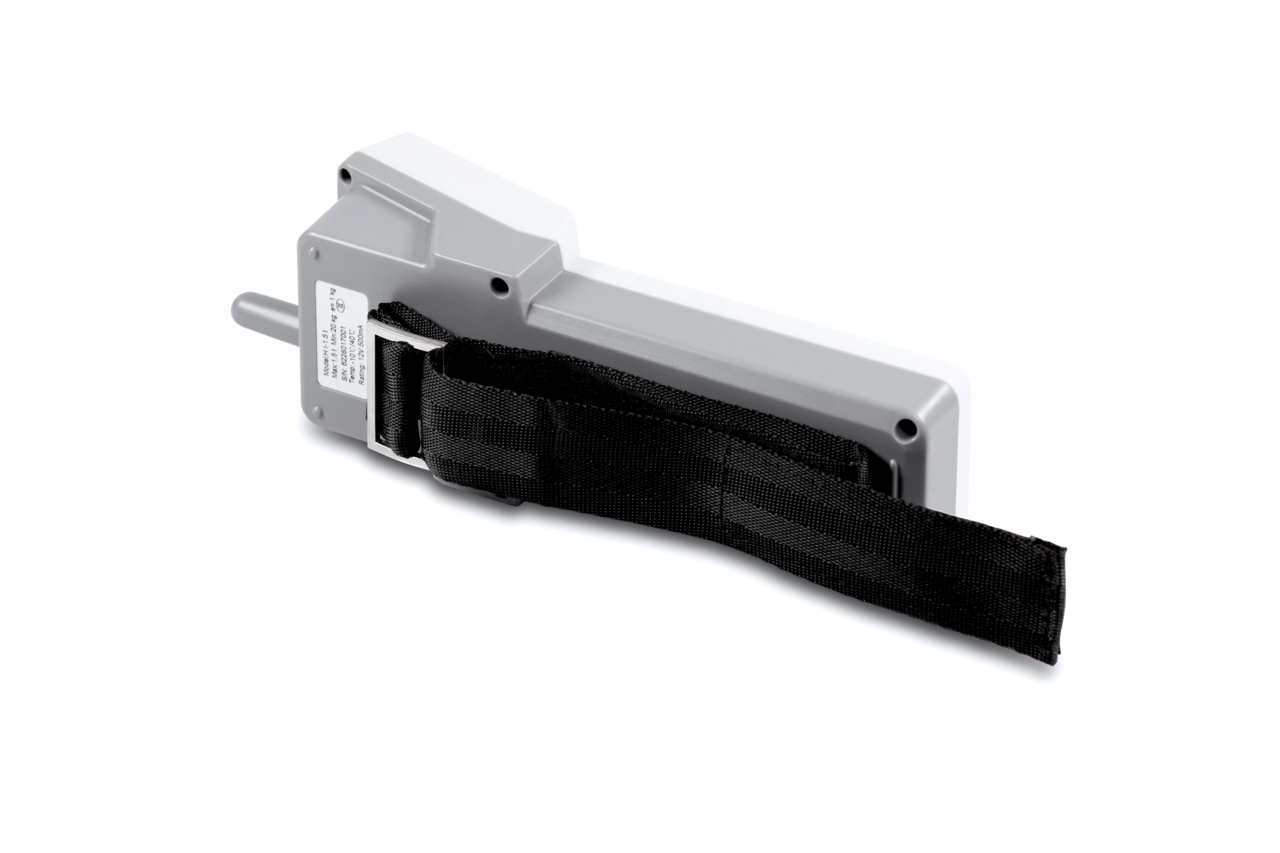

• Wireless remote display (up to 20 m): The integrated radio module streams live weight data to a separate remote display, keeping operators at a safe distance from suspended loads while monitoring readings in real time.
• Sum-memory accumulation: The built-in sum-memory function accumulates partial loads into a running total, streamlining batching, multi-lift tallying and inventory intake without manual arithmetic.
• Tolerance-limit weighing: Programmable over- and under-limit thresholds trigger a visual signal when a load falls outside acceptable bounds, supporting quality checks and safe-load compliance during every lift cycle.

Detailed Overview

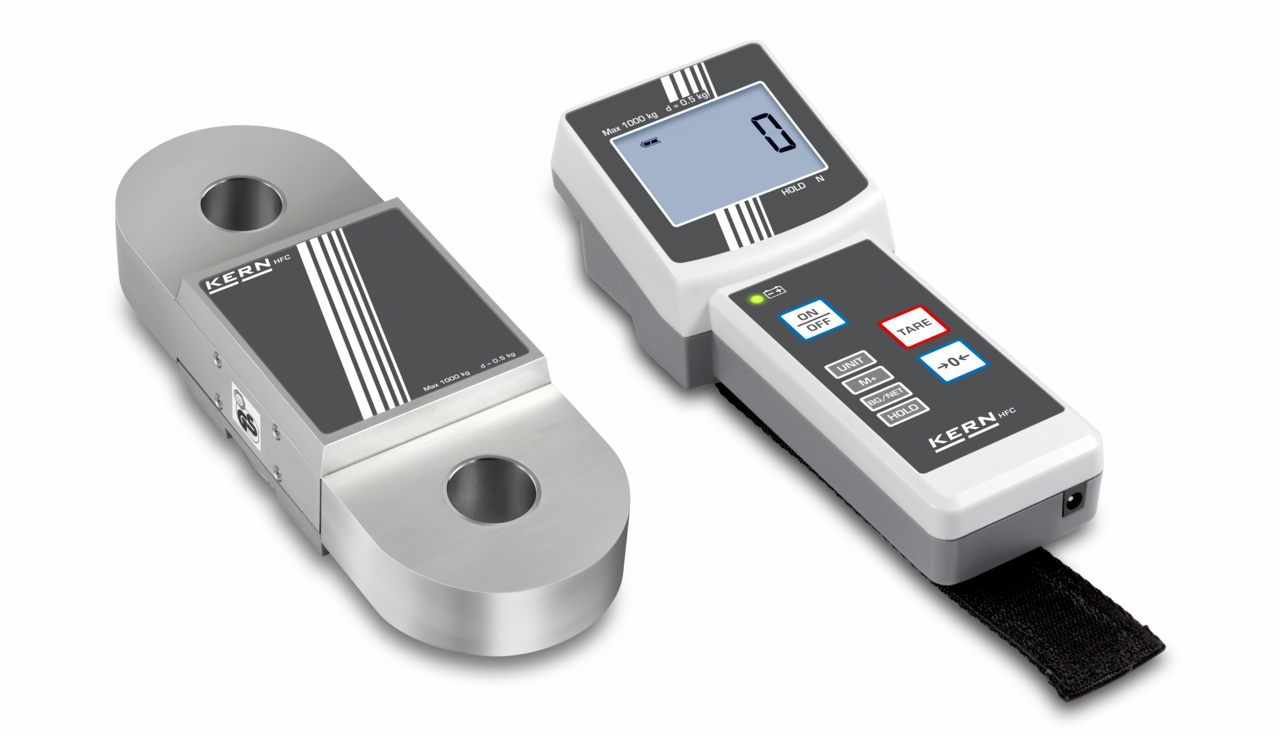

The KERN & SOHN HFC 1T-4 Crane Scale is built around a single strain-gauge load cell in aluminium with a metal display housing, housed in a compact 90×55×255 mm body. With 1.000 kg capacity, 0.5 kg readability and linearity within ±1 kg, the scale meets the demands of overhead weighing in manufacturing and logistics. An integrated wireless module with a 20 m operating range streams measurements to a remote indicator, letting supervisors and operators monitor live readings from a safe working distance. Sum-memory accumulation and tolerance-limit weighing extend the instrument beyond basic lifting checks, supporting batching and compliance workflows on busy docks and production floors.

Applications

• Overhead crane operations where operators work at a safe distance from suspended loads
• Freight and cargo weighing on high-bay racking systems and loading docks
• Rigging and lifting safety checks on construction, shipyard and offshore installations
• Livestock weighing in agricultural settings requiring wireless readout at a distance
• Batch accumulation and totalizing in multi-lift production or warehousing workflows

Why Choose the KERN & SOHN HFC 1T-4?

Professionals who depend on accurate crane-mounted weighing will find the KERN & SOHN HFC 1T-4 Crane Scale a dependable, well-specified instrument. Its proven strain-gauge design, compact HFC-series housing and straightforward operation suit everything from small workshop hoists to heavy-duty industrial gantry cranes. Buy at Weighcore.
