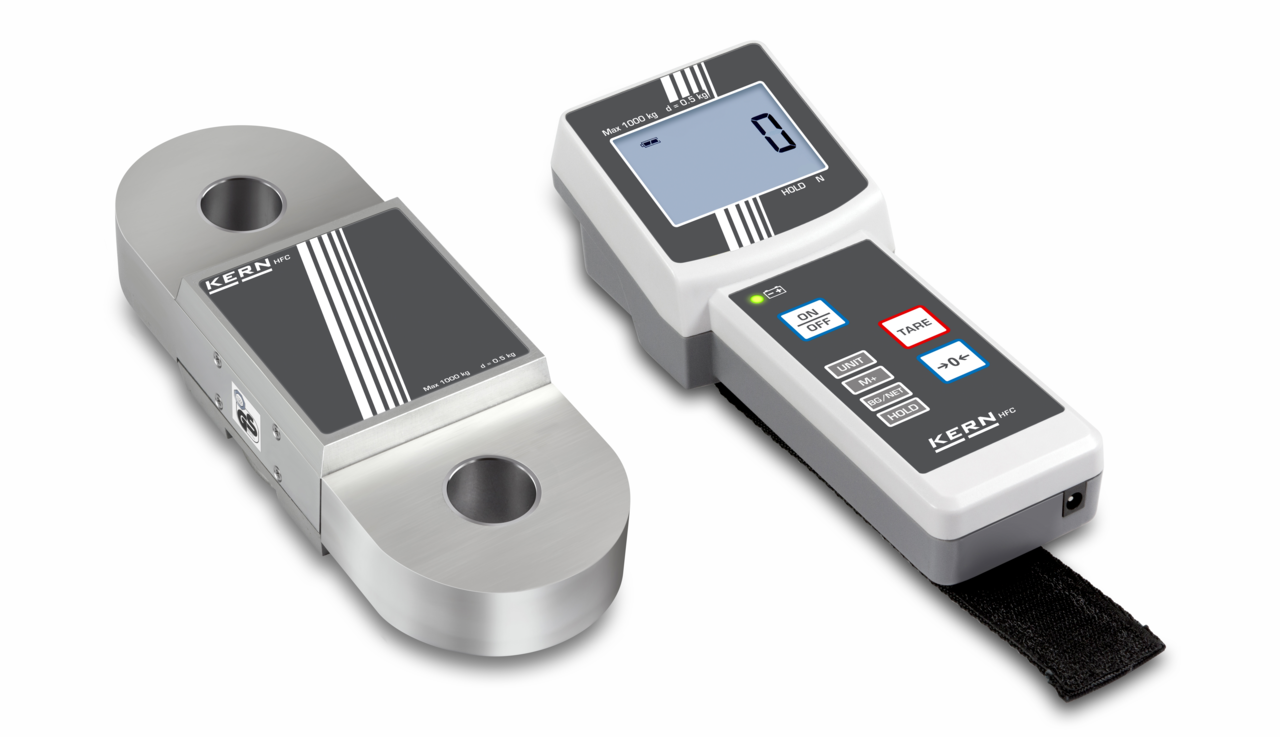

KERN & SOHN HFC 10T-3 HFC Crane Scale, 10000 kg Capacity, 5 kg Readability

KERN & SOHN HFC 10T-3 Crane Scale — 10.000 kg Capacity, 5 kg Readability

When overhead weighing demands precision up to 10.000 kg, the KERN & SOHN HFC 10T-3 Crane Scale answers with 5 kg readability and a proven strain-gauge load cell. The KERN & SOHN HFC 10T-3 Crane Scale offers peak-hold capture, wireless remote display (20 m), giving operators clear readings even in challenging lift environments.

Key Features

• 10.000 kg capacity at 5 kg readability: A single strain-gauge load cell delivers repeatable readings within ±10 kg across the full weighing range.
• Durable steel construction: Steel load hook and metal housing form a rugged assembly suited to repeated daily use in industrial lift environments.
• Peak and hold functions: The peak function captures maximum load readings during dynamic lifts, while the hold function freezes the display so operators can safely read weights after the load has settled.
• Wireless remote display (up to 20 m): The integrated radio module streams live weight data to a separate remote display, keeping operators at a safe distance from suspended loads while monitoring readings in real time.
• Sum-memory accumulation: The built-in sum-memory function accumulates partial loads into a running total, streamlining batching, multi-lift tallying and inventory intake without manual arithmetic.
• Tolerance-limit weighing: Programmable over- and under-limit thresholds trigger a visual signal when a load falls outside acceptable bounds, supporting quality checks and safe-load compliance during every lift cycle.

Detailed Overview

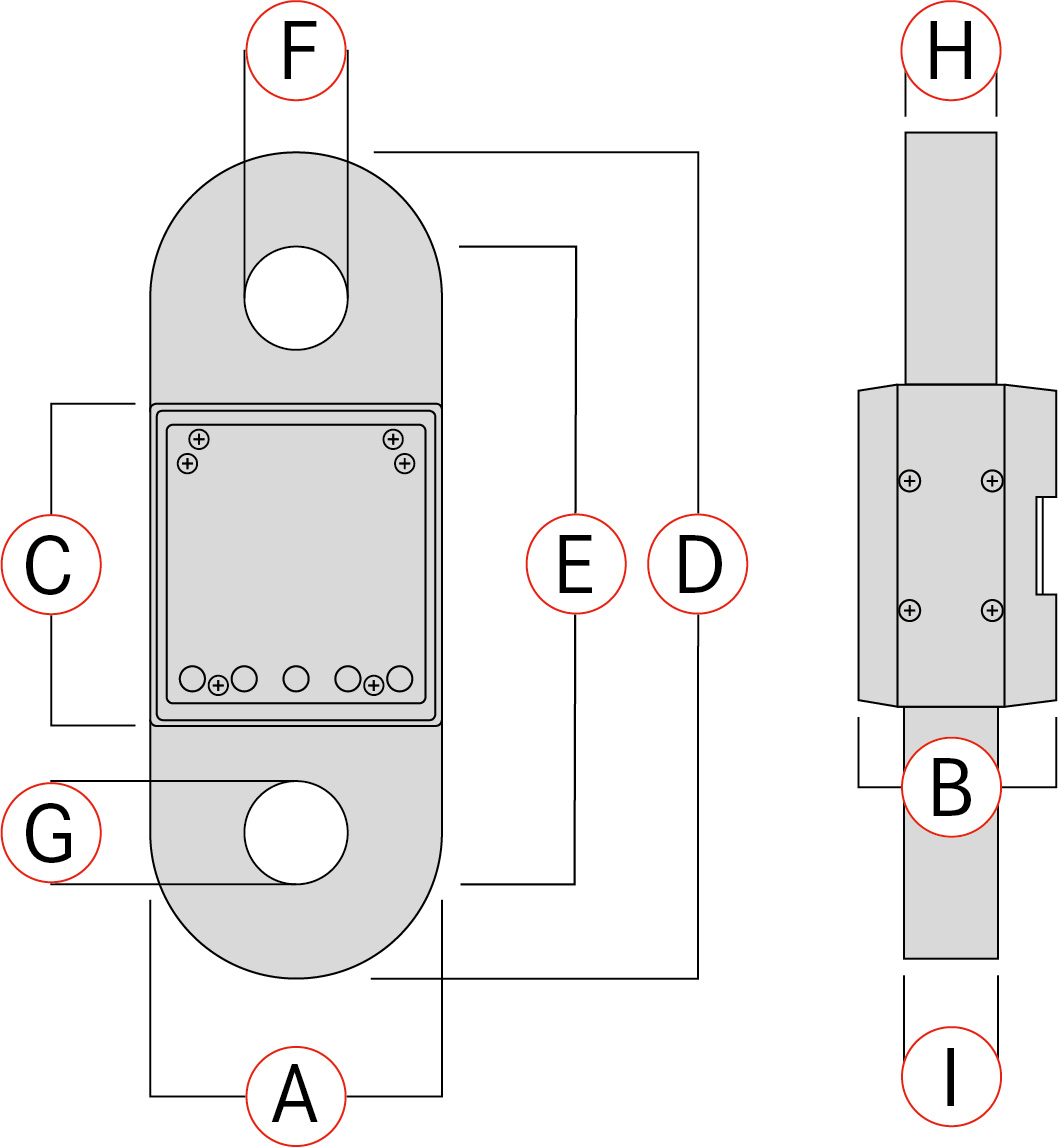

The KERN & SOHN HFC 10T-3 Crane Scale is built around a single strain-gauge load cell in stainless steel with a metal display housing, housed in a compact 90×71,6×275 mm body. With 10.000 kg capacity, 5 kg readability and linearity within ±10 kg, the scale meets the demands of overhead weighing in manufacturing and logistics. An integrated wireless module with a 20 m operating range streams measurements to a remote indicator, letting supervisors and operators monitor live readings from a safe working distance. Sum-memory accumulation and tolerance-limit weighing extend the instrument beyond basic lifting checks, supporting batching and compliance workflows on busy docks and production floors.

Applications

• Overhead crane operations where operators work at a safe distance from suspended loads
• Freight and cargo weighing on high-bay racking systems and loading docks
• Rigging and lifting safety checks on construction, shipyard and offshore installations
• Livestock weighing in agricultural settings requiring wireless readout at a distance
• Batch accumulation and totalizing in multi-lift production or warehousing workflows

Why Choose the KERN & SOHN HFC 10T-3?

For any facility that weighs suspended loads regularly, the KERN & SOHN HFC 10T-3 Crane Scale delivers the accuracy and durability needed to keep operations compliant and efficient. The HFC-series design has been refined for demanding industrial use and backed by KERN & SOHN's global service network. Available at Weighcore.
