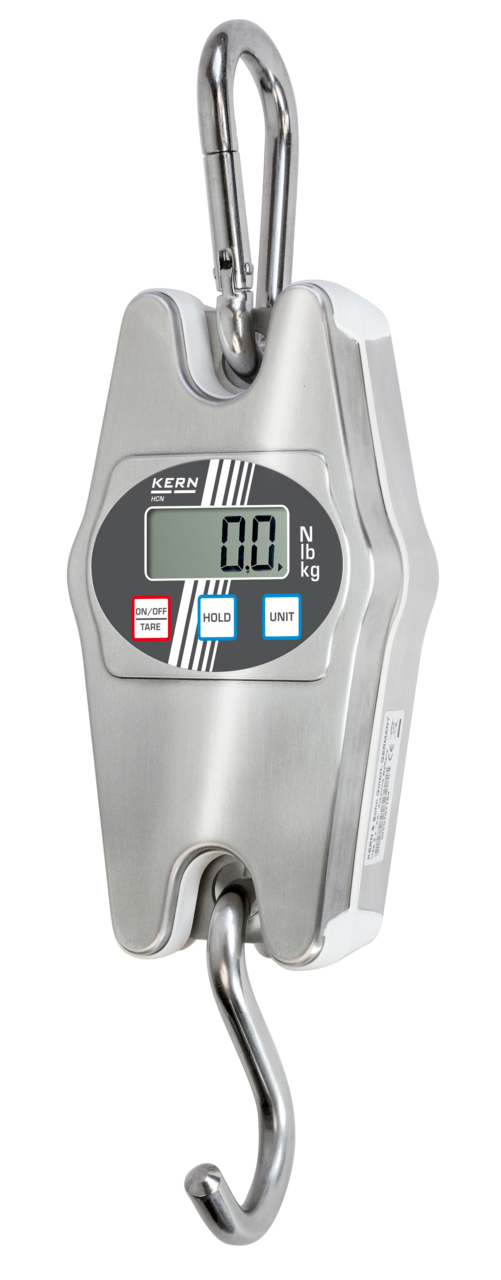

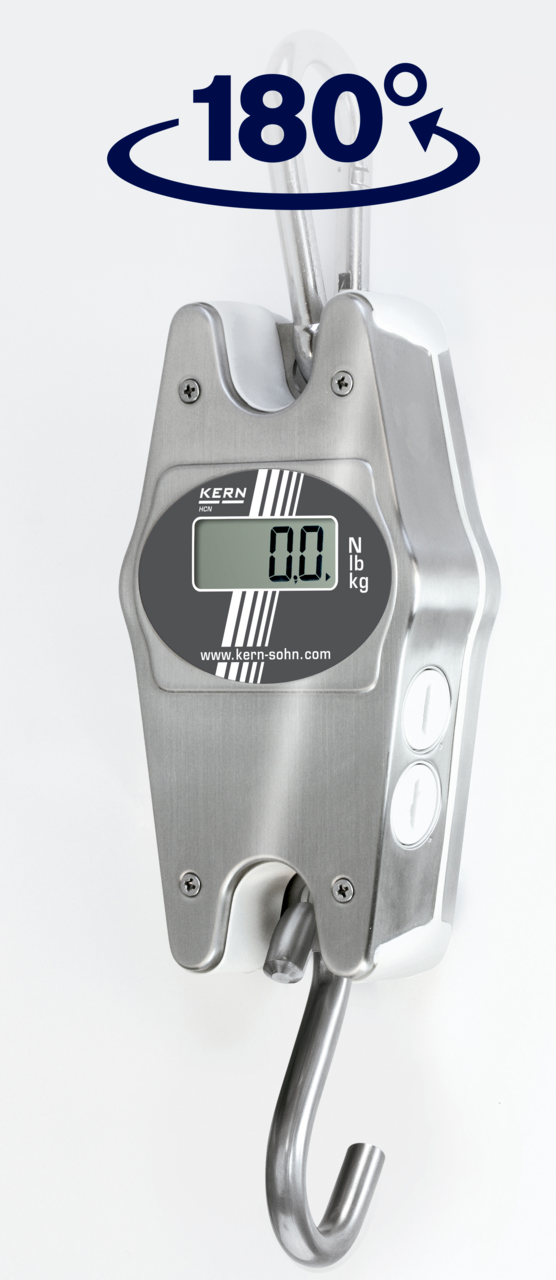

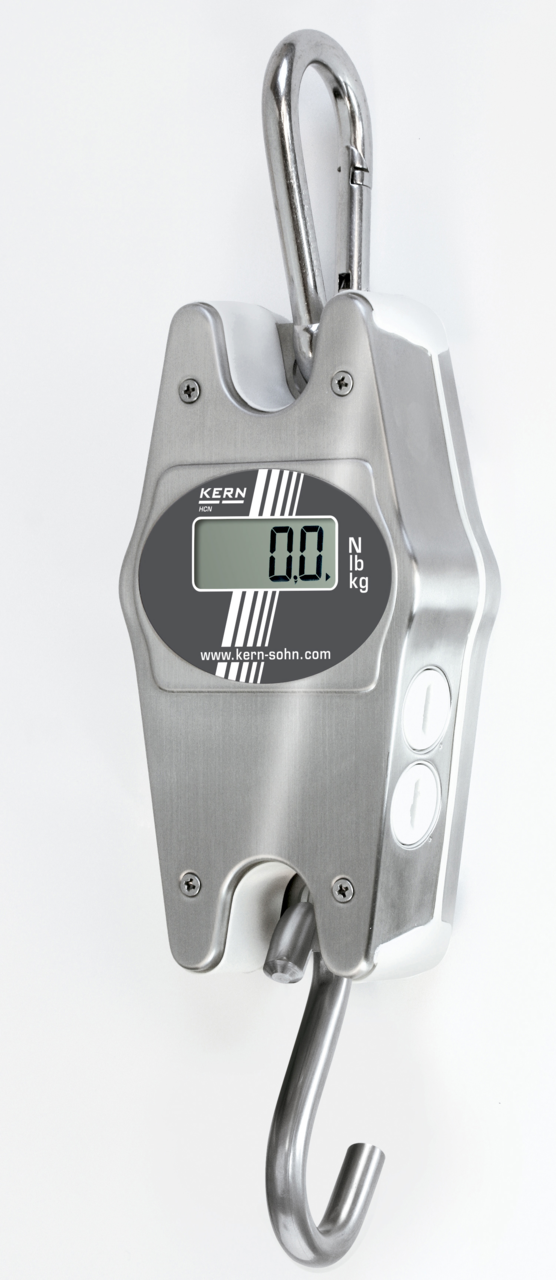

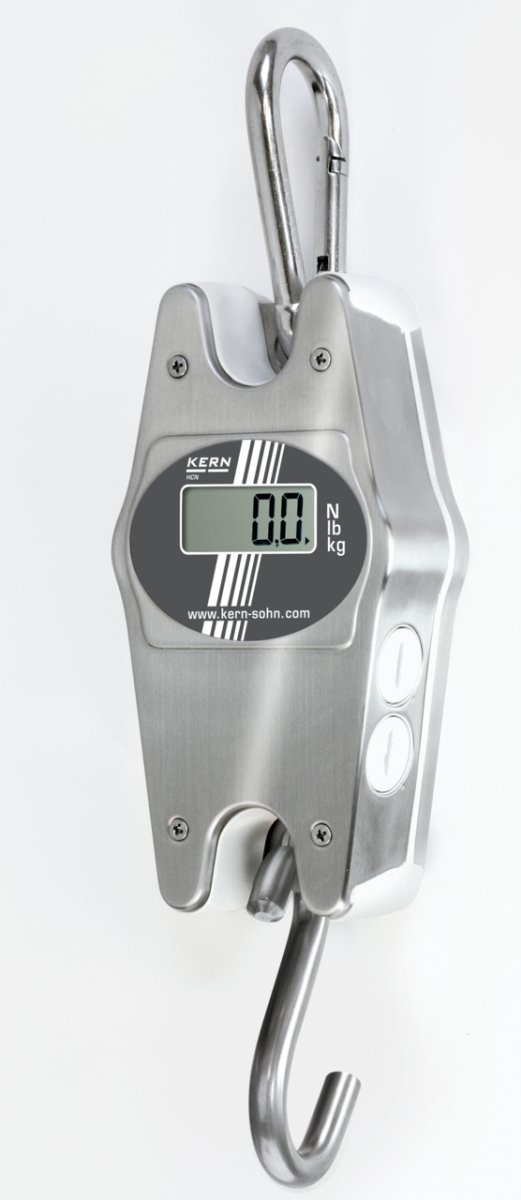

KERN & SOHN HCN 100K200IP HCN Crane Scale, 100 kg Capacity, 0.2 kg Readability, IP65 Rated

KERN & SOHN HCN 100K200IP Crane Scale — 100 kg Capacity, 0.2 kg Readability, IP65

Industrial teams working with overhead cranes and hoists reach for the KERN & SOHN HCN 100K200IP Crane Scale when precision up to 100 kg at 0.2 kg readability, IP65 rated is required. The KERN & SOHN HCN 100K200IP Crane Scale offers IP65 environmental protection, combining portability with the ruggedness needed for daily workshop use.

Key Features

• 100 kg capacity at 0.2 kg readability: A single strain-gauge load cell delivers repeatable readings within ±0.4 kg across the full weighing range.
• IP65 protection: Fully sealed against dust ingress and water jets, allowing the KERN & SOHN HCN 100K200IP Crane Scale to operate through wash-downs and wet production areas without damage.
• Hold function: Freezes the weight display after a lift, letting operators record the measurement safely once the load is stationary or out of sight.
• 300 h battery life: A 2×1.5 V AA alkaline battery pack runs the scale for approximately 300 h, reducing the interruption of charging stops during extended weighing sessions.
• Clear LCD display: A high-contrast LCD shows weight, tare and function status at a glance, enabling quick operator checks between lifts without stopping workflow.
• 5 Hz measuring frequency: A 5 Hz internal sampling rate captures weight changes quickly, maintaining accuracy on items that settle slowly or swing during lifting.

Detailed Overview

The KERN & SOHN HCN 100K200IP Crane Scale is built around a single strain-gauge load cell in stainless steel with a stainless steel display housing, housed in a compact 96×48×179 mm body. With 100 kg capacity, 0.2 kg readability and linearity within ±0.4 kg, the scale meets the demands of overhead weighing in manufacturing and logistics. Environmental protection to IP65 makes the KERN & SOHN HCN 100K200IP Crane Scale resistant to dust and water, allowing deployment in food-processing plants, wash-down areas and outdoor crane operations. Battery operation with approximately 300 h on a single set of 2×1.5 V AA cells keeps the KERN & SOHN HCN 100K200IP independent from fixed power infrastructure during field operations, and 2-second stabilization keeps cycle time short. Calibration is carried out against an external reference weight, maintaining traceability to recognised standards.

Applications

• Overhead load measurement on crane hooks, hoists and gantry systems in manufacturing plants
• Freight and cargo weighing on loading docks and in warehouses
• Livestock and animal weighing in agricultural and veterinary settings
• Rigging and lifting safety checks on construction and civil engineering sites
• Wash-down and food-processing environments where ingress-protected equipment is required

Why Choose the KERN & SOHN HCN 100K200IP?

For any facility that weighs suspended loads regularly, the KERN & SOHN HCN 100K200IP Crane Scale delivers the accuracy and durability needed to keep operations compliant and efficient. The HCN-series design has been refined for demanding industrial use and backed by KERN & SOHN's global service network. Available at Weighcore.
