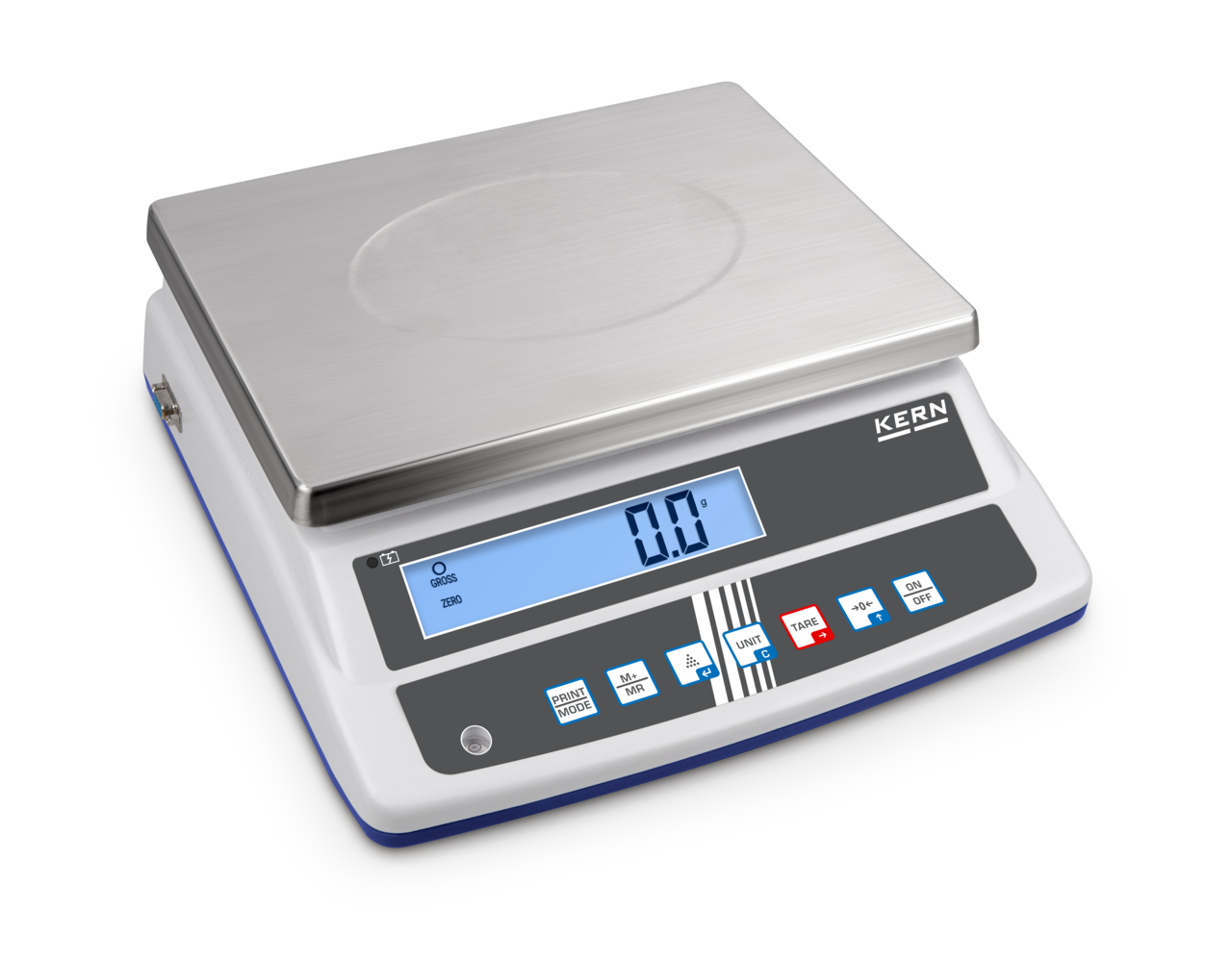

KERN & SOHN FCD 10K-3 FCD Bench Scale, 15000 g Capacity, 0.5 g Readability, RS-232

KERN & SOHN FCD 10K-3 FCD Bench Scale — 15000 g capacity, 0.5 g readability

For high-throughput industrial weighing without complexity, the KERN & SOHN FCD 10K-3 FCD Bench Scale provides 15000 g capacity and 0.5 g readability in a compact 340×320×100 mm format. It features RS-232 serial output. The KERN & SOHN FCD 10K-3 FCD Bench Scale is suited to production supervisors, quality managers and logistics teams who need a reliable, accurate weighing solution at the bench.

Key Features

• Capacity and readability: Accommodates loads up to 15000 g at 0.5 g readability, with 0.5 g reproducibility across the weighing range.
• Stainless steel weighing platform: The corrosion-resistant stainless plate cleans quickly between loads and stands up to the rigors of food handling and chemical environments.
• External span calibration: Simple span adjustment with a traceable reference weight keeps the KERN & SOHN FCD 10K-3 within specification; calibration points and weight class are pre-programmed.
• Tolerance weighing: Configurable high/low limits trigger a visual signal when a sample falls outside the acceptable range, accelerating pass/fail decisions at the bench.
• RS-232 serial interface: Standard RS-232 output sends weighing data to connected computers and printers for automated record-keeping and traceability.

Detailed Overview

The KERN & SOHN FCD 10K-3 FCD Bench Scale is built around a plastic housing and a stainless steel weighing plate. The housing measures 340×320×100 mm, the strain gauge load cell achieves 0.5 g reproducibility Linearity is rated at ± 1.5 g, and the scale reaches a stable reading within 3 s. Span calibration is performed with an external reference weight, and the scale supports multiple weighing units: kg; g; lb; PCS; %; lb:oz. RS-232 connectivity enables direct data transfer to printers, PCs and facility management systems. Allow a 120 min warm-up period for best results in precision-demanding tasks. Operating temperature range is 0° to 40°C / 32° to 104°F.

Applications

• Production weighing and batch control on manufacturing and packing lines
• Shipping, receiving and dispatch in logistics and distribution centres
• Quality control and incoming goods inspection at the goods-in bench
• Food portioning, ingredient weighing and portion control in food processing
• Commercial and retail weighing in legal-for-trade environments

Why Choose the KERN & SOHN FCD 10K-3?

The KERN & SOHN FCD 10K-3 FCD Bench Scale combines 15000 g capacity, 0.5 g readability and a practical feature set — counting, tolerance checking and multi-unit display — into a durable, bench-ready weighing instrument. It is a dependable choice for production, quality-control and logistics operations that rely on accurate results day in, day out. Shop now at Weighcore.
