KERN & SOHN EOC 6K-3 EOC Platform Scale, 6 kg Capacity, 0.002 kg Readability, IP65 Rated, RS-232

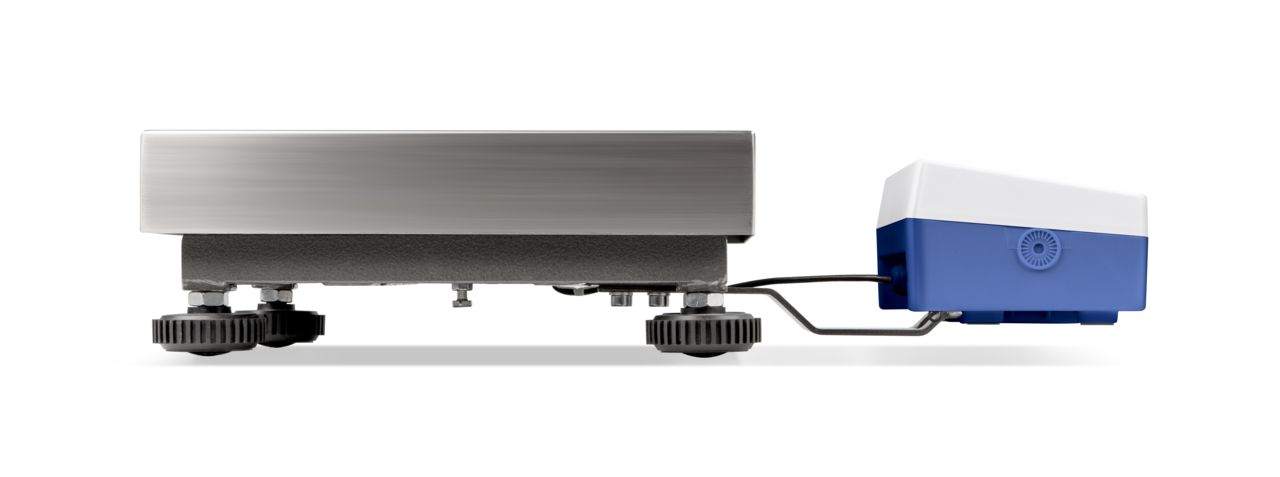

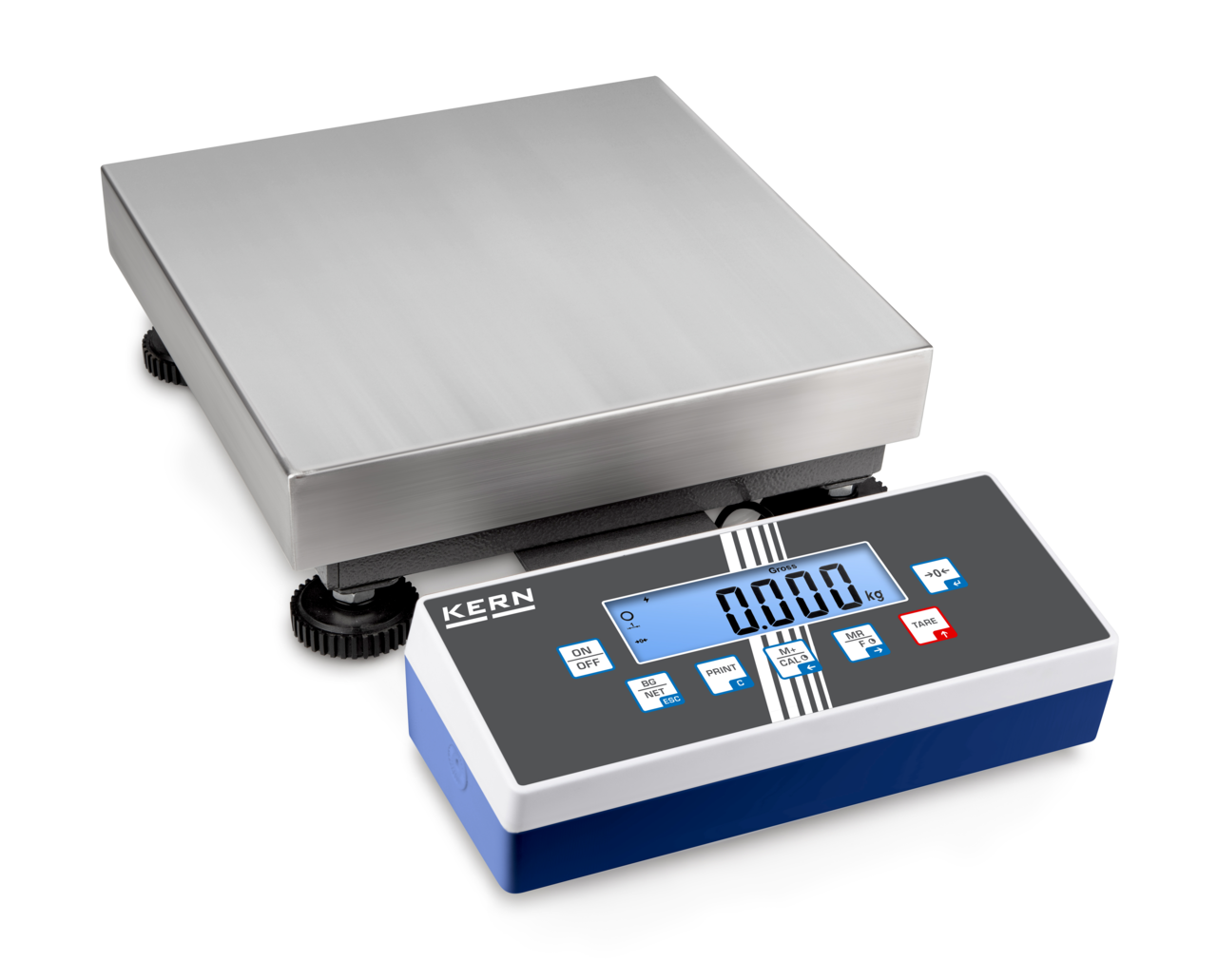

KERN & SOHN EOC 6K-3 Platform Scale — Dual-Range IP65 Industrial Weighing to 6 kg

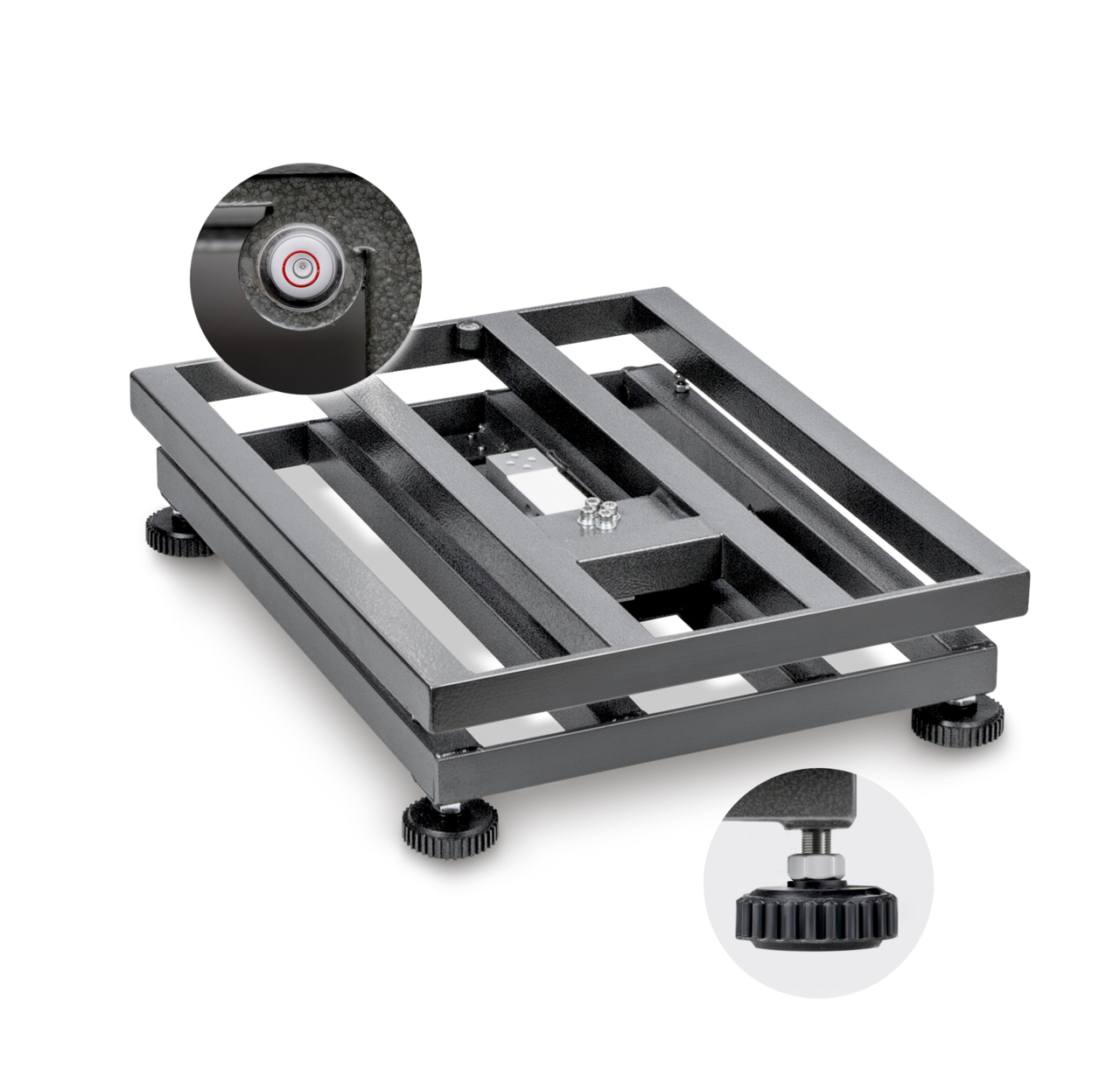

Operators demanding both IP65 construction and measurement precision will value the KERN & SOHN EOC 6K-3 Platform Scale, covering a dual range to 6 kg at 0.001 kg readability. A single aluminium load cell with 4-wire connection and adjustable levelling feet simplify installation on uneven floors. RS-232 ships as standard on all KERN & SOHN EOC 6K-3 units, enabling direct connection to label printers, PCs, and production management systems.

Key Features

• Dual weighing range: Operates at 3 kg / 0.001 kg and 6 kg / 0.002 kg, covering precision light parcels and heavy industrial loads in one instrument.
• IP65 ingress protection: Dust-tight and water-jet resistant across platform and load cell, enabling use in dusty warehouses, damp receiving bays, and light-washdown environments.
• Tilting backlit LCD on 330 mm stand: The 268×115×80 mm indicator tilts for optimal viewing angle and supports wall mounting for counter-style installations.
• Tolerance weighing and percentage determination: Set limits to alert operators to out-of-spec loads; percentage mode calculates proportions against a reference for recipe and formulation work.
• Sum memory (totalling function): Accumulates successive weighed loads in internal memory, supporting batch dosing, multi-stage filling, and inventory reconciliation.
• On-site external calibration: Maintain traceability by calibrating with certified reference weights (recommended: 6 kg (M1)), keeping the KERN & SOHN EOC 6K-3 within specification between service intervals.

Detailed Overview

The KERN & SOHN EOC 6K-3 Platform Scale is built around a strain-gauge weighing system in a mild steel platform with IP65 protection on both platform and load cell. Dual capacity covers 3 kg and 6 kg, with readabilities of 0.001 kg and 0.002 kg respectively, giving operators precision for lightweight items and capacity for heavy loads on a single instrument. Stabilization time is 3 s and warm-up is 10 min, making it fast to deploy in busy logistics environments. Eccentric loading tolerance is 0.005 kg; 0.01 kg at one-third capacity. Resolution of 3.000, 3.000 divisions and linearity of ±± 0.003 kg; 0.006 kg ensure consistent measurement across the full range.

Applications

• Parcel and freight weighing at courier depots and distribution hubs
• Incoming goods inspection and outbound shipping verification
• Industrial batch totalling and tolerance checkweighing in manufacturing

Why Choose the KERN & SOHN EOC 6K-3?

A dependable solution for operations needing a rugged, IP65-rated dual-range platform scale with RS-232 connectivity, the KERN & SOHN EOC 6K-3 Platform Scale delivers dependable parcel, freight, and industrial weighing. Shop now at Weighcore.
