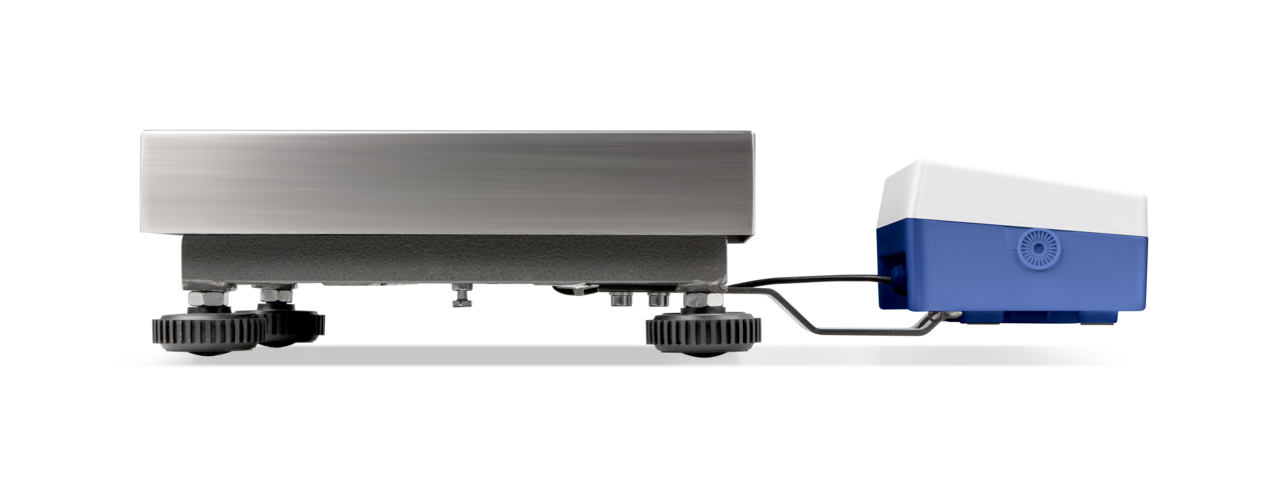

KERN & SOHN EOC 30K-4S EOC Platform Scale, 35 kg Capacity, 0.001 kg Readability, IP65 Rated, RS-232

KERN & SOHN EOC 30K-4S Platform Scale — Dual-Range IP65 Weighing with Stainless Steel Indicator

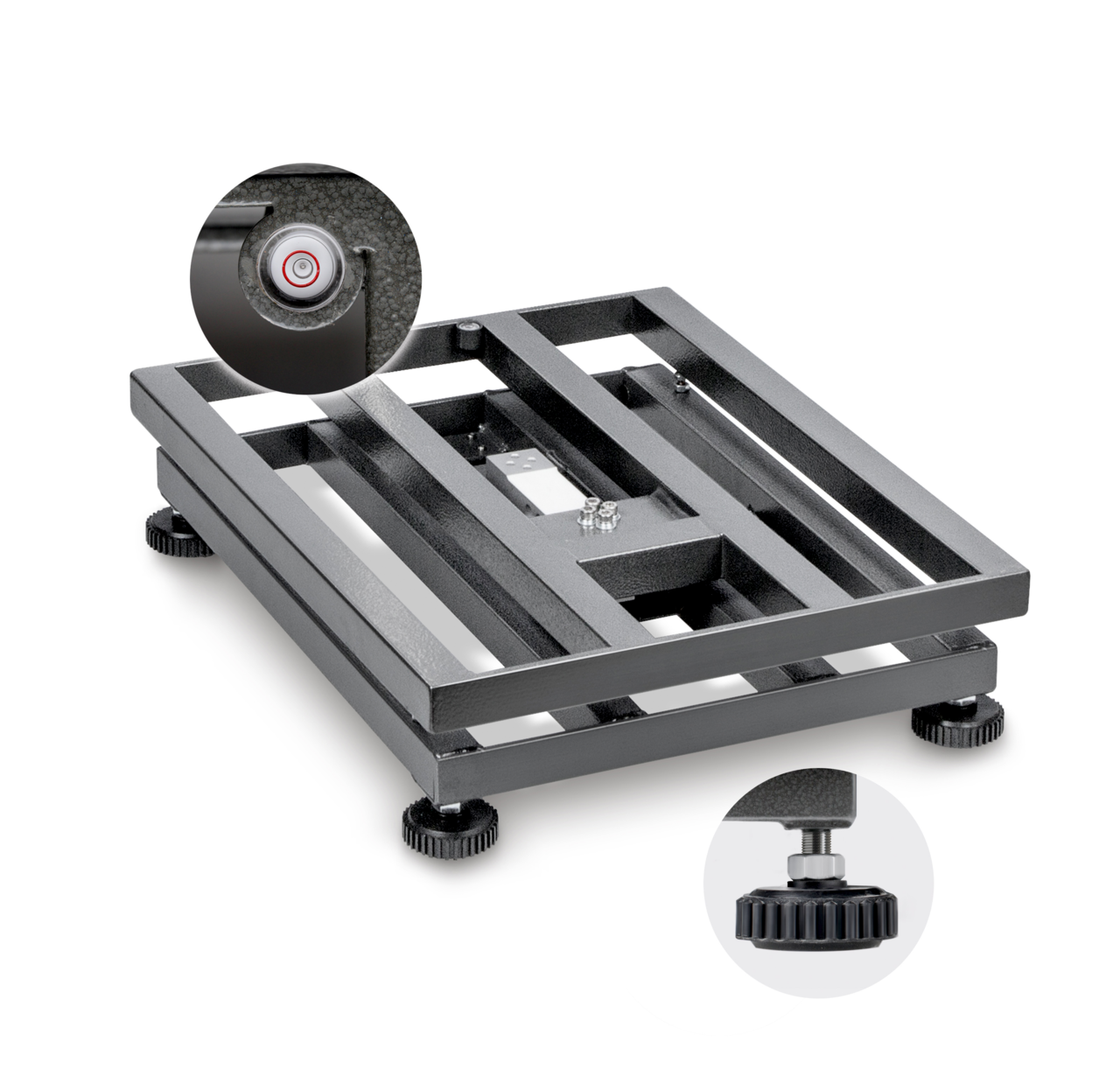

High-resolution parcel weighing at 0.0005 kg readability is central to the KERN & SOHN EOC 30K-4S Platform Scale, with IP65 protection ensuring consistent results in challenging industrial settings. A single aluminium load cell with 4-wire connection and adjustable levelling feet simplify installation on uneven floors. The 4S variant adds a stainless steel display housing for resistance to corrosive atmospheres and washdown regimes. RS-232 ships as standard on all KERN & SOHN EOC 30K-4S units, enabling direct connection to label printers, PCs, and production management systems.

Key Features

• Dual weighing range: Operates at 15 kg / 0.0005 kg and 35 kg / 0.001 kg, covering precision light parcels and heavy industrial loads in one instrument.
• IP65 ingress protection: Dust-tight and water-jet resistant across platform and load cell, enabling use in dusty warehouses, damp receiving bays, and light-washdown environments.

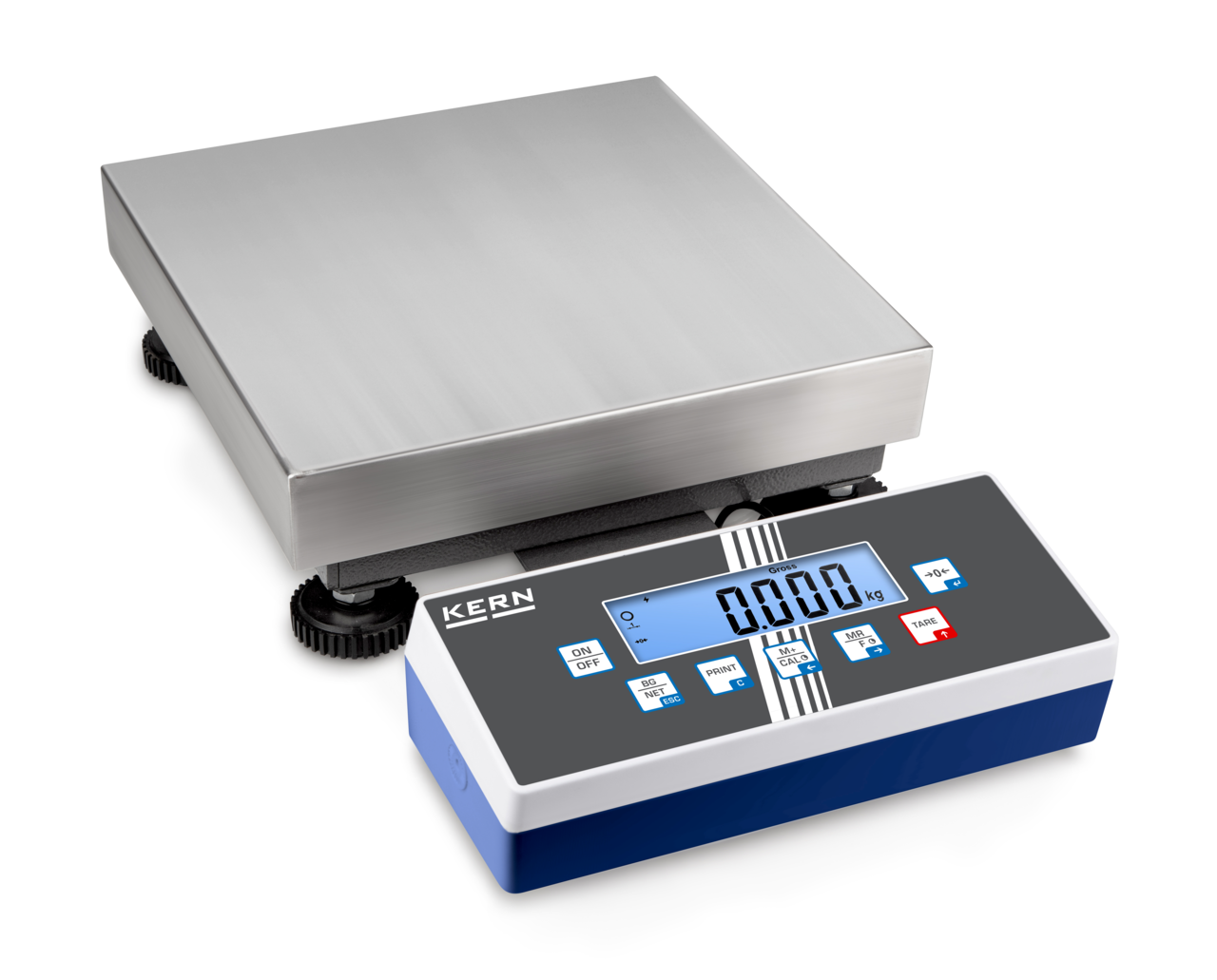

• Stainless steel display indicator (4S variant): Metal indicator housing withstands corrosive cleaning agents and aggressive industrial atmospheres more effectively than standard plastic designs.
• Tolerance weighing and percentage determination: Set limits to alert operators to out-of-spec loads; percentage mode calculates proportions against a reference for recipe and formulation work.
• On-site external calibration: Maintain traceability by calibrating with certified reference weights (recommended: 30 kg (F2)), keeping the KERN & SOHN EOC 30K-4S within specification between service intervals.

Detailed Overview

The KERN & SOHN EOC 30K-4S Platform Scale is built around a strain-gauge weighing system in a mild steel platform with IP65 protection on both platform and load cell. Dual capacity covers 15 kg and 35 kg, with readabilities of 0.0005 kg and 0.001 kg respectively, giving operators precision for lightweight items and capacity for heavy loads on a single instrument. Stabilization time is 2 s and warm-up is 120 min, making it fast to deploy in busy logistics environments. Eccentric loading tolerance is 0.0025 kg; 0.005 kg at one-third capacity. Resolution of 30.000, 35.000 divisions and linearity of ±± 0.0015 kg; 0.003 kg ensure consistent measurement across the full range.

Applications

• Parcel and freight weighing at courier depots and distribution hubs
• Industrial batch totalling and tolerance checkweighing in manufacturing
• Chemical, food processing, and pharmaceutical lines requiring hygiene-compatible equipment

Why Choose the KERN & SOHN EOC 30K-4S?

A dependable solution for operations requiring IP65-rated dual-range weighing with a stainless steel display for washdown environments, the KERN & SOHN EOC 30K-4S Platform Scale delivers reliable strain-gauge precision. Shop now at Weighcore.
