KERN & SOHN EOC 300K-3 EOC Platform Scale, 300 kg Capacity, 0.01 kg Readability, IP65 Rated, RS-232

KERN & SOHN EOC 300K-3 Platform Scale — Dual-Range IP65 Industrial Weighing to 300 kg

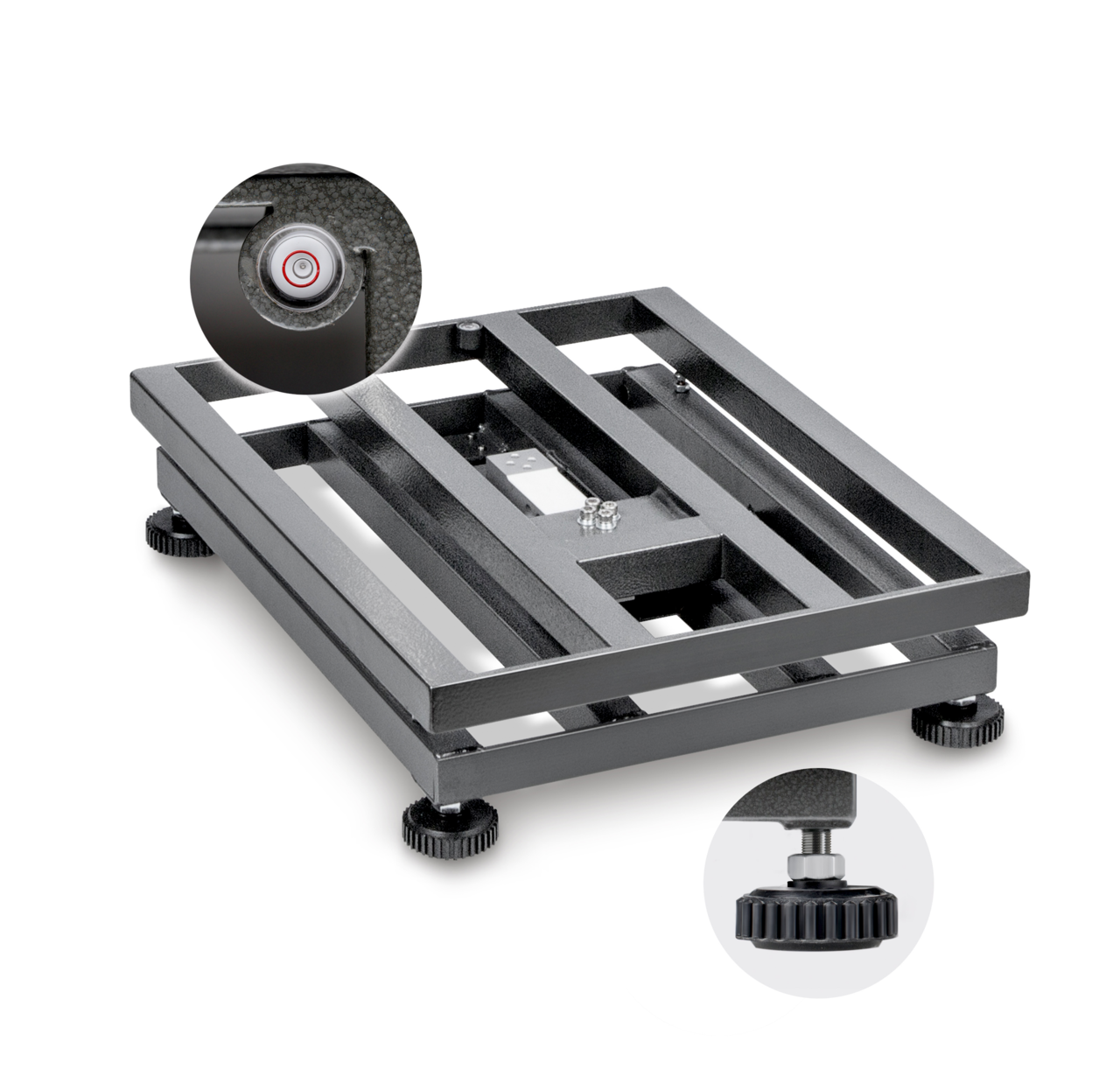

IP65 protection and a dual range to 300 kg make the KERN & SOHN EOC 300K-3 Platform Scale a reliable workhorse across manufacturing, logistics, and warehouse tasks. A single aluminium load cell with 4-wire connection and adjustable levelling feet simplify installation on uneven floors. RS-232 ships as standard on all KERN & SOHN EOC 300K-3 units, enabling direct connection to label printers, PCs, and production management systems.

Key Features

• Dual weighing range: Operates at 150 kg / 0.005 kg and 300 kg / 0.01 kg, covering precision light parcels and heavy industrial loads in one instrument.
• IP65 ingress protection: Dust-tight and water-jet resistant across platform and load cell, enabling use in dusty warehouses, damp receiving bays, and light-washdown environments.

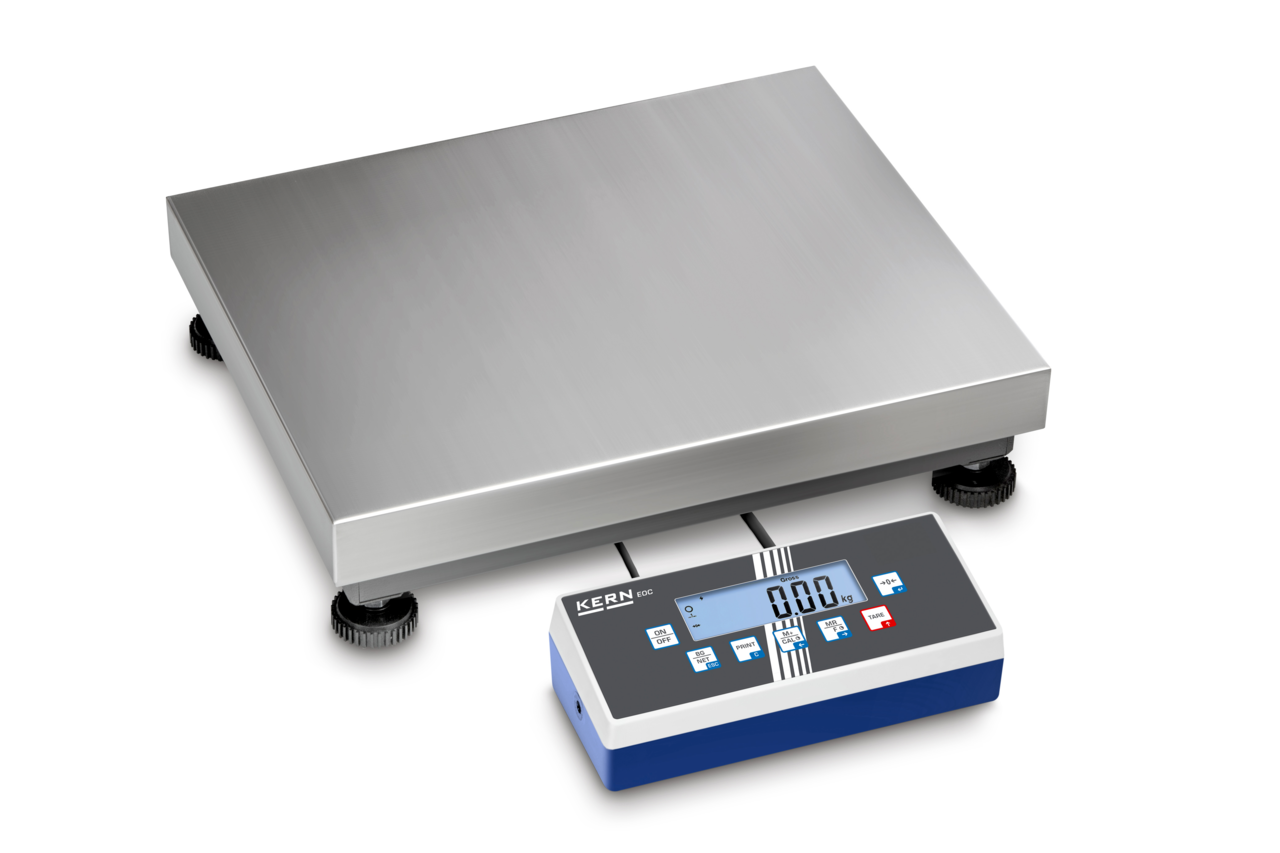

• Tilting backlit LCD on 330 mm stand: The 268×115×80 mm indicator tilts for optimal viewing angle and supports wall mounting for counter-style installations.
• Tolerance weighing and percentage determination: Set limits to alert operators to out-of-spec loads; percentage mode calculates proportions against a reference for recipe and formulation work.
• Sum memory (totalling function): Accumulates successive weighed loads in internal memory, supporting batch dosing, multi-stage filling, and inventory reconciliation.
• On-site external calibration: Maintain traceability by calibrating with certified reference weights (recommended: 300 kg (F2)), keeping the KERN & SOHN EOC 300K-3 within specification between service intervals.

Detailed Overview

The KERN & SOHN EOC 300K-3 Platform Scale is built around a strain-gauge weighing system in a mild steel platform with IP65 protection on both platform and load cell. Dual capacity covers 150 kg and 300 kg, with readabilities of 0.005 kg and 0.01 kg respectively, giving operators precision for lightweight items and capacity for heavy loads on a single instrument. Stabilization time is 2 s and warm-up is 120 min, making it fast to deploy in busy logistics environments. Eccentric loading tolerance is 0.025 kg; 0.05 kg at one-third capacity. Resolution of 30.000, 30.000 divisions and linearity of ±± 0.015 kg; 0.03 kg ensure consistent measurement across the full range.

Applications

• Parcel and freight weighing at courier depots and distribution hubs
• Incoming goods inspection and outbound shipping verification
• Industrial batch totalling and tolerance checkweighing in manufacturing

Why Choose the KERN & SOHN EOC 300K-3?

Purpose-built for operations needing a rugged, IP65-rated dual-range platform scale with RS-232 connectivity, the KERN & SOHN EOC 300K-3 Platform Scale delivers dependable parcel, freight, and industrial weighing. Available at Weighcore.
