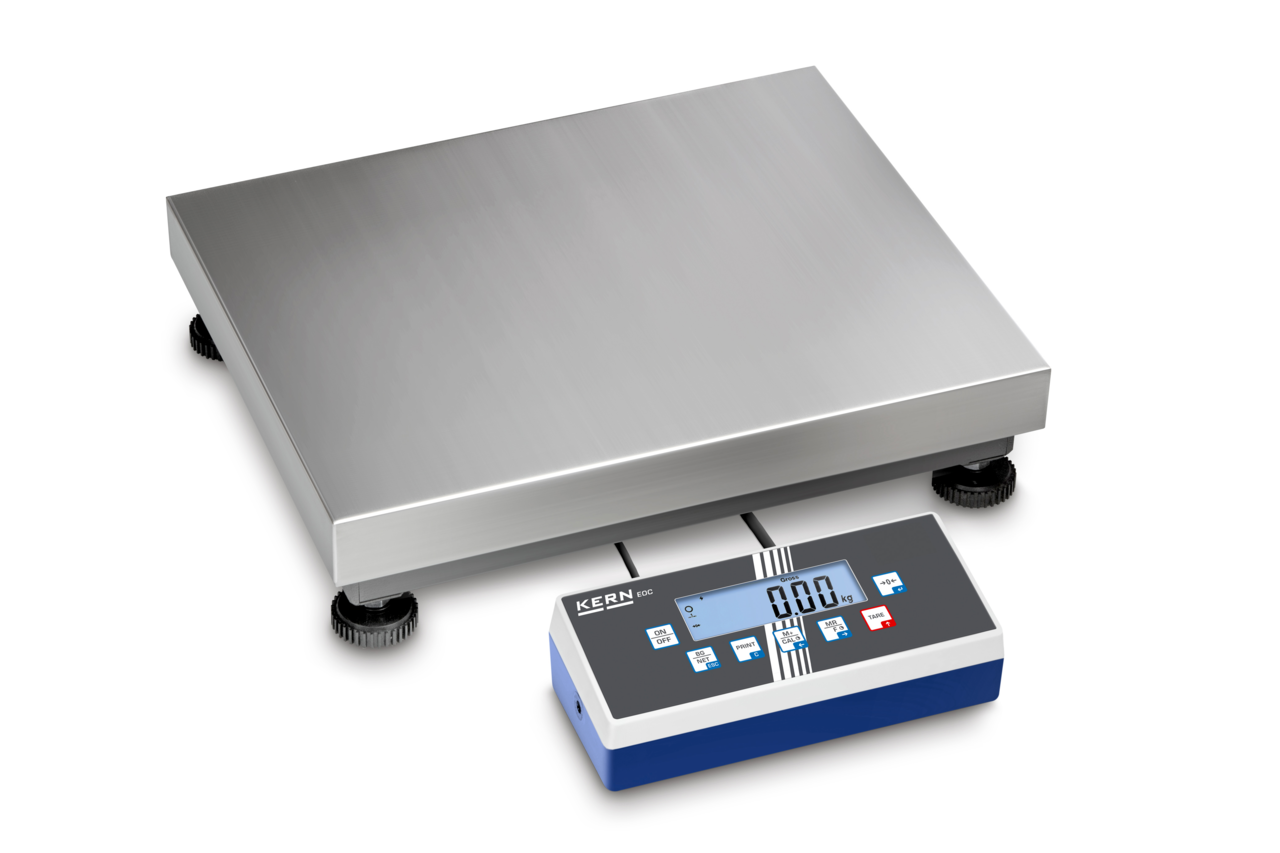

KERN & SOHN EOC 100K-2L EOC Platform Scale, 150 kg Capacity, 0.05 kg Readability, IP65 Rated, RS-232

KERN & SOHN EOC 100K-2L Platform Scale — 60 kg / 150 kg Dual-Range, IP65 Rated, Low-Profile Platform Scale with RS-232

Combining the full feature set of the EOC 100K-2 with a low-profile legless construction, the KERN & SOHN EOC 100K-2L Platform Scale is engineered for ground-level loading in wet or dusty environments. IP65 protection, dual-range weighing, and RS-232 output serve food processing, logistics, and light manufacturing workflows where both floor-level access and data connectivity are required.

Key Features

• Low-profile ground-level loading: Legless L-series construction positions the mild steel platform near floor level so wheeled loads, trolleys, and pallet trucks can be rolled directly onto the weighing surface.
• IP65 protection: Full IP65 rating on indicator and load cell enables operation in washdown, humid, and dusty environments typical of food production and industrial facilities.
• Dual weighing ranges: First range 60 kg / 0.02 kg and second range 150 kg / 0.05 kg allow single-instrument operation across both lighter and heavier load categories.
• RS-232 data connectivity: Standard RS-232 port transfers weight readings to printers and production systems, supporting quality records and traceability documentation.
• Tolerance weighing and checkweighing: Integrated tolerance weighing sets upper and lower weight limits for rapid pass/fail sorting, reducing manual inspection at production or packing stations.

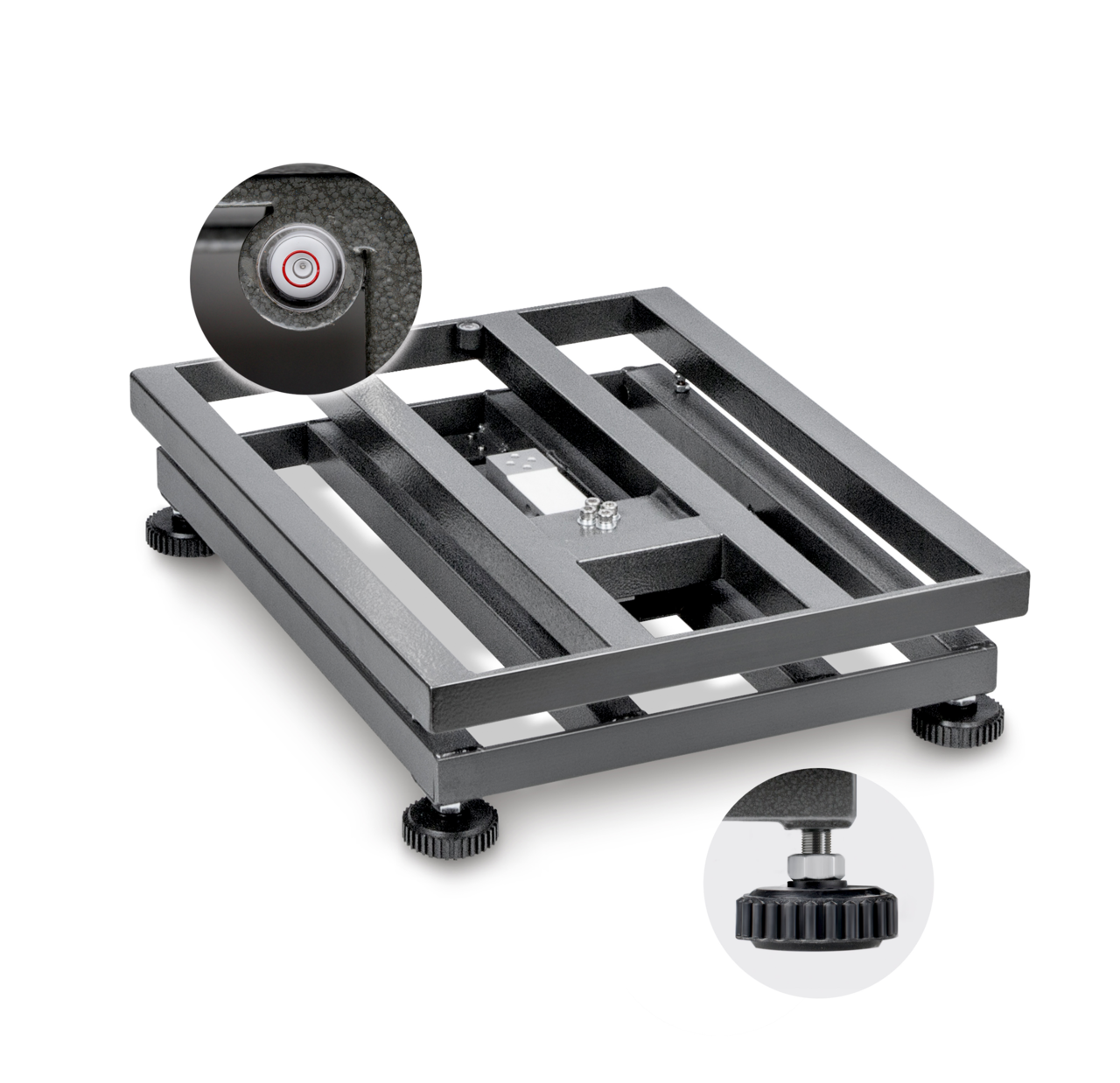

• Adjustable levelling feet: Levelling feet compensate for floor irregularities, ensuring stable platform performance and accurate readings across different installation locations.
• Sum memory and percentage functions: Sum A accumulation and percentage determination support multi-batch totalling and proportional weighing in food and industrial applications.

Detailed Overview

The KERN & SOHN EOC 100K-2L Platform Scale carries the same dual-range, IP65-protected specification as the EOC 100K-2 in a low-profile legless construction for floor-level loading. A single aluminium load cell provides 60 kg / 0.02 kg in range 1 and 150 kg / 0.05 kg in range 2, with linearity of ±0.06 kg and ±0.15 kg respectively. The mild steel platform pairs with a 268×115×80 mm backlit LCD on an inclinable 330 mm stand. RS-232 is standard; rechargeable battery is optional. Warm-up is 10 minutes; stabilization is 2 seconds. Calibration uses a 150 kg M1 external weight. Tolerance weighing, sum memory, percentage, and piece counting are built in.

Applications

• Food processing lines requiring IP65 ground-level platform weighing with RS-232
• Industrial washdown environments with floor-level loading of wheeled trolleys
• Logistics and cold-storage facilities handling heavy moisture-exposed goods
• Production QC checkweighing with data output and tolerance pass/fail functions
• Weighing stations where pallet trucks or hand trolleys deliver loads directly to the scale

Why Choose the KERN & SOHN EOC 100K-2L?

Food production and industrial facilities needing IP65 floor-level dual-range platform weighing with RS-232 will find the KERN & SOHN EOC 100K-2L Platform Scale fully equipped. Order today from Weighcore.
