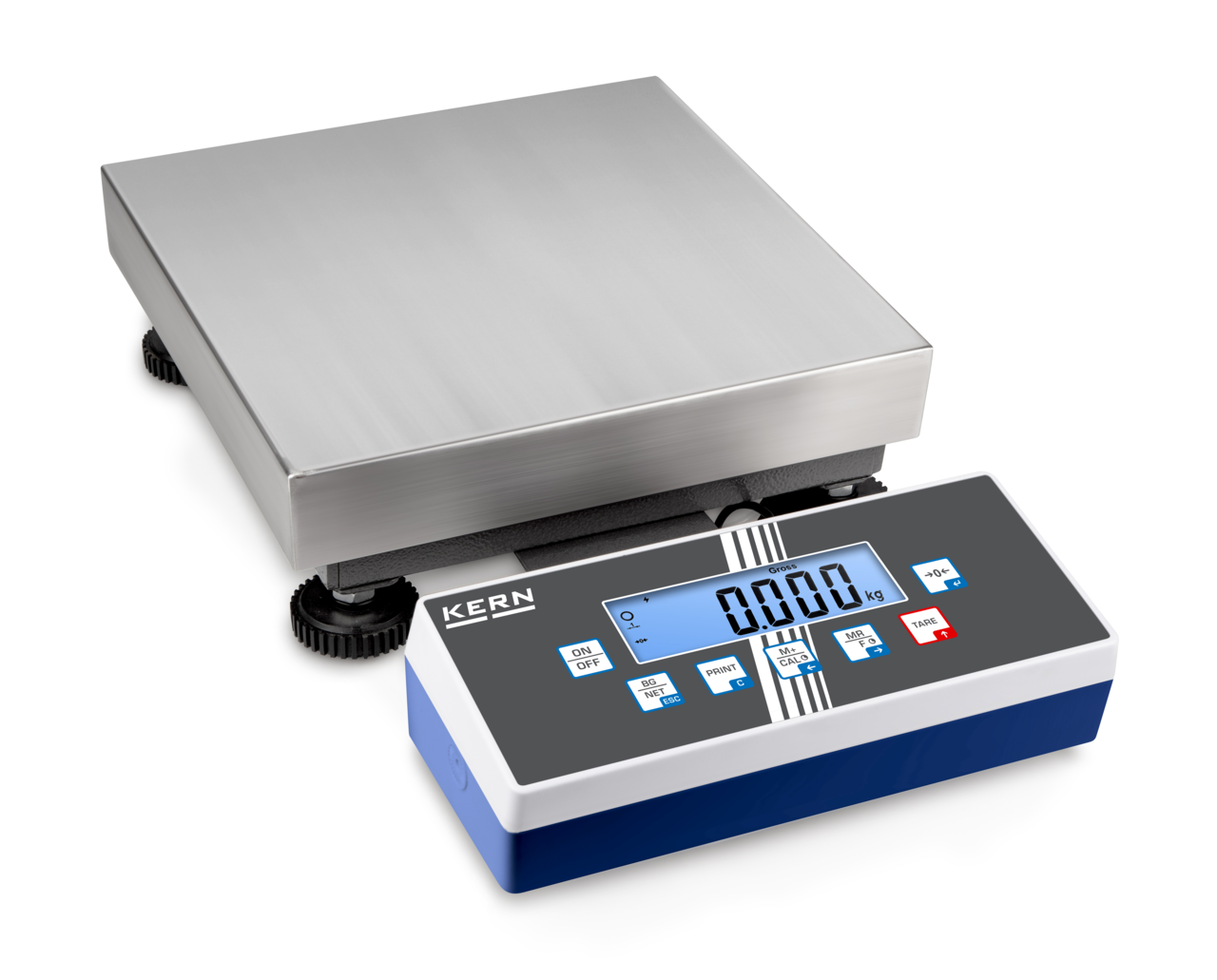

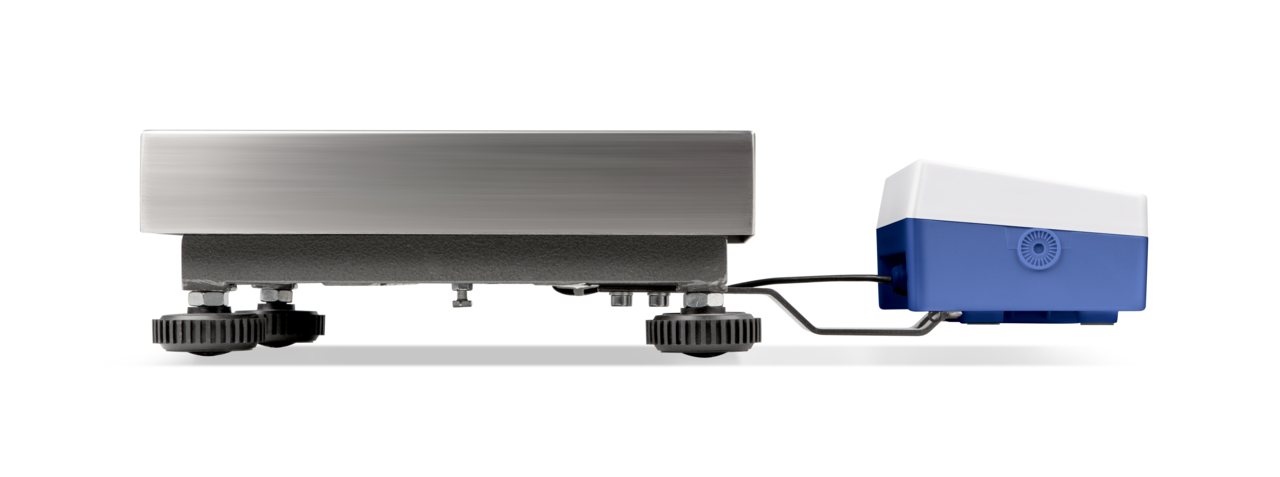

KERN & SOHN EOC 100K-2 EOC Platform Scale, 150 kg Capacity, 0.05 kg Readability, IP65 Rated, RS-232

KERN & SOHN EOC 100K-2 Platform Scale — 60 kg / 150 kg Dual-Range, IP65 Rated, RS-232 Industrial Platform Scale

Dual weighing ranges, IP65 protection, and RS-232 connectivity make the KERN & SOHN EOC 100K-2 Platform Scale a versatile solution for light industrial and logistics environments. A first range of 60 kg at 0.02 kg and a second range of 150 kg at 0.05 kg let operators select the appropriate resolution for each job from a single instrument.

Key Features

• Dual weighing ranges: A first range of 60 kg / 0.02 kg and a second of 150 kg / 0.05 kg allow operators to work at two different resolution levels without swapping instruments.
• IP65-rated protection: Full IP65 protection on the indicator and load cell allows the scale to be used in wet, dusty, or washdown environments — a key requirement in food processing and light manufacturing.
• RS-232 data interface: Standard RS-232 output streams weight data to printers, PCs, and data systems, supporting traceability and production reporting workflows.
• Backlit LCD indicator: 6-digit backlit display with 268×115×80 mm housing provides clear readability in low-light warehouse and production environments.
• Tolerance weighing and checkweighing: Built-in tolerance weighing function allows operators to set upper and lower weight limits and sort items to specification in a single operation.
• Percentage determination and summing: Percentage and sum memory (Sum A) modes support portion control, yield monitoring, and multi-batch accumulation in one instrument.
• 330 mm adjustable stand: The included stand lifts the indicator to a comfortable viewing height and is inclinable for optimal reading angle at the operator's position.

Detailed Overview

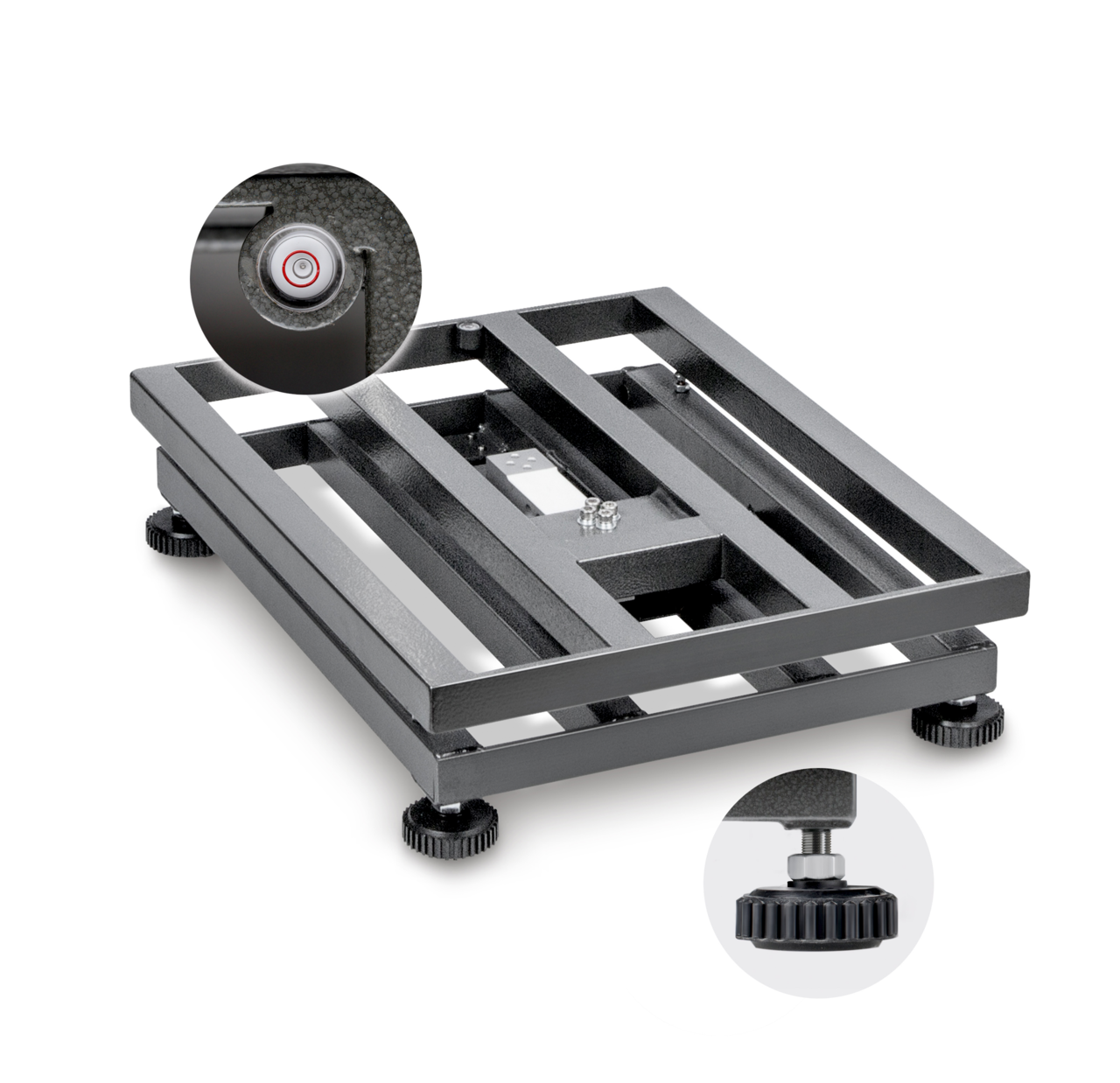

The KERN & SOHN EOC 100K-2 Platform Scale uses a single aluminium load cell with 3,000-division resolution in each of its two ranges. The first range covers 60 kg at 0.02 kg readability; the second covers 150 kg at 0.05 kg. Reproducibility is 0.02 kg and 0.05 kg respectively, with linearity of ±0.06 kg and ±0.15 kg. The mild steel platform is paired with an IP65-rated aluminium load cell and a 268×115×80 mm backlit LCD indicator. The indicator stand rises to 330 mm and is inclinable. RS-232 is standard; rechargeable battery is optional. Warm-up is 10 minutes; stabilization is just 2 seconds. Calibration uses a 150 kg M1 external weight. Built-in functions include tolerance weighing, percentage, sum memory, and piece counting.

Applications

• Food processing and light manufacturing requiring IP65-rated washdown capability
• Logistics operations needing dual-range flexibility in a single platform scale
• Production QC check-weighing with tolerance limits and RS-232 data output
• Portion control and yield monitoring in food service and industrial kitchens
• Warehouse receiving and goods-out verification with data transfer to WMS

Why Choose the KERN & SOHN EOC 100K-2?

Industrial operations that demand IP65 protection, dual-range weighing, and RS-232 connectivity in a platform scale will find the KERN & SOHN EOC 100K-2 Platform Scale purpose-built for the task. Available at Weighcore.
