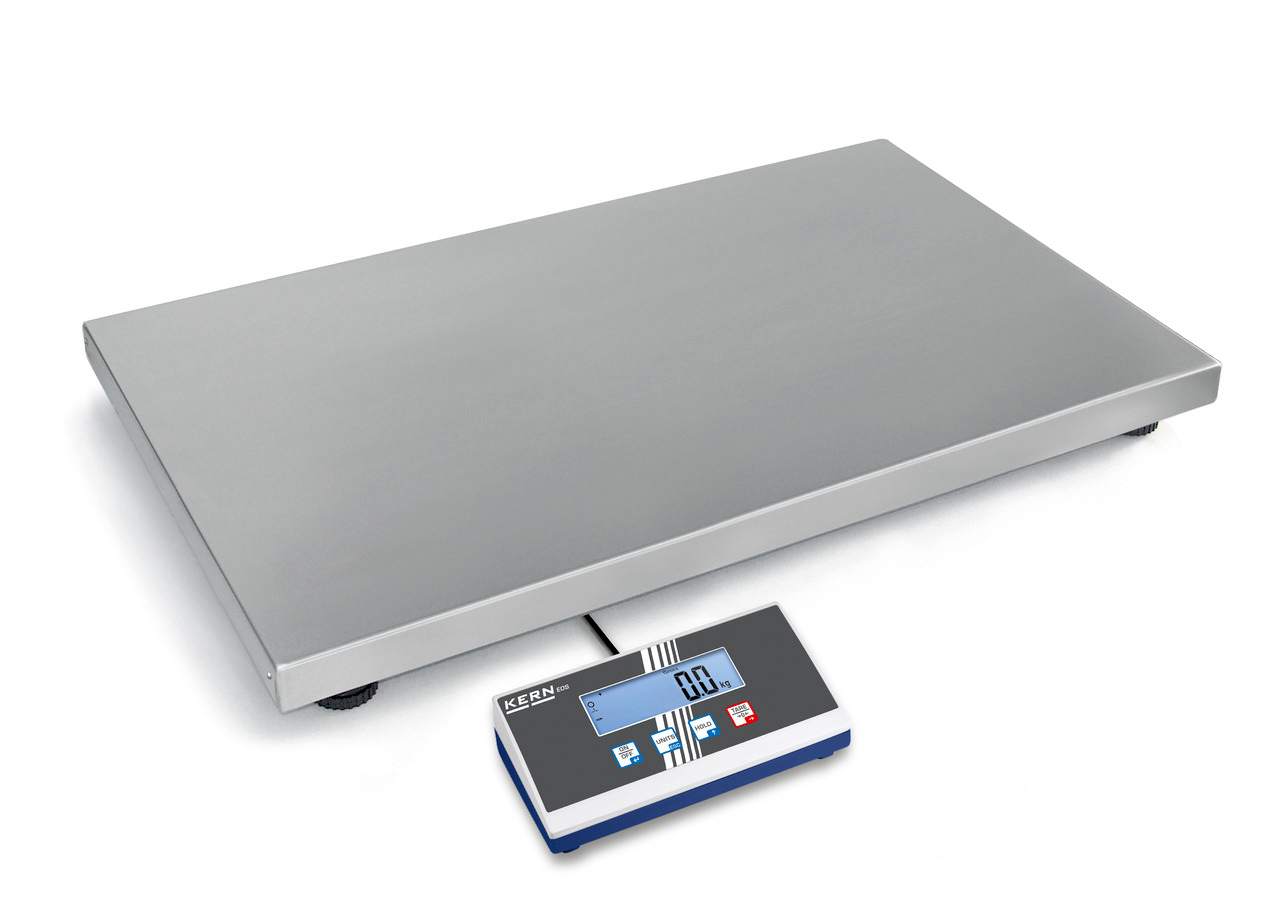

KERN & SOHN EOB 300K100XL EOB Platform Scale, 300 kg Capacity, 0.1 kg Readability

KERN & SOHN EOB 300K100XL Platform Scale — 300 kg, 0.1 kg Readability — Oversized XL Heavy-Duty Platform Scale

Wide cargo, pallet loads, and large-footprint freight are handled securely on the KERN & SOHN EOB 300K100XL Platform Scale. The XL extended platform surface accommodates loads that would overhang a standard platform while maintaining 300 kg capacity and 0.1 kg readability for reliable heavy-freight weighing.

Key Features

• XL extended platform area: Wider platform surface prevents load overhang with large pallet configurations, wide-base drums, and oversized freight that cannot be centred on a standard platform.
• 300 kg / 0.1 kg heavy-duty accuracy: 3.000 divisions across 300 kg delivers consistent 0.1 kg readability and reproducibility regardless of load position across the extended platform.
• Low-profile ground-level access: XL-series low-profile construction allows wheeled trolleys and pallet trucks to roll directly onto the weighing surface without lifting.
• Adjustable levelling feet: Level compensation feet ensure platform stability on uneven warehouse and factory floors, protecting measurement accuracy.
• Wall-mountable indicator: Compact 235×114×51 mm display mounts away from the loading zone, maintaining visibility without impeding loading operations.
• Hold and multi-tare functions: Hold captures readings from unstable freight; multi-tare removes container weight in steps across the full 300 kg working range.
• M2-class calibration traceability: 200 kg M2 external calibration maintains weighing traceability for trade and inventory compliance.

Detailed Overview

The KERN & SOHN EOB 300K100XL Platform Scale combines a 300 kg / 0.1 kg specification with an extended XL platform surface and low-profile construction for floor-level loading. Strain gauge technology provides 3.000 divisions with 0.1 kg reproducibility and ±0.2 kg linearity. The 235×114×51 mm indicator is wall-mountable, and adjustable levelling feet handle uneven installation surfaces. Mains power adapter is supplied; warm-up is 10 minutes; stabilization is 3 seconds. Manual multi-tare, hold, and PCS piece counting are standard. Maximum creep is 0.3 kg in 15 minutes. External calibration uses a 200 kg M2 weight.

Applications

• Pallet and oversize freight weighing in warehouses and distribution centres
• Floor-level loading of wide-base drums, crates, and irregular cargo
• Heavy goods-in receiving and despatch check-weighing
• Industrial floor scales for large-footprint component and assembly weighing
• Logistics operations requiring both XL platform area and high 300 kg capacity

Why Choose the KERN & SOHN EOB 300K100XL?

When freight or industrial weighing demands both a large platform area and 300 kg capacity, the KERN & SOHN EOB 300K100XL Platform Scale is the right instrument for the task. Buy at Weighcore.
