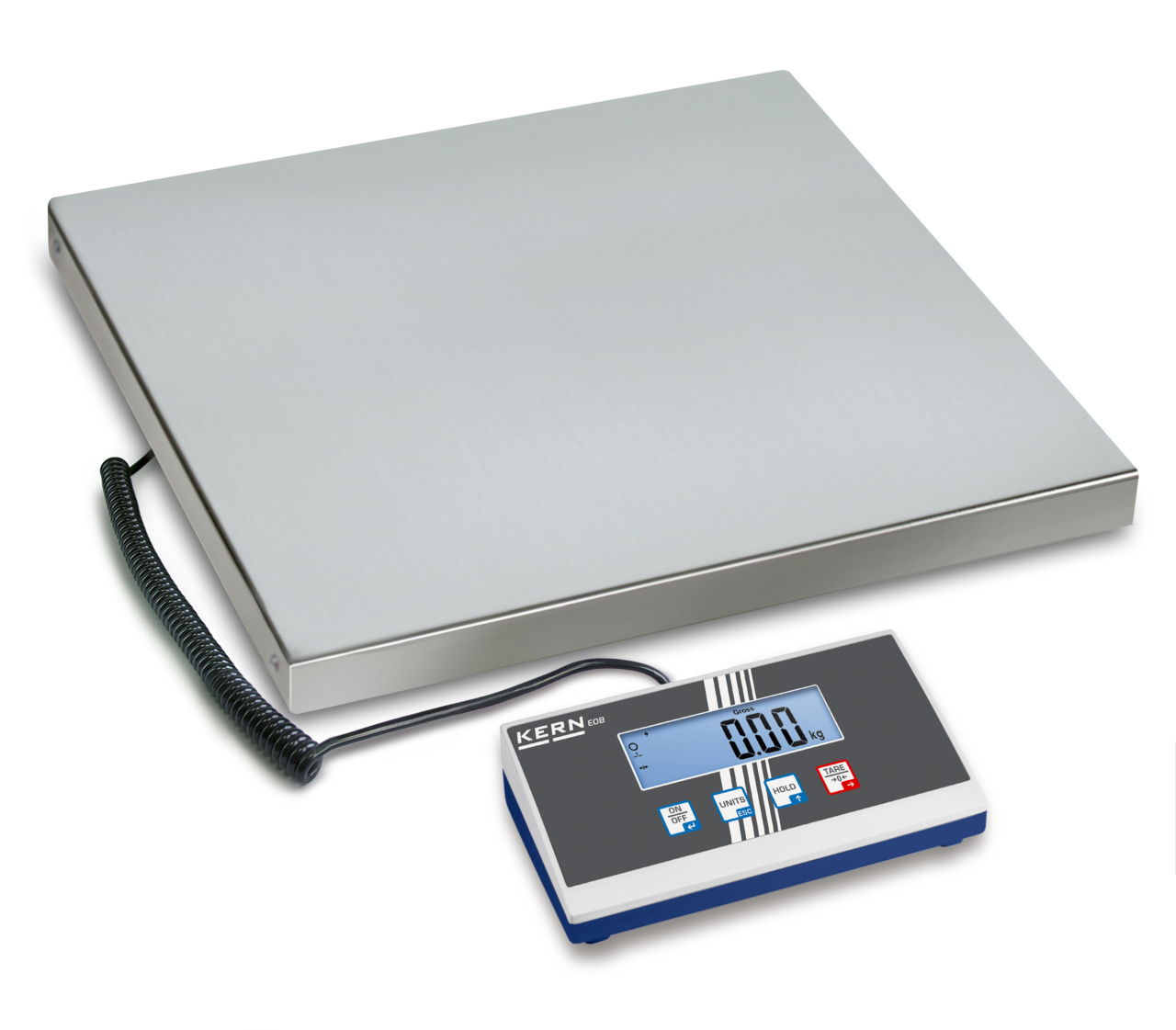

KERN & SOHN EOB 150K50L EOB Platform Scale, 150 kg Capacity, 0.05 kg Readability

KERN & SOHN EOB 150K50L Platform Scale — 150 kg, 0.05 kg Readability — Legless Low-Profile Platform Scale

Ground-level loading and flush-floor installation define the KERN & SOHN EOB 150K50L Platform Scale. The L-series low-profile design removes the standard legs so the platform sits near-flush with the floor, enabling pallets, trolleys, and heavy loads to be rolled directly onto the weighing surface without lifting.

Key Features

• Low-profile legless design: The L-series variant omits the standard platform legs, positioning the weighing surface close to floor level so wheeled loads can be rolled on without the risk of tipping.
• 150 kg / 0.05 kg accuracy: 3.000 divisions across 150 kg maintains 0.05 kg readability and reproducibility for reliable parcel and freight weight capture.
• Stainless steel platform surface: Corrosion-resistant stainless steel withstands damp cargo, cleaning agents, and frequent loading in warehouse and retail environments.
• Wall-mountable indicator: The 235×114×51 mm display mounts to a wall or upright, keeping the indicator at eye level and free of the floor loading zone.
• Adjustable levelling feet: Adjustable feet compensate for uneven floor surfaces, ensuring the platform remains stable and level across different installation sites.
• Multi-tare and hold function: Manual multi-tare zeroes containers in steps while the hold function locks a stable result even on slightly unstable loads.
• M2-class external calibration: Single-point 100 kg M2 calibration keeps the scale verified and traceable for logistics and warehousing compliance requirements.

Detailed Overview

The KERN & SOHN EOB 150K50L Platform Scale extends the standard EOB 150K50 with a low-profile construction that positions the stainless steel weighing surface near floor level for ground-level loading. The strain gauge system delivers 3,000-division resolution across 150 kg with 0.05 kg readability, 0.05 kg reproducibility, and ±0.1 kg linearity. A 10-minute warm-up and 3-second stabilization support continuous throughput. The 235×114×51 mm indicator mounts to a wall or stand post. Manual multi-tare and hold function are standard. PCS piece counting and kg/lb unit switching are available. External calibration uses a 100 kg M2 reference weight at a single point.

Applications

• Flush-floor weighing of palletised and wheeled loads in warehouses
• Logistics despatch stations where rolling goods directly onto the platform is required
• Retail storage areas with bulky or awkwardly shaped freight
• Loading bay check-weighing of incoming and outgoing consignments
• Facilities where floor-level access eliminates manual lifting of heavy items

Why Choose the KERN & SOHN EOB 150K50L?

Warehouses and logistics operations that need low-profile, floor-level platform weighing up to 150 kg will find the KERN & SOHN EOB 150K50L Platform Scale an ideal solution. Order today from Weighcore.
