KERN & SOHN EMB 200-3V EMB Educational Balance, 200 g Capacity, 0.001 g Readability, LCD Time - Backlight Off Display, RS-232

KERN & SOHN EMB 200-3V Educational Balance — 200 g, 0.001 g Readability with Density Determination and RS-232 Output

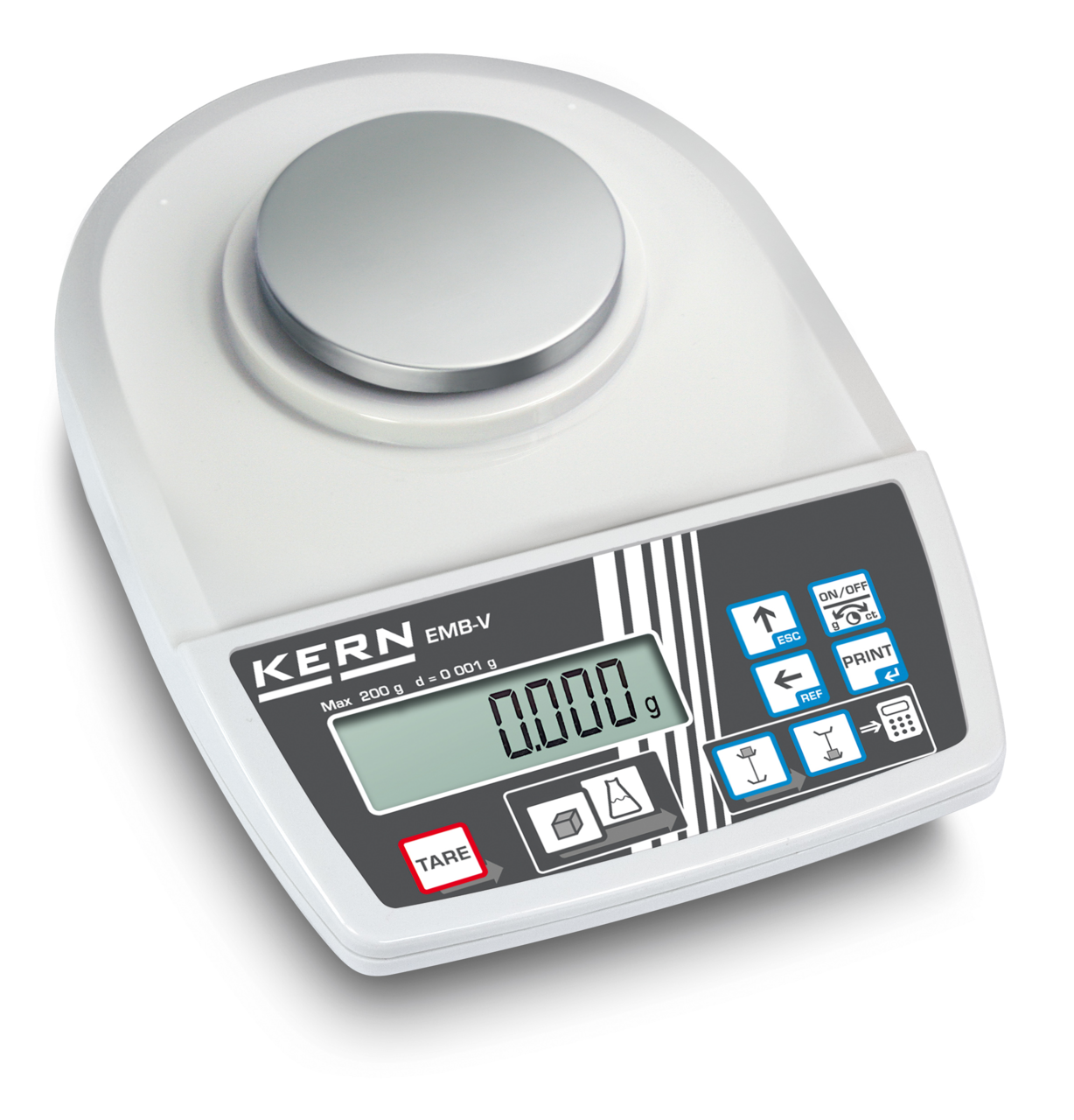

Advanced educational weighing with RS-232 data transfer and density determination is the brief for the KERN & SOHN EMB 200-3V Educational Balance. At 200 g capacity and 0.001 g readability, this V-series model extends the standard EMB 200-3 with connectivity and analytical functions suited to college and technical curricula.

Key Features

• RS-232 interface for data output: Standard RS-232 port enables direct connection to computers and printers, supporting data-recording exercises and printed weight certificates in educational laboratory sessions.
• Density determination function: Built-in Archimedes-method density determination equips students to measure solid and liquid densities without additional equipment — a key analytical skill.
• 0.001 g readability at 200 g: 200,000-division resolution delivers genuine milligram precision, with 0.002 g reproducibility across repeated measurements.
• Carat unit alongside grams: Supporting grams and carats (0.005 ct readability, 1000 ct maximum) enables gemology and precious material exercises within the same instrument.
• 9-key operation panel: Nine dedicated function keys provide direct access to density mode, unit selection, RS-232 transmission, and tare without navigating menus.
• Battery or mains powered: Up to 12 hours on a 9 V block battery for portable use, with an included mains adapter for continuous benchtop operation.
• F1-class external calibration: 200 g F1-class calibration point ensures traceable precision and demonstrates to students the connection between accuracy and calibration weight quality.

Detailed Overview

The KERN & SOHN EMB 200-3V Educational Balance extends the EMB 200-3 platform with an RS-232 interface and integrated density determination, housed in a slightly larger 175×250×55 mm plastic enclosure. The strain gauge system delivers 0.001 g readability across 200 g with 200.000 divisions, 0.002 g reproducibility, and ±0.005 g linearity. Maximum creep is held to 10 mg over 15 minutes. Density determination uses the Archimedes principle through the built-in function, and the 9-key panel gives operators direct access without menus. Battery life is 12 hours from a 9 V block, with the power adapter included. Carat weighing extends to 1000 ct at 0.005 ct readability. The 120-minute warm-up applies for full-rated accuracy.

Applications

• College chemistry and physics labs requiring data logging and density analysis
• Gemology and materials science education with carat and gram output
• GLP-aligned teaching exercises where printed weight records are assessed
• Advanced practical sessions using RS-232 to connect to lab data systems
• Density and specific gravity determination exercises for solid and liquid samples

Why Choose the KERN & SOHN EMB 200-3V?

Colleges and technical institutes seeking a milligram-resolution educational balance with RS-232 output and density functionality will find the KERN & SOHN EMB 200-3V Educational Balance exactly equipped. Buy at Weighcore.
