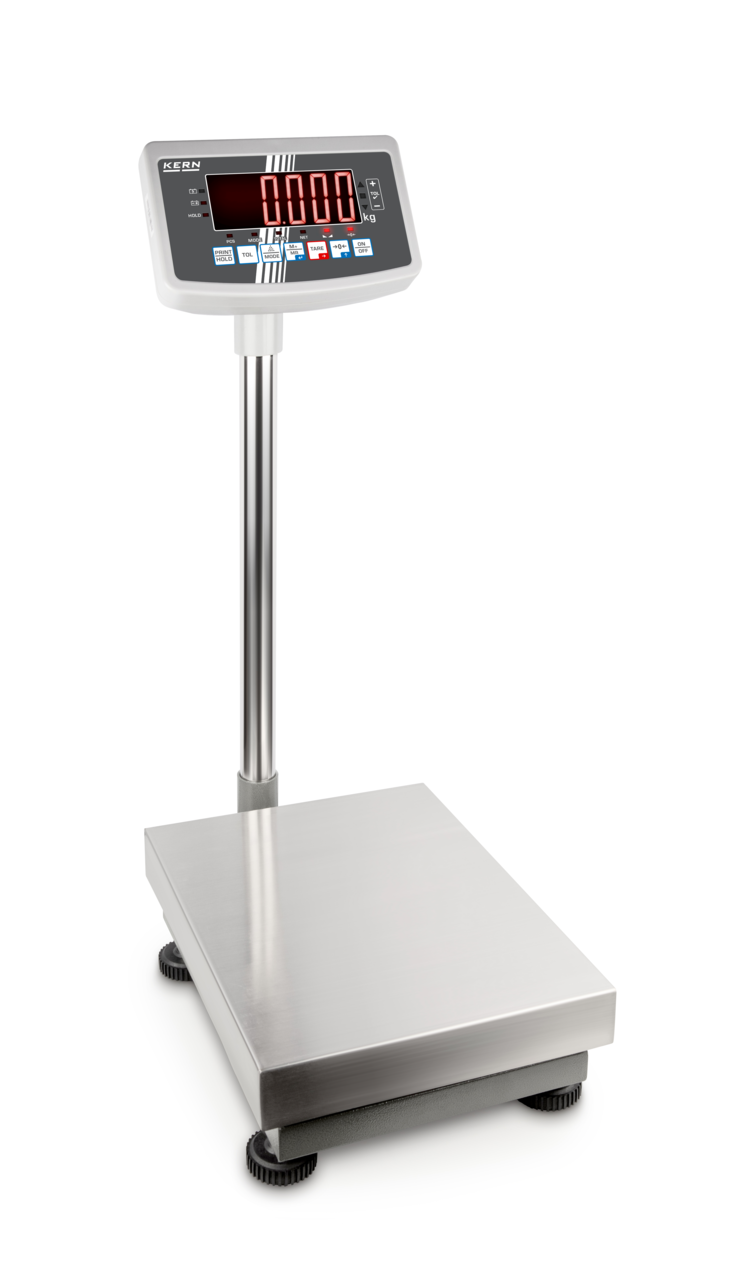

KERN & SOHN EFC 60K-3L EFC Platform Scale, 60 kg Capacity, 0.005 kg Readability, RS-232

KERN & SOHN EFC 60K-3L Platform Scale — 60 kg Capacity, 0.005 kg Readability

The KERN & SOHN EFC 60K-3L Platform Scale pairs a single aluminium load cell with a 0.005 kg readability and a lacquered steel platform built for industrial daily use. Its steel, lacquered frame, single aluminium load cell, LED segment display, and RS-232 output make it a straightforward, durable solution for high-throughput weighing in production lines, loading docks, and goods-in areas.

Key Features

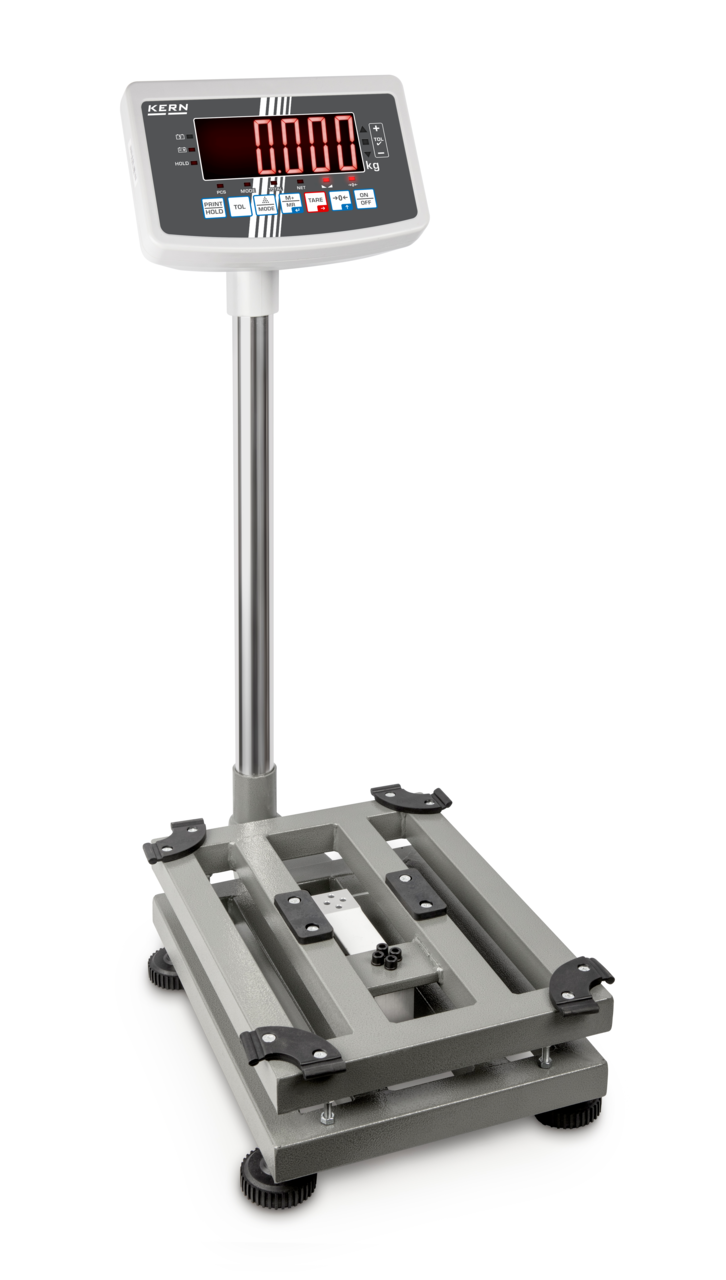

• Industrial steel, lacquered frame: The heavy-duty platform withstands repetitive loading on busy industrial floors without deforming under sustained high-weight use.
• Single aluminium load cell with 4-wire connection: A robust single-cell design with a 12.000-division resolution delivers 0.005 kg readability and 0.005 kg reproducibility across the full 60 kg range.
• Piece counting and recipe summing: Built-in counting and Sum-A recipe mode let operators total batches and count parts without additional instruments.
• Rotatable and inclinable display stand: The 600 mm indicator stand adjusts angle and orientation so operators always read at eye level regardless of platform placement.
• RS-232 connectivity: Standard serial output transmits weight data to printers, PCs, and process control systems for automated documentation.
• Tolerance weighing: Configurable upper and lower thresholds guide operators through acceptance checks quickly without manual target lookups.
• Stainless steel weighing plate: The stainless steel surface resists corrosion from damp goods and cleaning agents, keeping the contact surface hygienic.

Detailed Overview

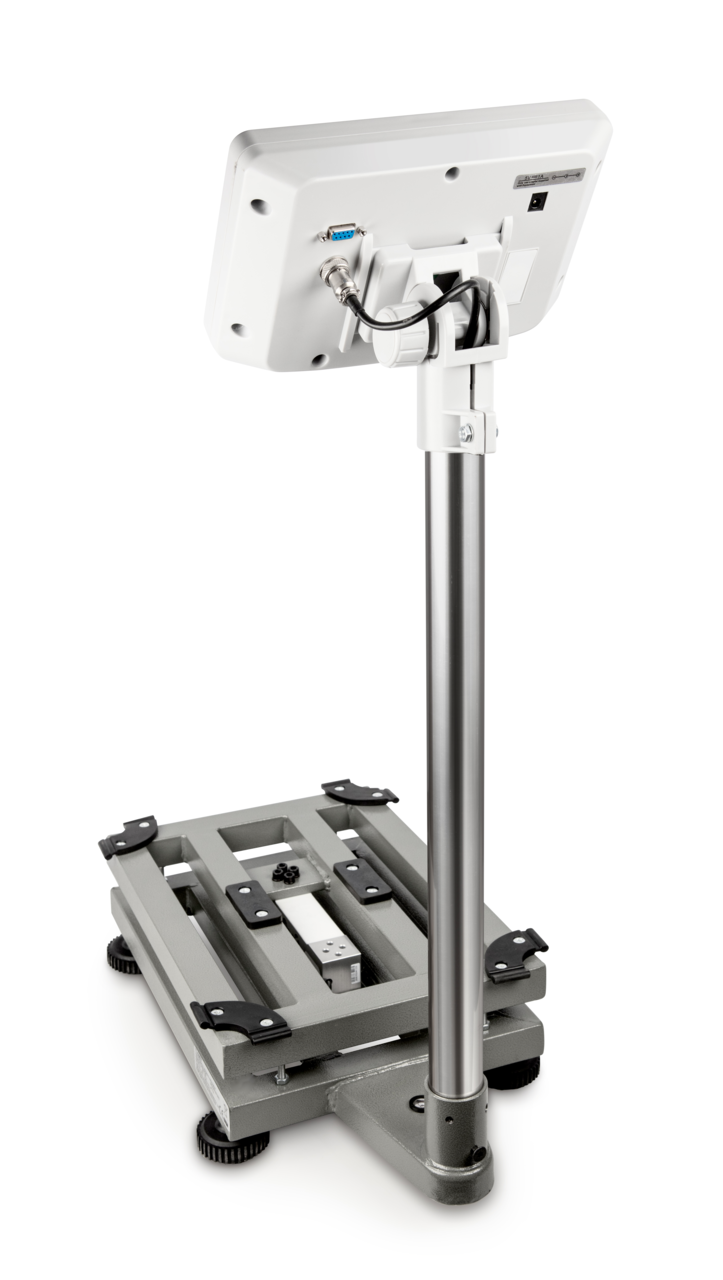

The KERN & SOHN EFC 60K-3L Platform Scale uses a 4-wire aluminium load cell and a lacquered steel, lacquered base with a stainless steel weighing plate. The 12.000-division resolution gives reliable results across a 60 kg range; linearity is ± 0.015 kg and eccentric load performance 0.025 kg. The compact display unit (252×162×57 mm) mounts on an adjustable 600 mm stand. Calibration uses an external weight, with multiple calibration points available up to 60 kg. Warm-up is 30 min and operating temperature range is 0° to 40°C / 32° to 104°F.

Applications

• Incoming goods receipt and outbound freight verification
• Parts counting and batch assembly on production lines
• Capacity control on loading docks and in warehouses
• Recipe and batch totalizing in mixing and processing operations
• Retail and wholesale inventory checks requiring count-by-weight

Why Choose the KERN & SOHN EFC 60K-3L?

The KERN & SOHN EFC 60K-3L Platform Scale combines industrial steel construction with counting, tolerance checking, and recipe totalizing functions that cover the most common production and logistics weighing needs. Its simple external calibration, standard RS-232 output, and adjustable display stand make integration into existing workflows straightforward. Available at Weighcore.
